Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

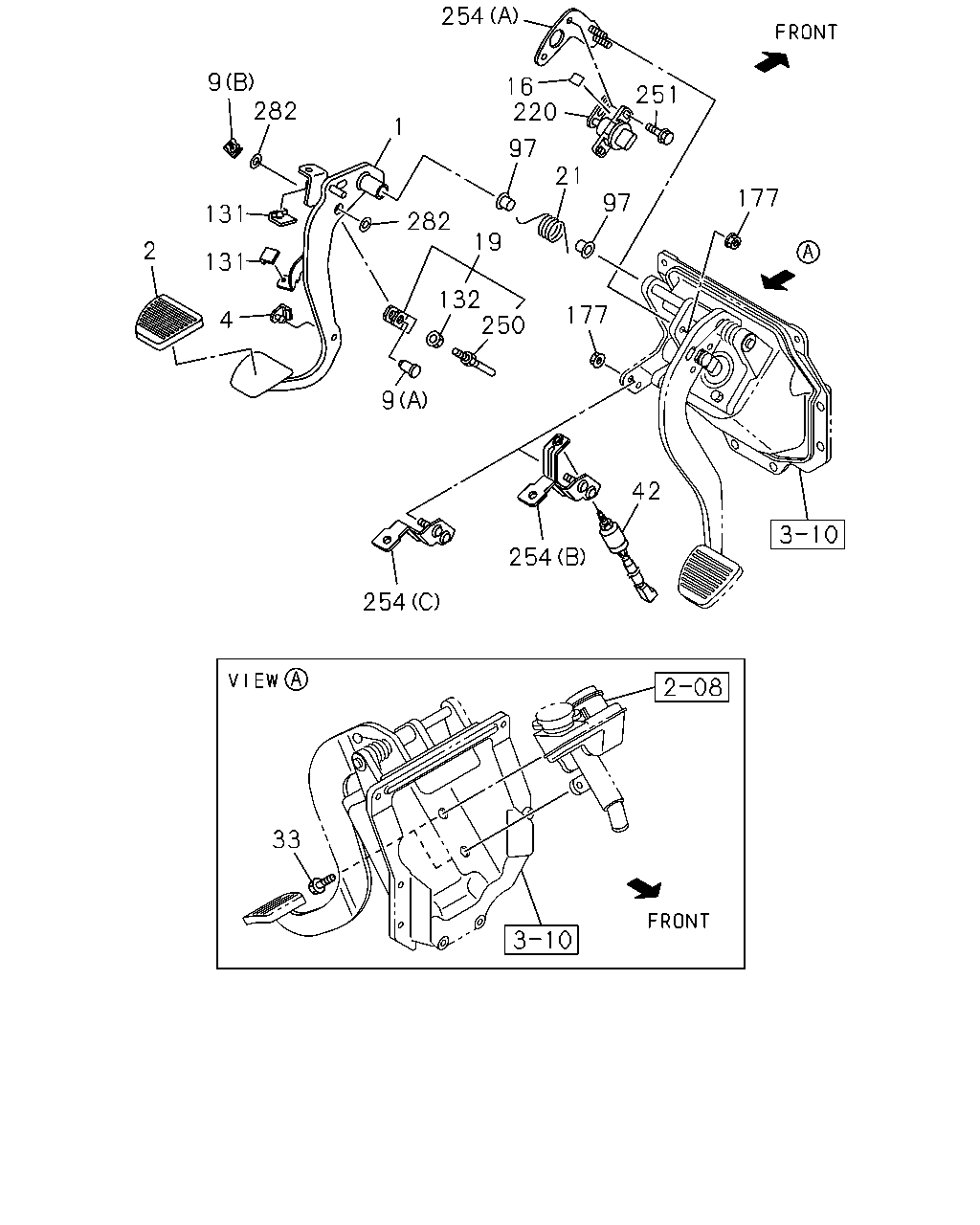

2-03 — CLUTCH PEDAL AND CONTROL
(#117997) — 26 parça
254
16
21
220
97
251
177
97
177
42
33
254
254
9
132
250
19
282
1
282
9
131
2
131
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP>
8-98057-123-0
01
1
1304-
1
PEDAL; CLU
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>
8-97613-941-1
01
1
1304-
1
PEDAL; CLU
H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8>
8-98057-122-0
01
1
1304-
1
PEDAL; CLU
H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8>
8-98021-375-1
01
1
1304-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
1304-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
1304-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
1304-
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1304-
16
SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> 30X30
8-98142-344-0
01
1
1304-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
1304-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
1304-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
1304-
42
SWITCH; CLU
ASSISTOR SHIFT CONTROL<WX8>
8-97620-841-0
01
1
1304-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
1304-
131
STOPPER; CLU SW
ASSISTOR SHIFT CONTROL<WX8>
8-97302-305-0
02
1
1304-
131
STOPPER; CLU SW
EXC. ASSISTOR SHIFT CONTROL<WX8>
8-97302-305-0
01
1
1304-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1304-
177
NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
04
1
1304-
177
NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
1304-
220
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
1-80250-014-0
01
1
1304-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
1304-
251
BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16
0-52000-616-0
02
1
1304-
254
BRACKET; CLU SENSOR
ASSISTOR SHIFT CONTROL<WX8> (B)
8-98057-131-1
01
1
1304-
254
BRACKET; CLU SENSOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (C)
8-98021-377-1
01
1
1304-
254
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A)
8-98021-376-1
01
1
1304-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
1304-
