◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#117993) — 31 parça

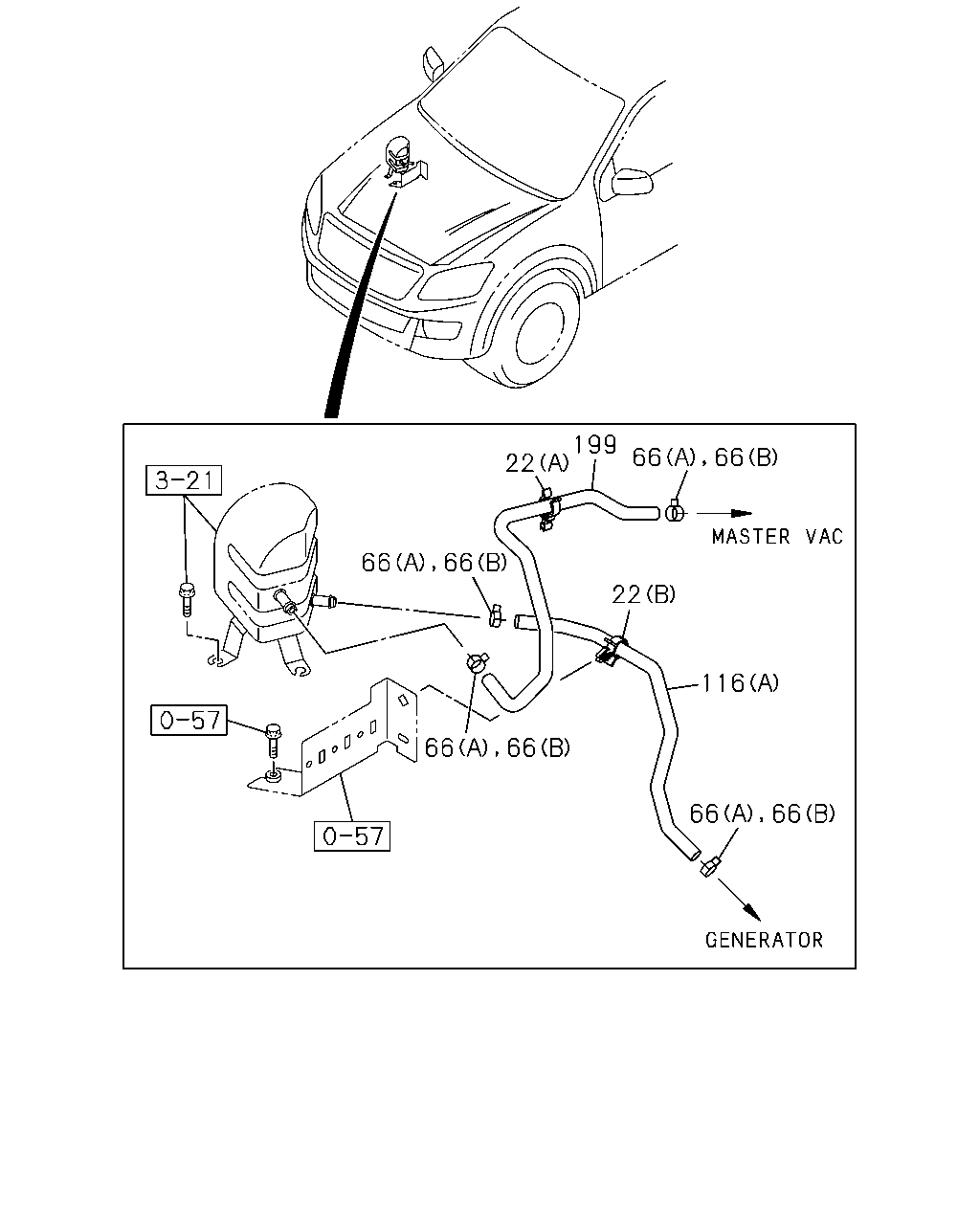

çizim 343310
22 199 66 22 116 66 66 66 66 66 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 1304- ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) (B) 		8-97362-925-0 01 1 1304- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 03 1 1304-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) ID=15.5 		8-98035-872-0 03 1 1304-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-98036-539-0 01 1 1304-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=16 		8-98036-539-0 01 1 1304-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-98036-539-0 04 1 1404- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=16 		8-98036-539-0 04 1 1404- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 1304-1403 ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1304- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) 		8-98100-736-0 01 1 1304- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98100-737-1 01 1 1304- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C) 		8-98100-737-1 01 1 1304- ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-98100-738-0 01 1 1304- ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) 		8-98100-739-2 01 1 1304- ● ●

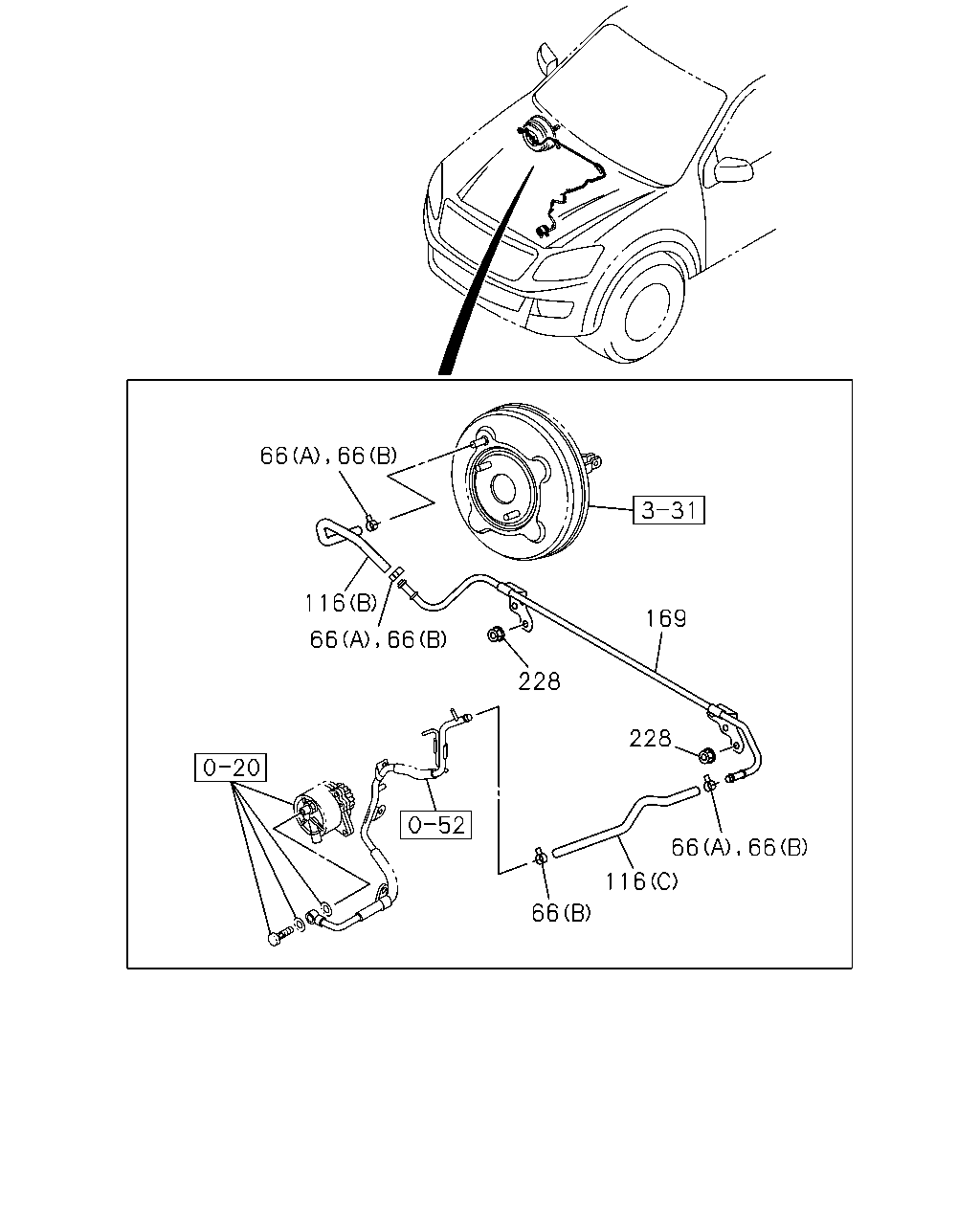

çizim 343317
169 228 66 66 66 66 66 66 66 116 228 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 03 1 1304-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) ID=15.5 		8-98035-872-0 03 1 1304-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-98036-539-0 01 1 1304-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=16 		8-98036-539-0 01 1 1304-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-98036-539-0 04 1 1404- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=16 		8-98036-539-0 04 1 1404- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 1304-1403 ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1304- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) 		8-98100-736-0 01 1 1304- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98100-737-1 01 1 1304- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C) 		8-98100-737-1 01 1 1304- ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-98100-738-0 01 1 1304- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE 8-98100-266-1 01 1 1304- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98100-266-1 01 1 1304- ● ●
228 04.930 NUT; PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ● ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
