◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#117987) — 15 parça

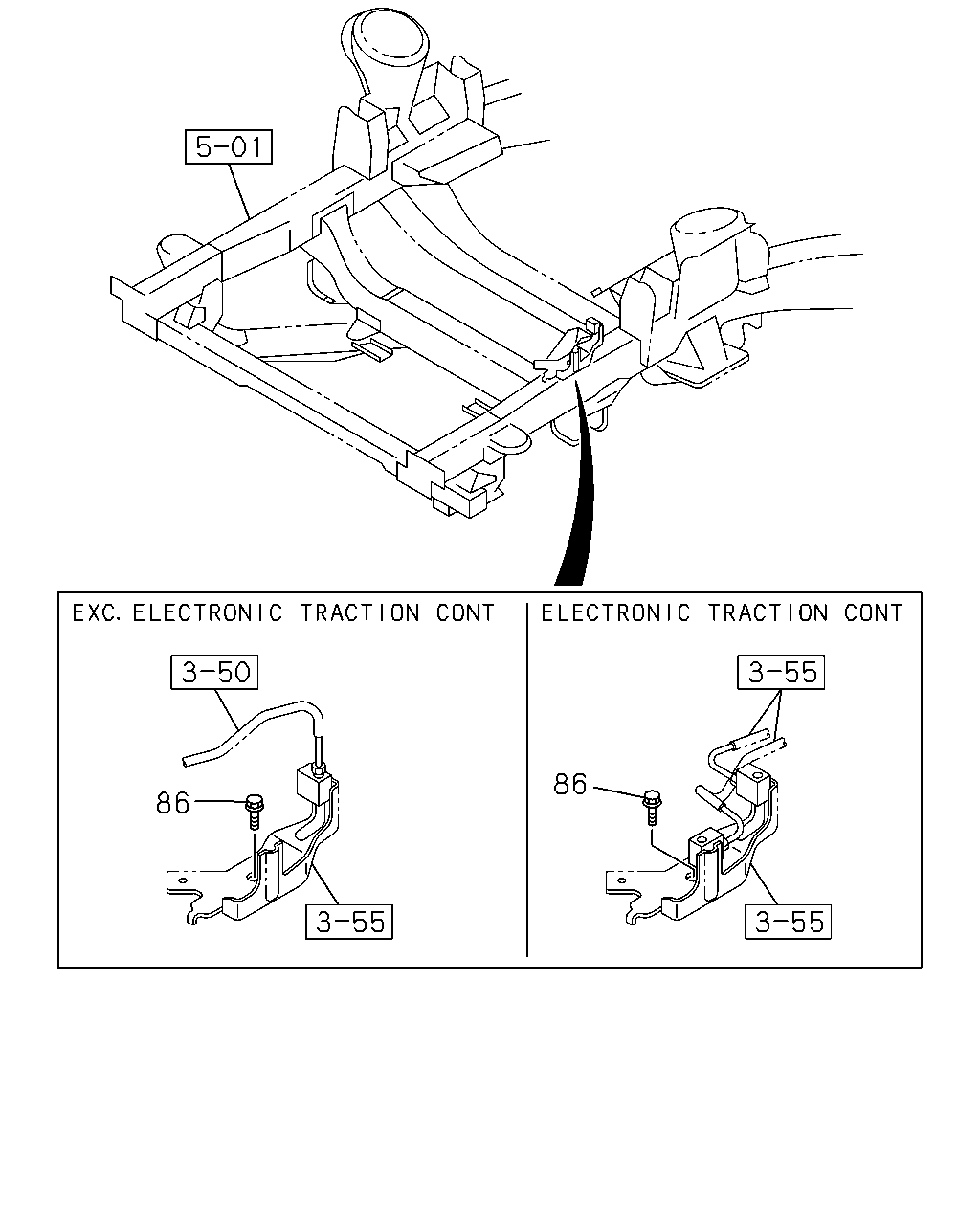

çizim 343165
86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ● ● ● ●

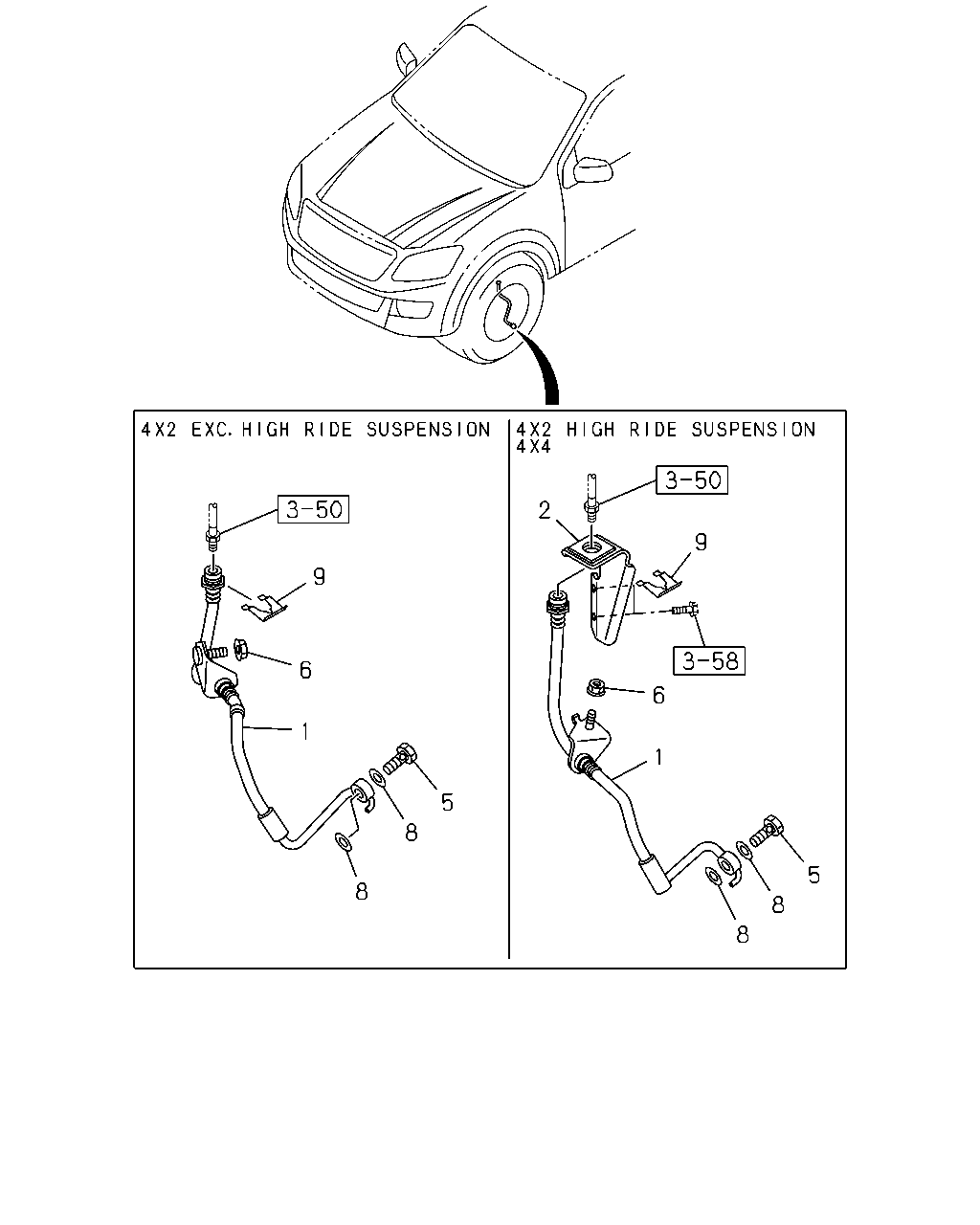

çizim 343240
9 6 1 5 8 8 8 8 5 1 6 9 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-246-4 01 1 1304- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-246-4 01 1 1304- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-247-4 01 1 1304- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-247-4 01 1 1304- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-244-1 01 1 1304- ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-248-1 01 1 1304- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1304- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97947-148-1 01 1 1304- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-149-1 01 1 1304- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97947-149-1 01 1 1304- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1304- ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1304- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1304- ● ● ● ● ●
