Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#117986) — 27 parça
◀

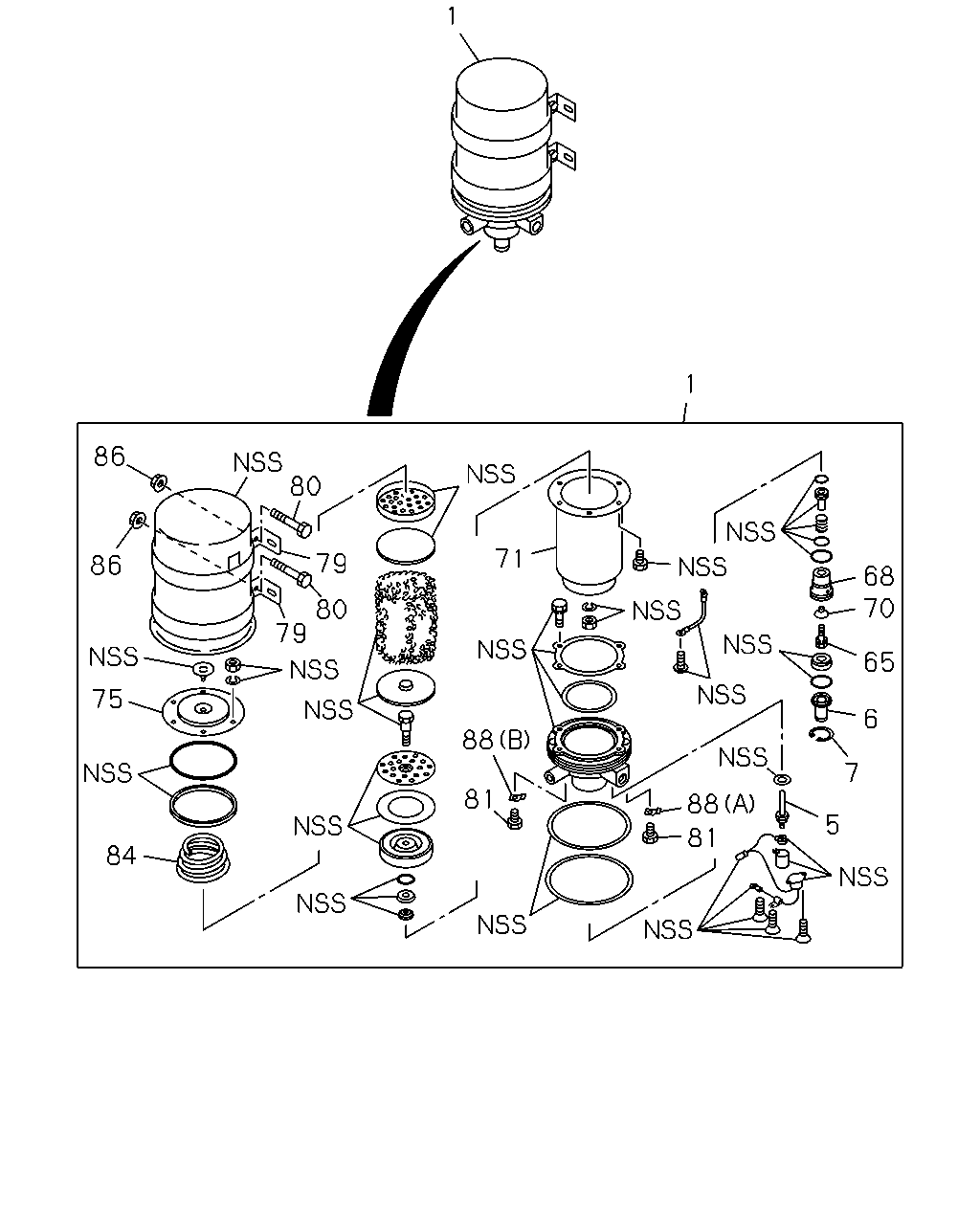

[346A] COMPONENT (16 parça)
[346A] PISTON KIT AND THERMOSTAT KIT (5 parça)

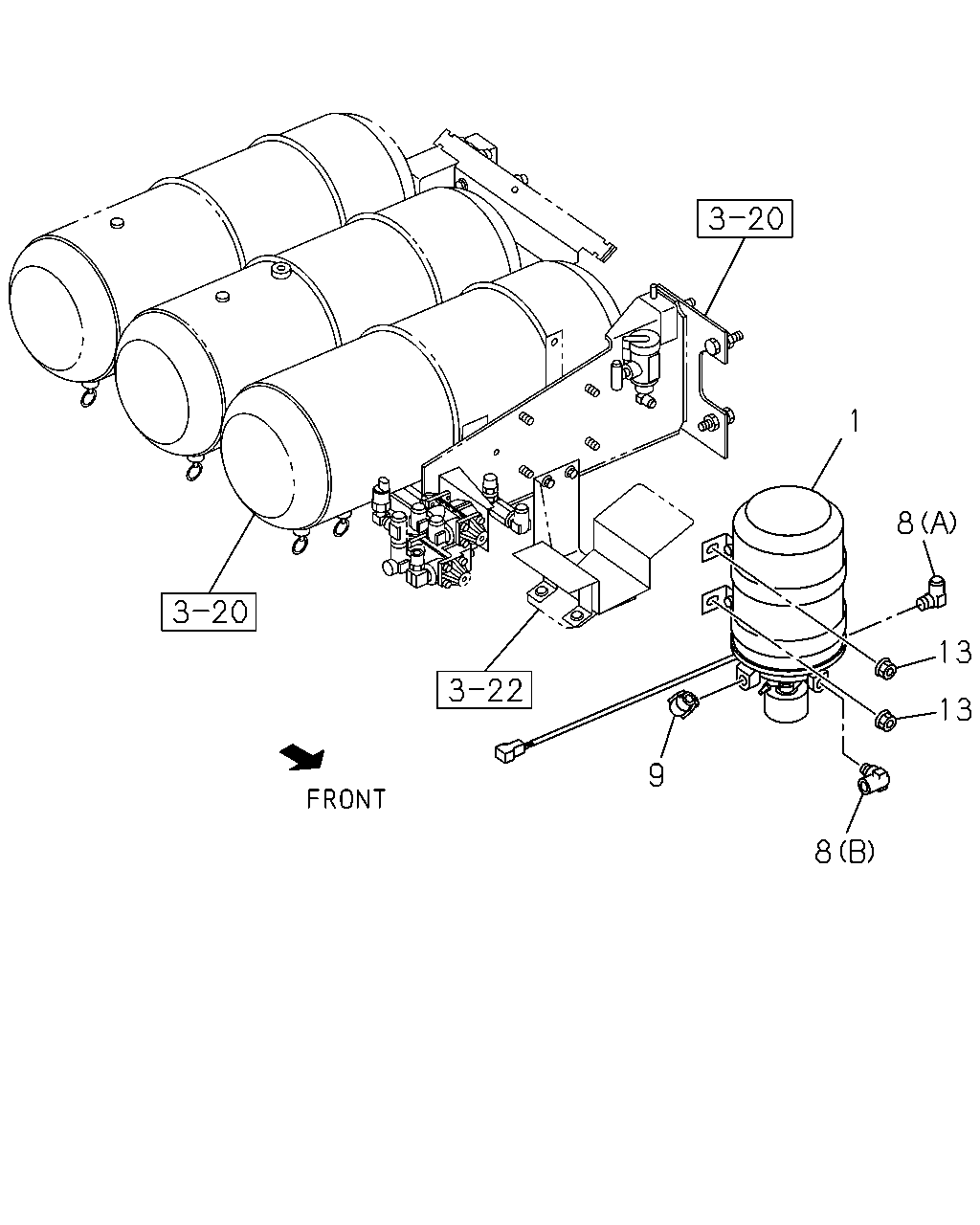

[346A] FIXING (5 parça)

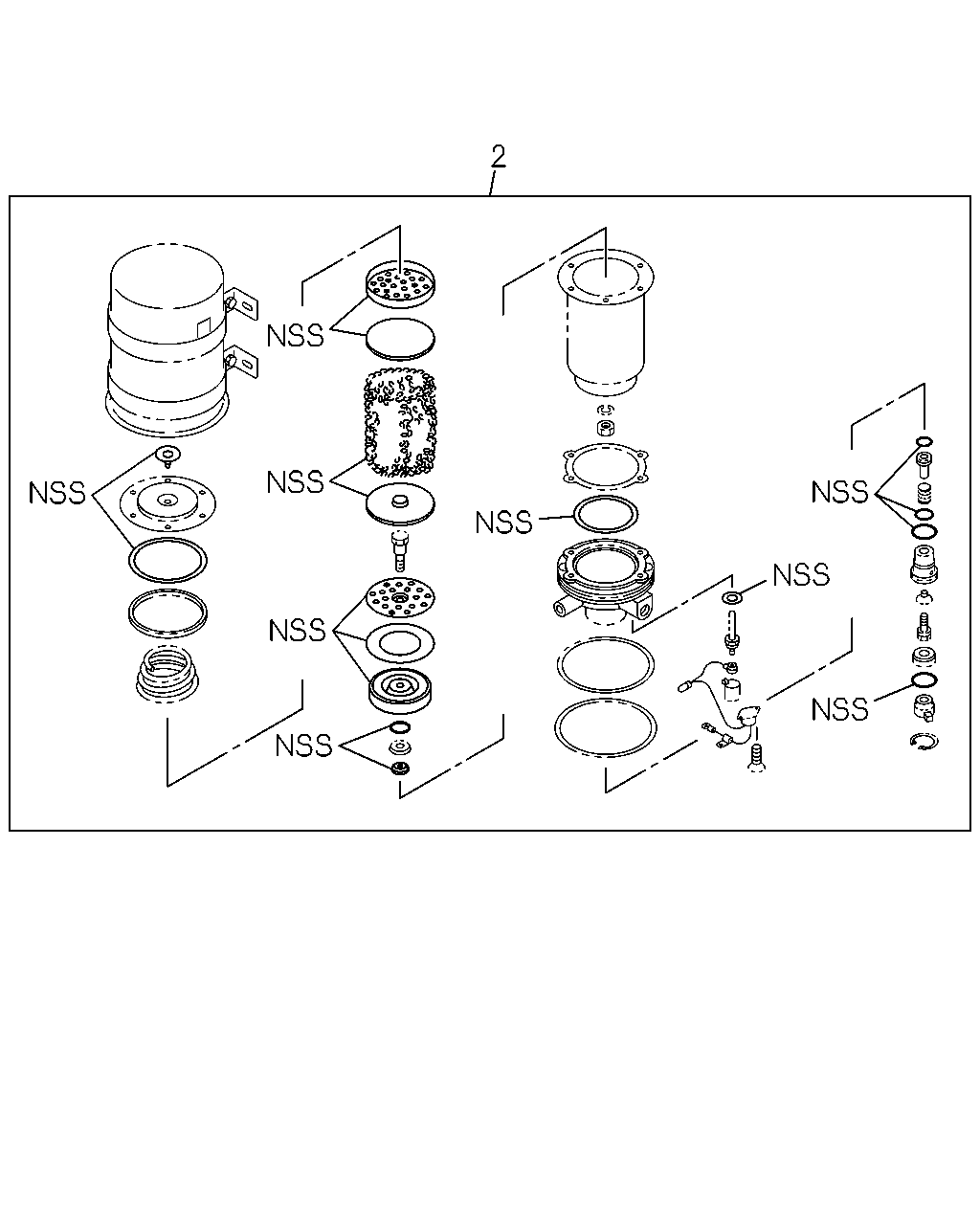

[346A] REPAIR KIT (1 parça)
▶
1
1
86
86
80
71
79
79
75
80
84
88
81
88
81
5
7
68
6
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-277-1
01
1
1304-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
1304-
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
1304-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
1304-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1304-
68
BODY; VALVE
1-48199-216-0
01
1
1304-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1304-
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
1304-
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
1304-
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
1304-
80
BOLT; BRKT
1-48199-190-0
02
1
1304-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
1304-
84
SPRING; AIR DRYER
1-48199-166-0
01
1
1304-
86
NUT; BRKT
1-48199-320-0
02
1
1304-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
1304-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
1304-
3
4
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PISTON KIT; AIR DRYER
1-85576-057-1
01
1
1304-
4
THERMOSTAT KIT; AIR DRYER
1-85576-254-0
01
1
1304-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1304-
68
BODY; VALVE
1-48199-216-0
01
1
1304-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1304-
1
8
13
13
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-277-1
01
1
1304-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1304-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1304-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1304-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
1304-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-226-0
01
1
1304-
