Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#11798) — 700 parça

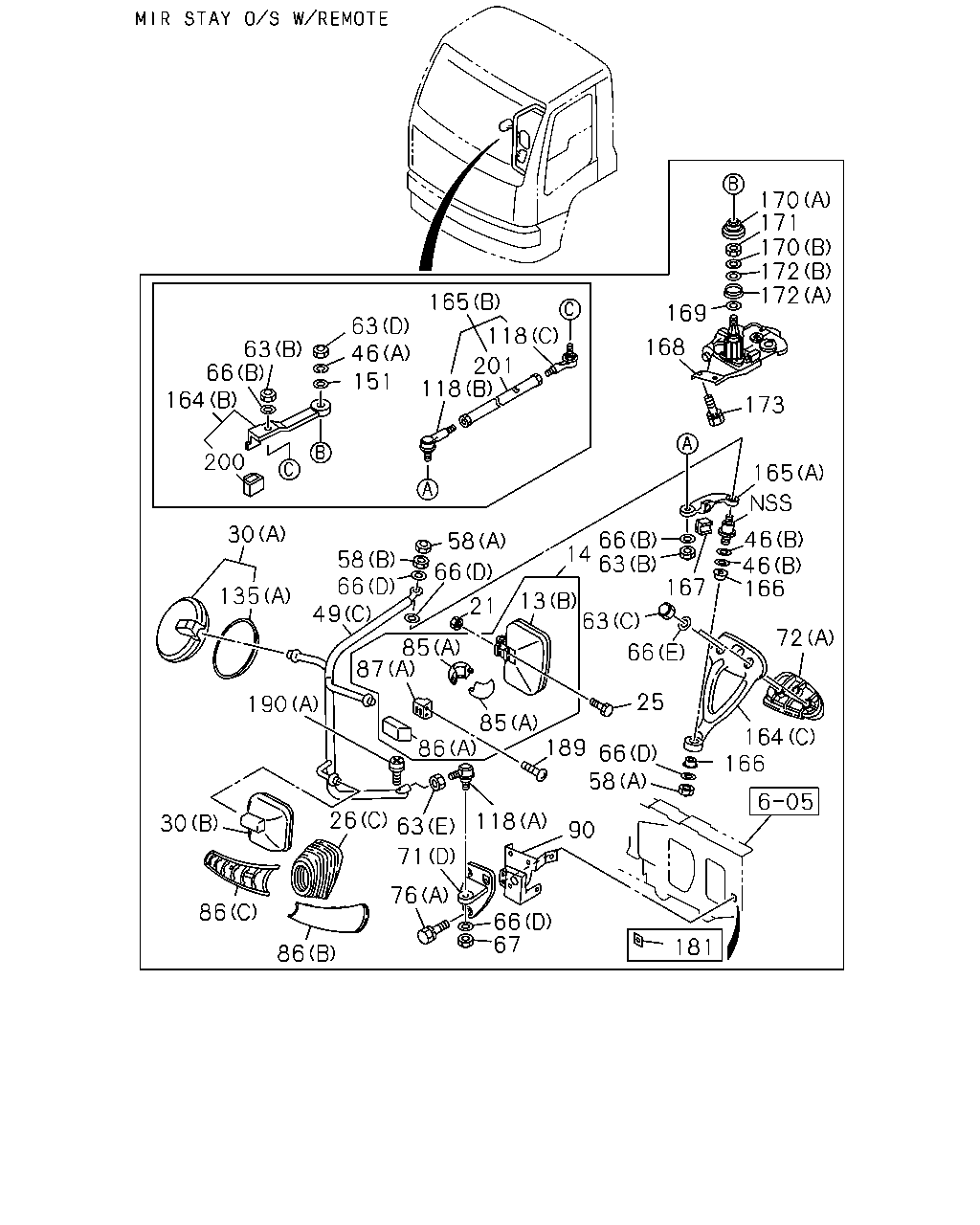

170 171 170 172 172 165 118 169 63 46 151 168 63 66 164 201 118 173 200 165 30 46 46 166 66 14 63 58 58 66 49 66 167 135 13 63 21 72 85 87 66 25 190 85 189 86 164 166 66 58 26 63 118 30 90 71 76 86 66 67 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
14	MIRROR ASM; OUTSIDE MIR STAY O/S W/REMOTE<TBA> PIVOT ID=22.2	1-71707-152-1	01	1	0106-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0106-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0106-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-180-0	01	1	0106-0206
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0207-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0106-
63	NUT; STAY KENYA EQUIPMENT(PQ2) (A) M8	1-09984-187-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0106-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	0-91110-514-0	01	1	0601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0106-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-1	01	1	0106-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0106-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0106-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-130-0	01	1	0106-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	0106-
151	WASHER; PL,MIRROR EXC. KENYA EQUIPMENT(PQ2) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0106-
164	STAY; ROOF KENYA EQUIPMENT(PQ2) (A)	1-71798-300-5	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0106-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0106-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0106-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0106-
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0106-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0106-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0106-0202
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-035-0	01	1	0203-0204
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0205-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-011-1	01	1	0106-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	0106-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	0106-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-013-1	01	1	0106-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	0106-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	0106-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0106-
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0106-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0106-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0106-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0106-

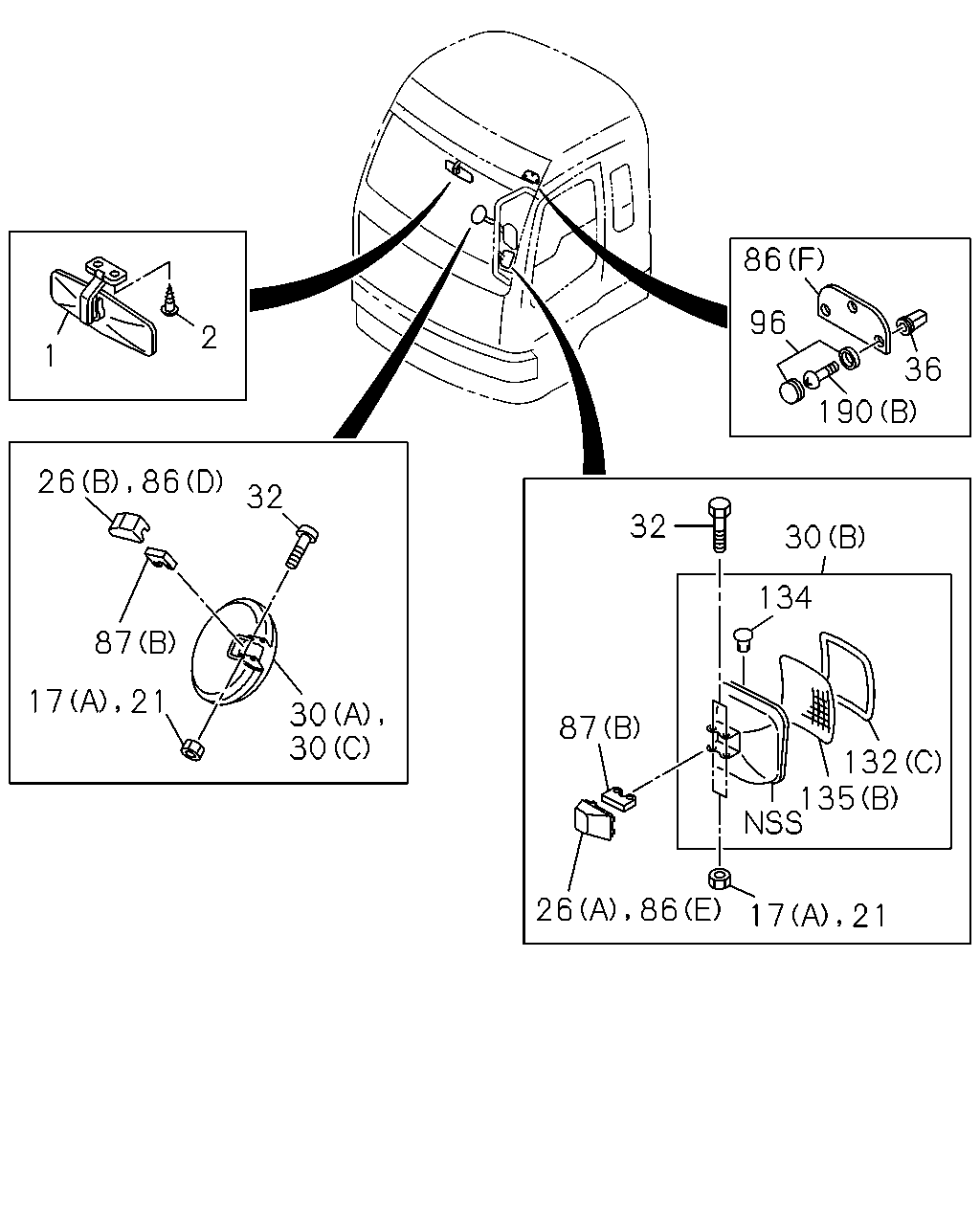

13 133 132 134 13 132 133 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-0106
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-0106
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0106-0106
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0106-0106
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-927-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-0106
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-0106
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0107-

63 66 32 66 212 30 49 72 25 17 164 66 17 58 13 87 85 85 26 58 87 66 86 66 71 76 90 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-

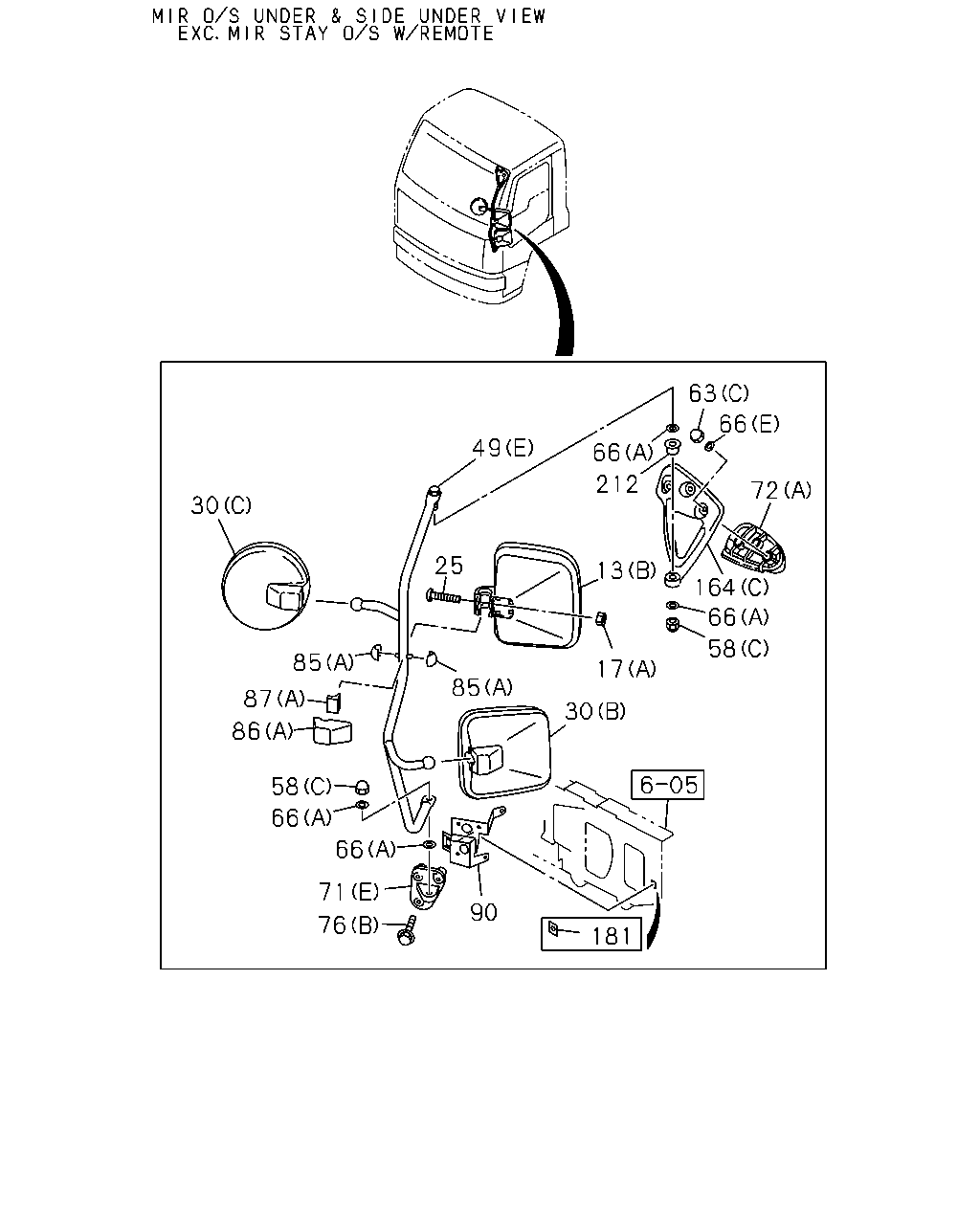

17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-

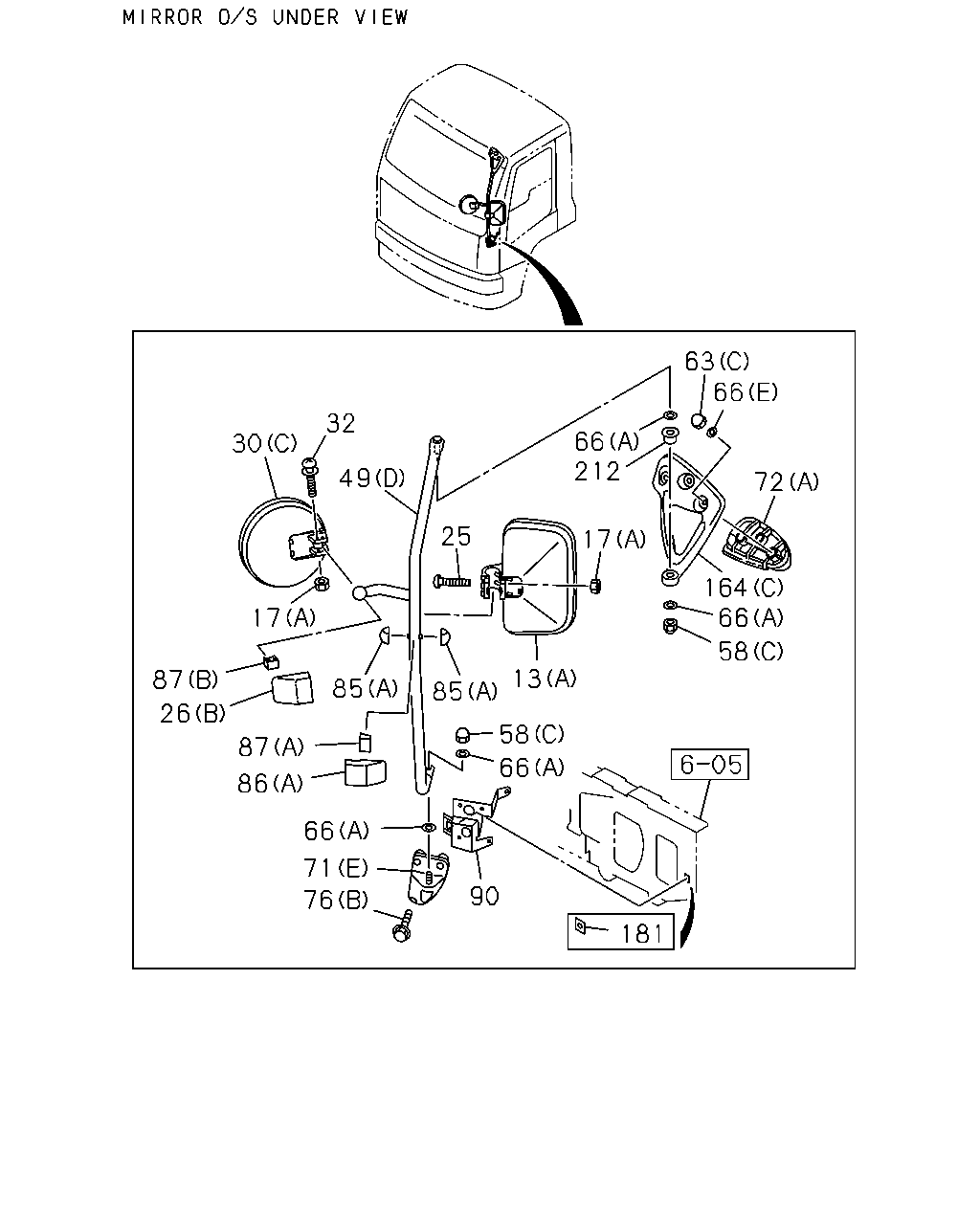

17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-

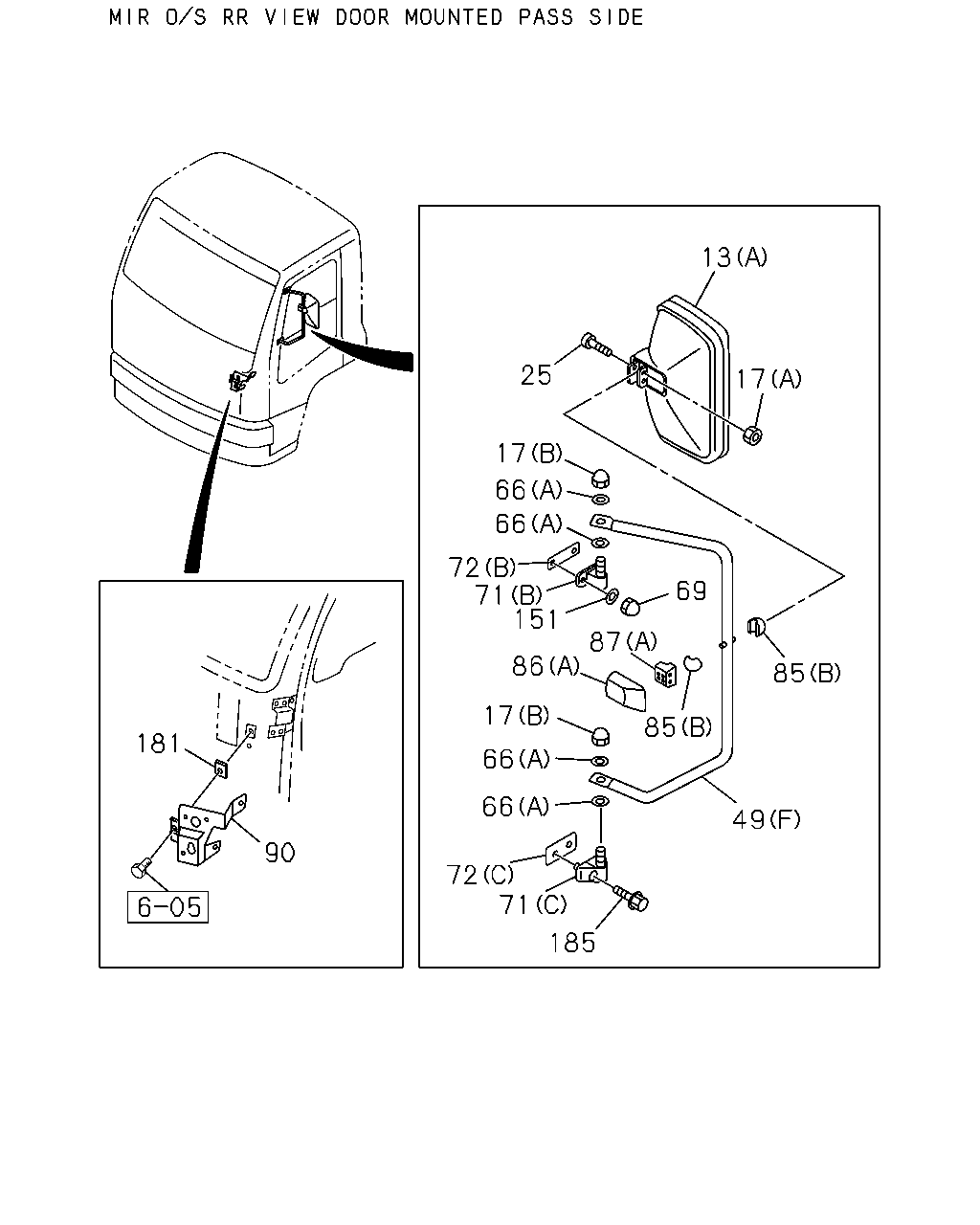

17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0106-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0106-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-

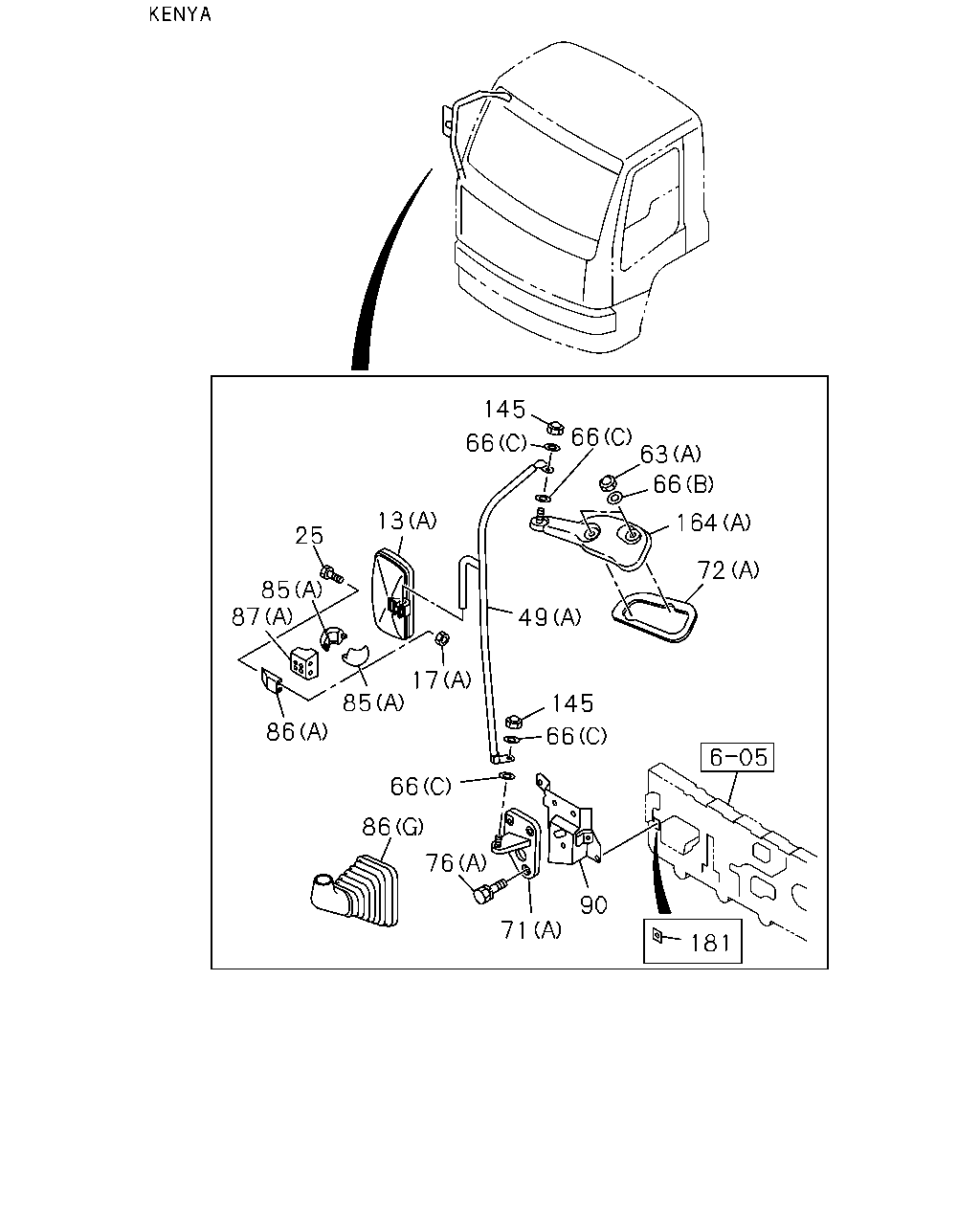

49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0106-
63	NUT; STAY KENYA EQUIPMENT(PQ2) (A) M8	1-09984-187-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0106-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	0-91110-514-0	01	1	0601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0106-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
164	STAY; ROOF KENYA EQUIPMENT(PQ2) (A)	1-71798-300-5	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0106-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	0106-

13 25 17 17 66 66 72 71 151 69 87 86 85 17 85 181 66 66 49 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
69	NUT; CAP EXC. KENYA EQUIPMENT(PQ2) M8	1-09984-187-0	02	1	0106-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
151	WASHER; PL,MIRROR EXC. KENYA EQUIPMENT(PQ2) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	0-28690-835-0	02	1	0106-0512
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0106-0512
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	8-98046-876-0	02	1	0606-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

145 66 63 66 66 13 164 25 72 85 87 49 17 85 145 86 66 66 86 76 90 71 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
63	NUT; STAY KENYA EQUIPMENT(PQ2) (A) M8	1-09984-187-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0106-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	0-91110-514-0	01	1	0601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0106-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
145	NUT; CAP,SUB STAY KENYA EQUIPMENT(PQ2) M10	1-09984-183-0	02	1	0106-
164	STAY; ROOF KENYA EQUIPMENT(PQ2) (A)	1-71798-300-5	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0106-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-

13 17 25 17 66 66 69 85 87 72 71 86 85 151 17 66 49 66 71 72 90 185 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
69	NUT; CAP EXC. KENYA EQUIPMENT(PQ2) M8	1-09984-187-0	02	1	0106-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
151	WASHER; PL,MIRROR EXC. KENYA EQUIPMENT(PQ2) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	0-28690-835-0	02	1	0106-0512
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0106-0512
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT EXC. KENYA EQUIPMENT(PQ2) M8X35 FLANGE	8-98046-876-0	02	1	0606-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

63 66 49 66 212 72 30 164 25 13 66 58 85 17 85 87 30 86 58 66 66 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (F)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE KENYA EQUIPMENT(PQ2) (A)	1-71798-599-0	01	1	0106-
49	STAY; MIRROR SIDE EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0106-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0106-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0106-
63	NUT; STAY KENYA EQUIPMENT(PQ2) (A) M8	1-09984-187-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0106-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	0-91110-514-0	01	1	0601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0106-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0106-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. KENYA EQUIPMENT(PQ2) (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL KENYA EQUIPMENT(PQ2) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	04	1	0106-
71	BRACKET; OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (A)	1-71798-309-4	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71797-799-1	01	1	0106-
72	SHEET KENYA EQUIPMENT(PQ2) HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (B)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0106-
72	SHEET EXC. KENYA EQUIPMENT(PQ2) (C)	1-71798-488-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0106-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT KENYA EQUIPMENT(PQ2) (A) M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0106-0106
85	PIVOT; MAIN MIRROR EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0106-
85	PIVOT; MAIN MIRROR KENYA EQUIPMENT(PQ2) (A) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
164	STAY; ROOF KENYA EQUIPMENT(PQ2) (A)	1-71798-300-5	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0106-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	0106-

86 96 2 1 36 190 32 32 30 134 87 17 21 30 30 87 132 135 26 86 17 21 86 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0106-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY EXC. KENYA EQUIPMENT(PQ2) (B) M10	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0106-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	0106-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0106-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0106-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0106-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0106-
36	GROMMET; MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> M5 SCREW GROMMET	1-09983-131-0	03	1	0106-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR KENYA EQUIPMENT(PQ2) (G)	1-71798-695-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	0106-0106
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A) BLACK	1-71737-760-1	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-0106
87	SPACER (A)	1-71737-704-0	01	1	0106-0106
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-704-0	01	1	0107-
96	CAP; MIRROR STAY HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA>	1-73317-324-0	03	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-0106
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-0106
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2) (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-0106
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-0106
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2)	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0107-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-130-0	01	1	0106-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	0106-
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0106-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
