2-05 — CLUTCH PIPING (#117969) — 12 parça

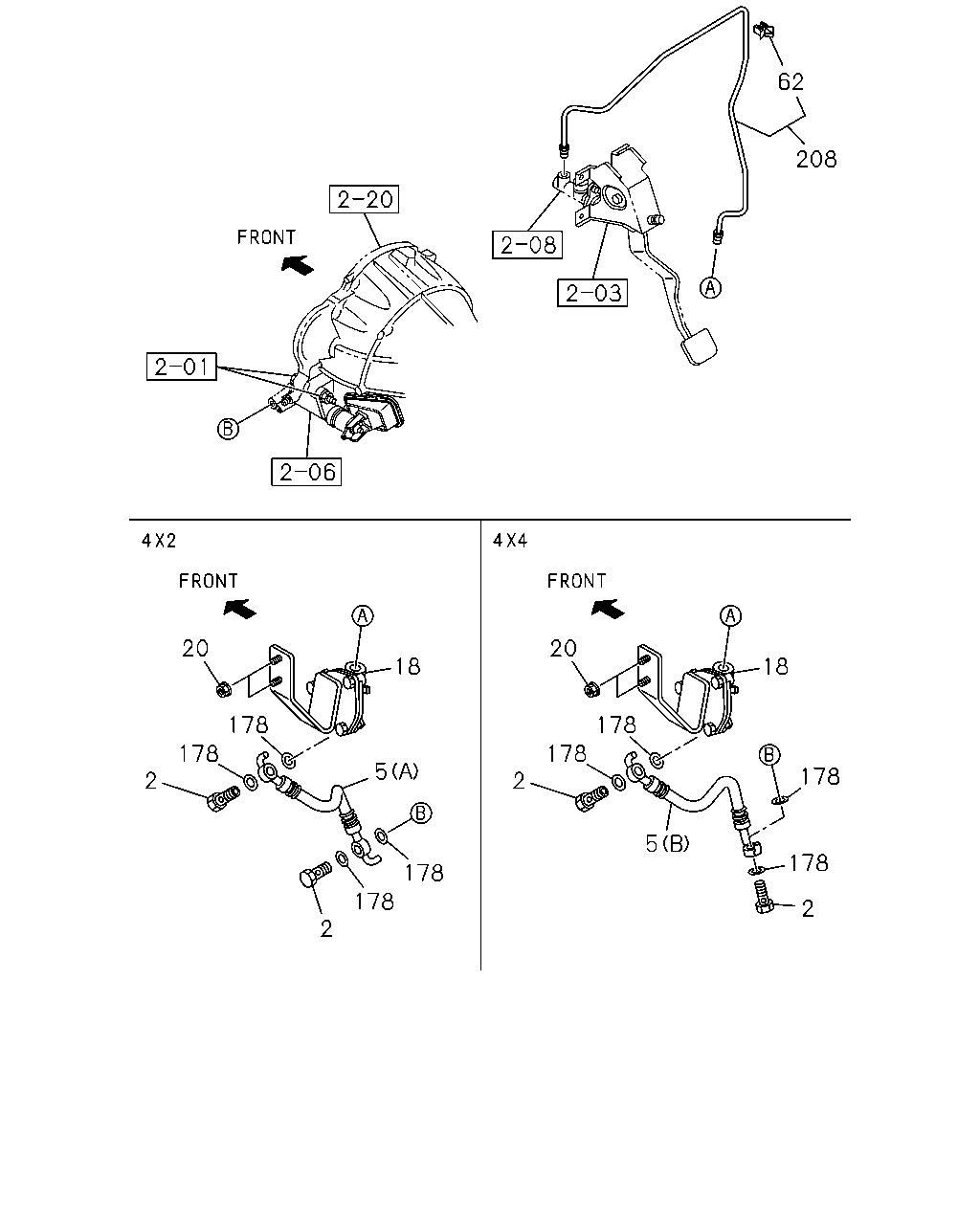

çizim 342748

62 208 20 18 178 178 2 5 178 178 2 178 5 2 178 178 18 20 178 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	2	00.782 BOLT; EYE,SLAVE CYL 04.681 M10X22	8-97359-818-0	02	1	1304-	●	●	●
	5	00.785 HOSE; FLEX,CLU PIPE (A)	8-98098-317-1	01	1	1304-	●		●
	5	00.785 HOSE; FLEX,CLU PIPE 4X2(TFB***) (A)	8-98098-317-1	01	1	1304-		●
	5	00.785 HOSE; FLEX,CLU PIPE 4X4(TFS***) (B)	8-98098-316-1	01	1	1304-		●
	18	00.830 DAMPER ASM; CLU OIL	8-97946-616-1	01	1	1304-	●	●	●
	20	00.837 NUT; CLU OIL DAMPER 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●
	62	00.785 CLIP; CLU PIPE	8-98181-751-0	01	1	1304-	●	●	●
	178	00.777 GASKET; FLEX HOSE TO M/CYL 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1304-	●	●	●
	208	00.785 PIPE; OIL,M/CYL TO DAMPER CYL	8-98100-270-1	01	1	1304-	●	●	●

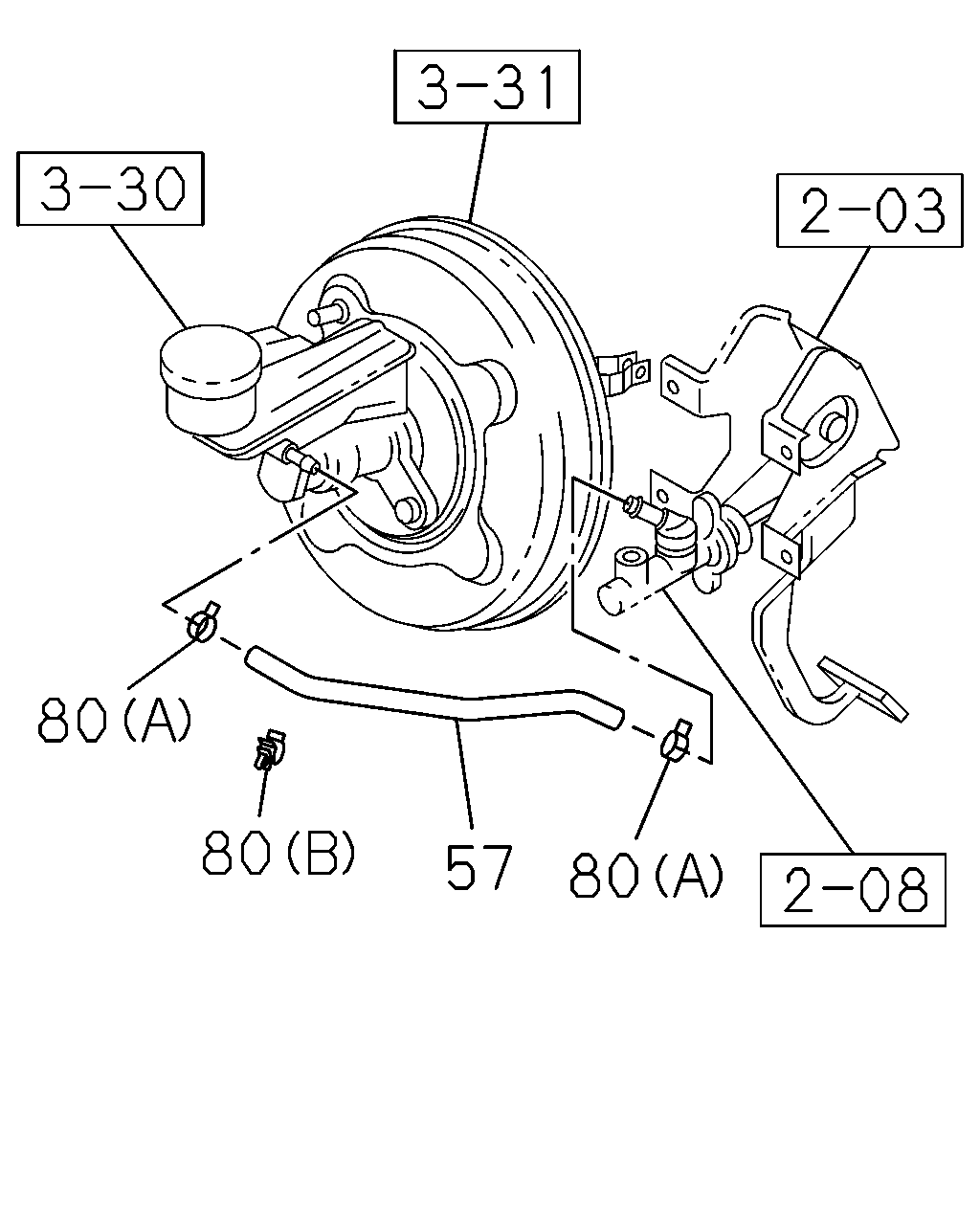

çizim 344858

80 57 80 80

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	57	00.785 HOSE; CLU M/CYL TO OIL TANK	8-98097-544-1	01	1	1304-	●	●	●
	80	00.785 CLIP; HOSE (B)	8-97947-817-0	01	1	1304-	●	●	●
	80	00.785 CLIP; HOSE (A) ID=12 WO/PVC COATING	8-97947-824-0	02	1	1304-	●	●	●
