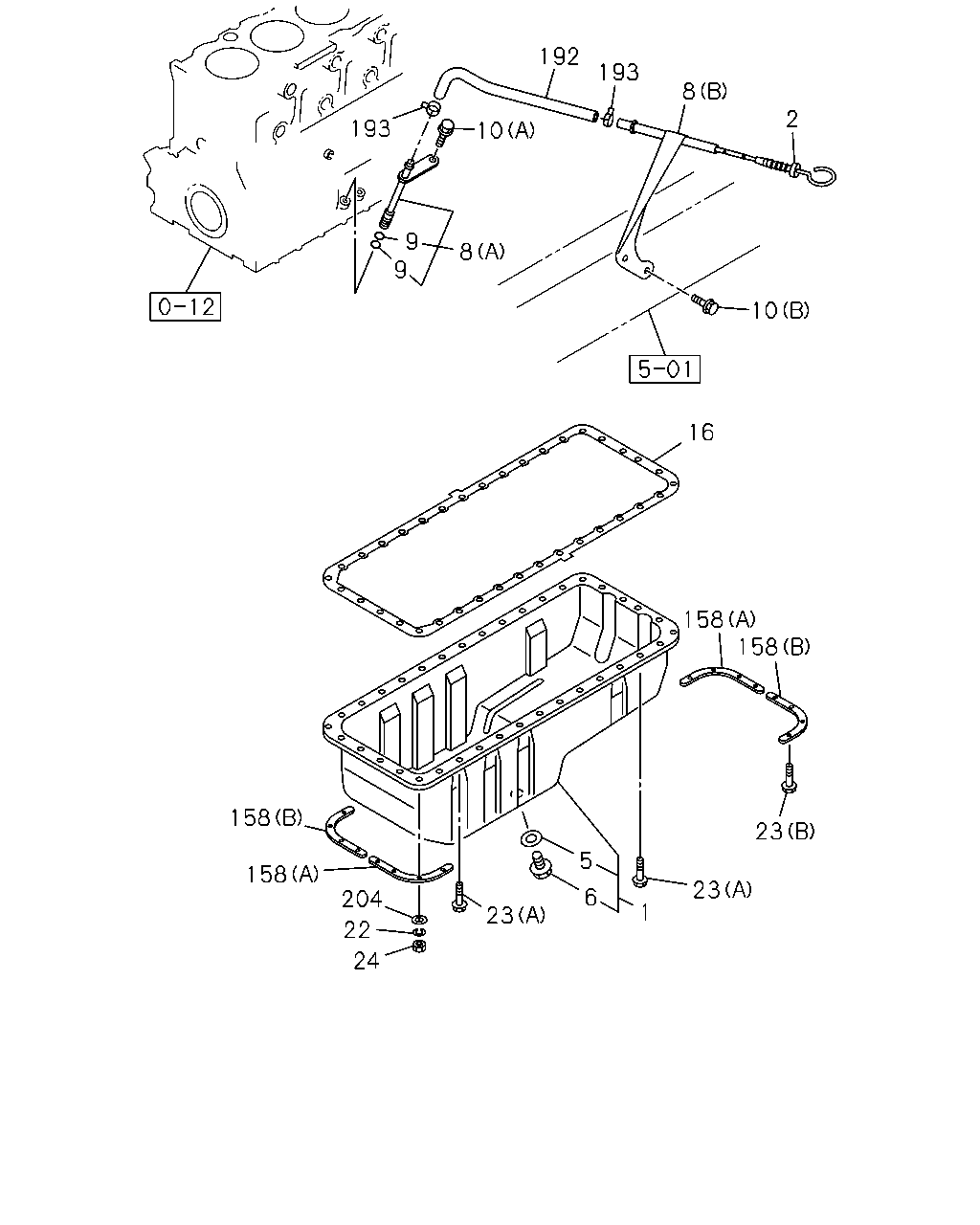

0-13 — OIL PAN AND LEVEL GAUGE
(#117963) — 19 parça
193
10
192
193
8
2
10
16
158
158
23
23
1
6
5
23
24
22
204
158
158
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97616-994-2
01
1
1304-
2
GAUGE; OIL LEVEL
8-98090-183-0
01
1
1304-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-058-0
01
1
1304-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
1304-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97620-044-0
01
1
1304-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98141-406-0
01
1
1304-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1304-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
01
1
1304-
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28050-830-0
02
1
1304-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98187-258-0
01
1
1304-
22
WASHER; LK,OIL PAN
ID=8.2
0-91510-508-0
06
1
1304-
23
BOLT; OIL PAN
(A) M8X22 W/LK&PL WASHER
0-50640-822-0
18
1
1304-
23
BOLT; OIL PAN
(B) M8X30 W/LK&PL WASHER
0-50640-830-0
10
1
1304-
24
NUT; OIL PAN
M8
0-91110-508-0
06
1
1304-
158
PLATE
(B)
8-98191-929-0
02
1
1304-
158
PLATE
(A)
8-98191-930-0
02
1
1304-
192
HOSE; GUIDE TUBE
L=360
8-97619-178-1
01
1
1304-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1304-
204
WASHER; PL,OIL PAN
ID=8.4 OD=16
0-91610-508-0
06
1
1304-
