Isuzu WW
▶
PICKUP
▶
TFR
▶
51472 - TFR/TFS MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶

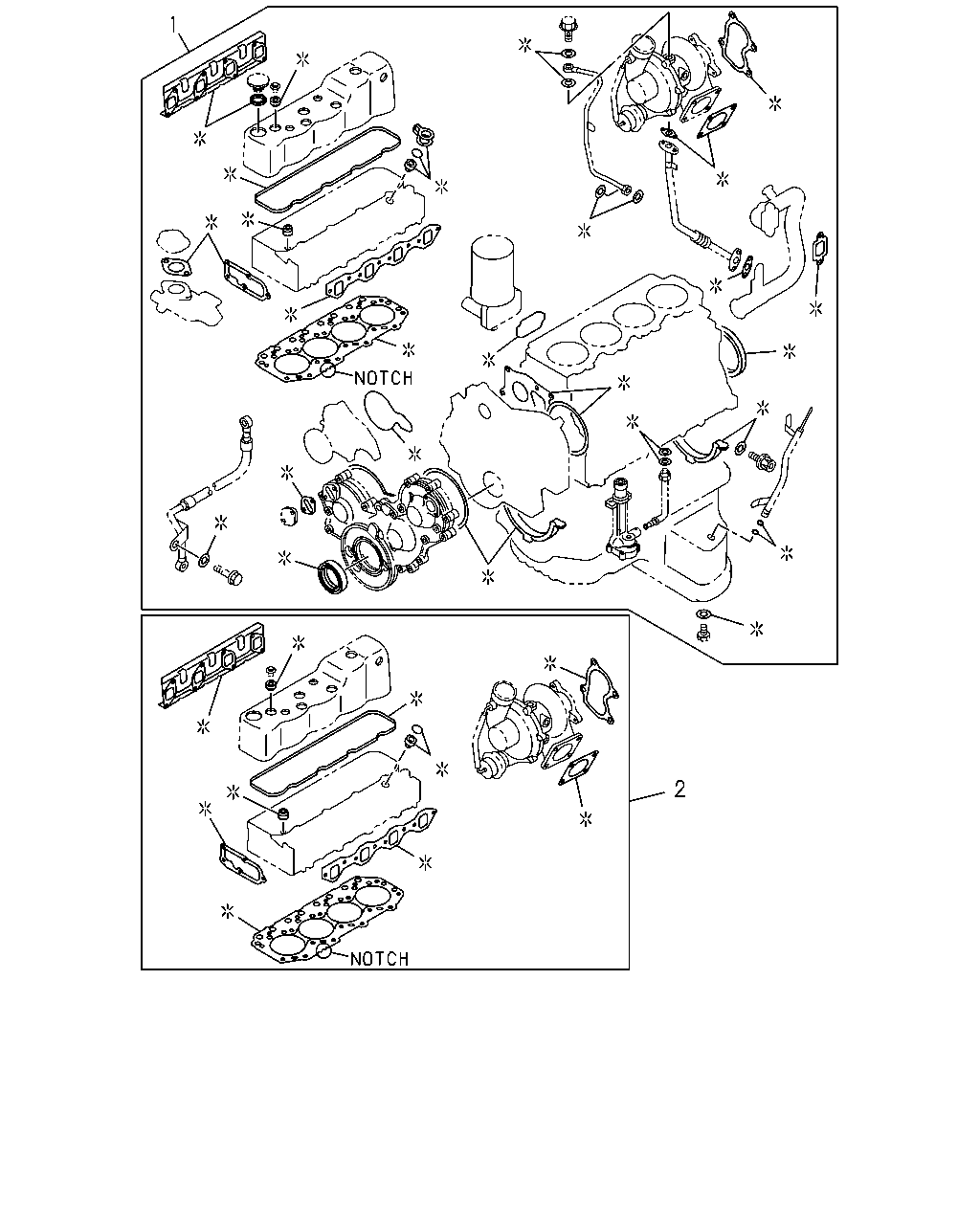

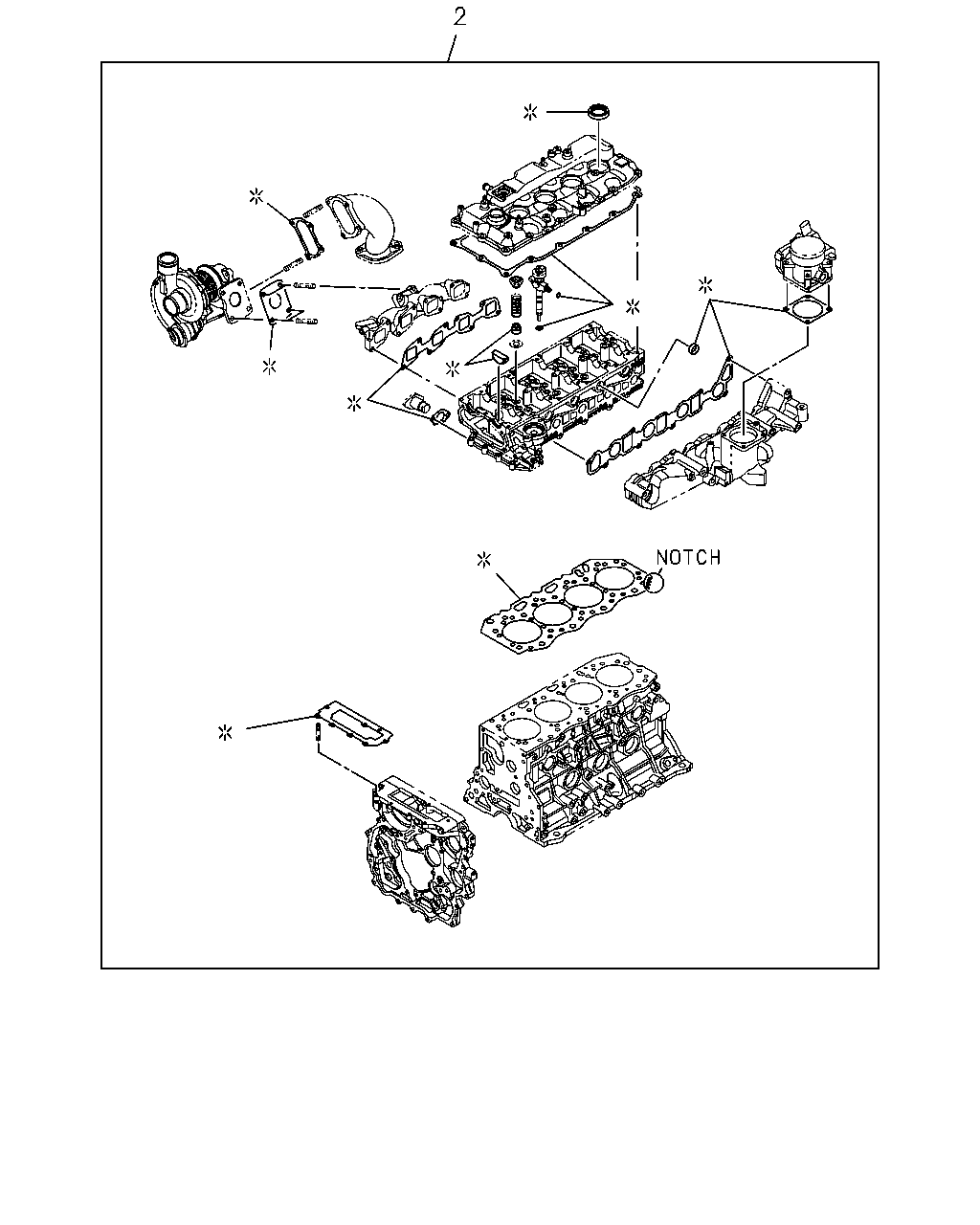

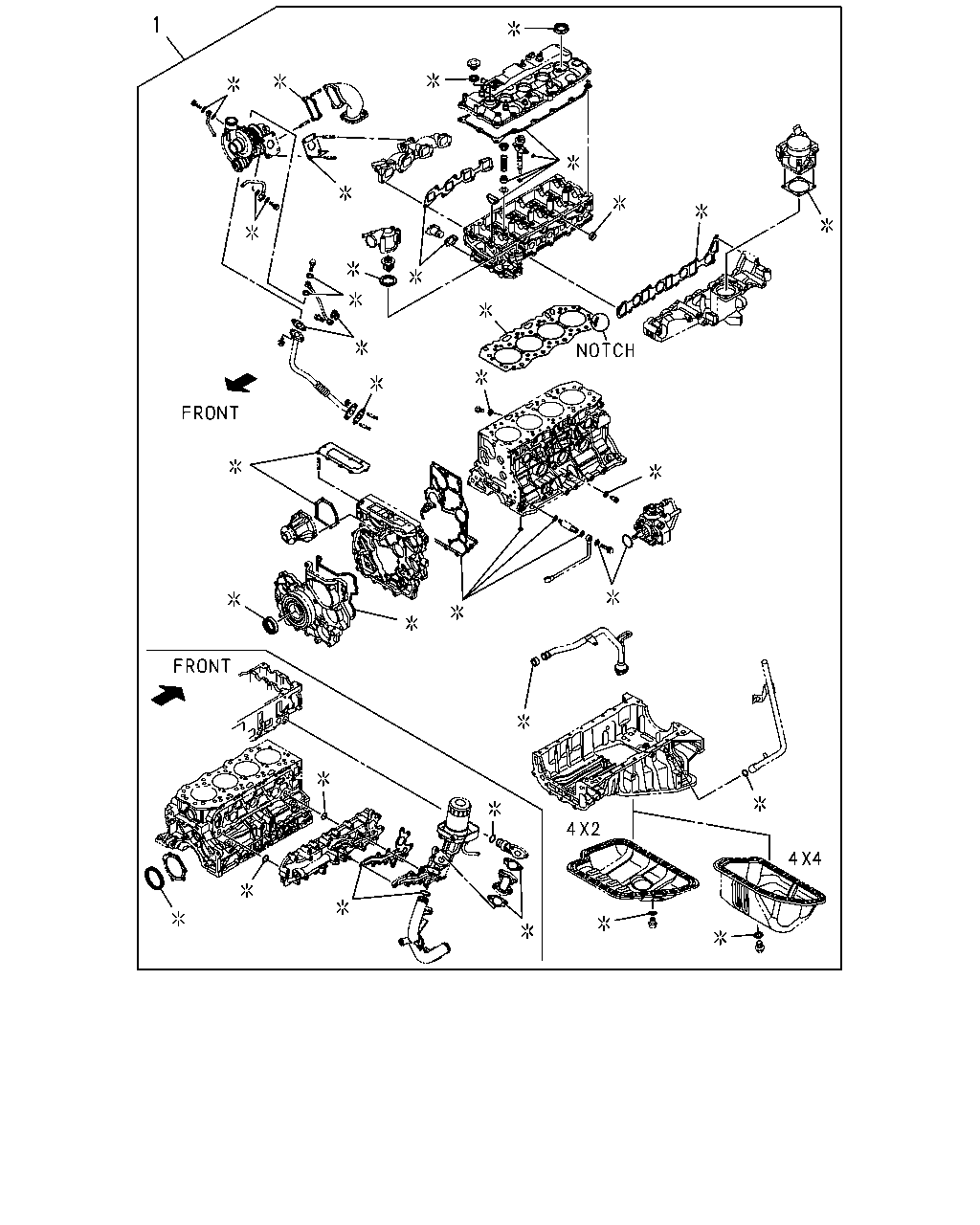

0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#117959) — 36 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JK1-TCS ENG
C - 4JA1-T ENG
◀
[005A] 4JJ1,4JK1(NO.2) (9 parça)
[005A] 4JA1 (18 parça)
[005A] 4JJ1,4JK1(NO.1) (9 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH
5-87816-218-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH
5-87816-844-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH
5-87816-219-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH
5-87816-845-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH
5-87816-220-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH
5-87816-846-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH
5-87814-125-5
01
1
1304-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH
5-87814-126-5
01
1
1304-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH
5-87814-127-5
01
1
1304-
●
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH
5-87816-209-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH
5-87816-832-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH
5-87816-210-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH
5-87816-833-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH
5-87816-211-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH
5-87816-834-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH
5-87815-181-4
01
1
1304-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH
5-87815-182-4
01
1
1304-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH
5-87815-183-4
01
1
1304-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH
5-87816-218-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH
5-87816-844-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH
5-87816-219-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH
5-87816-845-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH
5-87816-220-0
01
1
1304-1309
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH
5-87816-846-1
01
1
1310-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH
5-87814-125-5
01
1
1304-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH
5-87814-126-5
01
1
1304-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH
5-87814-127-5
01
1
1304-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH
5-87816-209-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH
5-87816-832-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH
5-87816-210-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH
5-87816-833-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH
5-87816-211-0
01
1
1304-1309
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH
5-87816-834-1
01
1
1310-
●
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH
5-87815-181-4
01
1
1304-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH
5-87815-182-4
01
1
1304-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH
5-87815-183-4
01
1
1304-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
