Isuzu WW
▶
PICKUP
▶
TFR
▶
51474 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-14 - DASH PANEL AND FENDER SKIRT
▶

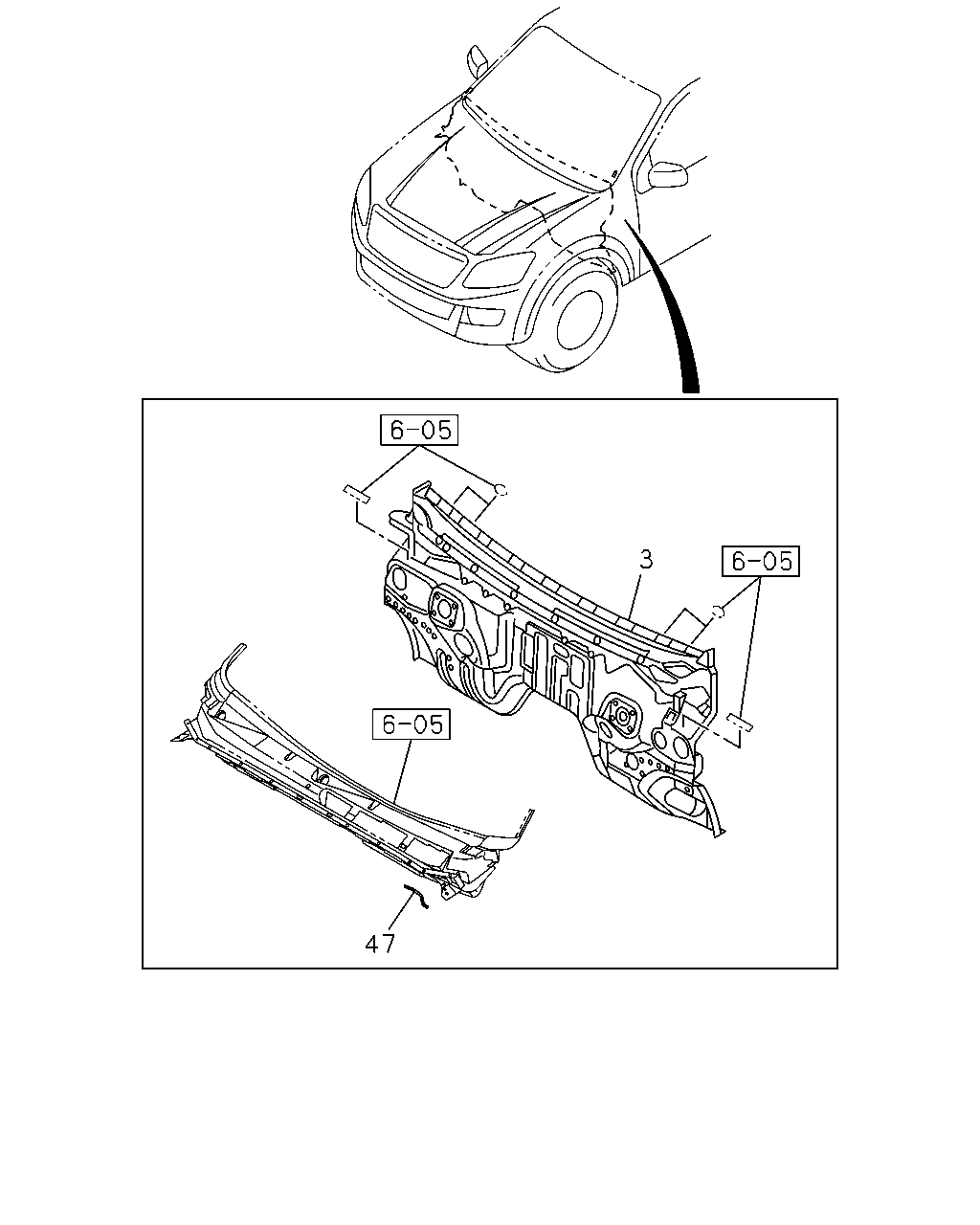

6-14 — DASH PANEL AND FENDER SKIRT
(#117953) — 7 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
D - TFS5CF
E - TFS5SF
F - TFS5WF
3
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
16.550 PANEL; SUB,DASH LWR
4JJ1-TCX ENG(LS0)
8-98103-213-2
01
1
1304-
●
3
16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. CONGO EQUIPMENT(CDF)
8-98103-213-2
01
1
1304-
●
●
●
●
●
3
16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) CONGO EQUIPMENT(CDF)
8-98124-738-2
01
1
1304-
●
●
●
●
3
16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) CONGO EQUIPMENT(CDF)
8-98206-216-2
01
1
1304-
●
●
3
16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF)
8-98103-215-2
01
1
1304-
●
●
47
16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)
8-98151-273-0
01
1
1304-
●
●
●
●
●
●
47
16.550 TAPE; DASH PANEL
4JA1-T ENG(LP0)
8-98151-273-0
02
1
1304-
●
●
