Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#117944) — 247 parça

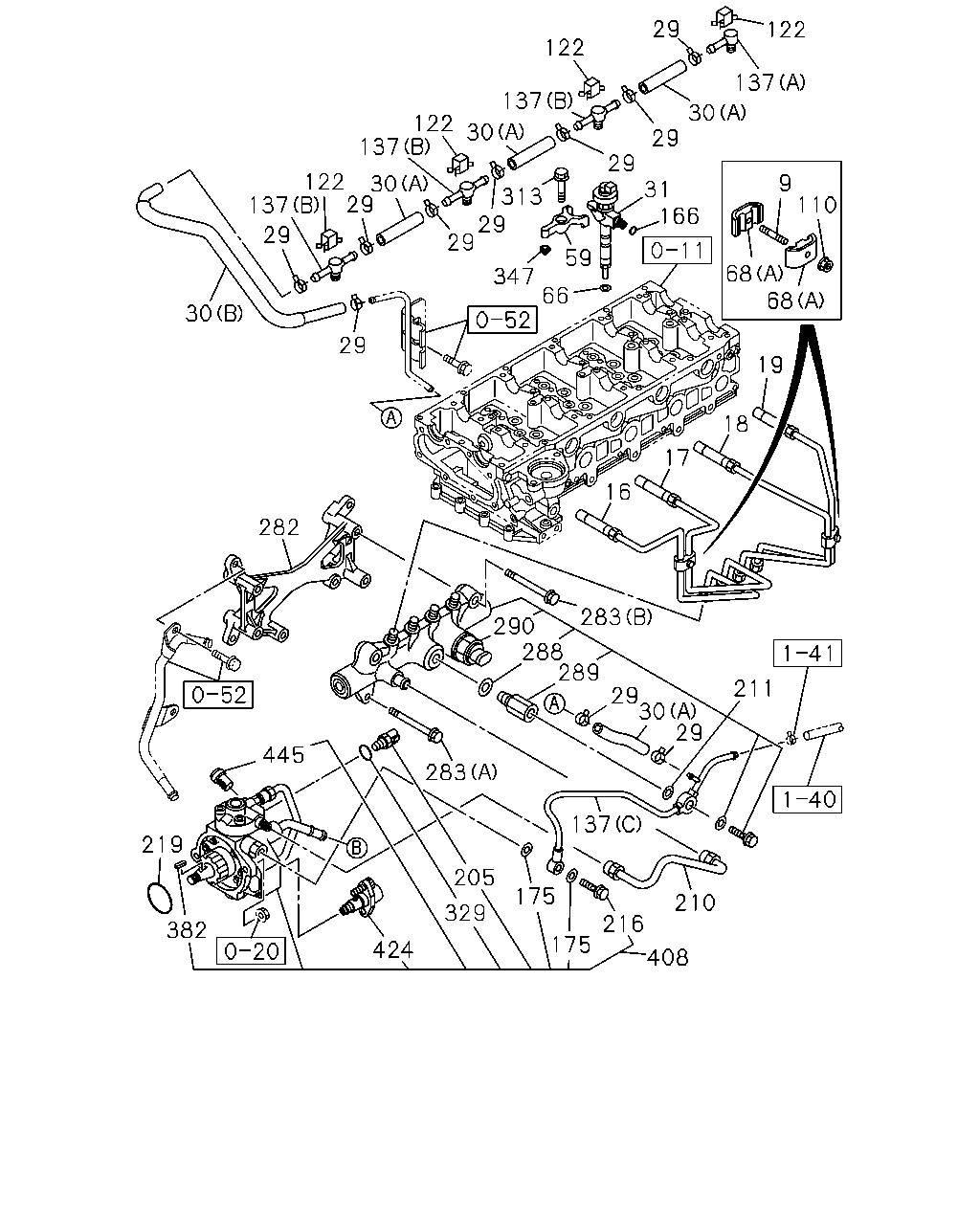

19 18 17 16 211 29 30 29 289 288 290 283 283 137 210 408 216 175 175 329 205 424 382 219 445 282 30 29 137 122 30 29 137 122 30 313 29 29 347 66 59 31 166 29 29 30 137 122 9 110 68 68 29 122 137 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	1304-	●	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1304-	●	●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	1304-			●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1304-	●	●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	1304-			●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1304-	●	●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	1304-			●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1304-	●	●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	1304-			●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1304-	●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1304-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	04	1	1304-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98168-394-0	01	1	1304-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=320	8-98135-263-1	01	1	1304-			●
31	03.332 NOZZLE ASM; INJ	8-98203-849-0	04	1	1304-	●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98119-228-3	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ COOLER W/FRESH AIR(C65)	8-98106-694-1	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	1304-			●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1304-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1304-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1304-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1304-			●
68	03.162 CLIP; INJ PIPE (A)	8-97213-481-0	04	1	1304-	●	●
68	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	04	1	1304-			●
68	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	01	1	1304-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1304-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98132-085-0	01	1	1304-	●	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98211-775-0	03	1	1304-	●	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98211-776-0	01	1	1304-	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1304-	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1304-1505	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE	1-15619-508-0	02	1	1506-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1304-	●	●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	1304-	●	●
211	03.331 RAIL ASM; COMMON	8-98132-055-1	01	1	1304-	●	●
216	03.162 BOLT; EYE 03.280	9-88130-088-0	01	1	1304-1409	●	●
216	03.162 BOLT; EYE	8-98209-777-0	01	1	1410-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1304-	●	●
282	03.163 BRACKET; COMMON RAIL	8-98132-056-0	01	1	1304-	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1304-	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1304-	●	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1304-	●	●
290	03.331 SENSOR; PRESS	8-98181-616-0	01	1	1304-	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-98095-575-0	04	1	1304-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1304-1409	●	●
347	03.332 PIN	8-98165-035-0	04	1	1304-	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1304-1409	●	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1410-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-3	01	1	1304-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-1	01	1	1304-	●	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1304-	●	●

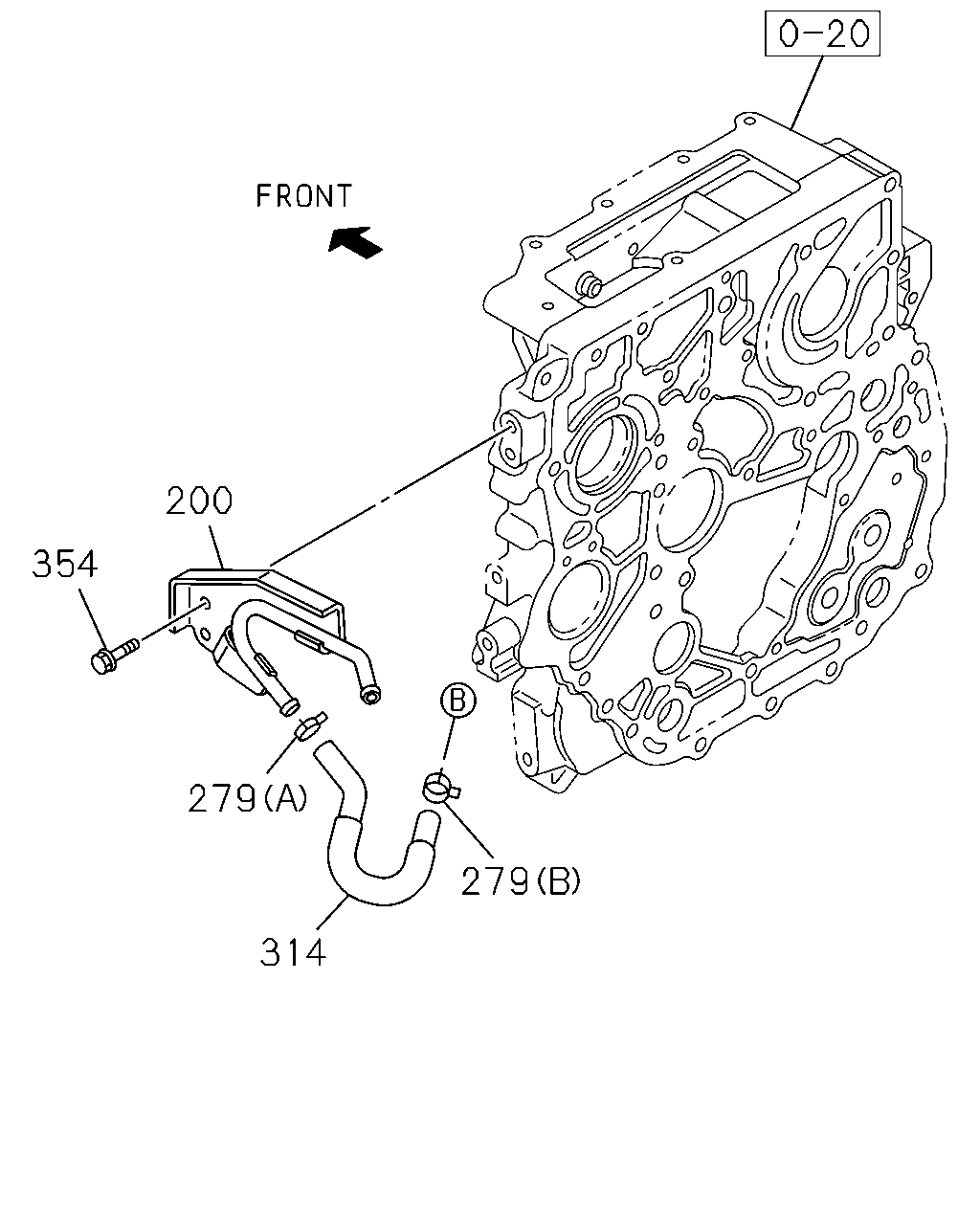

314 279 200 354 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
200	03.330 PIPE; FUEL FEED	8-98132-088-0	01	1	1304-	●	●
279	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97944-611-0	01	1	1304-	●	●
279	03.162 CLIP; FUEL HOSE 01.762 (A) ID=16	8-98030-682-0	01	1	1304-	●	●
314	03.163 HOSE; INLET,FUEL	8-98175-561-0	01	1	1304-	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●

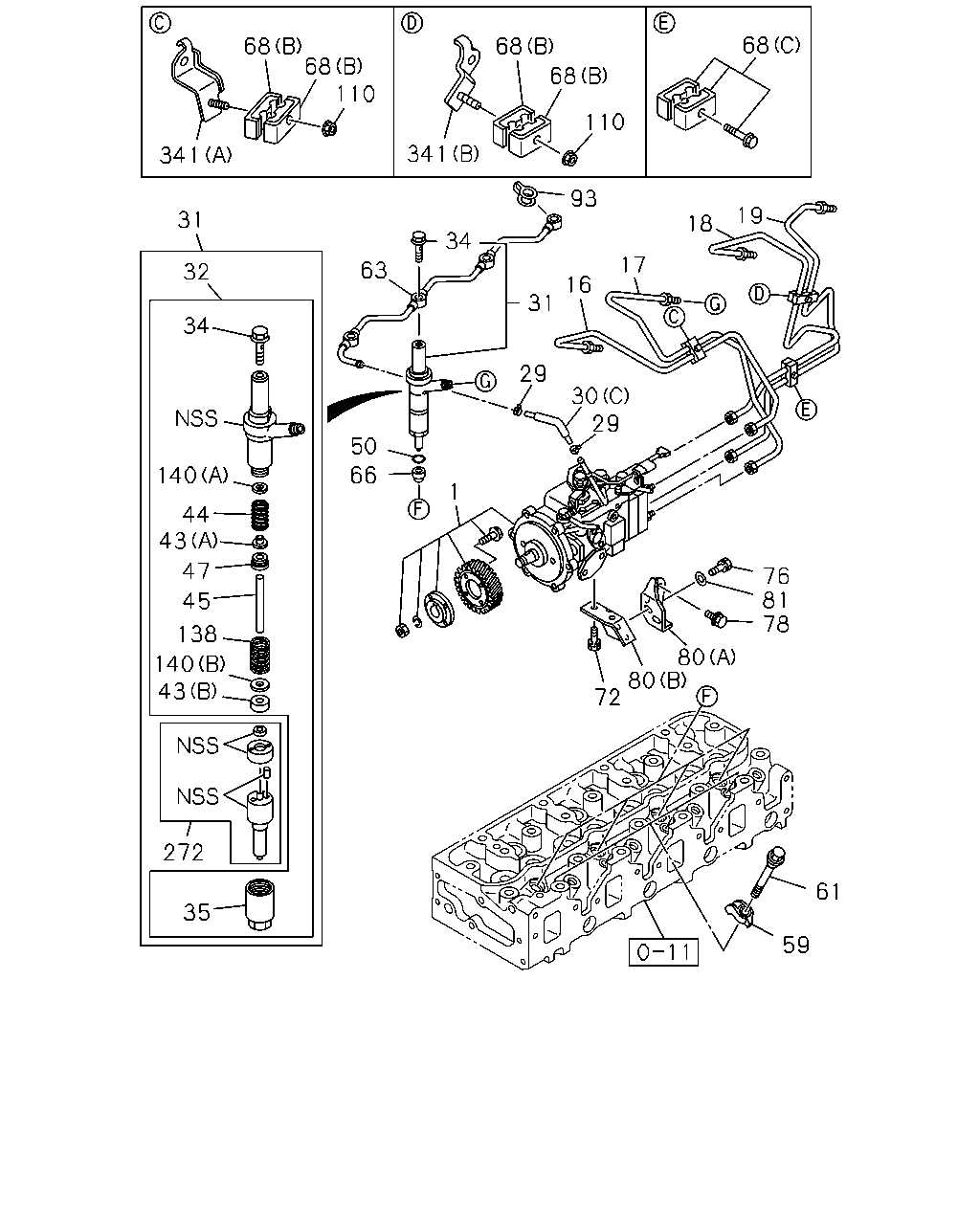

59 61 72 80 80 78 81 76 66 1 50 63 34 29 31 30 29 16 17 18 19 68 110 93 68 68 341 110 68 68 341 31 32 34 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42)	8-98110-564-0	01	1	1304-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-98110-563-1	01	1	1304-			●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1304-	●	●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	1304-			●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1304-	●	●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	1304-			●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1304-	●	●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	1304-			●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1304-	●	●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	1304-			●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1304-	●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1304-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	04	1	1304-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98168-394-0	01	1	1304-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=320	8-98135-263-1	01	1	1304-			●
31	03.332 NOZZLE ASM; INJ	8-98203-849-0	04	1	1304-	●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98119-228-3	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ COOLER W/FRESH AIR(C65)	8-98106-694-1	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	1304-			●
32	03.332 HOLDER ASM; NOZZLE	8-97217-835-0	04	1	1304-			●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1304-			●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1304-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	1304-			●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1304-			●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1304-			●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1304-			●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	1304-			●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1304-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1304-			●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1304-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	1304-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1304-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1304-			●
68	03.162 CLIP; INJ PIPE (A)	8-97213-481-0	04	1	1304-	●	●
68	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	04	1	1304-			●
68	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	01	1	1304-			●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1304-			●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1304-			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1304-			●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1304-			●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1304-			●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1304-			●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	1304-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1304-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1304-			●
272	03.332 NOZZLE KIT; INJ	8-97362-572-0	04	1	1304-			●
341	03.330 BRACKET; CLIP,INJ PIPE (B)	8-97333-806-1	01	1	1304-			●
341	03.330 BRACKET; CLIP,INJ PIPE (A)	8-97365-211-1	01	1	1304-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
