0-52 — OIL AND VACUUM PIPING; ENGINE
(#117942) — 46 parça
◀

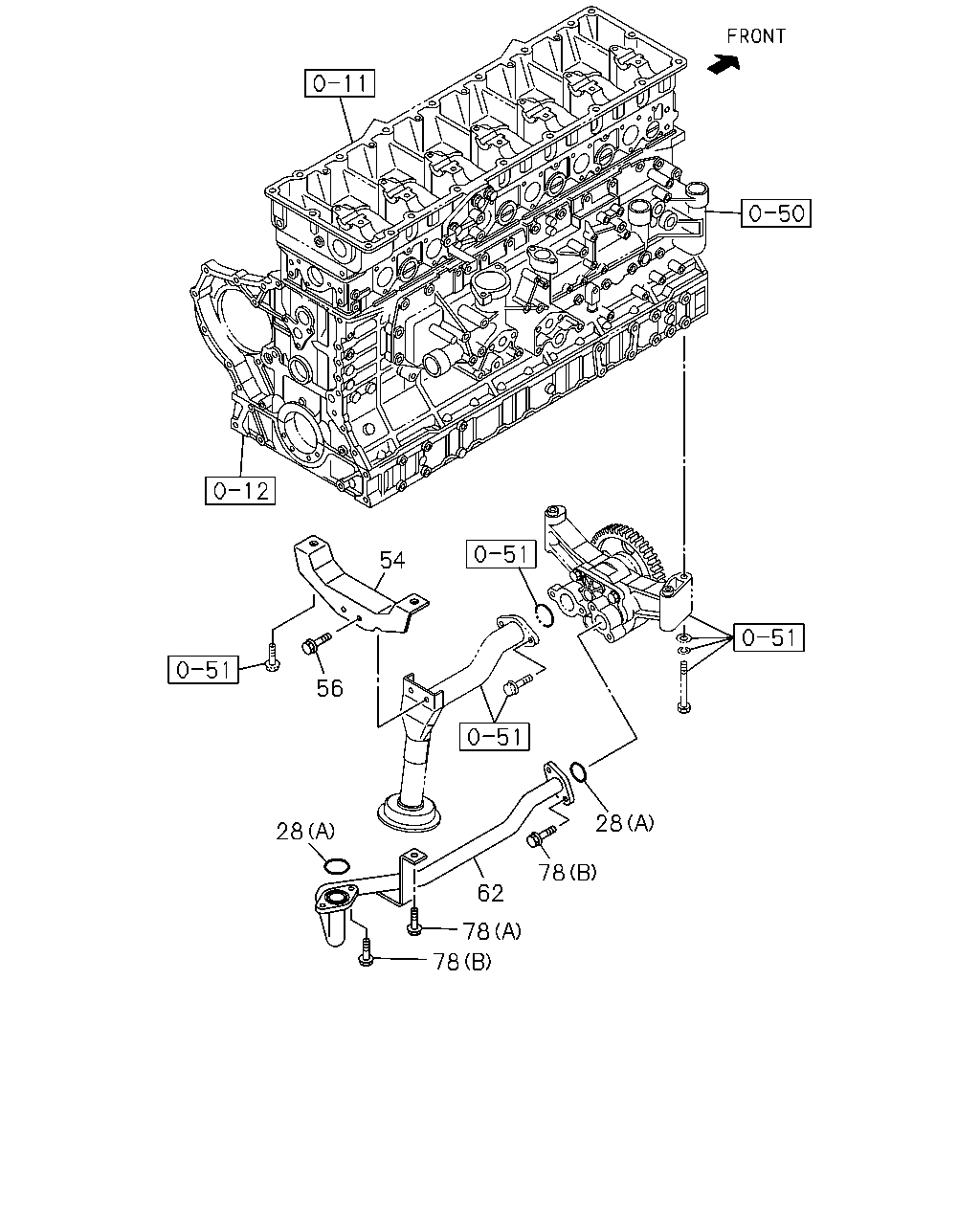

[052A] OIL PUMP PIPING (8 parça)

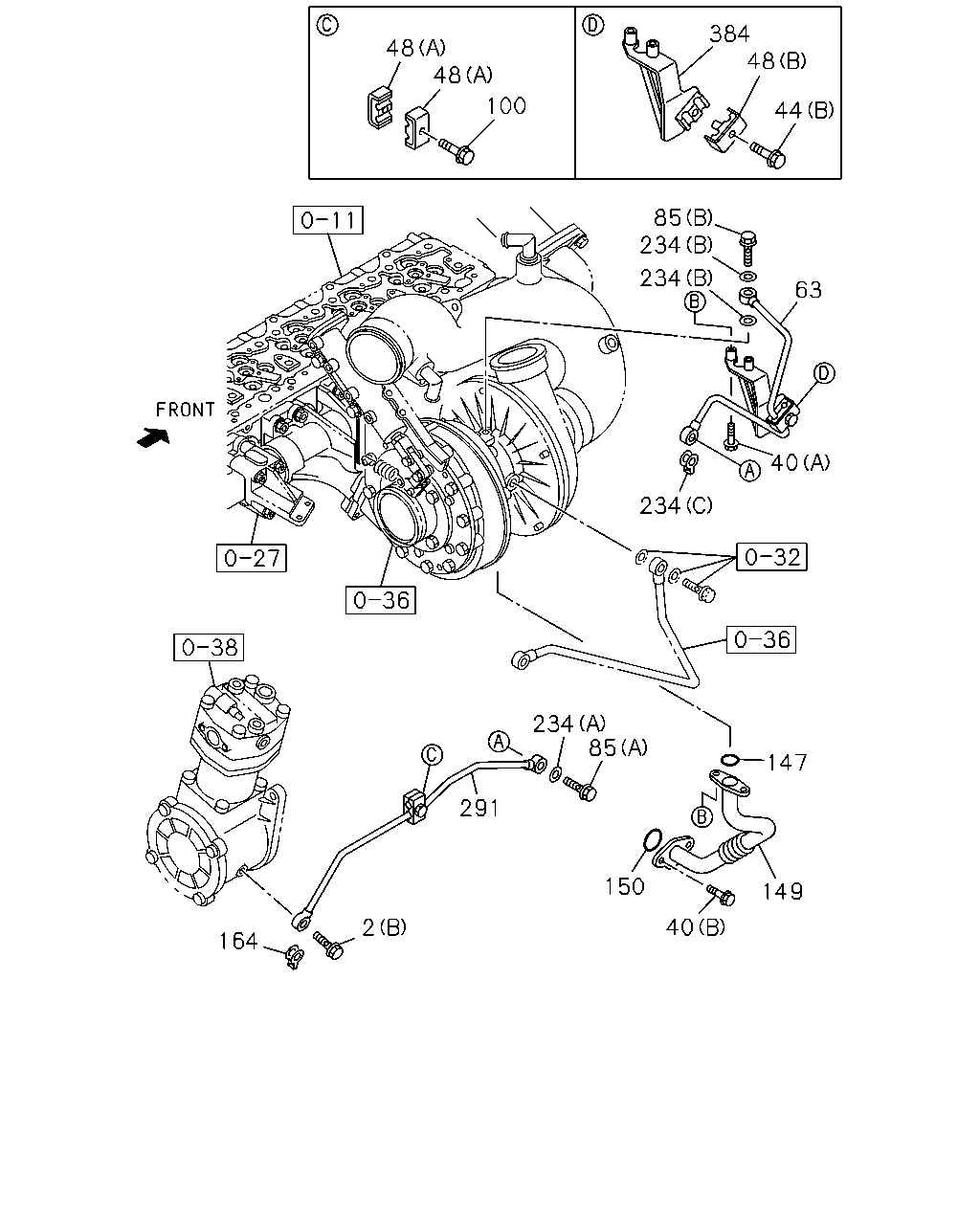

[052A] TURBOCHARGER,AIR COMPRESSOR SIDE (24 parça)

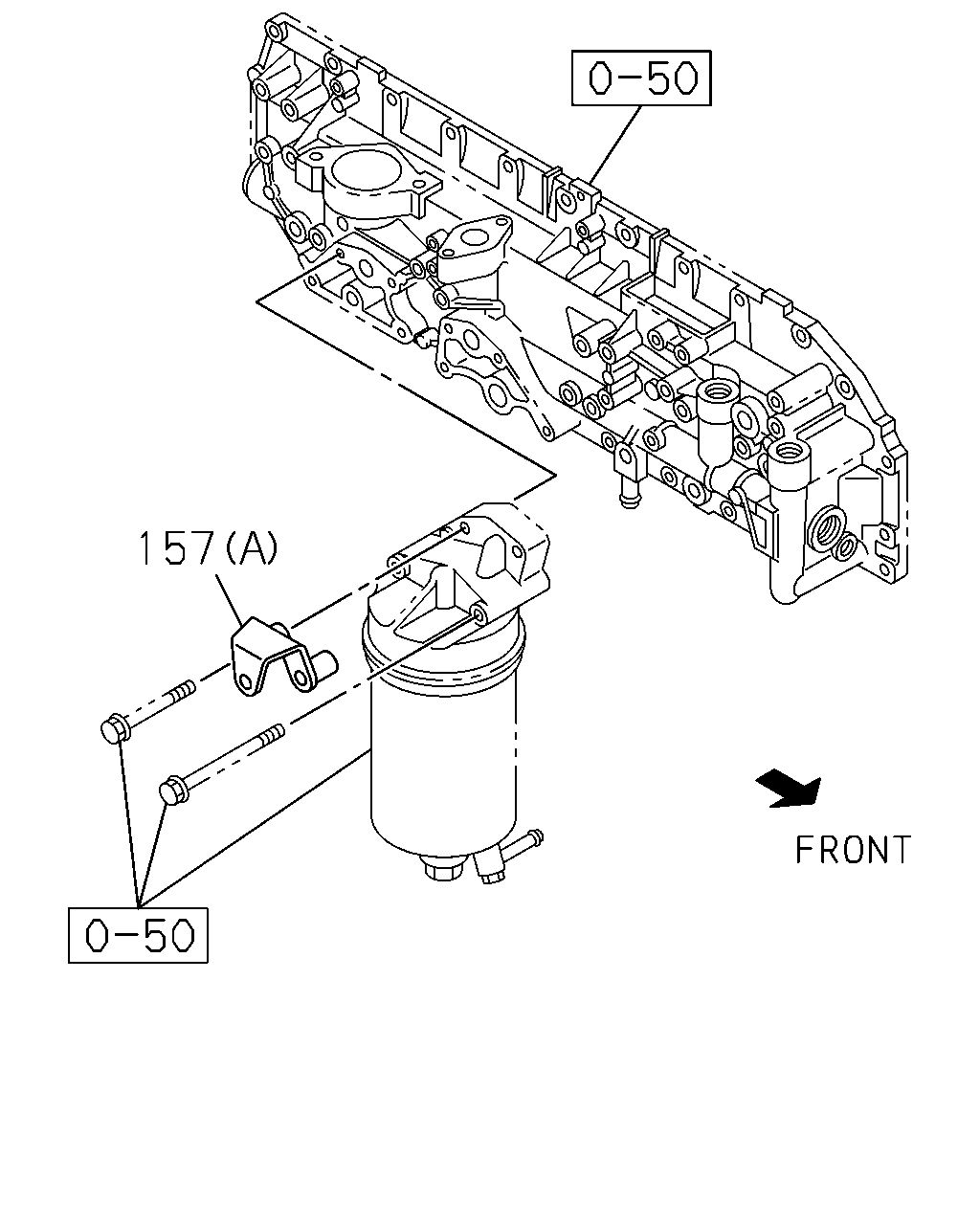

[052A] BRACKET;PARTIAL OIL FILTER (2 parça)

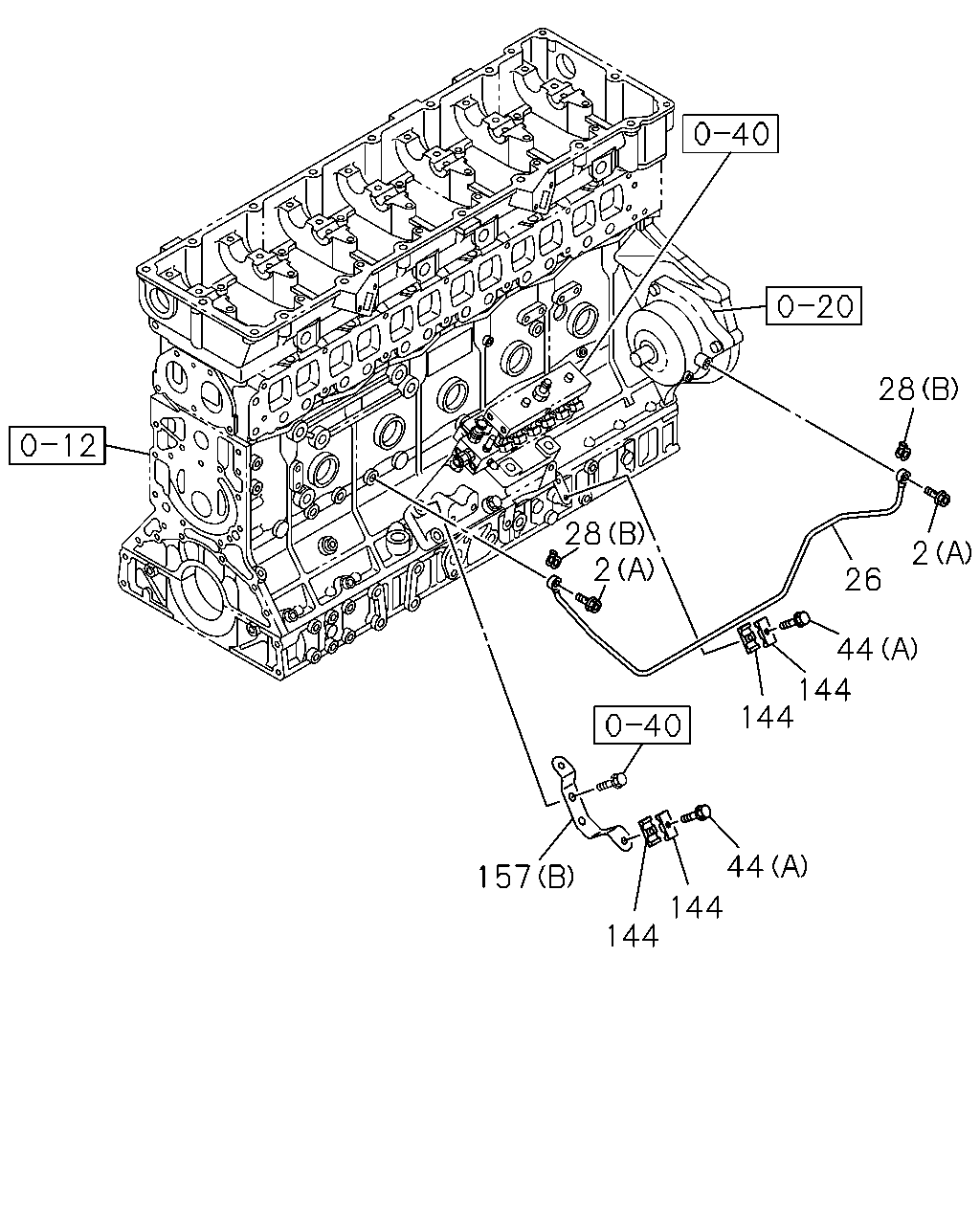

[052A] INJECTION PUMP SIDE (12 parça)
▶
56
54
78
28
62
78
78
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6
8-97240-975-0
02
1
1204-1301
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6
8-98231-393-0
02
1
1302-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2 THA
9-09566-226-0
02
1
1204-
54
STAY; OIL STRAINER
1-13345-182-0
01
1
1204-
56
BOLT; STAY TO BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1204-
62
PIPE; OIL,PUMP TO C/BL
8-97603-066-1
01
1
1204-
78
BOLT; OIL PIPE,PUMP TO BODY
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1204-
78
BOLT; OIL PIPE,PUMP TO BODY
(B) M8X25 FLANGE THA
0-28650-825-0
04
1
1204-
48
100
48
384
44
48
85
234
234
63
40
234
147
149
150
40
234
85
291
2
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
8-94396-711-0
01
1
1204-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE
8-97372-238-0
02
1
1204-
40
BOLT; OIL PIPE
(A) M8X40 FLANGE THA
0-28050-840-0
02
1
1204-
40
BOLT; OIL PIPE
(B) M10X25 FLANGE THA
0-28751-025-0
02
1
1204-
44
BOLT; CLIP,OIL PIPE
(A) M6X30 FLANGE THA
0-28050-630-0
03
1
1204-
44
BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE THA
0-28650-635-0
01
1
1204-
48
CLIP; OIL PIPE
(B) ID=9 & 11 L=28
1-09701-265-1
01
1
1204-
48
CLIP; OIL PIPE
(A) ID=11 & 11 L=19
8-98039-293-0
02
1
1204-1405
48
CLIP; OIL PIPE
(A) ID=11 & 11 L=19
8-98148-996-2
02
1
1406-
63
PIPE; OIL,TURBOCHARGER FEED
8-97604-871-0
01
1
1204-
85
BOLT; EYE,OIL PIPE FIX
(A) M12X41
1-09675-140-0
01
1
1204-
85
BOLT; EYE,OIL PIPE FIX
(B) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1204-
100
BOLT; CLIP
M6X30 FLANGE THA
0-28050-630-0
01
1
1204-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
01
1
1204-
149
PIPE; OIL RETURN,TURBOCHARGER
8-97603-712-2
01
1
1204-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7
1-09623-450-0
01
1
1204-
164
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6
8-97240-975-0
01
1
1204-1301
164
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6
8-98231-393-0
01
1
1302-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
1-09630-084-0
01
1
1204-1312
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
8-98251-344-0
01
1
1401-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2
8-97256-733-0
01
1
1204-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
9-09571-412-0
02
1
1204-
291
PIPE; OIL
8-98145-554-0
01
1
1204-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
1-13345-216-0
01
1
1204-
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
157
BRACKET; OIL PIPE
(A)
8-97610-356-1
01
1
1204-
157
BRACKET; OIL PIPE
(B)
8-97620-045-0
01
1
1204-
28
2
26
44
144
144
44
144
144
157
2
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
8-94396-711-0
01
1
1204-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE
8-97372-238-0
02
1
1204-
26
PIPE; OIL,PUMP TO C/BL
8-98216-501-0
01
1
1204-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6
8-97240-975-0
02
1
1204-1301
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6
8-98231-393-0
02
1
1302-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2 THA
9-09566-226-0
02
1
1204-
44
BOLT; CLIP,OIL PIPE
(A) M6X30 FLANGE THA
0-28050-630-0
03
1
1204-
44
BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE THA
0-28650-635-0
01
1
1204-
144
CLIP; OIL PIPE,INJ PUMP
ID=11 & 11 L=19
8-98039-293-0
06
1
1204-1405
144
CLIP; OIL PIPE,INJ PUMP
ID=11 & 11 L=19
8-98148-996-2
06
1
1406-
157
BRACKET; OIL PIPE
(A)
8-97610-356-1
01
1
1204-
157
BRACKET; OIL PIPE
(B)
8-97620-045-0
01
1
1204-
