4-65 — REAR LEAF SPRING (#117936) — 102 parça

34 2 3 4 5 6 36 7 8 9 10 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51411-150-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-120-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51412-150-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-121-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51413-150-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-122-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51414-150-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-123-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51415-150-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-124-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51416-150-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51416-294-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-125-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51417-150-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51417-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-126-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51418-150-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51418-294-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-127-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51419-150-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51419-294-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-128-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=205 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=210 ASM PART: C = 8-98102-211-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: C = 8-98102-211-1	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-09000-326-0	01	1	-

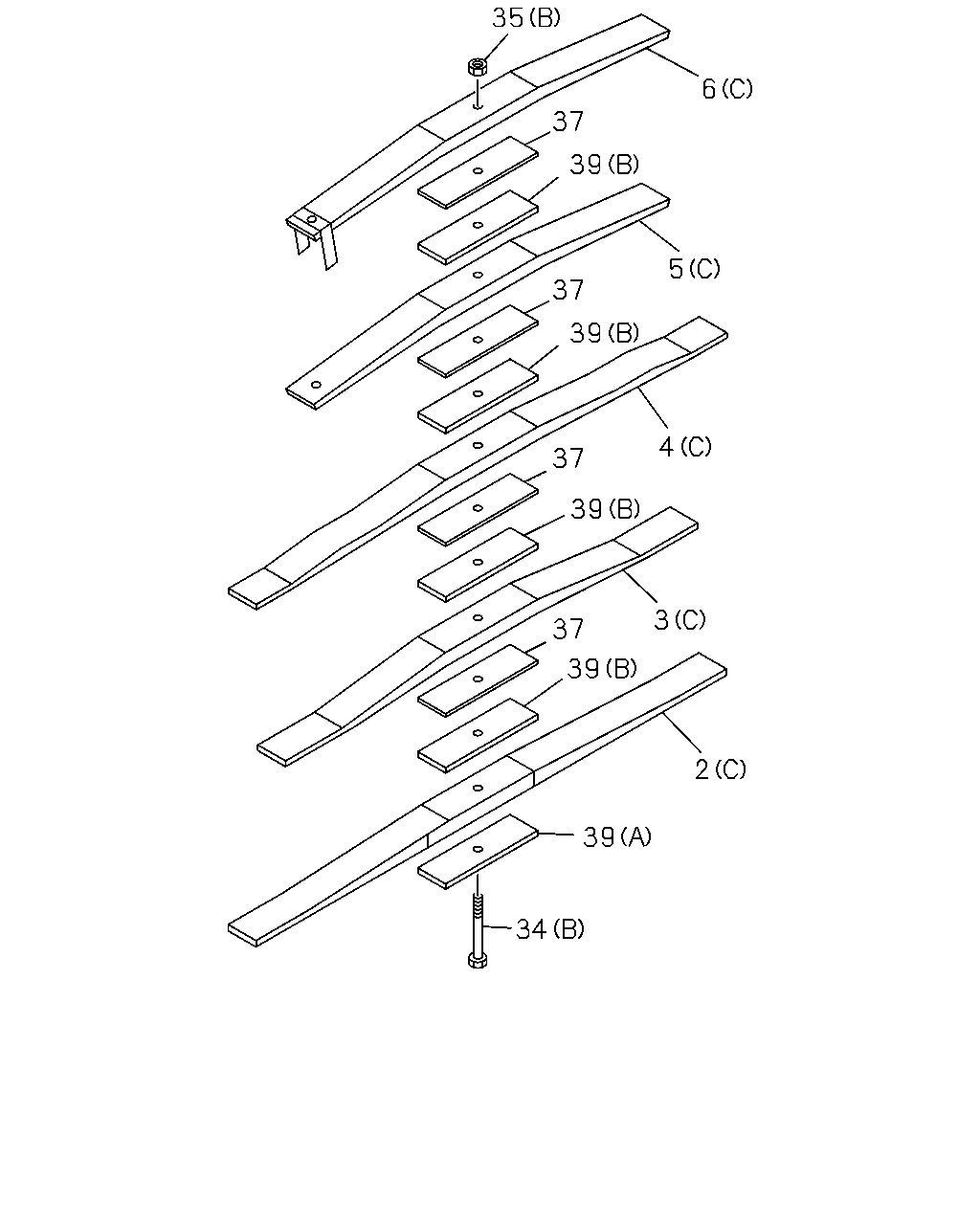

34 39 2 39 37 3 39 37 4 39 37 5 39 6 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51411-150-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-120-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51412-150-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-121-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51413-150-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-122-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51414-150-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-123-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51415-150-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-124-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=205 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=210 ASM PART: C = 8-98102-211-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: C = 8-98102-211-1	1-09400-061-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1.2 ASM PART: C = 8-98102-211-1	1-51359-037-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: C = 8-98102-211-1	1-51377-399-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=3.2 ASM PART: C = 8-98102-211-1	8-97615-292-0	01	1	-

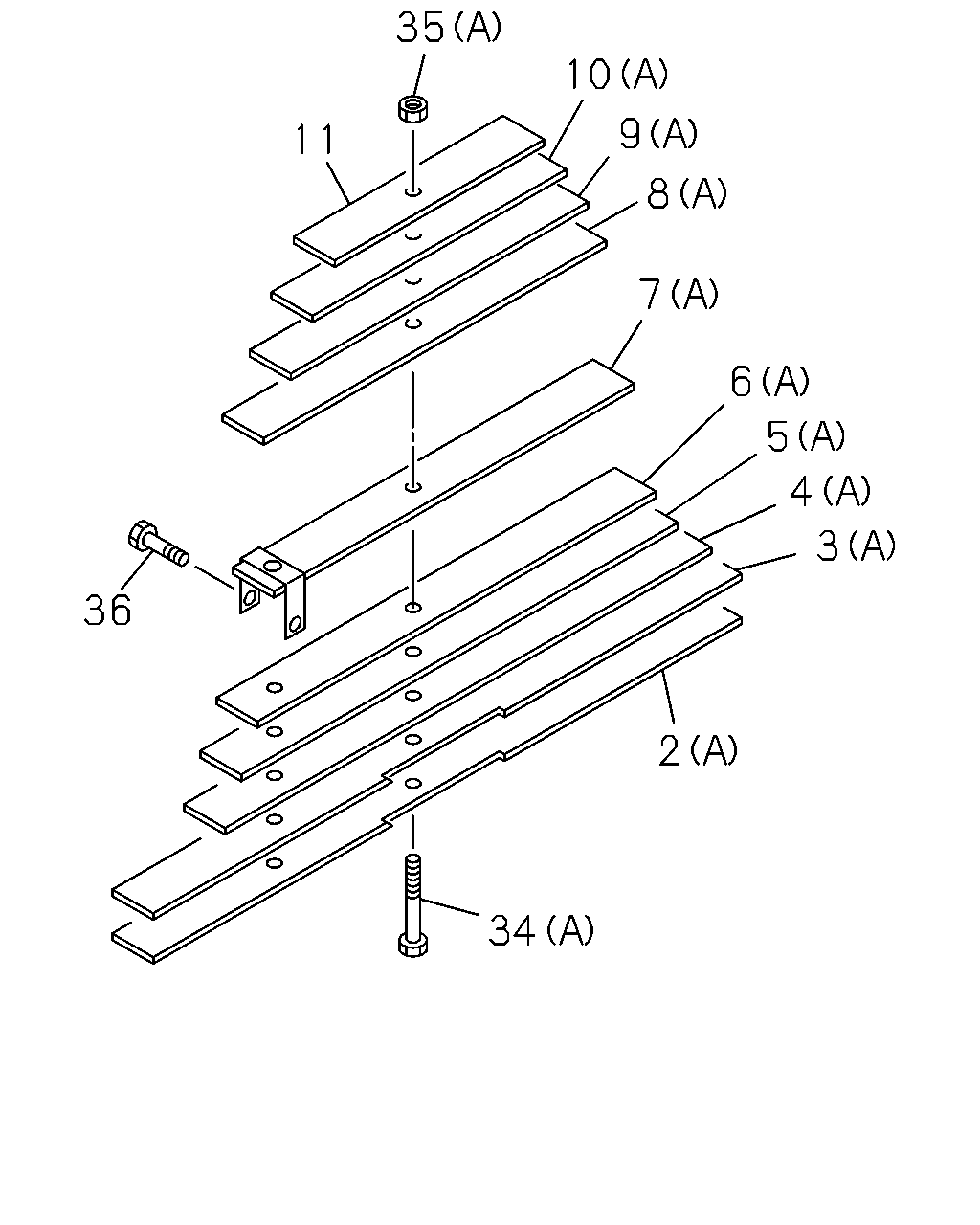

35 9 10 8 7 6 4 5 3 2 34 36 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51411-150-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-120-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51412-150-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-121-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51413-150-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-122-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51414-150-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-123-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51415-150-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-124-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51416-150-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51416-294-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-125-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51417-150-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51417-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-126-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51418-150-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51418-294-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-127-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: A = 1-51410-150-0	1-51419-150-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: B = 1-51410-294-0	1-51419-294-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: D = 8-98236-926-0	8-98242-128-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51410-150-0	1-51421-150-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=205 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=210 ASM PART: C = 8-98102-211-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: C = 8-98102-211-1	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-150-0, B = 1-51410-294-0, D = 8-98236-926-0	1-09000-326-0	01	1	-
