4-10 — FRONT AXLE (#117918) — 71 parça

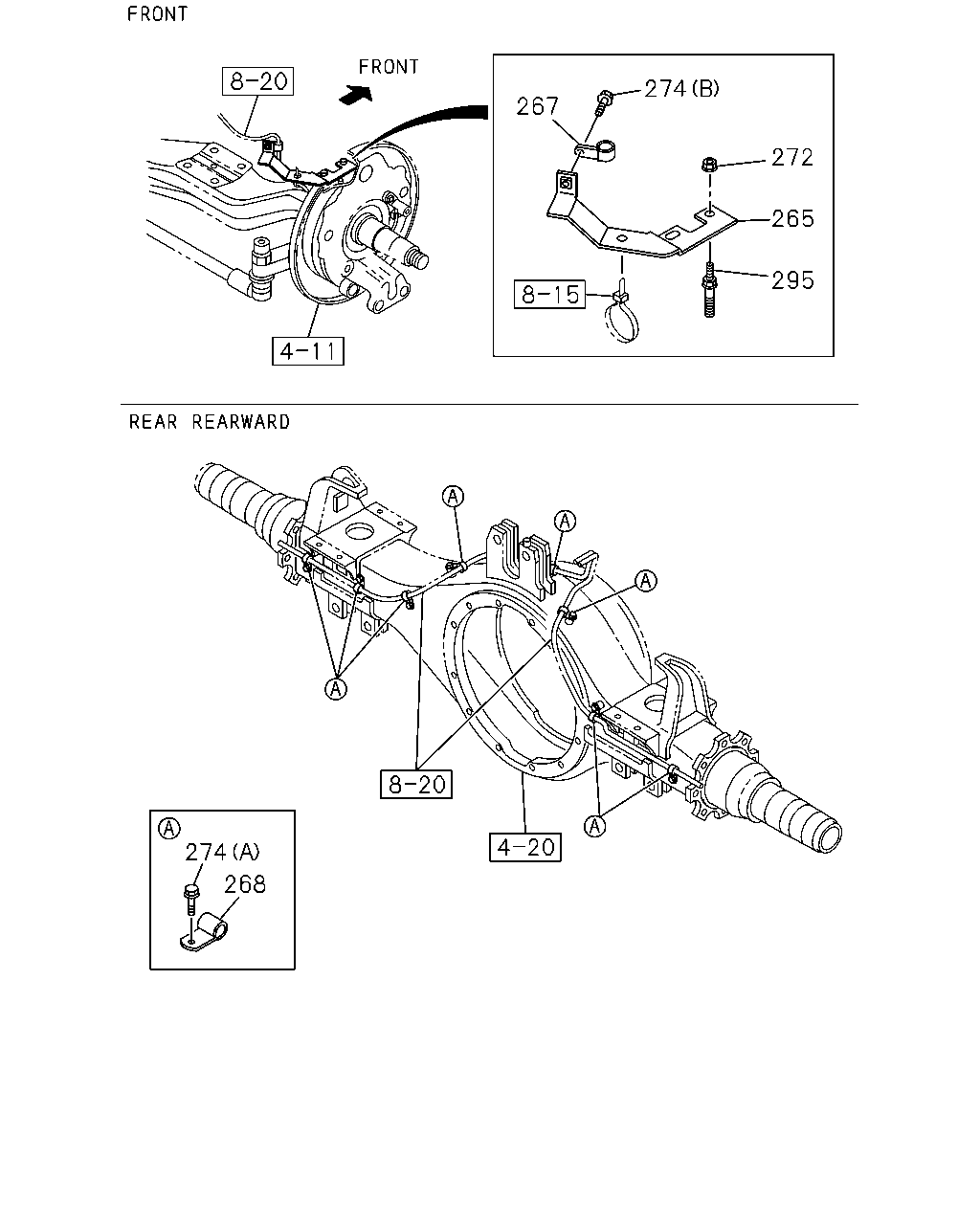

267 274 272 265 295 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA>	1-82698-426-0	01	1	1302-	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA>	1-82698-427-0	01	1	1302-	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11 L=20	0-95235-035-0	02	1	1302-	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11 L=20	0-95235-035-0	08	1	1302-	●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM<BFA> M10 FLANGE THA	0-91180-110-0	04	1	1302-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X10 FLANGE THA	0-28050-810-0	08	1	1302-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1302-	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-	●

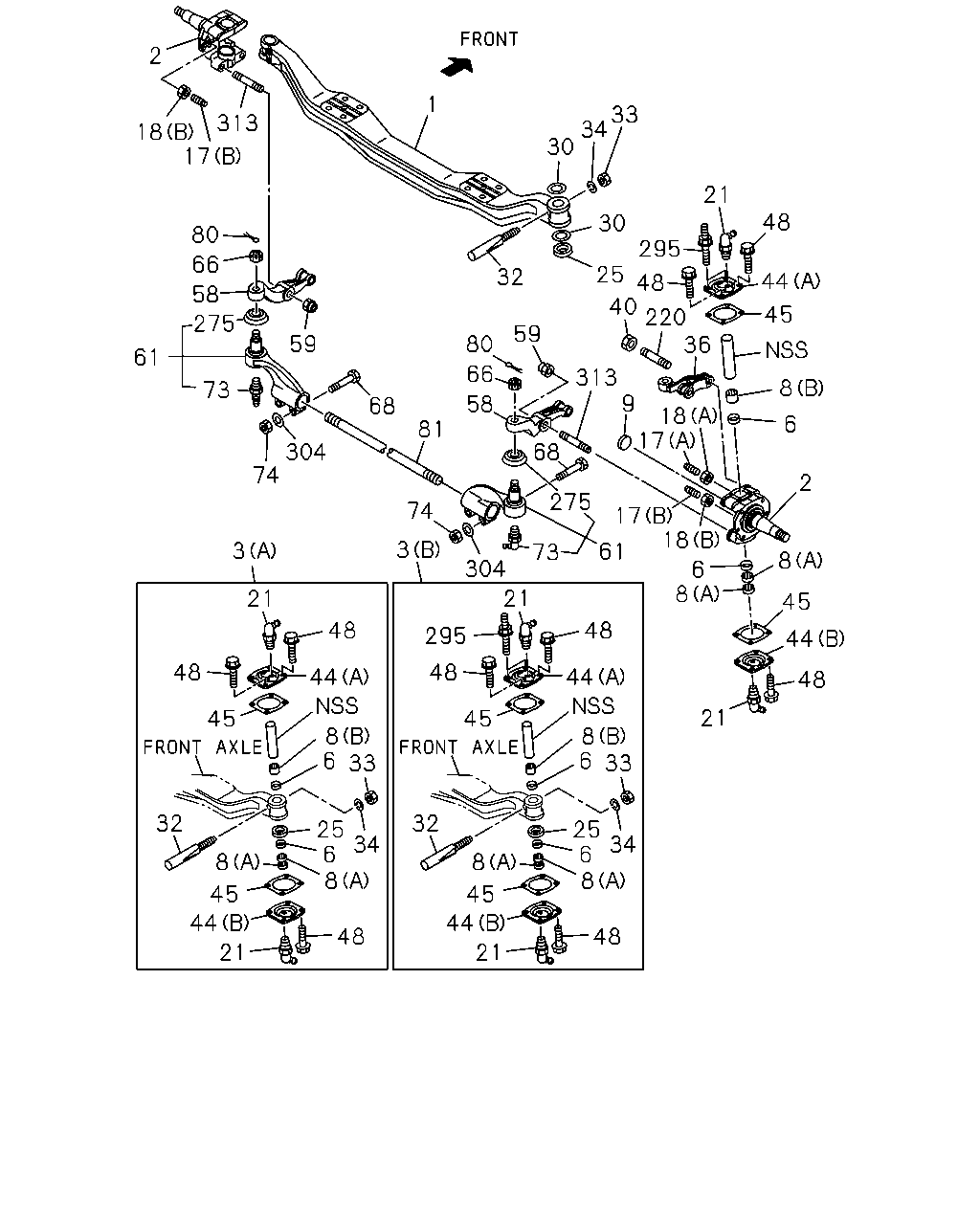

2 18 313 17 30 34 33 30 21 48 44 45 8 6 2 8 45 44 48 21 8 6 18 17 17 18 36 220 48 295 25 40 9 32 313 59 80 66 58 68 275 61 73 304 3 74 81 68 59 80 66 58 275 61 73 304 74 3 21 48 44 8 6 33 25 34 6 8 48 21 44 45 8 32 45 48 21 48 44 8 6 33 25 34 6 8 48 21 44 45 8 32 45 48 295 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066<FAU>	1-43111-177-4	01	1	1302-	●	●
1	AXLE; FRT FRONT AXLE F075<FH5>	1-43111-178-3	01	1	1302-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1302-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1302-	●	●
3	KING PIN SET (A)	1-87831-353-2	02	1	1302-		●
3	KING PIN SET EXC. ANTILOCK BRAKE SYSTEM<BFA> (A)	1-87831-353-2	02	1	1302-	●
3	KING PIN SET ANTILOCK BRAKE SYSTEM<BFA> (B)	1-87831-349-2	02	1	1302-	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-	●	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1302-		●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=22	1-09600-011-2	02	1	1302-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1302-	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1302-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1302-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1302-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1302-	●	●
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1302-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1302-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1302-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1302-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1302-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1302-	●	●
48	BOLT; COVER M10X25 FLANGE THA	0-28751-025-0	16	1	1302-		●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE THA	0-28751-025-0	16	1	1302-	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE THA	0-28751-025-0	12	1	1302-	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1302-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1302-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-	●	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1302-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-	●	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1302-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-	●	●
81	ROD; TIE	8-98105-064-0	01	1	1302-	●	●
220	STUD; KNUCKLE ARM	1-09300-127-1	02	1	1302-	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-	●
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	1302-	●	●
313	STUD; TIE ROD ARM	1-09300-127-1	04	1	1302-	●	●
