Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#117907) — 73 parça
◀

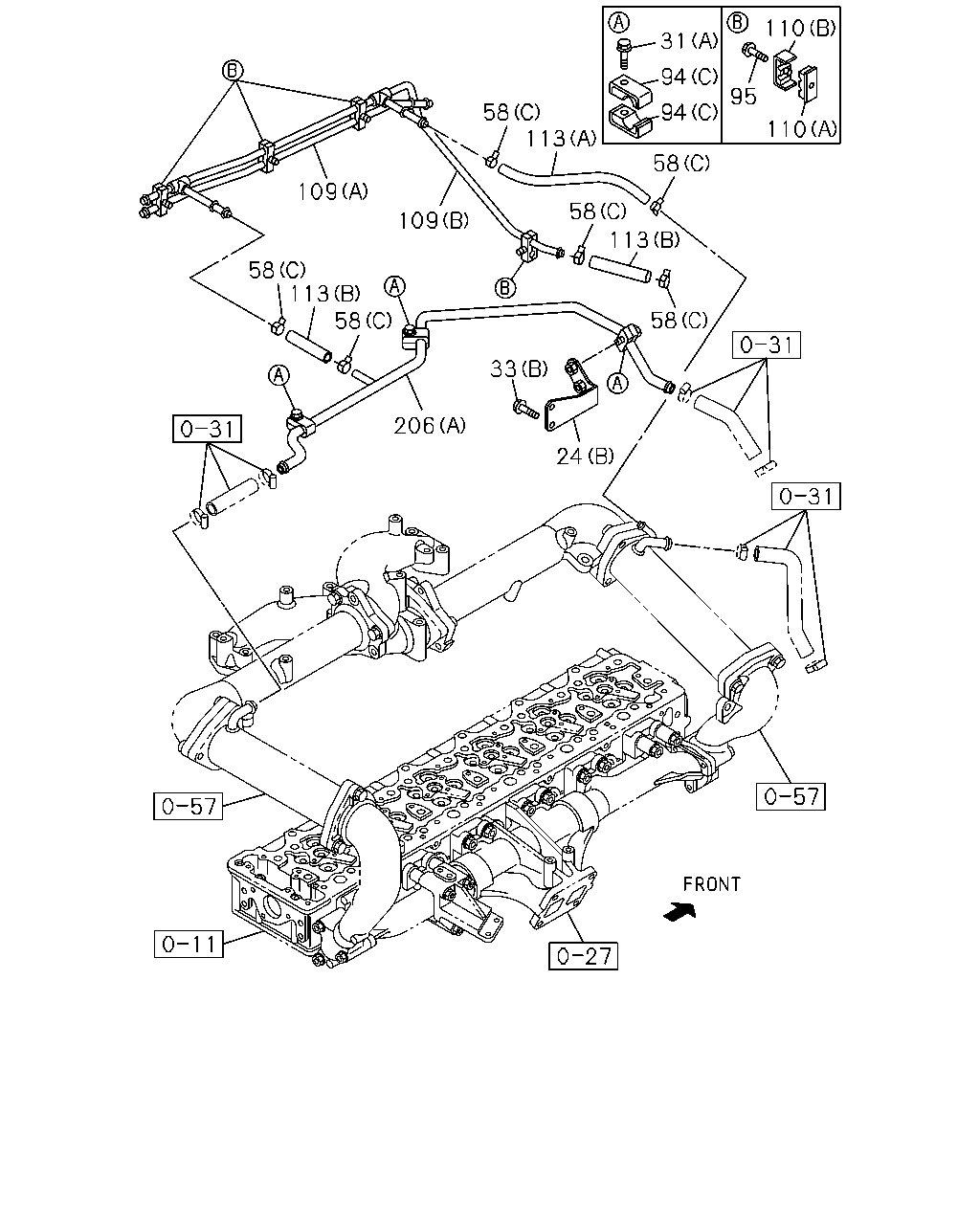

[032A] EGR COOLER NO.1 (23 parça)

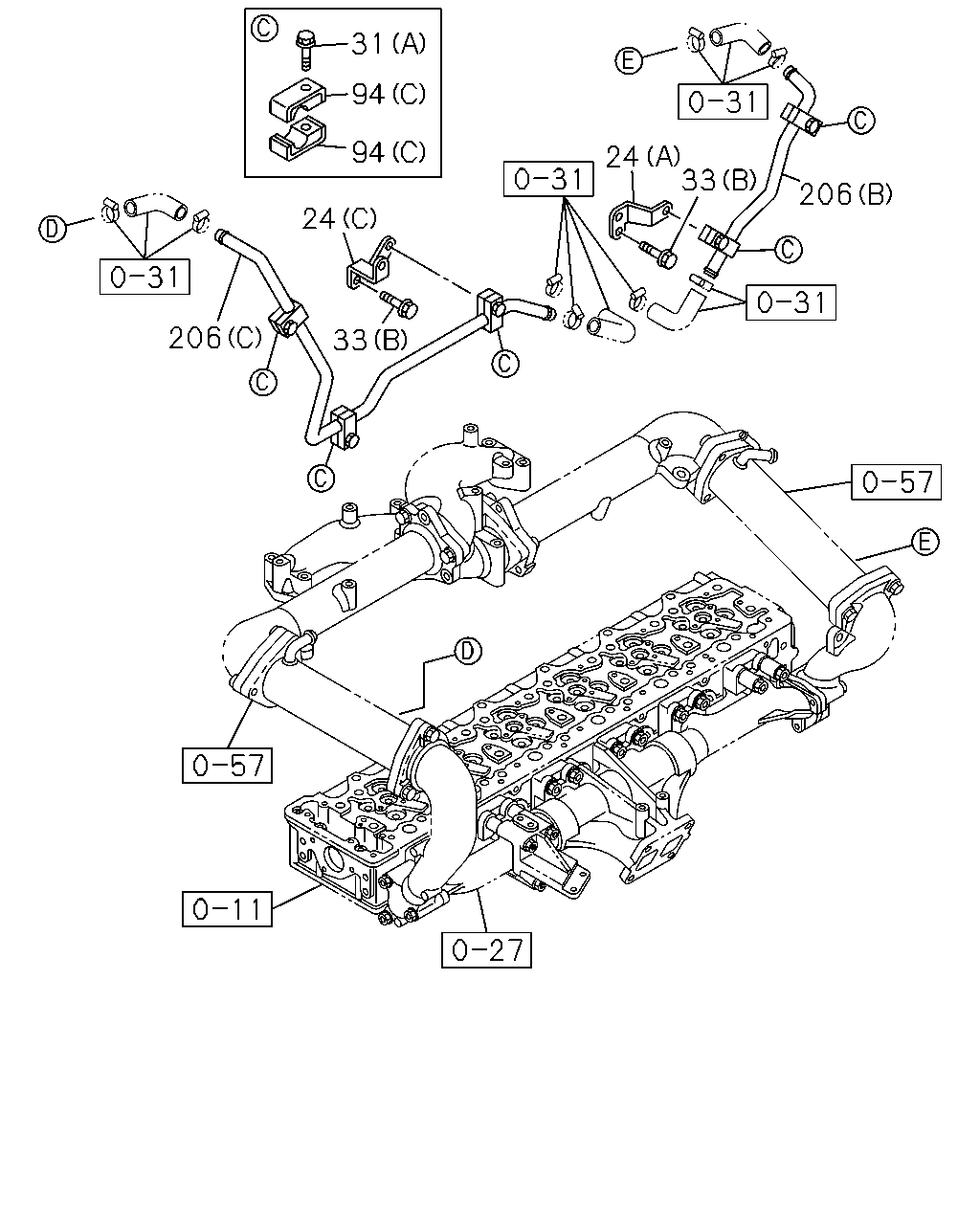

[032A] EGR COOLER NO.2 (13 parça)

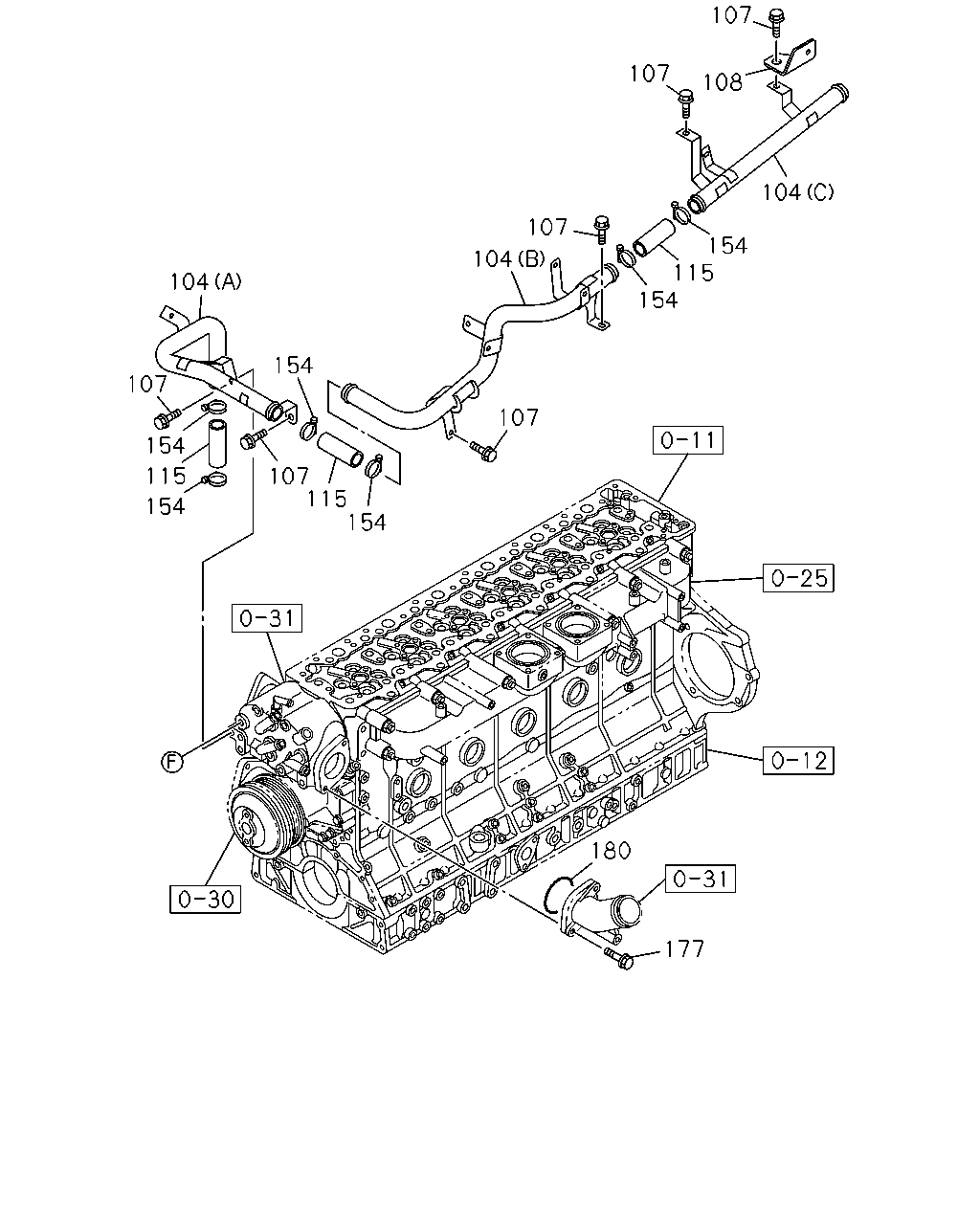

[032A] CHARGE PIPE (9 parça)

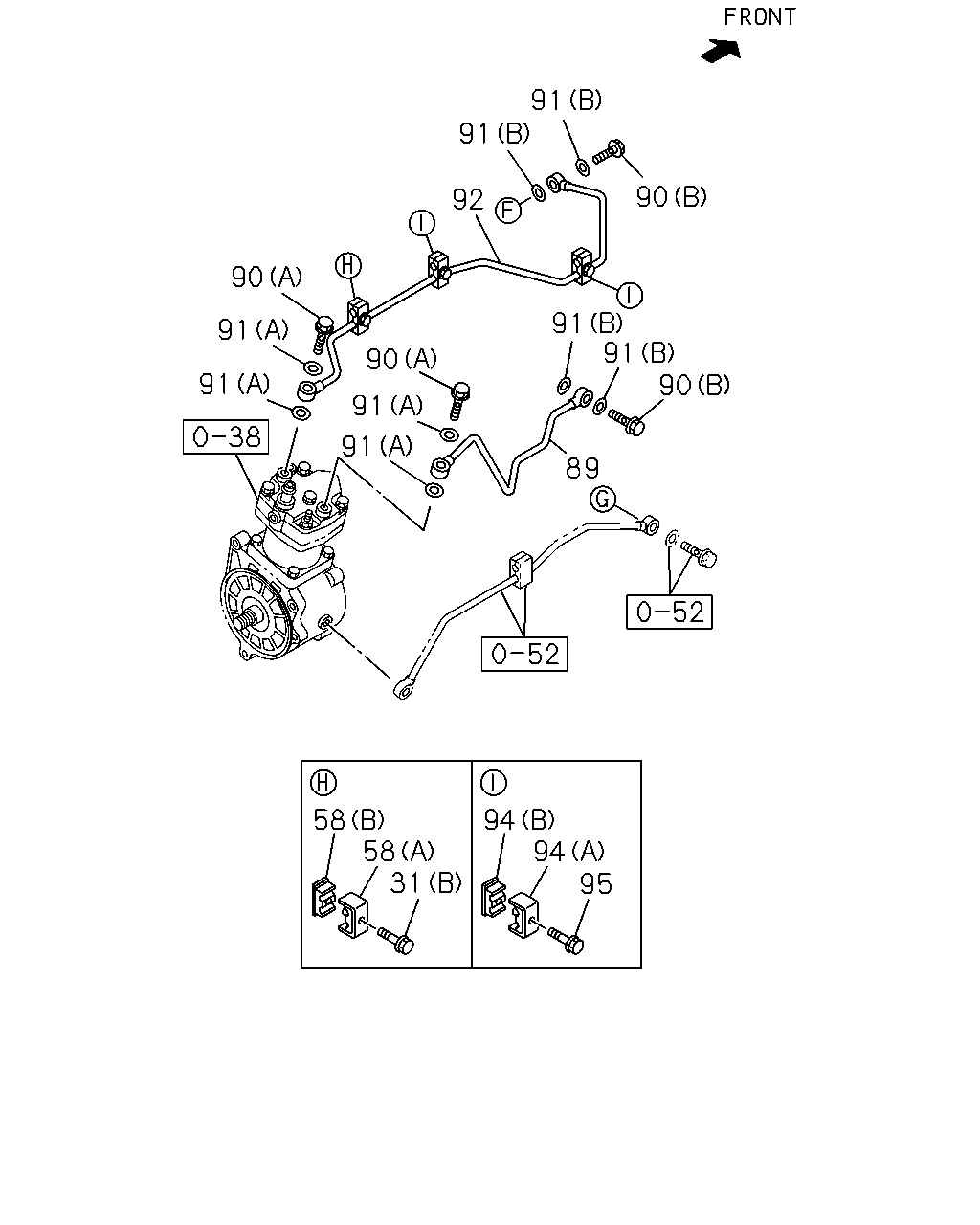

[032A] AIR COMPRESSOR SIDE (15 parça)

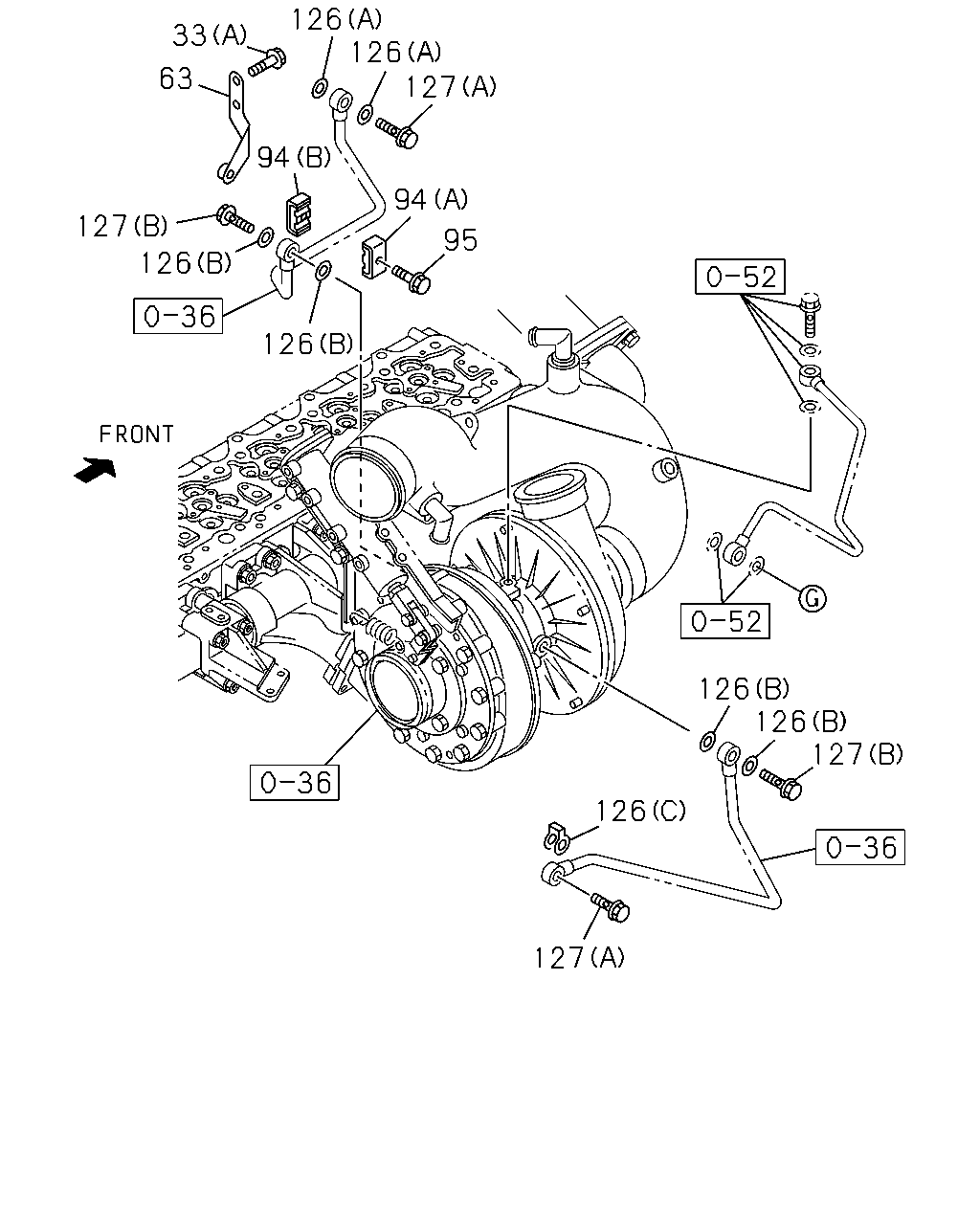

[032A] TURBOCHARGER SIDE (13 parça)
▶
58
31
110
95
94
94
110
113
58
58
109
109
58
58
113
113
58
33
206
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-97603-939-1
01
1
1304-
24
BRACKET; WATER PIPE
(B)
8-97606-635-0
01
1
1304-
24
BRACKET; WATER PIPE
(C)
8-97607-436-0
01
1
1304-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
08
1
1304-
31
BOLT; CLIP
(B) M6X35 FLANGE
0-28650-635-0
01
1
1304-
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1304-
33
BOLT; BRKT
(B) M10X20 FLANGE
0-28151-020-0
06
1
1304-
58
CLIP; RUBBER HOSE
(A) ID=7 & 11 L=28
1-09701-230-1
01
1
1304-
58
CLIP; RUBBER HOSE
(B) ID=7 & 11 L=28
1-09701-231-1
01
1
1304-
58
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1304-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
03
1
1304-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
03
1
1304-
94
CLIP; WATER PIPE
(C)
1-09701-284-0
16
1
1304-
95
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
07
1
1304-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(A)
8-97603-725-0
01
1
1304-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(B)
8-97603-726-1
01
1
1304-
110
CLIP; AIR PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
04
1
1304-
110
CLIP; AIR PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
1304-
113
HOSE; RUBBER,AIR LEAK
(B) L=100 SERVICED BY L=3000
0-03559-300-0
02
1
1304-
113
HOSE; RUBBER,AIR LEAK
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1304-
206
PIPE; WATER,EGR COOLER
(B)
8-97603-720-1
01
1
1304-
206
PIPE; WATER,EGR COOLER
(C)
8-97607-345-0
01
1
1304-
206
PIPE; WATER,EGR COOLER
(A)
8-98172-218-0
01
1
1304-
206
33
24
31
94
94
24
33
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-97603-939-1
01
1
1304-
24
BRACKET; WATER PIPE
(B)
8-97606-635-0
01
1
1304-
24
BRACKET; WATER PIPE
(C)
8-97607-436-0
01
1
1304-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
08
1
1304-
31
BOLT; CLIP
(B) M6X35 FLANGE
0-28650-635-0
01
1
1304-
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1304-
33
BOLT; BRKT
(B) M10X20 FLANGE
0-28151-020-0
06
1
1304-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
03
1
1304-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
03
1
1304-
94
CLIP; WATER PIPE
(C)
1-09701-284-0
16
1
1304-
206
PIPE; WATER,EGR COOLER
(B)
8-97603-720-1
01
1
1304-
206
PIPE; WATER,EGR COOLER
(C)
8-97607-345-0
01
1
1304-
206
PIPE; WATER,EGR COOLER
(A)
8-98172-218-0
01
1
1304-
107
108
107
107
104
154
104
107
154
115
154
107
115
154
107
154
115
154
104
180
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
PIPE; WATER CHARGE
(A)
8-97604-530-0
01
1
1304-
104
PIPE; WATER CHARGE
(C)
8-97610-822-0
01
1
1304-
104
PIPE; WATER CHARGE
(B)
8-98210-201-0
01
1
1304-
107
BOLT; WATER PIPE
M10X20 FLANGE
0-28151-020-0
06
1
1304-
108
BRACKET; WATER CHARGE
8-97610-823-0
01
1
1304-
115
HOSE; RUBBER
L=100 SERVICED BY L=3000
0-03580-300-0
03
1
1304-
154
CLIP; WATER HOSE
ID=44
1-09704-077-0
06
1
1304-
177
BOLT; WATER DUCT
M8X30 FLANGE
0-28650-830-0
02
1
1304-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6
9-09565-271-0
01
1
1304-
91
91
92
90
90
91
91
91
91
90
90
91
91
89
58
58
31
94
94
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
08
1
1304-
31
BOLT; CLIP
(B) M6X35 FLANGE
0-28650-635-0
01
1
1304-
58
CLIP; RUBBER HOSE
(A) ID=7 & 11 L=28
1-09701-230-1
01
1
1304-
58
CLIP; RUBBER HOSE
(B) ID=7 & 11 L=28
1-09701-231-1
01
1
1304-
58
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1304-
89
PIPE; WATER,AIR CMPR,IN
8-97611-169-0
01
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M16X30 FLANGE
1-09675-095-1
02
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M14X27 EYE-BOLT
1-09675-193-0
02
1
1304-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2
1-09630-086-0
04
1
1304-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=25
1-09630-141-0
04
1
1304-
92
PIPE; WATER,AIR CMPR,OUT
8-97611-171-0
01
1
1304-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
03
1
1304-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
03
1
1304-
94
CLIP; WATER PIPE
(C)
1-09701-284-0
16
1
1304-
95
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
07
1
1304-
126
126
127
127
26
126
126
127
94
63
33
126
126
127
94
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1304-
33
BOLT; BRKT
(B) M10X20 FLANGE
0-28151-020-0
06
1
1304-
63
BRACKET; WATER PIPE
8-97615-267-0
01
1
1304-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
03
1
1304-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
03
1
1304-
94
CLIP; WATER PIPE
(C)
1-09701-284-0
16
1
1304-
95
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
07
1
1304-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
1304-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1304-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=21
8-97251-047-0
01
1
1304-
127
BOLT; EYE
(B) M16X30 FLANGE
1-09675-095-1
02
1
1304-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1304-
