1-50 — EXHAUST PIPE AND SILENCER (#117904) — 111 parça

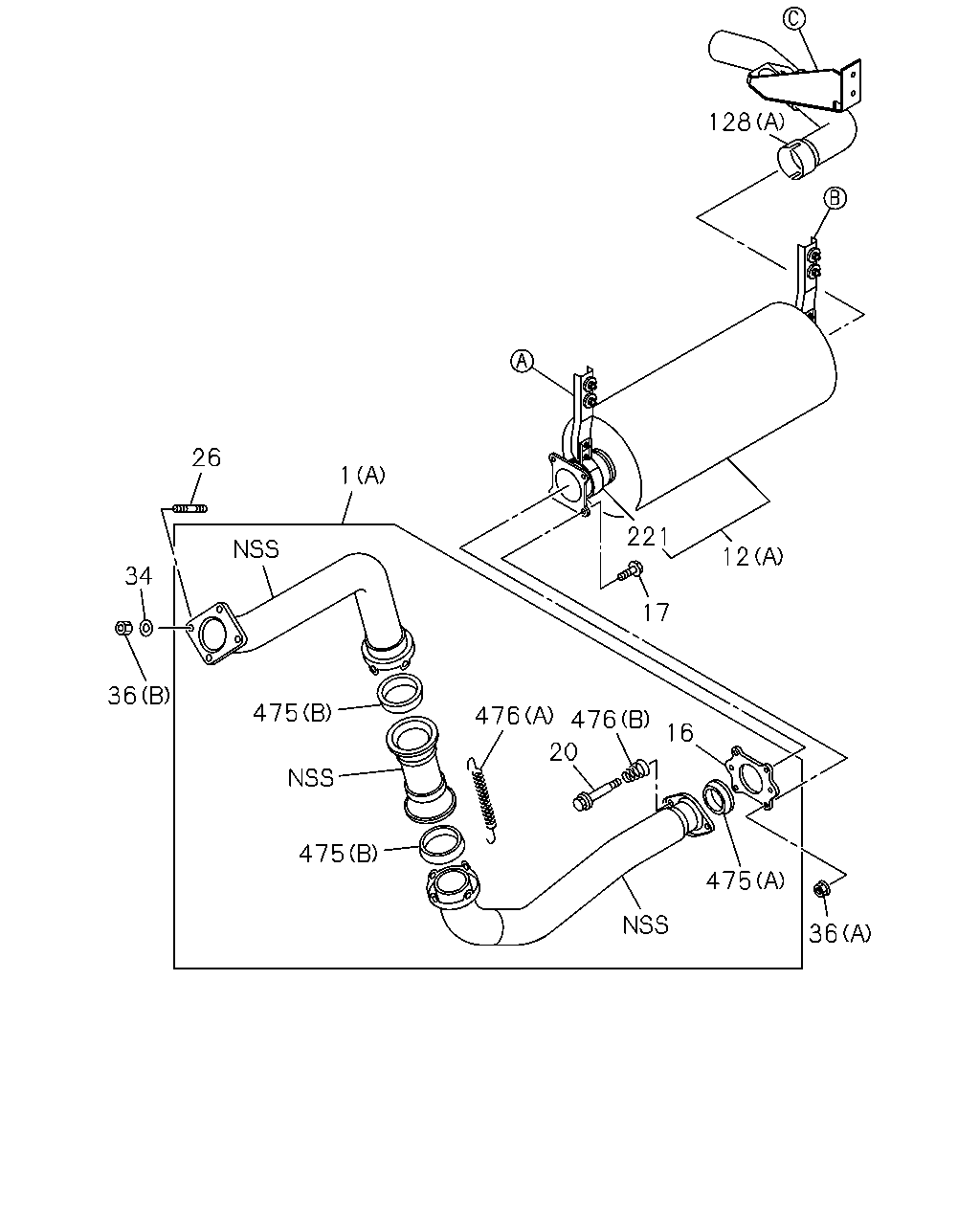

36 475 20 476 476 16 475 475 36 34 26 1 221 17 12 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	1302-	●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1302-	●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	1302-		●
12	SILENCER ASM; EXH (A) THA	8-97926-405-0	01	1	1302-	●
12	SILENCER ASM; EXH (B) THA	8-97926-407-0	01	1	1302-		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1302-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1302-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1302-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	1302-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1302-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1302-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1302-	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1302-	●	●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97645-940-0	01	1	1302-	●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-97640-906-0	01	1	1302-	●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1302-		●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1302-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1302-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1302-	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE (C) THA	1-09583-298-0	04	1	1302-		●

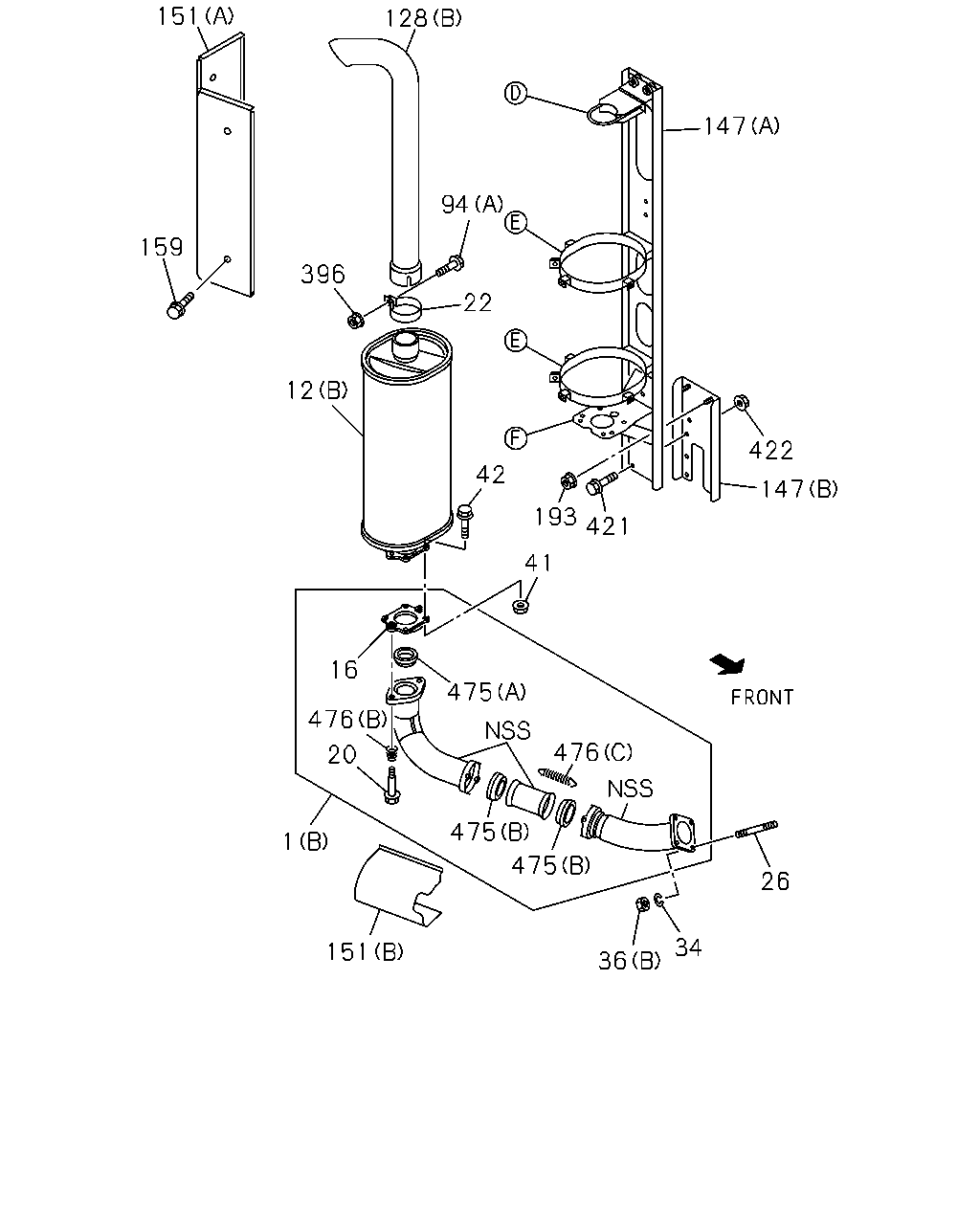

151 159 396 12 128 94 22 42 193 41 421 422 147 147 16 476 20 1 151 475 476 475 475 36 26 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	1302-	●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1302-	●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	1302-		●
12	SILENCER ASM; EXH (A) THA	8-97926-405-0	01	1	1302-	●
12	SILENCER ASM; EXH (B) THA	8-97926-407-0	01	1	1302-		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1302-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	1302-		●
22	CLAMP; EXH PIPE THA	1-22133-266-1	01	1	1302-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1302-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1302-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1302-	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1302-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1302-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	02	1	1302-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1302-	●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1302-		●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97645-940-0	01	1	1302-	●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-97640-906-0	01	1	1302-	●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1302-		●
147	BRACKET; VERTICAL PIPE (B) THA	8-97924-654-0	01	1	1302-		●
147	BRACKET; VERTICAL PIPE (A) THA	8-97924-664-0	01	1	1302-		●
151	PROTECTOR; HEAT,EXH PIPE (A) THA	8-97638-770-1	01	1	1302-		●
151	PROTECTOR; HEAT,EXH PIPE (B) THA	8-98111-047-0	01	1	1302-1302		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1302-		●
193	NUT; BRKT,VERTICAL PIPE M12 FLANGE THA	0-91180-212-0	02	1	1302-		●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
421	BOLT; PIPE BRKT M10X60 FLANGE THA	0-28051-060-0	04	1	1302-		●
422	NUT; PIPE M10 FLANGE THA	0-91180-210-0	04	1	1302-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1302-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1302-	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE (C) THA	1-09583-298-0	04	1	1302-		●

448 45 77 77 446 105 68 4 58 64 94 396 159 89 429 52 427 427 159 197 394 105 24 394 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT ID=8.4 OD=22	0-91610-708-0	02	1	1302-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1302-	●	●
45	BOLT; BRKT M10X50 FLANGE THA	0-28051-050-0	02	1	1302-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1302-	●	●
58	BRACKET; EXH PIPE,RR THA	8-97924-613-0	01	1	1302-		●
64	U-BOLT; EXH PIPE,RR	8-98164-642-0	01	1	1302-		●
68	NUT; U BOLT M8	0-91111-508-0	02	1	1302-		●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	04	1	1302-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1302-	●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1302-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1302-	●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1302-		●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	1302-	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	1302-		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1302-		●
197	BRACKET; EXH PIPE,VERTICAL THA	1-22151-768-1	01	1	1302-		●
394	RUBBER; SUPPORT,CLAMP OD=40 THA	1-22159-094-0	08	1	1302-		●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
420	BOLT; BRKT,VERTICAL PIPE M12X35 FLANGE	0-28061-235-0	08	1	1302-		●
427	SUPPORT; CLAMP OD=40 THA	1-22159-094-0	08	1	1302-		●
429	COLLAR; DIST,SUPPORT L=25	1-14234-083-0	04	1	1302-		●
446	PIECE; DIST,EXH PIPE,RR L=22	9-22159-024-0	02	1	1302-		●
448	PIECE; DIST,U-BOLT THA	8-97917-674-1	01	1	1302-		●

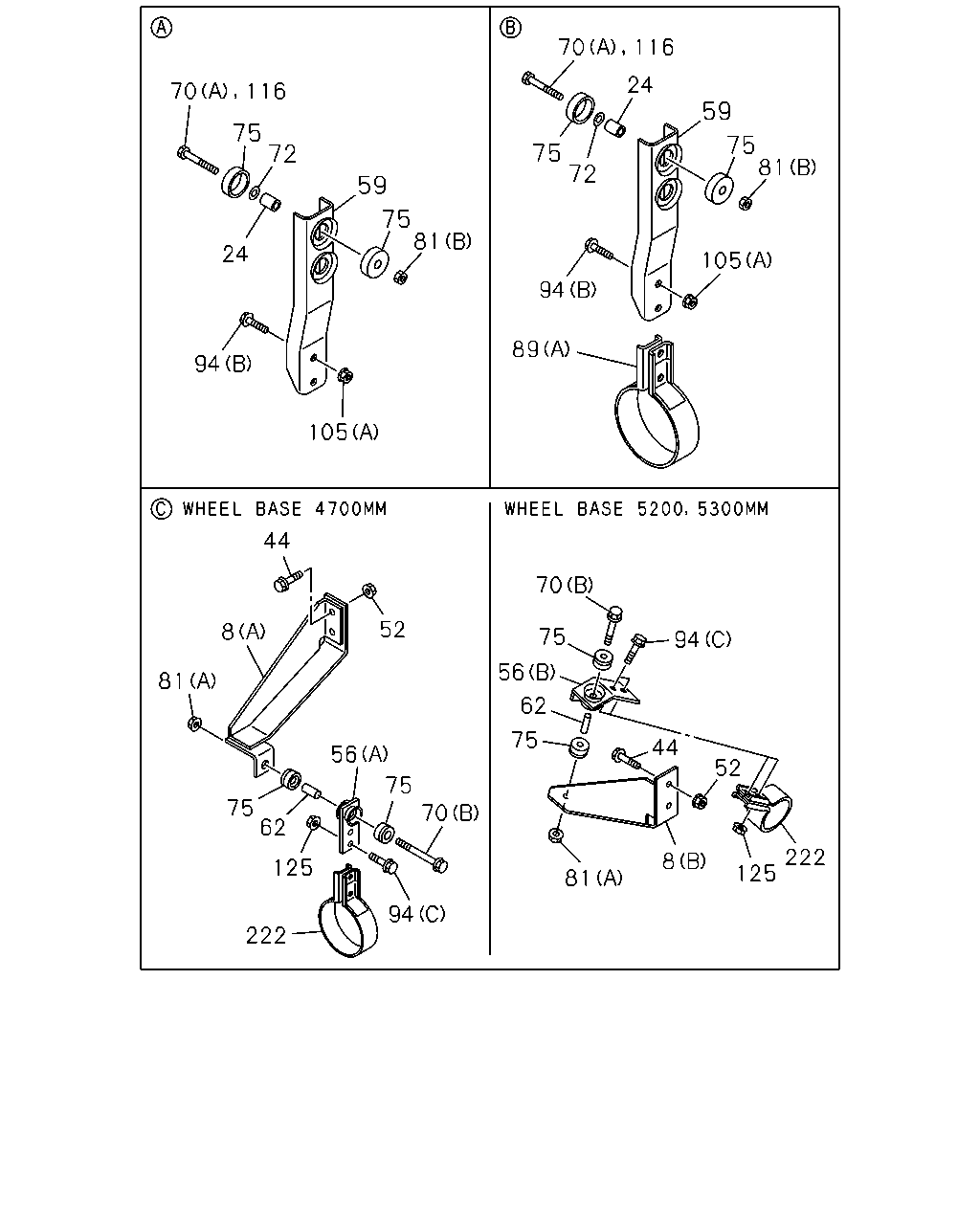

125 222 52 8 81 75 62 56 75 70 94 94 70 75 56 75 62 125 222 81 8 44 52 105 94 24 70 116 75 72 59 75 81 70 116 24 75 72 94 89 105 81 75 59 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE WHEEL BASE 4700MM<47W> (A) THA	8-97645-942-0	01	1	1302-	●
8	BRACKET; EXH PIPE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) THA	8-97640-908-0	01	1	1302-	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1302-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1302-	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1302-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4700MM<47W> (A) THA	8-97645-943-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) THA	8-97640-909-0	01	1	1302-	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 4700MM<47W>	8-98055-106-0	02	1	1302-	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> THA	8-97924-889-0	02	1	1302-	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1302-	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1302-	●
70	BOLT; BRKT WHEEL BASE 4700MM<47W> (A) M10X60	0-10856-060-0	02	1	1302-	●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	1302-	●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	1302-	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1302-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1302-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1302-	●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1302-	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1302-	●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1302-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1302-	●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1302-		●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	1302-	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	1302-		●
116	BOLT; BRKT WHEEL BASE 4700MM<47W> M10X60	0-10856-060-0	02	1	1302-	●
116	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	1302-	●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
222	CLAMP; EXH PIPE ID=97 THA	1-22133-191-0	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
