0-12 — CYLINDER BLOCK (#1179) — 149 parça

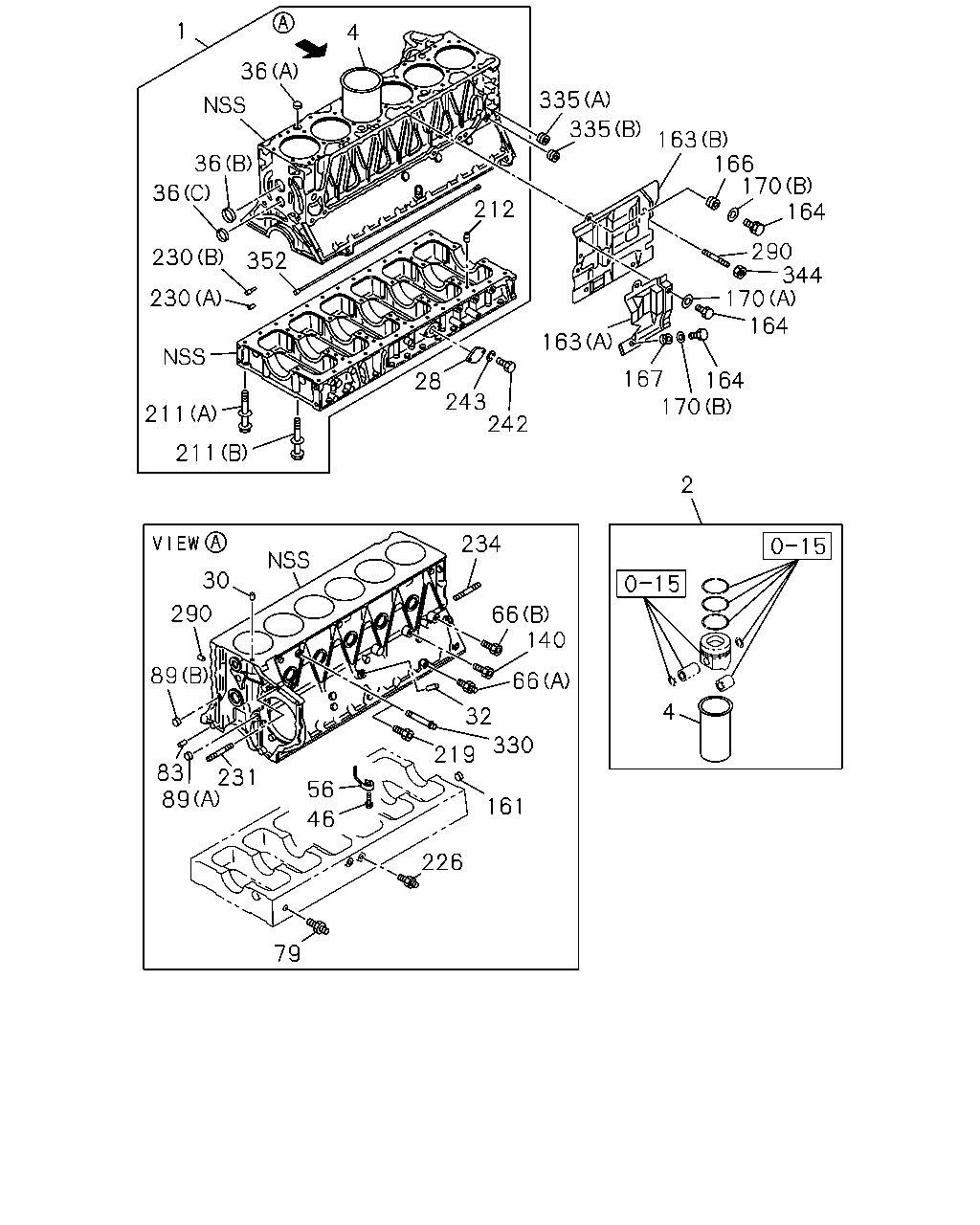

1 4 36 335 335 163 166 170 164 36 36 212 290 344 170 164 230 352 28 243 242 230 163 167 164 170 211 211 2 234 30 290 66 140 89 66 4 32 330 83 89 219 231 56 161 46 226 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-460-3	01	1	9202-9203	●
1	BLOCK ASM; CYL	1-11210-590-0	01	1	9204-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9202-9407	●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-87810-469-3	06	1	9410-		●
2	LINER SET; ENG CYL NON GRADE	1-87810-853-1	06	1	9202-			●
2	LINER SET; ENG CYL	1-87810-535-2	06	1	9306-9409		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL>	1-87810-535-2	06	1	9410-		●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9408-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-094-1	06	1	9202-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94396-332-0	06	1	9202-9505			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94394-563-1	06	1	9506-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9202-	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9202-			●
30	PIN; CYL HD GASKET SETTING	9-08150-816-0	03	1	9202-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9202-			●
32	PIN; INJ PUMP BRKT	9-08150-816-0	02	1	9202-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9202-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9202-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9202-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9202-	●	●
56	JET; OIL,PISTON COOLING	1-13342-107-1	06	1	9202-	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9202-			●
56	JET; OIL,PISTON COOLING	1-13342-116-1	06	1	9306-		●
66	CONNECTOR; PARTIAL FILTER (A)	1-09650-210-1	01	1	9202-	●	●
66	CONNECTOR; PARTIAL FILTER (B)	1-09660-155-0	01	1	9202-	●	●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9306-		●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9202-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9202-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9202-			●
140	NIPPLE; INJ PUMP	1-09660-108-0	01	1	9202-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9202-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-19380-098-4	01	1	9208-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-19380-108-4	01	1	9208-	●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M6X12 W/LK WASHER	0-50040-612-0	03	1	9208-	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	1-09337-021-0	06	1	9208-9401	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	1-09337-020-0	06	1	9402-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-19389-134-1	06	1	9208-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=6.4 OD=18	9-09160-706-0	03	1	9208-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=10.5 OD=26	9-09160-710-0	06	1	9208-	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9202-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	26	1	9202-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9202-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9202-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9202-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9202-			●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9202-	●	●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9202-	●	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9202-	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9202-	●	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9202-	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9202-			●
231	STUD; AIR CMPR M12X116 L=131	1-09302-109-1	01	1	9306-		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	03	1	9306-		●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9202-	●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	02	1	9306-		●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9202-			●
243	WASHER; PL,COVER,OIL PORT ID=8.4 OD=18	9-09164-608-0	02	1	9202-	●
290	STUD; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M8X35 L=47	9-04110-835-0	03	1	9208-	●
330	JOINT; HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09660-504-1	01	1	9202-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	06	1	9202-9305	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	02	1	9306-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9306-	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE M14	8-94399-225-0	04	1	9202-			●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9306-		●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	03	1	9208-	●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10 FLANGE	0-91150-110-0	03	1	9208-	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9204-	●	●

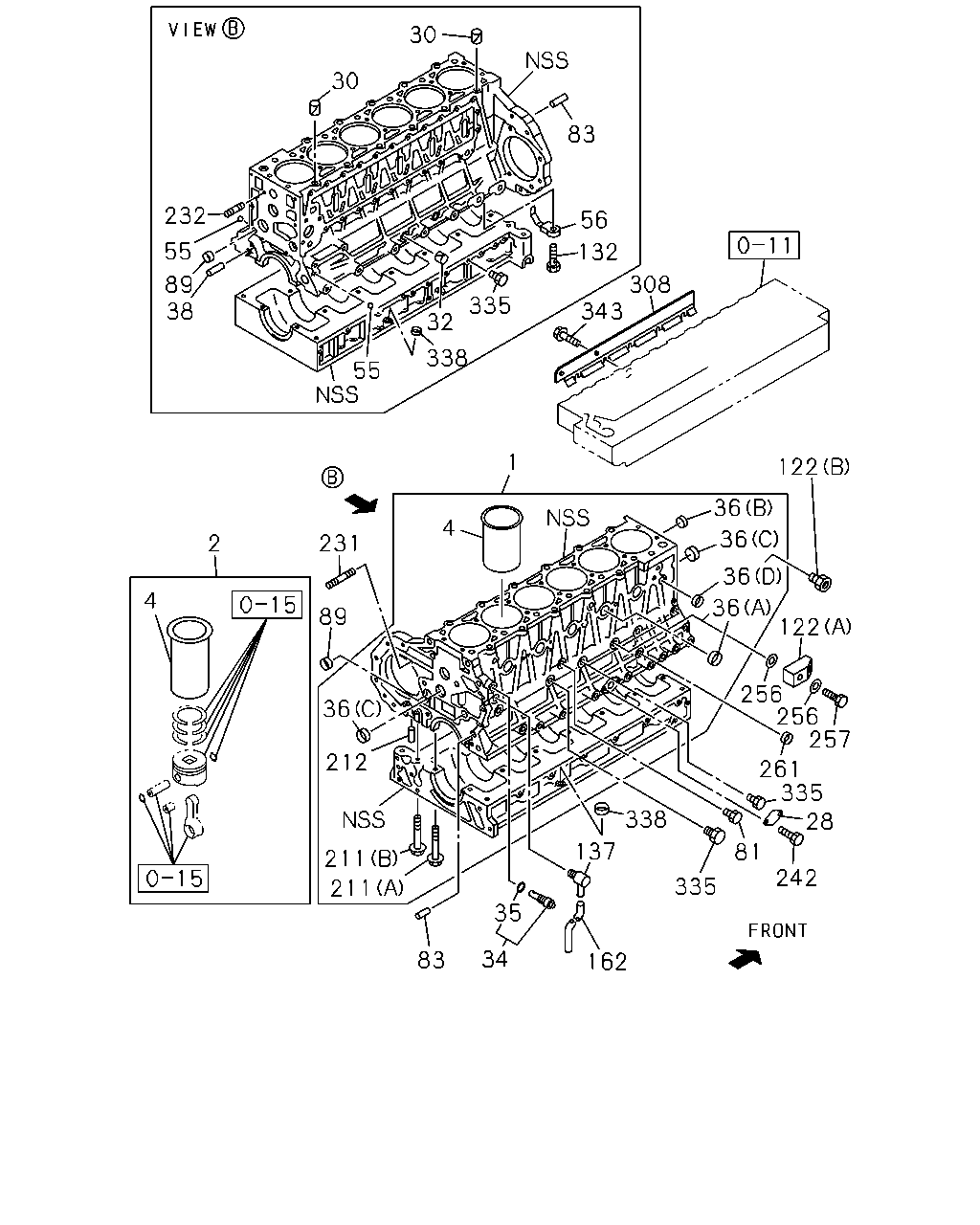

30 30 83 232 56 55 132 32 308 343 89 38 335 338 55 1 122 36 4 36 2 231 36 4 36 89 122 36 256 256 257 212 261 335 28 338 137 81 211 242 335 211 35 34 83 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-460-3	01	1	9202-9203	●
1	BLOCK ASM; CYL	1-11210-590-0	01	1	9204-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9202-9407	●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-87810-469-3	06	1	9410-		●
2	LINER SET; ENG CYL NON GRADE	1-87810-853-1	06	1	9202-			●
2	LINER SET; ENG CYL	1-87810-535-2	06	1	9306-9409		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL>	1-87810-535-2	06	1	9410-		●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9408-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-094-1	06	1	9202-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94396-332-0	06	1	9202-9505			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94394-563-1	06	1	9506-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9202-	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9202-			●
30	PIN; CYL HD GASKET SETTING	9-08150-816-0	03	1	9202-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9202-			●
32	PIN; INJ PUMP BRKT	9-08150-816-0	02	1	9202-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9202-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9202-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9202-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9202-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9202-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9202-			●
56	JET; OIL,PISTON COOLING	1-13342-107-1	06	1	9202-	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9202-			●
56	JET; OIL,PISTON COOLING	1-13342-116-1	06	1	9306-		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9202-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9202-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9202-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9202-			●
122	ADAPTER; OIL PRESSURE SWITCH (A)	8-94396-390-0	01	1	9202-9403			●
122	ADAPTER; OIL PRESSURE SWITCH (B)	8-94399-858-1	01	1	9404-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9202-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9202-			●
162	HOSE; WATER DRAIN,C/BL L=330 SERVICED BY L=3000	0-03259-300-0	01	1	9202-9308			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9309-			●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9202-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	26	1	9202-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9202-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9202-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9202-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9202-			●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9202-	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9202-			●
231	STUD; AIR CMPR M12X116 L=131	1-09302-109-1	01	1	9306-		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	03	1	9306-		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9202-			●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9202-			●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9202-9403			●
257	BOLT; EYE,ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	9202-9403			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9202-			●
308	PROTECTOR; HEAT,HD COVER	8-94393-265-0	01	1	9202-9405			●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9406-			●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	06	1	9202-9305	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	02	1	9306-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9306-	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE M14	8-94399-225-0	04	1	9202-			●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9306-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	9202-9301			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9302-			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9202-			●
