6-76 — FLOOR EQUIPMENT AND SEALING (#11789) — 30 parça

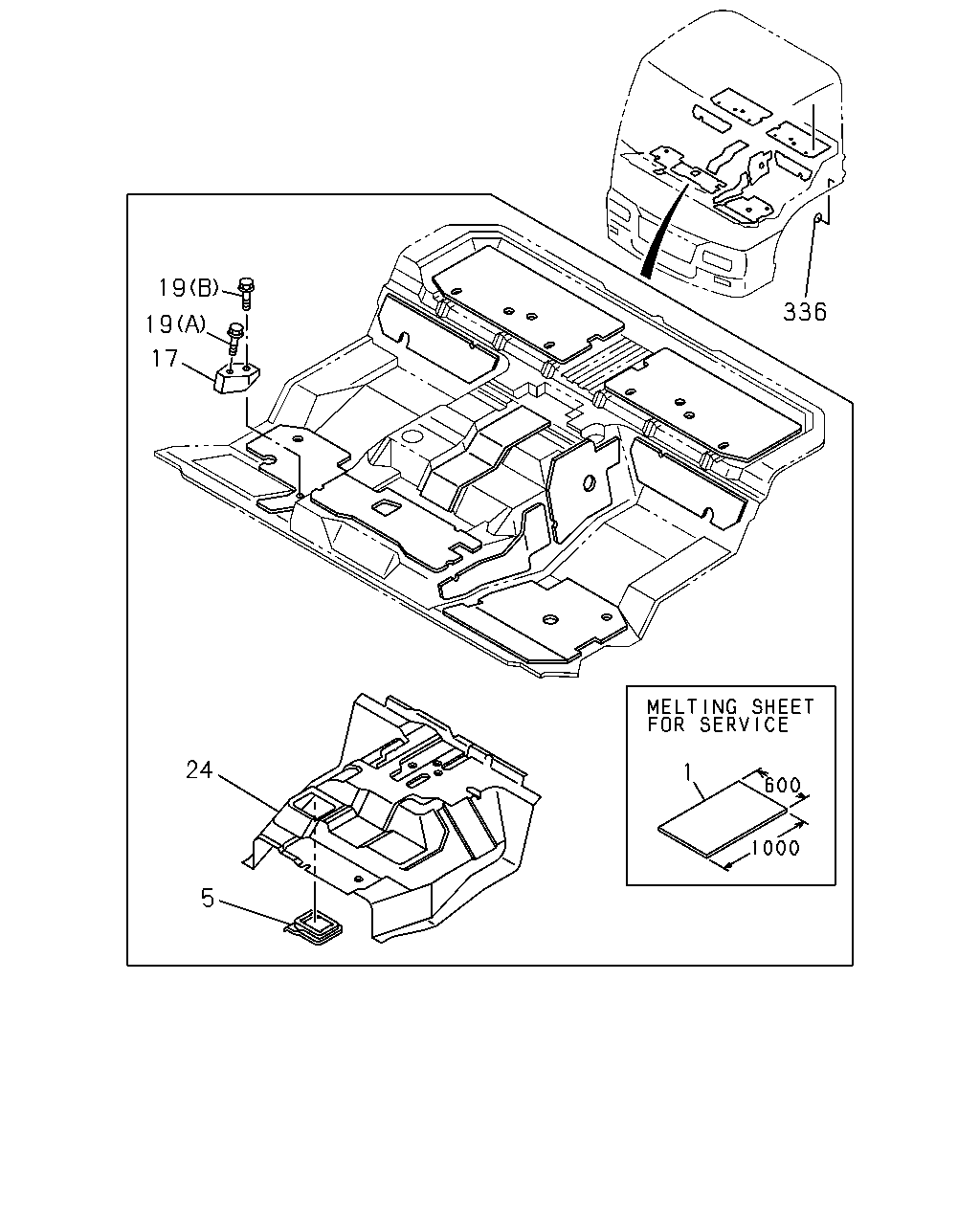

çizim 21221
19 19 17 336 24 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0106-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0106-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0106-
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0106-
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0106-
24 INSULATOR; HEAT,FRT 1-71907-299-6 01 1 0106-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0106-

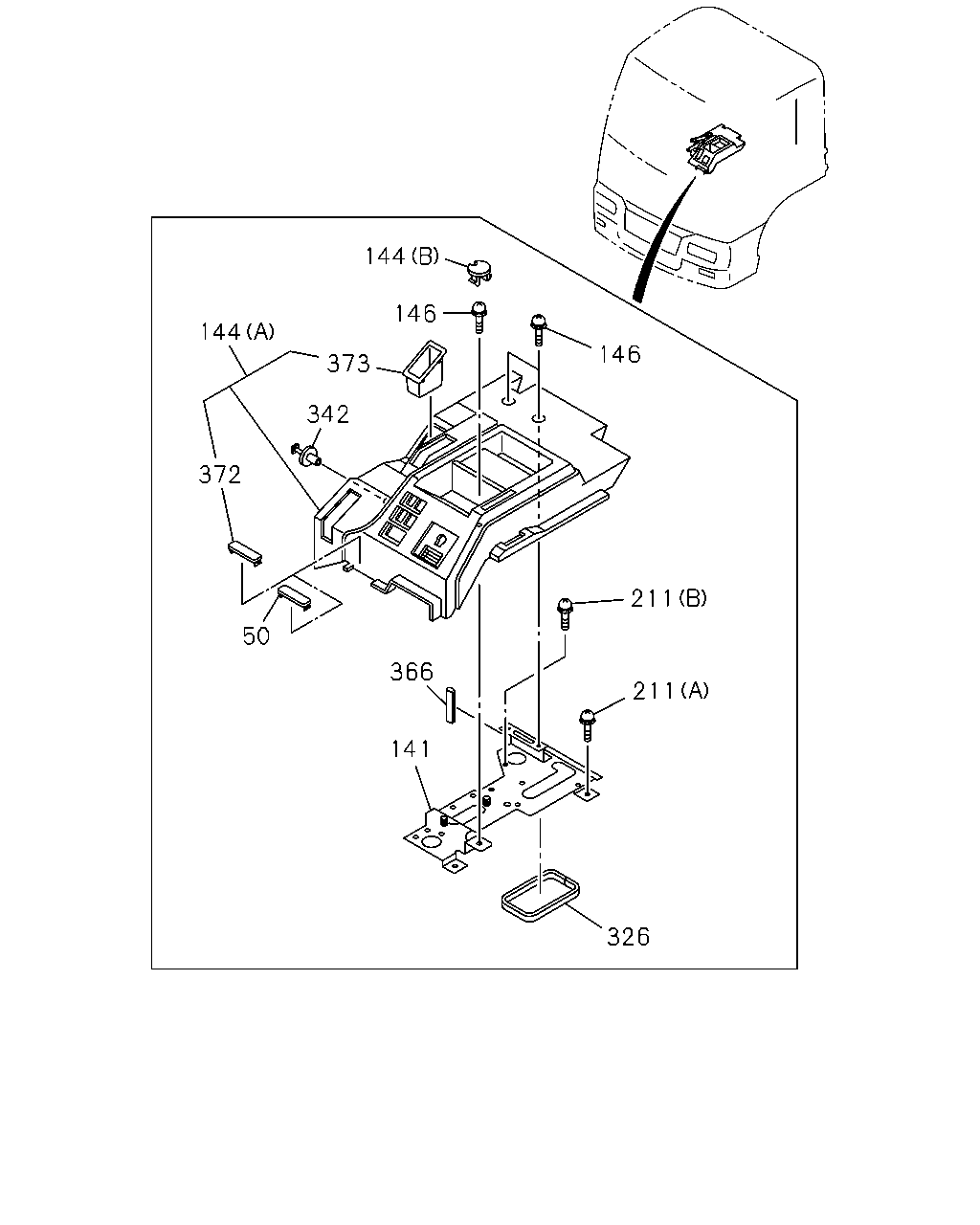

çizim 78575
144 146 144 146 373 342 372 211 50 366 211 141 326
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0106-0208
50 COVER ASM; SUPPORT,SIDE
COUNTER SHAFT BRAKE MULTI DISC<BCP> TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> 		1-72537-124-0 01 1 0209-
141 HOLDER 1-79907-076-2 01 1 0106-
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72537-106-0 01 1 0106-
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-348-0 01 1 0106-0106
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) 		1-72417-348-1 01 1 0107-
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (A) 		1-72417-348-1 01 1 0107-
144 COVER; HAND BRK VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> (A) 		1-72417-379-0 01 1 0107-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0106-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0106-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0106-
326 SEAL; COVER 1-79997-978-1 01 1 0106-
342 FASTENER
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> D8X13.5 		1-09987-270-0 01 1 0209-
342 FASTENER
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> D8X13.5 		1-09987-270-0 01 1 0209-
342 FASTENER
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 0106-0208
342 FASTENER
COUNTER SHAFT BRAKE MULTI DISC<BCP> TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> D8X13.5 		1-09987-248-1 01 1 0209-
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0306-
372 COVER; CONSOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-124-0 01 1 0106-0106
372 COVER; CONSOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-72537-124-0 01 1 0107-
372 COVER; CONSOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> 		1-72537-124-0 01 1 0107-
373 COVER; HOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-194-0 01 1 0106-0106
373 COVER; HOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-72537-194-0 01 1 0107-
373 COVER; HOLE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> 		1-72537-194-0 01 1 0107-
