◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#11787) — 24 parça

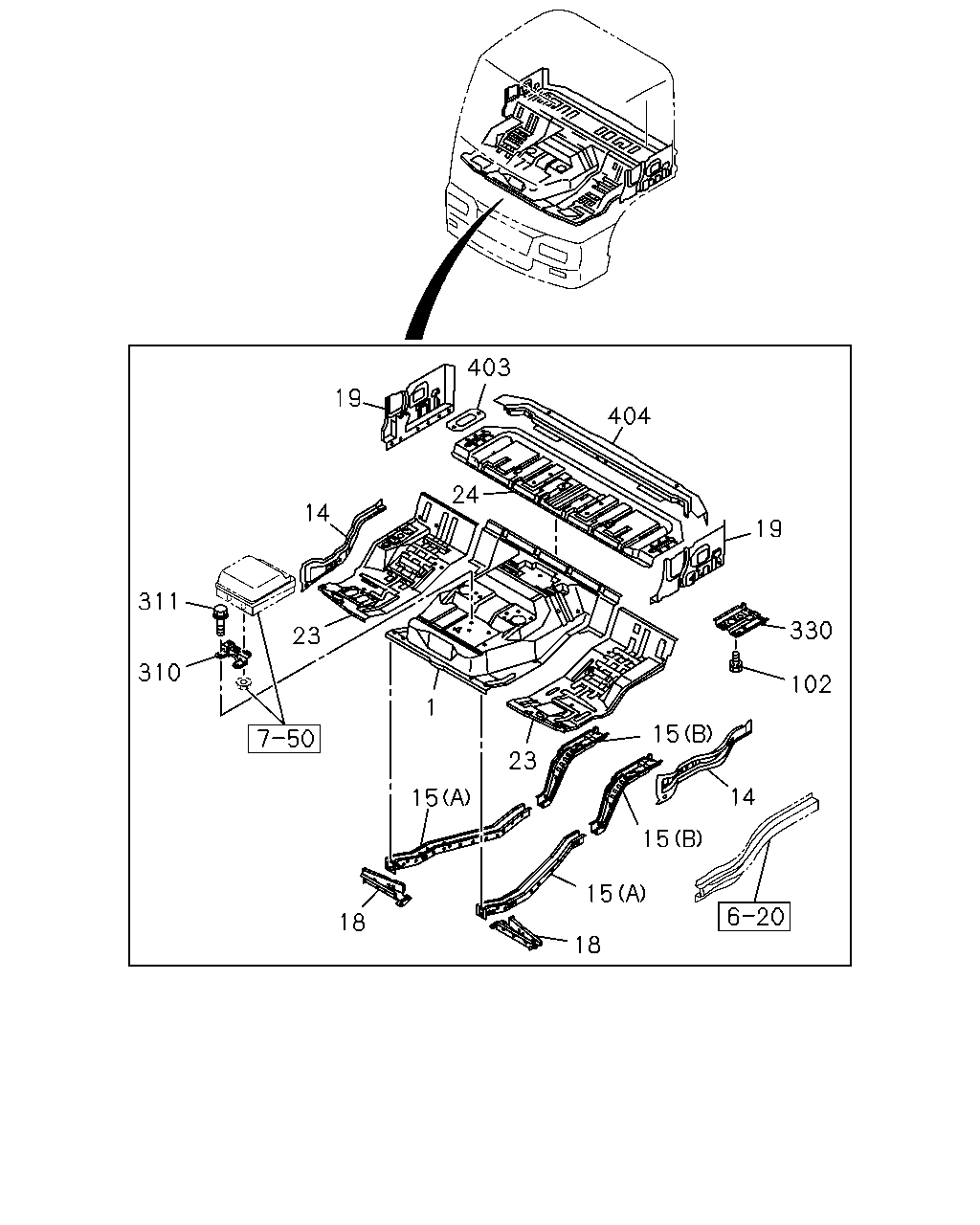

çizim 78565
403 19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-603-4 01 1 0106-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0106-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0106-
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0106-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0106-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0106-
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0106-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> FULLER M/T<X9B> 		1-62472-615-4 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0106-
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0106-
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) 		1-62172-791-0 01 1 0106-
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) 		1-62172-799-0 01 1 0106-
24 PANEL; BED PAN 1-62172-540-9 01 1 0106-
102 BOLT; FLOOR BOARD
M8X20 W/LK&PL WASHER 		8-94279-208-0 06 1 0106-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0106-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0106-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0106-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0106-
