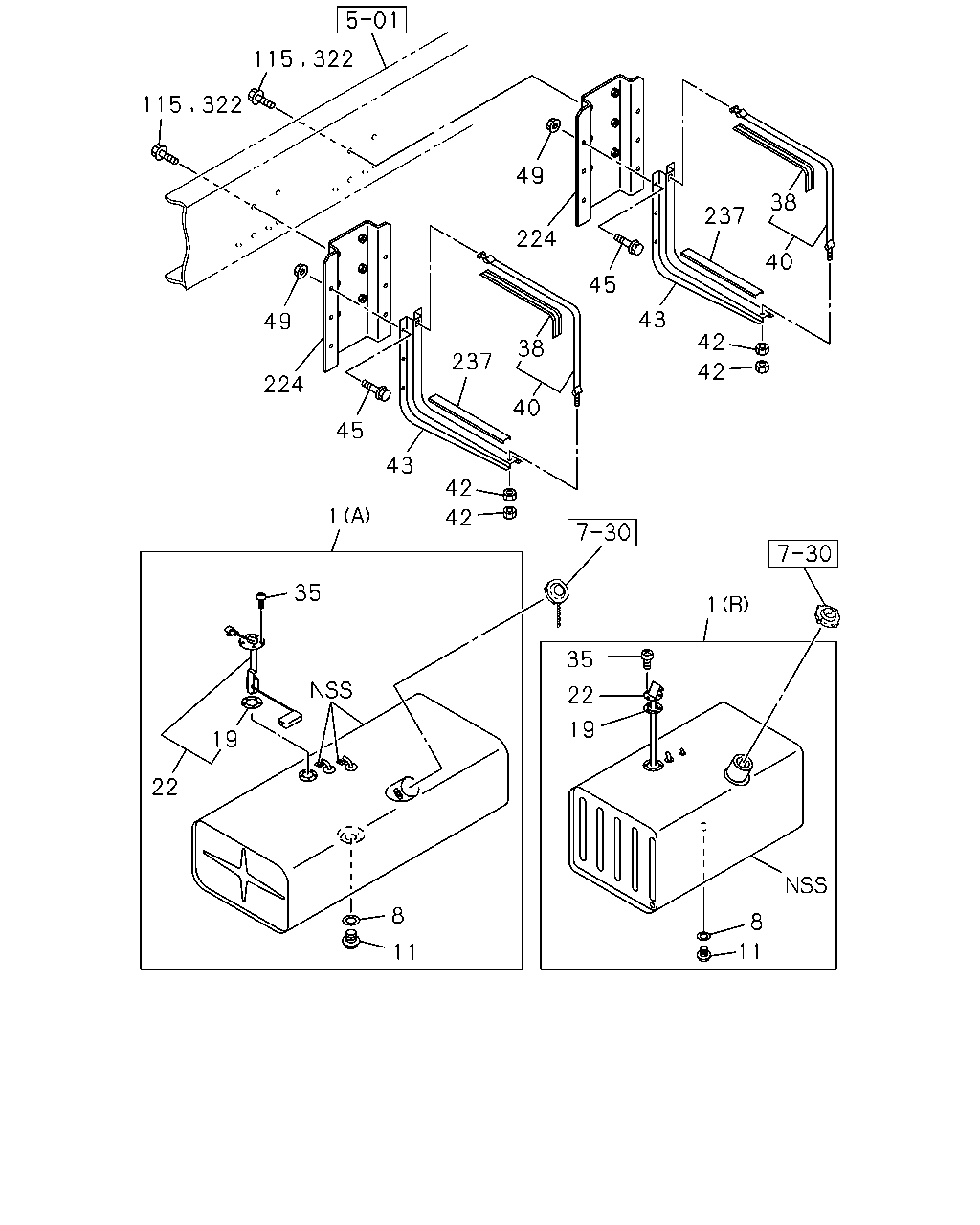

1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
(A)
1100X632X322 200L
THA
|
8-97924-531-1 |
01 |
1 |
1302- |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 370L<8MH>
(B)
1275X603X503 370L
THA
|
8-97924-533-1 |
01 |
1 |
1302-1302 |
● |
|
| |
1 |
TANK; FUEL
(B)
1275X603X503 370L
THA
|
8-97924-533-1 |
01 |
1 |
1302-1302 |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 370L<8MH>
(B)
1275X603X503 370L
THA
|
8-98240-497-0 |
01 |
1 |
1303- |
● |
|
| |
1 |
TANK; FUEL
(B)
1275X603X503 370L
THA
|
8-98240-497-0 |
01 |
1 |
1303- |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
THA
|
8-97913-627-0 |
01 |
1 |
1302- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
THA
|
8-97913-628-0 |
01 |
1 |
1302- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 370L<8MH>
|
1-83149-003-0 |
01 |
1 |
1302- |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
|
1-83149-003-0 |
01 |
1 |
1302- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1302- |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 370L<8MH>
|
1-83141-111-0 |
01 |
1 |
1302-1302 |
● |
|
| |
22 |
UNIT; FUEL TANK
|
1-83141-111-0 |
01 |
1 |
1302-1302 |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 370L<8MH>
|
8-98232-363-0 |
01 |
1 |
1303- |
● |
|
| |
22 |
UNIT; FUEL TANK
|
8-98232-363-0 |
01 |
1 |
1303- |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
1-83141-084-1 |
01 |
1 |
1302- |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 370L<8MH>
|
1-22419-012-0 |
05 |
1 |
1302- |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
|
1-22419-012-0 |
05 |
1 |
1302- |
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
1302- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
THA
|
8-97922-749-0 |
02 |
1 |
1302- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 370L<8MH>
THA
|
8-97922-175-0 |
04 |
1 |
1302- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
THA
|
8-97922-175-0 |
04 |
1 |
1302- |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
THA
|
8-97922-752-0 |
02 |
1 |
1302- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 370L<8MH>
THA
|
8-97922-751-0 |
02 |
1 |
1302- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
THA
|
8-97922-751-0 |
02 |
1 |
1302- |
|
● |
| |
42 |
NUT; SUPPORT BELT
M10
THA
|
0-91110-510-0 |
04 |
1 |
1302- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
THA
|
8-97910-388-2 |
02 |
1 |
1302- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 370L<8MH>
THA
|
8-97921-801-1 |
02 |
1 |
1302- |
● |
|
| |
43 |
BRACKET; FUEL TANK
THA
|
8-97921-801-1 |
02 |
1 |
1302- |
|
● |
| |
45 |
BOLT; BRKT,FUEL TANK
WHEEL BASE 4700MM<47W>
FUEL TANK 200L FRAME SIDE<N20>
M12X40 FLANGE
THA
|
0-28051-240-0 |
12 |
1 |
1302- |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 370L<8MH>
M12
|
0-91110-512-0 |
12 |
1 |
1302- |
● |
|
| |
49 |
NUT; BRKT
M12
|
0-91110-512-0 |
12 |
1 |
1302- |
|
● |
| |
49 |
NUT; BRKT
WHEEL BASE 4700MM<47W>
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
1302- |
● |
|
| |
49 |
NUT; BRKT
WHEEL BASE 4700MM<47W>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
THA
|
0-91180-212-0 |
12 |
1 |
1302- |
● |
|
| |
115 |
BOLT; BRKT
WHEEL BASE 4700MM<47W>
FUEL TANK 200L FRAME SIDE<N20>
M12X40 FLANGE
THA
|
0-28051-240-0 |
12 |
1 |
1302- |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
WHEEL BASE 4700MM<47W>
FUEL TANK 200L FRAME SIDE<N20>
THA
|
8-97910-886-0 |
02 |
1 |
1302- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=580
THA
|
8-97916-877-0 |
02 |
1 |
1302- |
● |
● |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 370L<8MH>
M12X45 FLANGE
THA
|
0-28051-245-0 |
12 |
1 |
1302- |
● |
|
| |
322 |
BOLT; BRKT FIX
M12X45 FLANGE
THA
|
0-28051-245-0 |
12 |
1 |
1302- |
|
● |
