◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#11784) — 160 parça

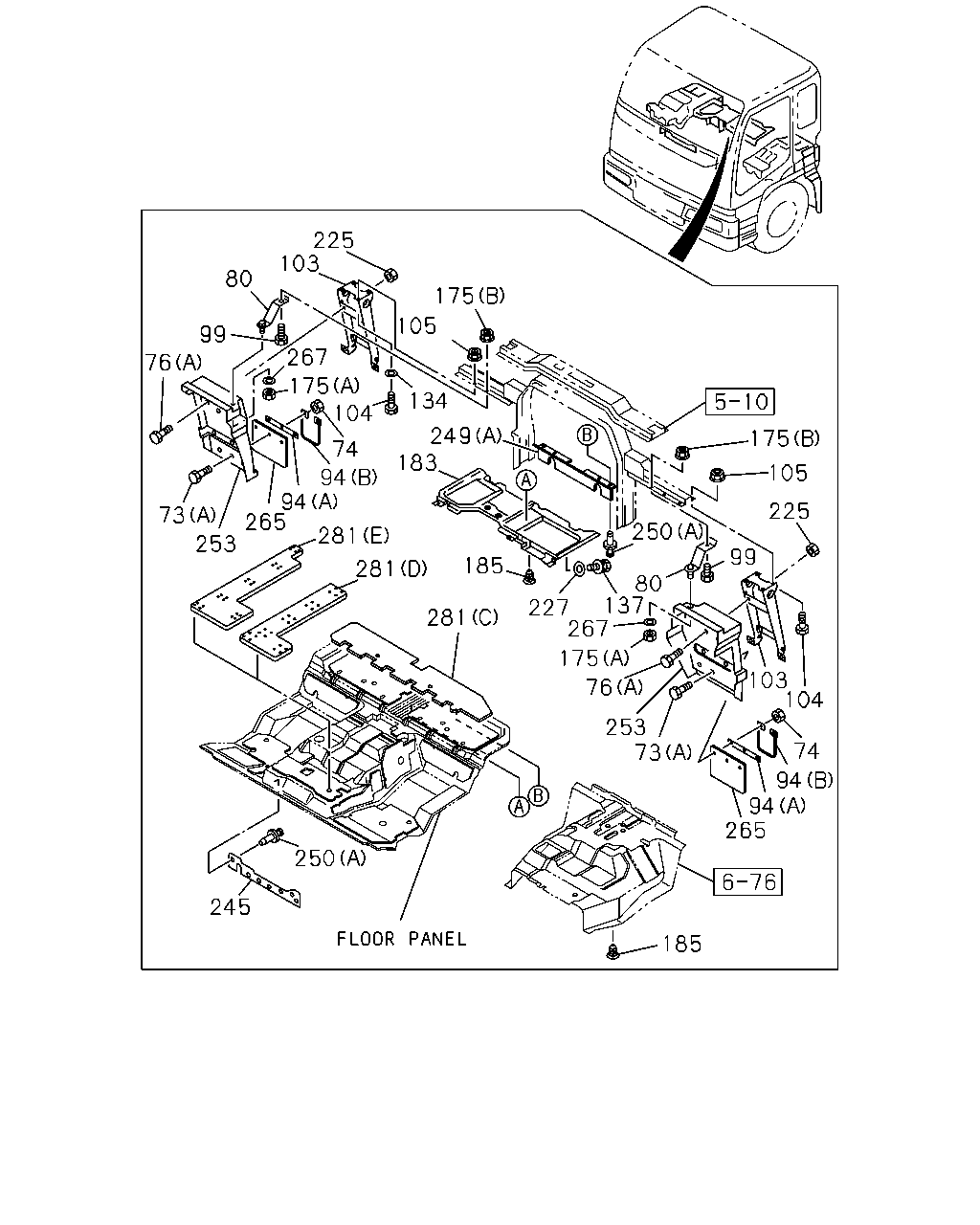

çizim 21918
225 103 80 175 105 99 267 76 134 175 104 249 183 175 74 105 94 94 265 253 225 73 250 281 99 185 281 80 227 137 267 281 175 103 104 76 253 73 74 94 94 265 250 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 03 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 03 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0106-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0106-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0106-
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 01 1 0106-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0106-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0106-
103 BRACKET ASM; RR MUD FLAP 1-79931-308-1 01 1 0106-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0106-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0106-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0106-
137 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0106-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0106-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0106-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0106-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0106-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0106-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
253 GUARD; MUD 1-79931-067-7 01 1 0106-
253 GUARD; MUD 1-79931-065-7 01 1 0106-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0106-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0106-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0106-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0106-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-

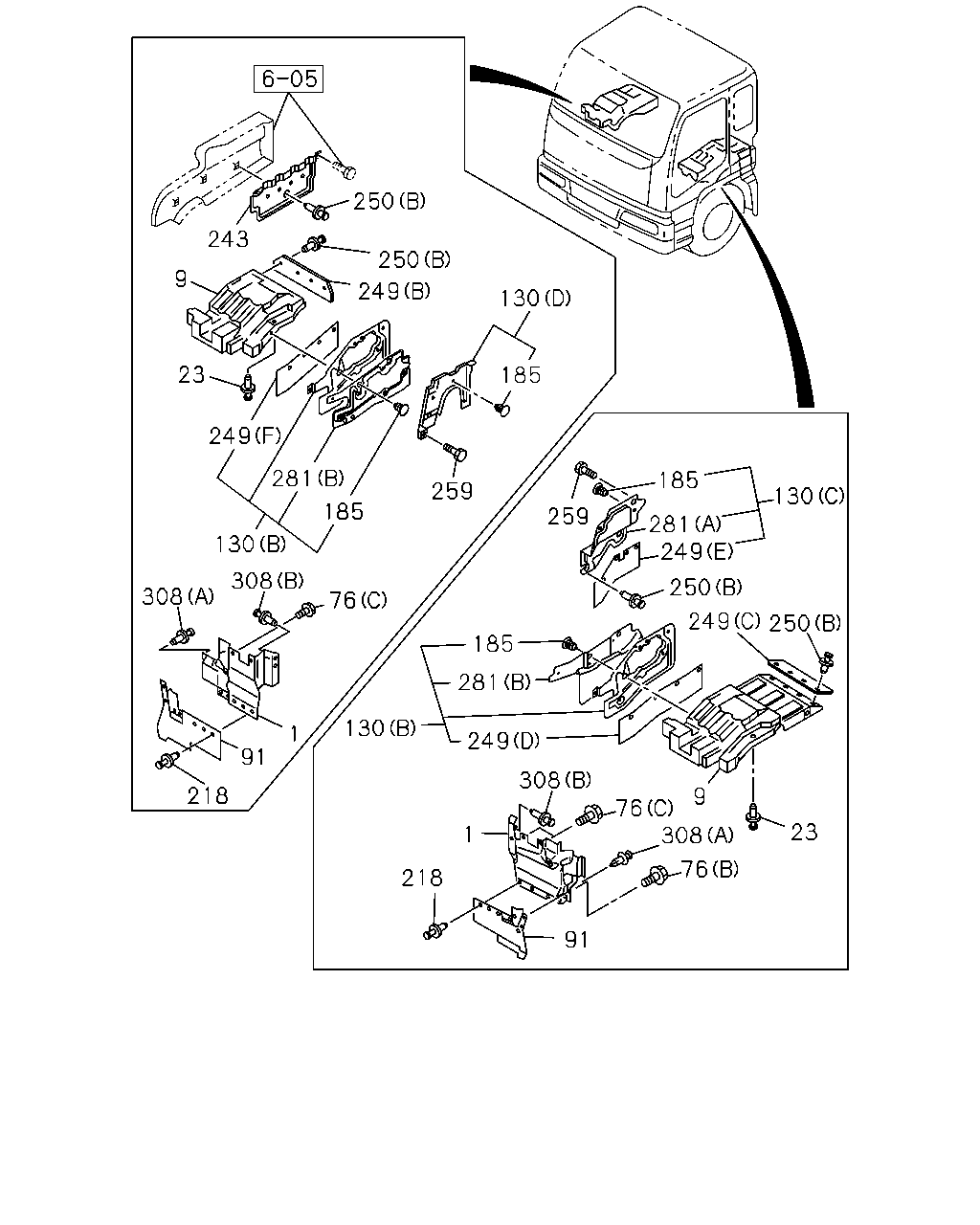

çizim 22890
250 243 250 9 249 130 23 185 249 281 185 259 130 185 259 281 249 130 308 250 308 76 249 250 185 281 130 1 249 91 308 218 9 76 308 23 1 76 218 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0106-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0106-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0106-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0106-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0106-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0106-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0106-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0106-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0106-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0106-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
259 BOLT; NOISE PANEL
M8X20 W/LK&PL WASHER 		8-94279-208-0 12 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0106-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0106-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0106-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0106-

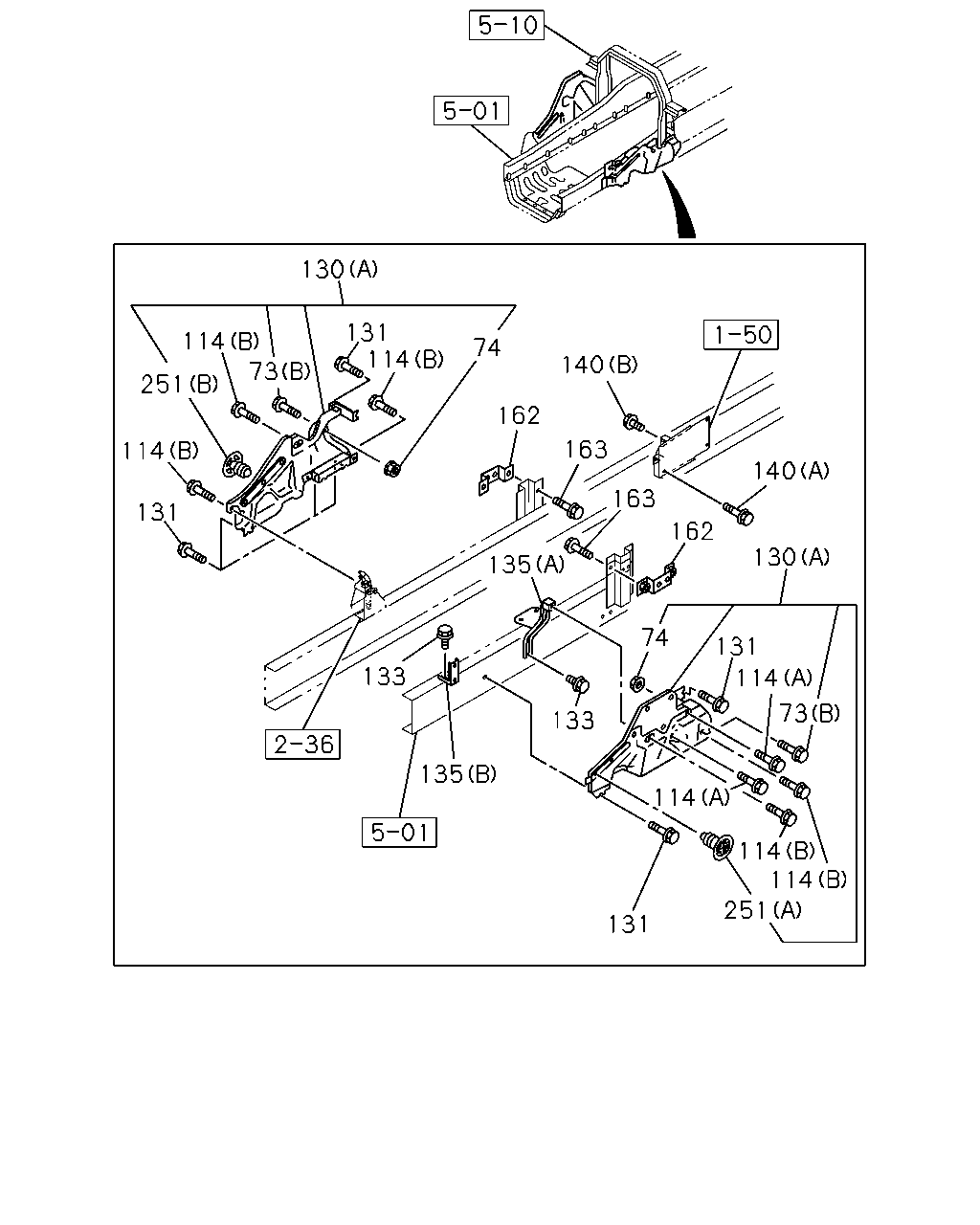

çizim 77912
130 131 114 114 73 74 140 251 162 163 114 131 140 163 162 135 130 74 131 114 73 133 133 135 114 114 114 251 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 03 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 03 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0106-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0106-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0106-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0106-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0106-
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0106-0106
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
135 BRACKET; SIDE PANEL
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 0106-0106
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0106-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0106-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (A) 		8-94279-048-0 10 1 0106-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (B) 		8-94279-048-0 04 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
