8-73 — BLOWER UNIT (#117819) — 159 parça

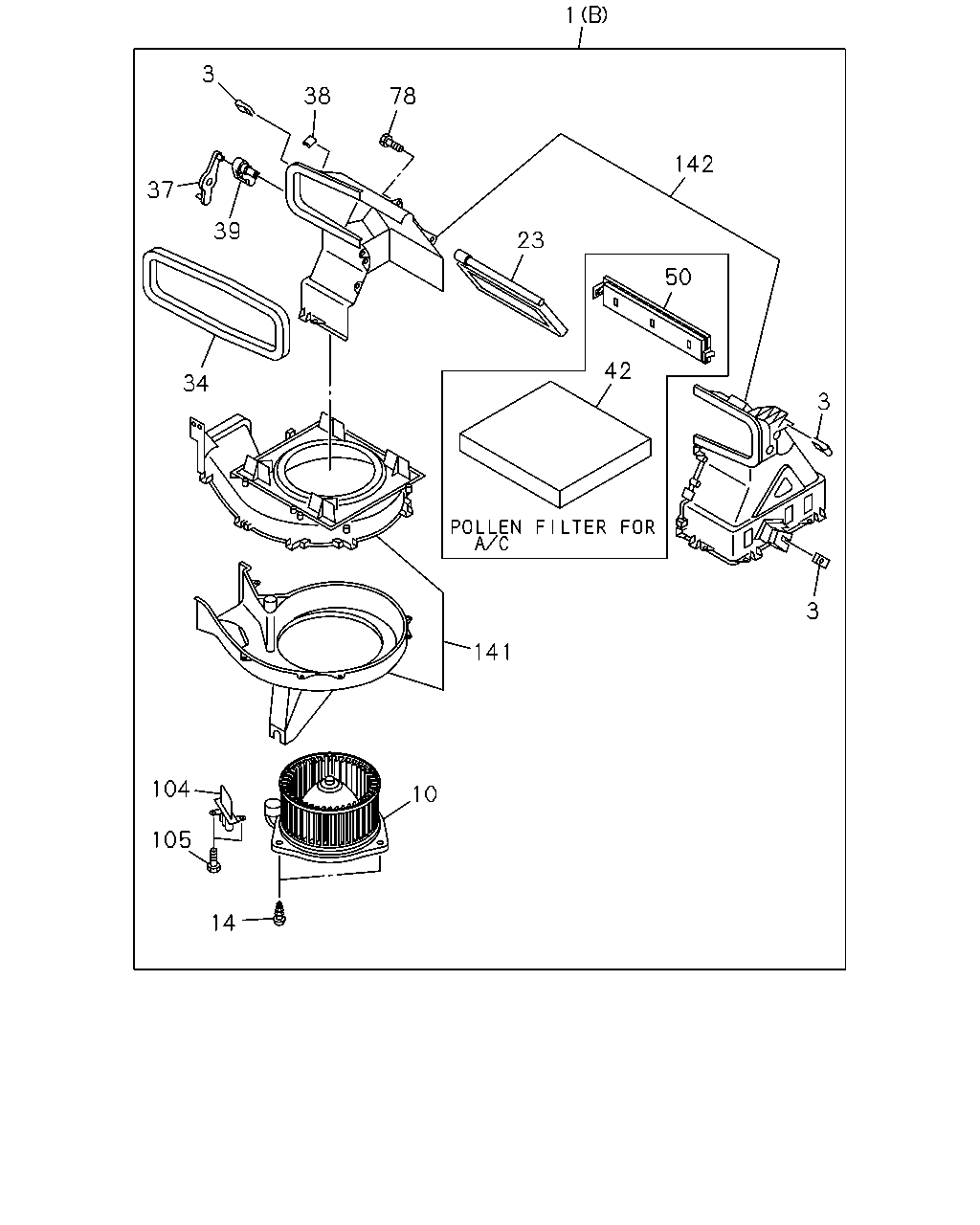

çizim 344567
142 1 23 78 38 3 39 37 34 141 10 14 105 104 3 3 42 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98233-045-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C) 		8-98233-044-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1304- ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1304- ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1304- ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-258-0 01 1 1304-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-258-0 01 1 1304-1410 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-587-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-587-0 01 1 1411- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-413-0 01 1 1304-1410 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1304-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1304-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98294-586-0 01 1 1411- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98294-586-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98294-586-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1304- ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98195-045-0 01 1 1304- ● ●
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98195-045-0 01 1 1304- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-417-0 01 1 1304- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-417-0 01 1 1304- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-417-0 01 1 1304- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-422-1 01 1 1304- ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-422-1 01 1 1304- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-422-1 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-416-0 01 1 1304- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-416-0 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-416-0 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-416-0 01 1 1304- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-416-0 01 1 1304- ●
42 08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1304- ● ● ● ● ● ●
50 08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1304- ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1304- ● ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-98183-234-0 01 1 1304- ● ● ● ● ● ●
105 08.855 SCREW; RESISTOR
08.852 		8-98139-395-1 02 1 1304- ● ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ●
141 08.857 CASE ASM; BLOWER UNIT 8-98233-640-0 01 1 1304- ● ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98233-645-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1304- ● ●
142 08.857 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-644-0 01 1 1304- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ●

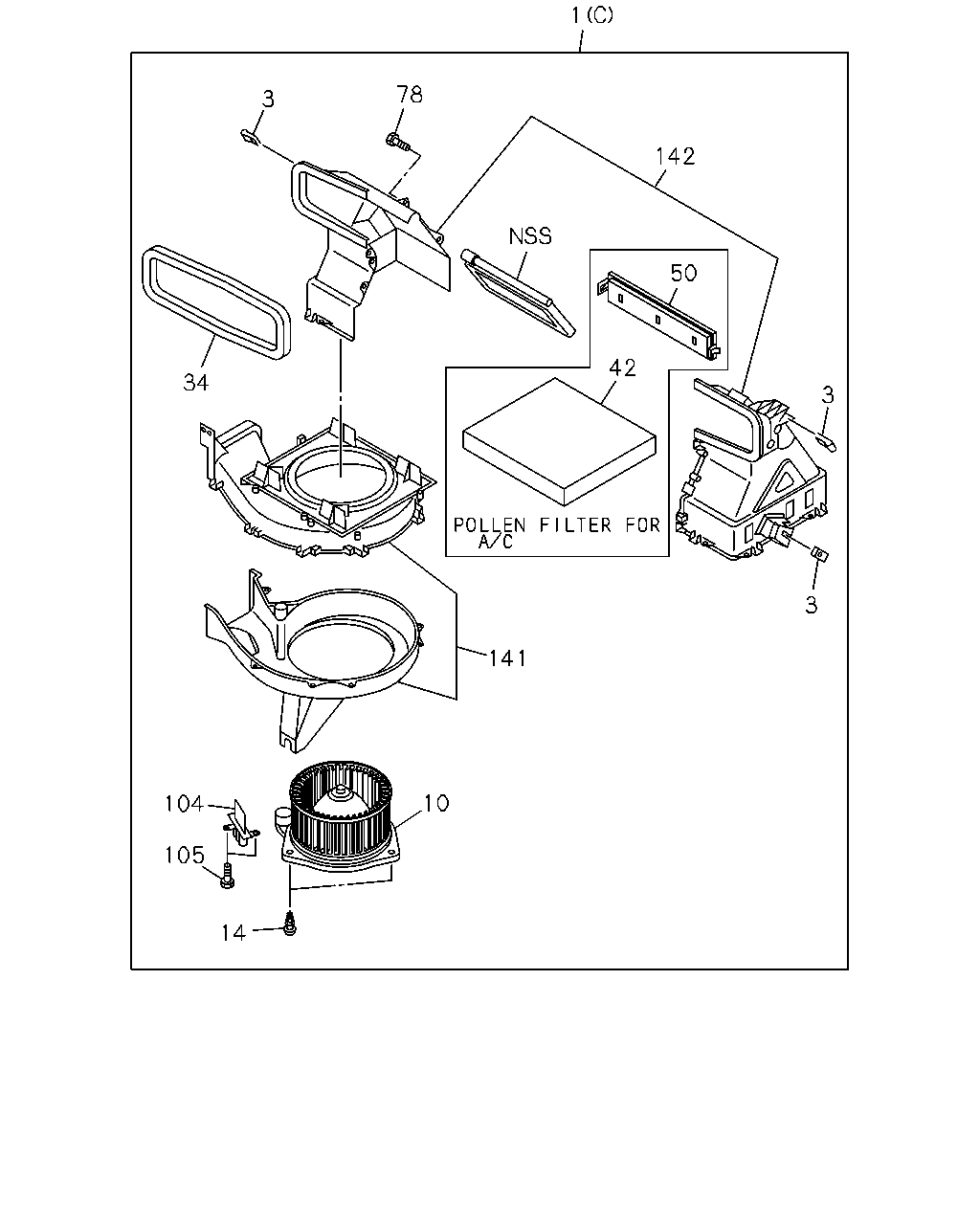

çizim 344594
1 142 78 3 34 104 105 14 10 141 3 3 42 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98233-045-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C) 		8-98233-044-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1304- ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1304- ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1304- ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1304- ● ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1304- ● ● ● ● ● ●
50 08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1304- ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1304- ● ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-98183-234-0 01 1 1304- ● ● ● ● ● ●
105 08.855 SCREW; RESISTOR
08.852 		8-98139-395-1 02 1 1304- ● ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ●
141 08.857 CASE ASM; BLOWER UNIT 8-98233-640-0 01 1 1304- ● ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98233-645-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1304- ● ●
142 08.857 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-644-0 01 1 1304- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ●

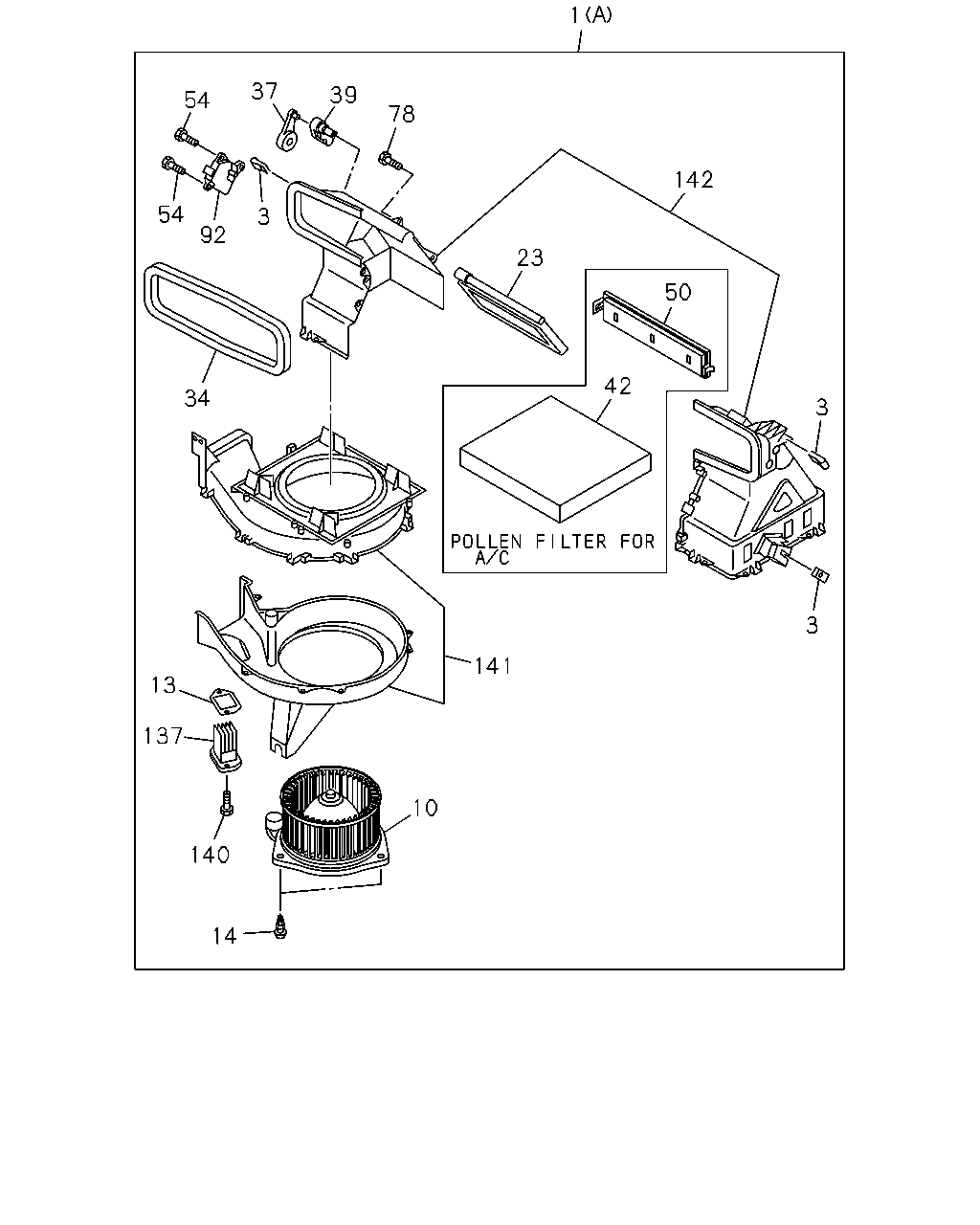

çizim 344786
1 142 50 3 3 42 23 78 39 37 54 54 92 3 34 141 13 137 140 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-050-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (B) 		8-98233-051-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98233-045-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1304- ● ● ● ● ●
1 08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C) 		8-98233-044-0 01 1 1304- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1304- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A) 		8-98233-041-1 01 1 1304- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1304- ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1304- ● ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1304- ● ●
13 08.856 LINING; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1304- ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1304- ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-258-0 01 1 1304-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-258-0 01 1 1304-1410 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-587-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-587-0 01 1 1411- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-413-0 01 1 1304-1410 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1304-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1304-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98294-586-0 01 1 1411- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98294-586-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98294-586-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1304- ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98195-045-0 01 1 1304- ● ●
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98195-045-0 01 1 1304- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-417-0 01 1 1304- ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-417-0 01 1 1304- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-417-0 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-416-0 01 1 1304- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-416-0 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-416-0 01 1 1304- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-416-0 01 1 1304- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-416-0 01 1 1304- ●
42 08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1304- ● ● ● ● ● ●
50 08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1304- ● ● ● ● ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1304- ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1304- ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1304- ● ● ● ● ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-424-0 01 1 1304- ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-424-0 01 1 1304- ●
137 08.855 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1304- ● ●
137 08.855 MODULE ASM; BLOWER
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1304- ●
140 08.857 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1304- ● ●
140 08.857 SCREW; MODULE
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1304- ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-641-0 01 1 1304- ●
141 08.857 CASE ASM; BLOWER UNIT 8-98233-640-0 01 1 1304- ● ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-648-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ●
142 08.857 CASE ASM
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-649-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98233-645-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. AUSTRALIA EQUIPMENT(B13),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1304- ● ● ● ● ●
142 08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1304- ● ●
142 08.857 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-644-0 01 1 1304- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1304- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> 		8-98233-643-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
