◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51476 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#117812) — 6 parça

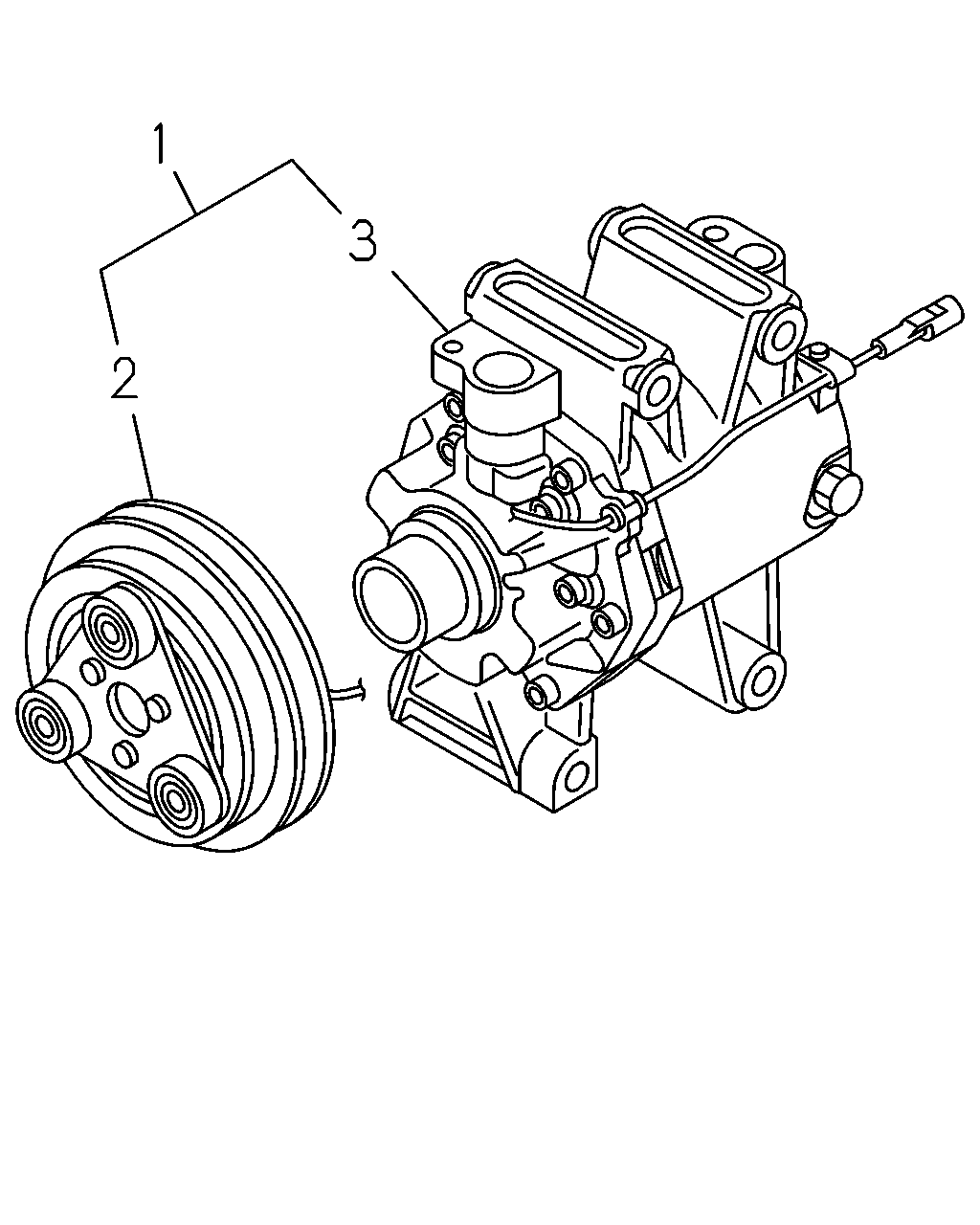

çizim 346033
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98102-824-1 01 1 1304- ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98102-824-1 01 1 1304- ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-936-1 01 1 1304- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-936-1 01 1 1304- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-935-1 01 1 1304- ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-935-1 01 1 1304- ● ●
