◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#117811) — 13 parça

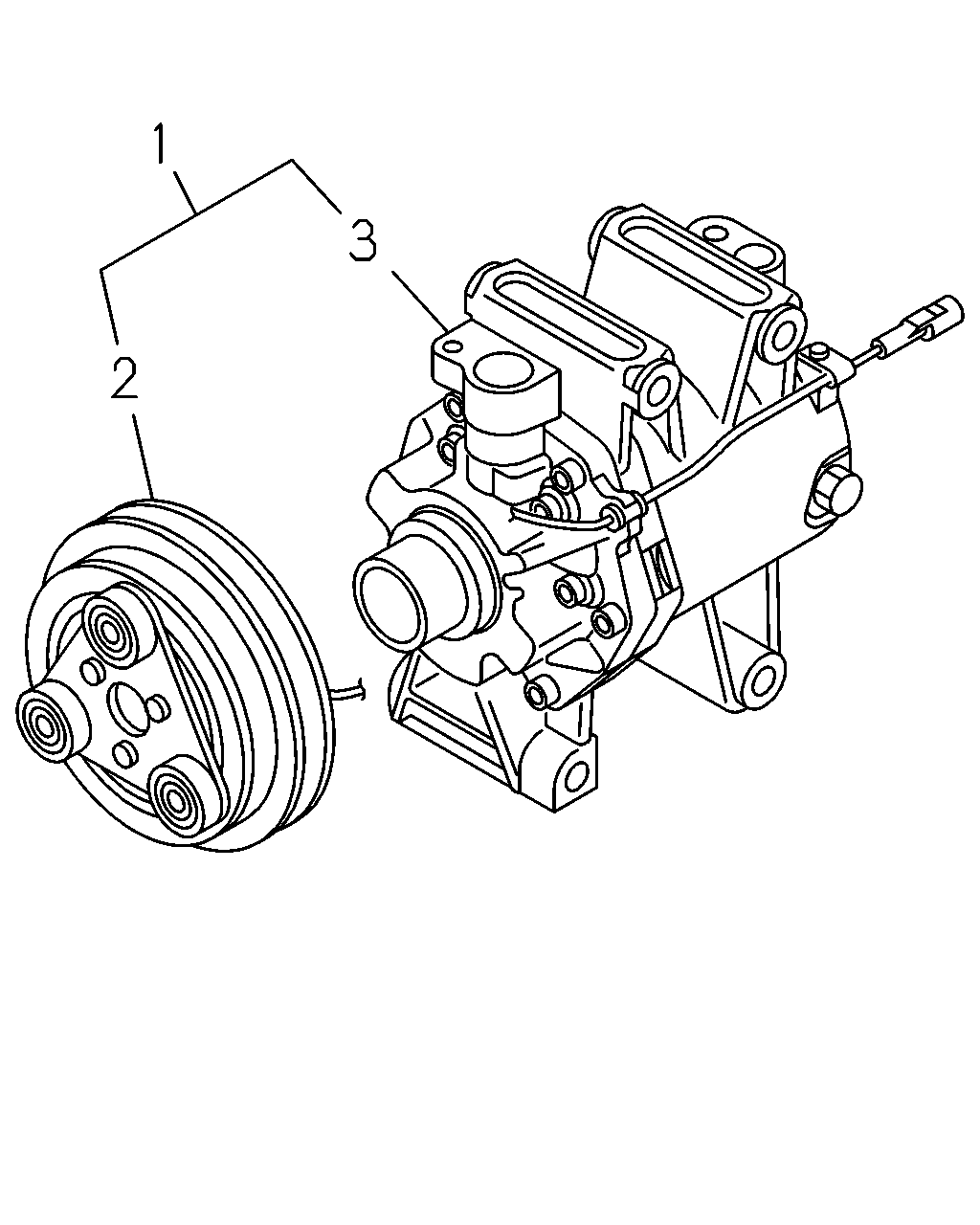

çizim 344564
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98102-824-1 01 1 1304- ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 		8-98200-246-1 01 1 1304- ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98200-246-1 01 1 1304- ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98139-936-1 01 1 1304- ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 		8-97371-580-0 01 1 1304-1402 ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-97371-580-0 01 1 1304-1402 ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 		8-98258-537-0 01 1 1403- ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98258-537-0 01 1 1403- ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98139-935-1 01 1 1304- ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 		8-98204-877-0 01 1 1304-1402 ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98204-877-0 01 1 1304-1402 ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 		8-98258-536-0 01 1 1403- ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98258-536-0 01 1 1403- ●
