8-65 — CONTROL LEVER; HEATER AND AIR CON (#117804) — 121 parça

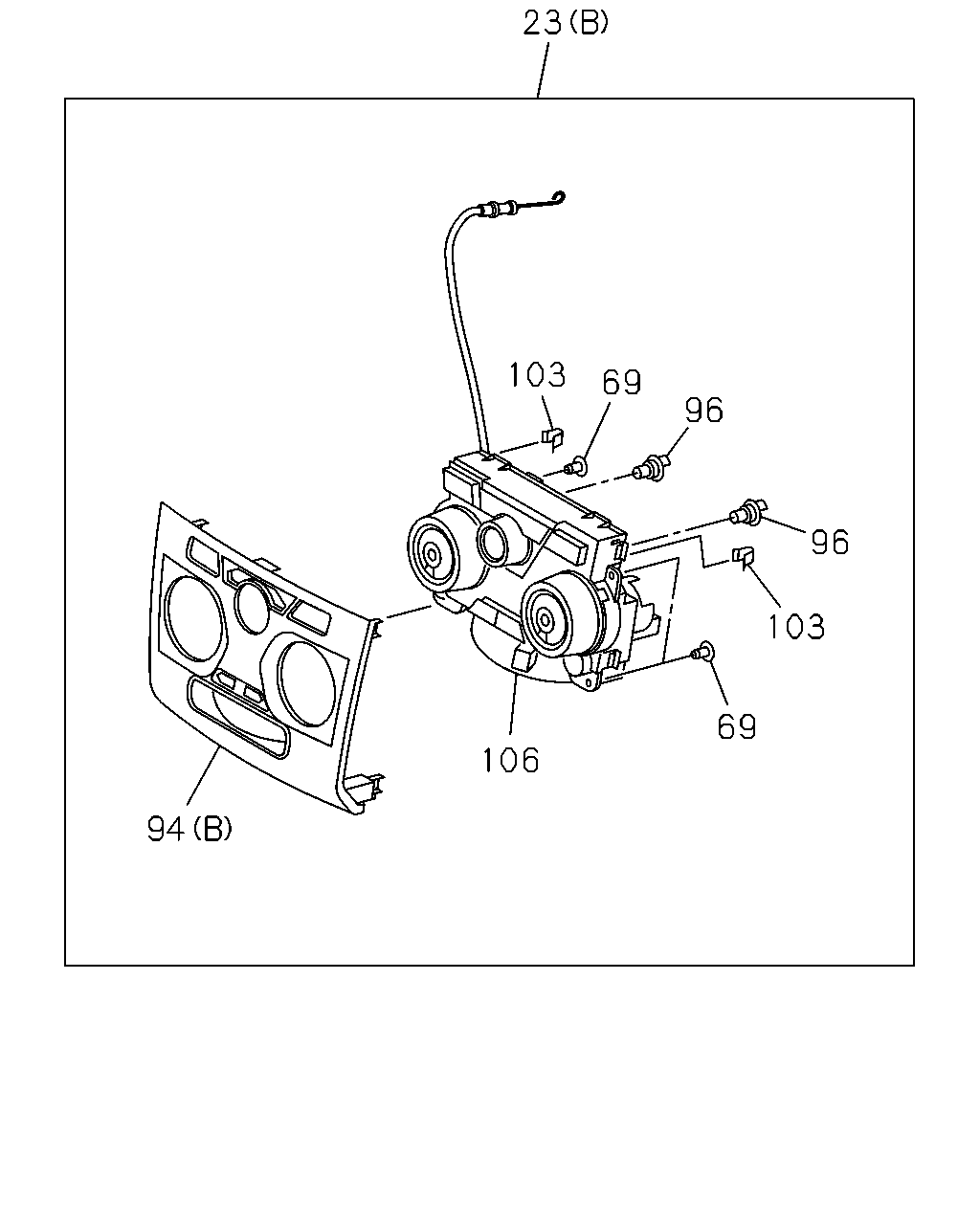

çizim 344783
23 103 96 69 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 08.852 BEZEL; CONT LEVER
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98166-353-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/FRESH AIR(8NF) (C) 		8-98052-636-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-643-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-643-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-644-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-644-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-639-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-639-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-640-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-640-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98052-637-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-637-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98103-519-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98103-515-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98103-517-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98103-516-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98052-645-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98103-522-5 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-641-4 01 1 1304- ● ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-668-0 01 1 1304- ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-668-0 01 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
COOLER WO/FRESH AIR(8NF) (C) 		8-98064-614-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ●
96 08.852 BULB ASM; BEZEL 8-98156-188-0 02 1 1304- ● ● ● ● ● ●
103 08.854 CLIP
16.165 		8-98164-677-0 04 1 1304- ● ● ● ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98142-040-0 01 1 1304- ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-040-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98142-041-0 01 1 1304- ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-041-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98142-037-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-037-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98142-038-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-038-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) 		8-98142-036-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-036-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR(8NF) 		8-98142-030-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98142-034-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98142-031-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98142-035-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98142-033-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98142-032-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98142-042-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-039-0 01 1 1304- ● ● ●
çizim 344807
23 103 96 69 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 08.852 BEZEL; CONT LEVER
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98166-353-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/FRESH AIR(8NF) (C) 		8-98052-636-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-643-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-643-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-644-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-644-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-639-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-639-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-640-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-640-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98052-637-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-637-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98103-519-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98103-515-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98103-517-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98103-516-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98052-645-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98103-522-5 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-641-4 01 1 1304- ● ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-668-0 01 1 1304- ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-668-0 01 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
COOLER WO/FRESH AIR(8NF) (C) 		8-98064-614-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ●
96 08.852 BULB ASM; BEZEL 8-98156-188-0 02 1 1304- ● ● ● ● ● ●
103 08.854 CLIP
16.165 		8-98164-677-0 04 1 1304- ● ● ● ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98142-040-0 01 1 1304- ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-040-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98142-041-0 01 1 1304- ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-041-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98142-037-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-037-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98142-038-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-038-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) 		8-98142-036-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98142-036-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR(8NF) 		8-98142-030-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98142-034-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98142-031-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98142-035-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98142-033-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98142-032-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98142-042-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-039-0 01 1 1304- ● ● ●
çizim 346031
23 103 69 69 105 103 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 08.852 BEZEL; CONT LEVER
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98166-353-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/FRESH AIR(8NF) (C) 		8-98052-636-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-643-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-643-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-644-4 01 1 1304- ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-644-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98052-639-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-639-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98052-640-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-640-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98052-637-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98052-637-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98103-519-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98103-515-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98103-517-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98103-516-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98052-645-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98103-522-5 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98052-641-4 01 1 1304- ● ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-668-0 01 1 1304- ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-668-0 01 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
COOLER WO/FRESH AIR(8NF) (C) 		8-98064-614-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ●
103 08.854 CLIP
16.165 		8-98164-677-0 04 1 1304- ● ● ● ● ● ●
105 08.852 SWITCH ASM; A/C
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98168-138-0 01 1 1304- ● ●
105 08.852 SWITCH ASM; A/C
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98164-678-0 01 1 1304- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
