8-65 — CONTROL LEVER; HEATER AND AIR CON (#117802) — 57 parça

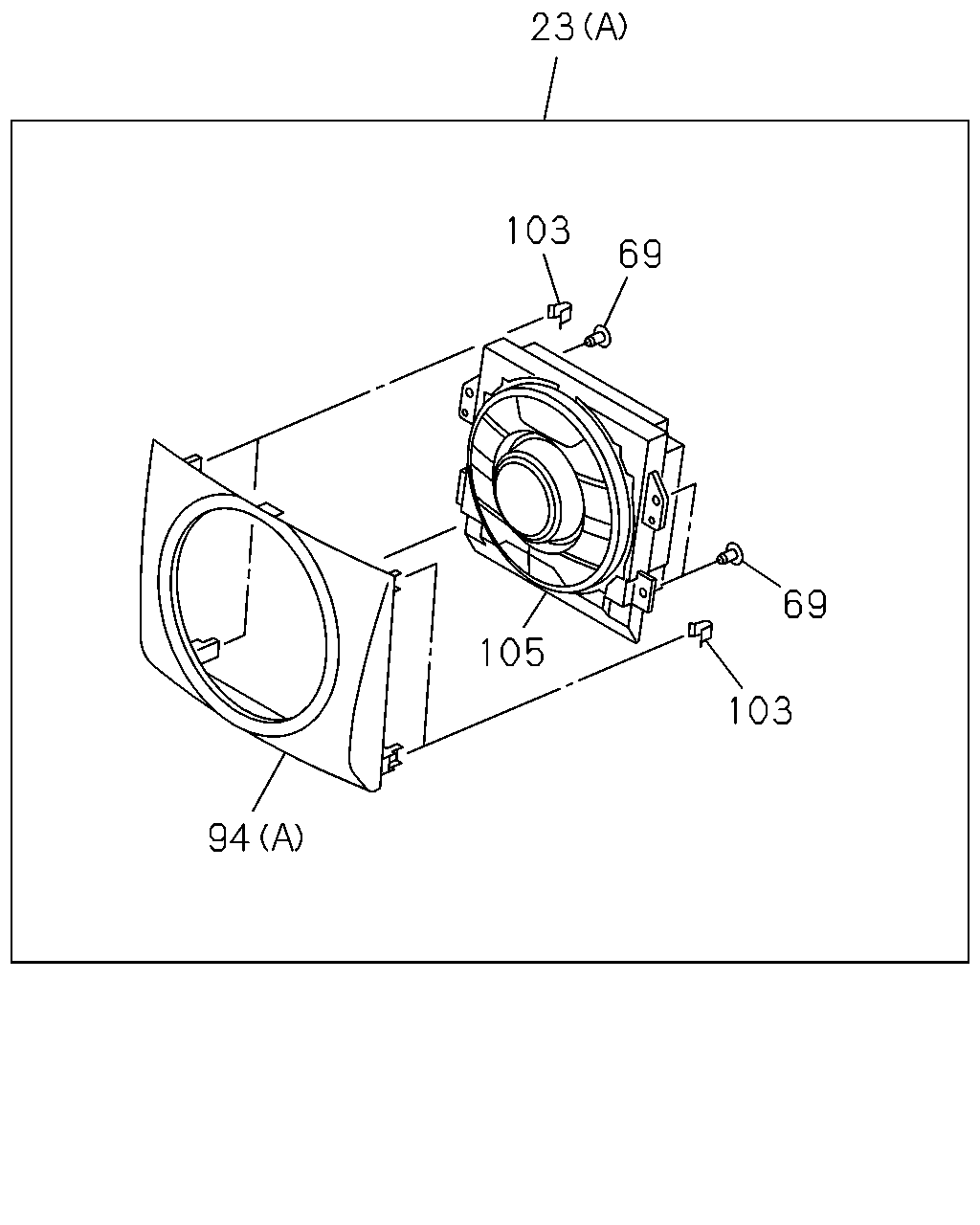

çizim 344763
23 103 69 69 105 103 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98129-548-5 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98120-135-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-135-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-137-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-137-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98120-136-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-136-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98120-144-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98120-141-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98120-145-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98120-143-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98120-142-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-138-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-140-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-139-4 01 1 1304- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-669-0 01 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 16.165 		8-98164-677-0 04 1 1304- ● ● ● ● ●
105 08.852 SWITCH ASM; A/C
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98164-679-0 01 1 1304- ● ● ●
çizim 344782
23 103 96 69 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98129-548-5 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98120-135-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-135-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-137-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-137-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98120-136-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-136-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98120-144-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98120-141-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98120-145-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98120-143-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98120-142-3 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-138-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-140-4 01 1 1304- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-139-4 01 1 1304- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-669-0 01 1 1304- ● ● ● ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1304- ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98156-188-0 02 1 1304- ● ● ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 16.165 		8-98164-677-0 04 1 1304- ● ● ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98156-897-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-897-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98156-899-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-899-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) 		8-98156-898-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-898-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98156-906-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98156-903-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98156-908-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98156-907-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98156-905-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98156-904-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-900-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-902-0 01 1 1304- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-901-0 01 1 1304- ● ● ●
