◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#117797) — 128 parça

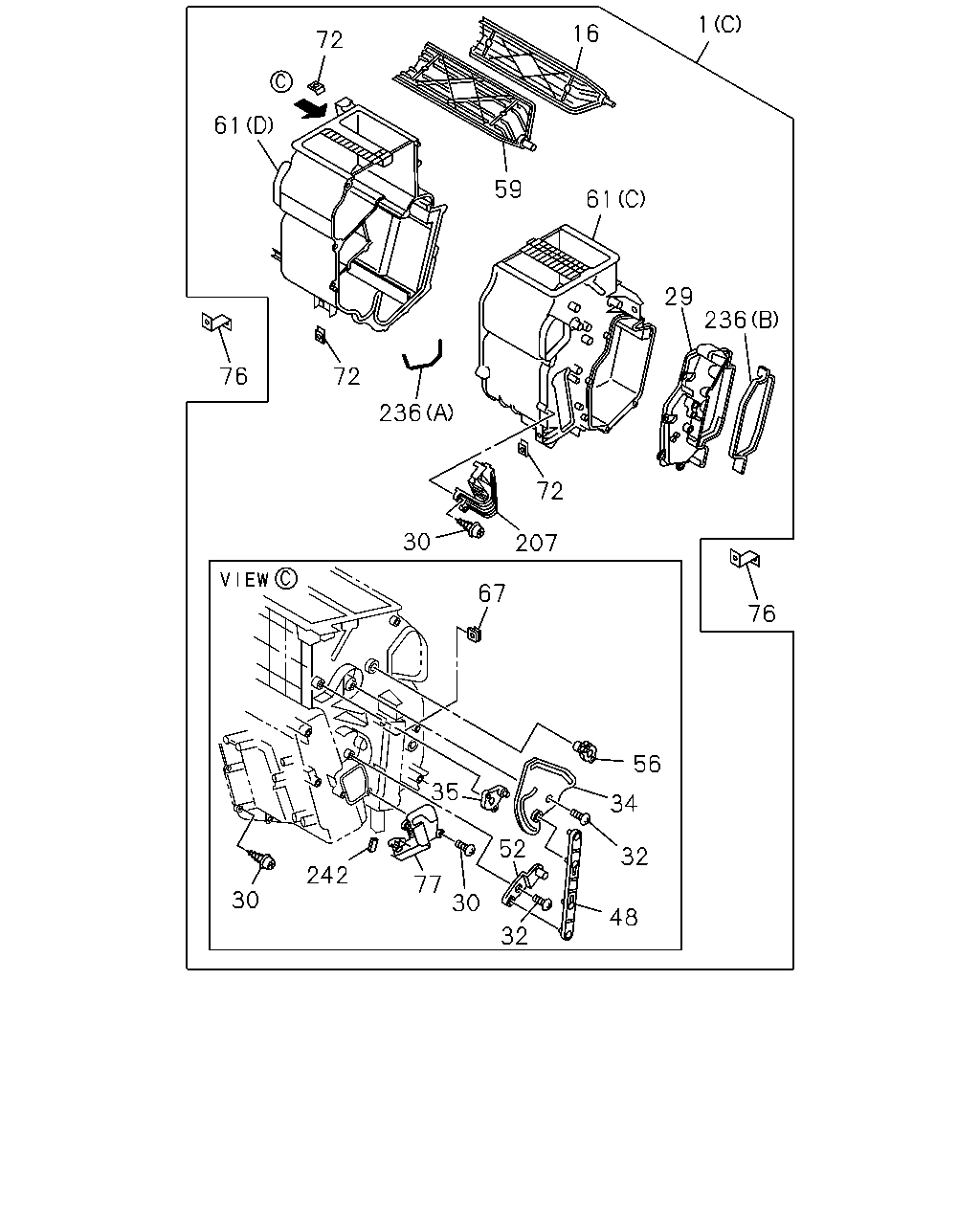

çizim 344613
72 16 61 29 59 1 236 72 76 207 67 30 236 72 76 61 30 77 35 52 56 34 32 48 32 30 242
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1304- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1304- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1304- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1304- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1304- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1304- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1304- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1304- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1304- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1304- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1304- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1304- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1304- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1304- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1304- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1304- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1304- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1304- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1304- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1304- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1304- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1304- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1304- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1304-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●

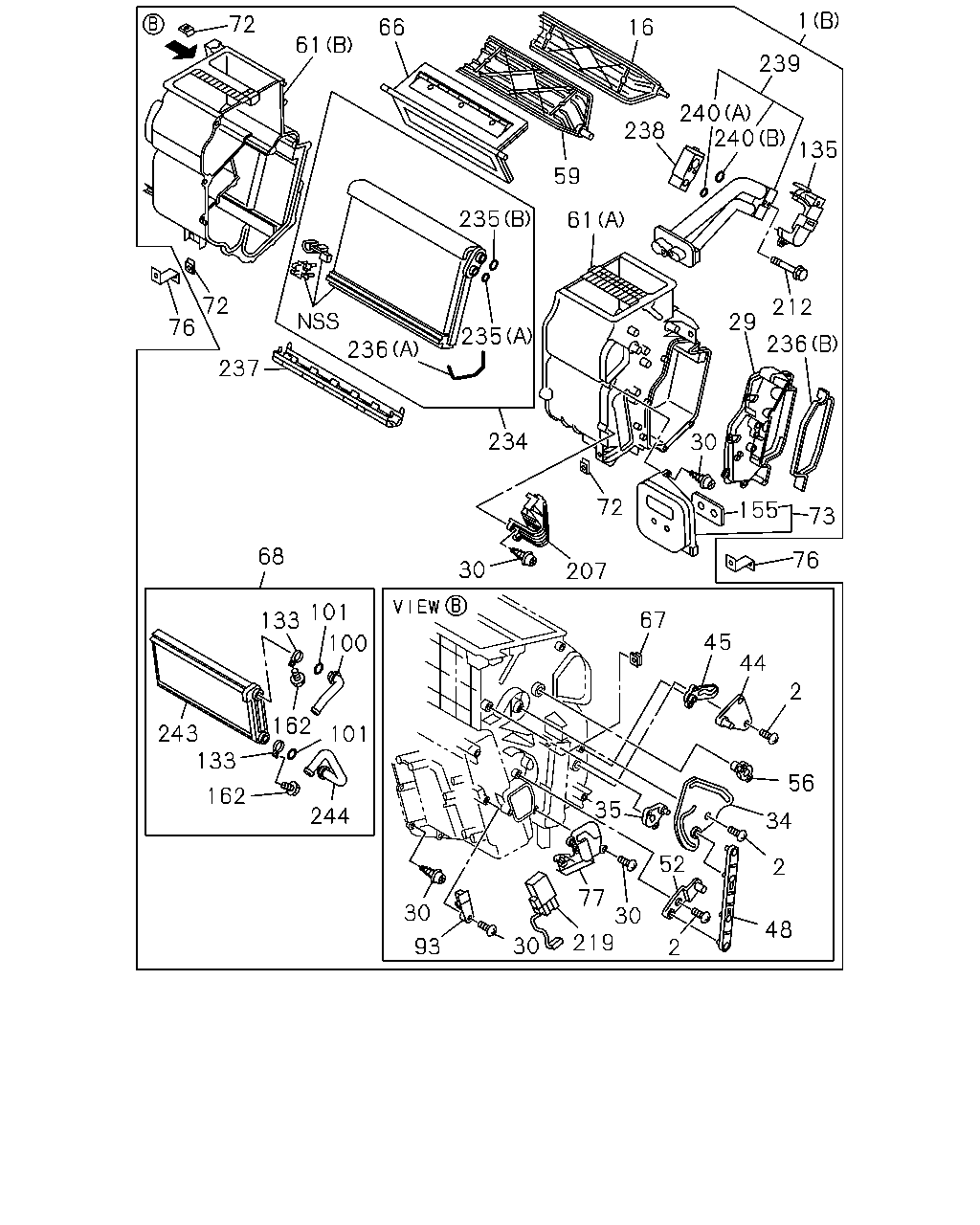

çizim 345410
243 133 101 244 162 162 133 100 101 68 67 45 44 2 56 34 2 48 2 52 35 77 30 219 30 93 30 207 30 72 155 76 73 236 30 29 212 234 235 236 235 61 59 238 240 239 135 240 1 16 66 61 72 76 72 237
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1304- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1304- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1304- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1304- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1304- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1304- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1304- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1304- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1304- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1304- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1304- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1304- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1304- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1304- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1304- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1304- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1304- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1304- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1304- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1304- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1304- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-380-0 01 1 1304- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1304- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-118-0 01 1 1304- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1304- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1304- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1304- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1304- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-528-0 01 1 1304- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1304- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1304- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-384-0 01 1 1304- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-431-0 01 1 1304- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1304- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1304- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 1304- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1304- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-116-1 01 1 1304- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 1304- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1304- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 1304- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 1304- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-115-0 01 1 1304- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 1304- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1304- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1304- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-510-0 01 1 1304- ● ●

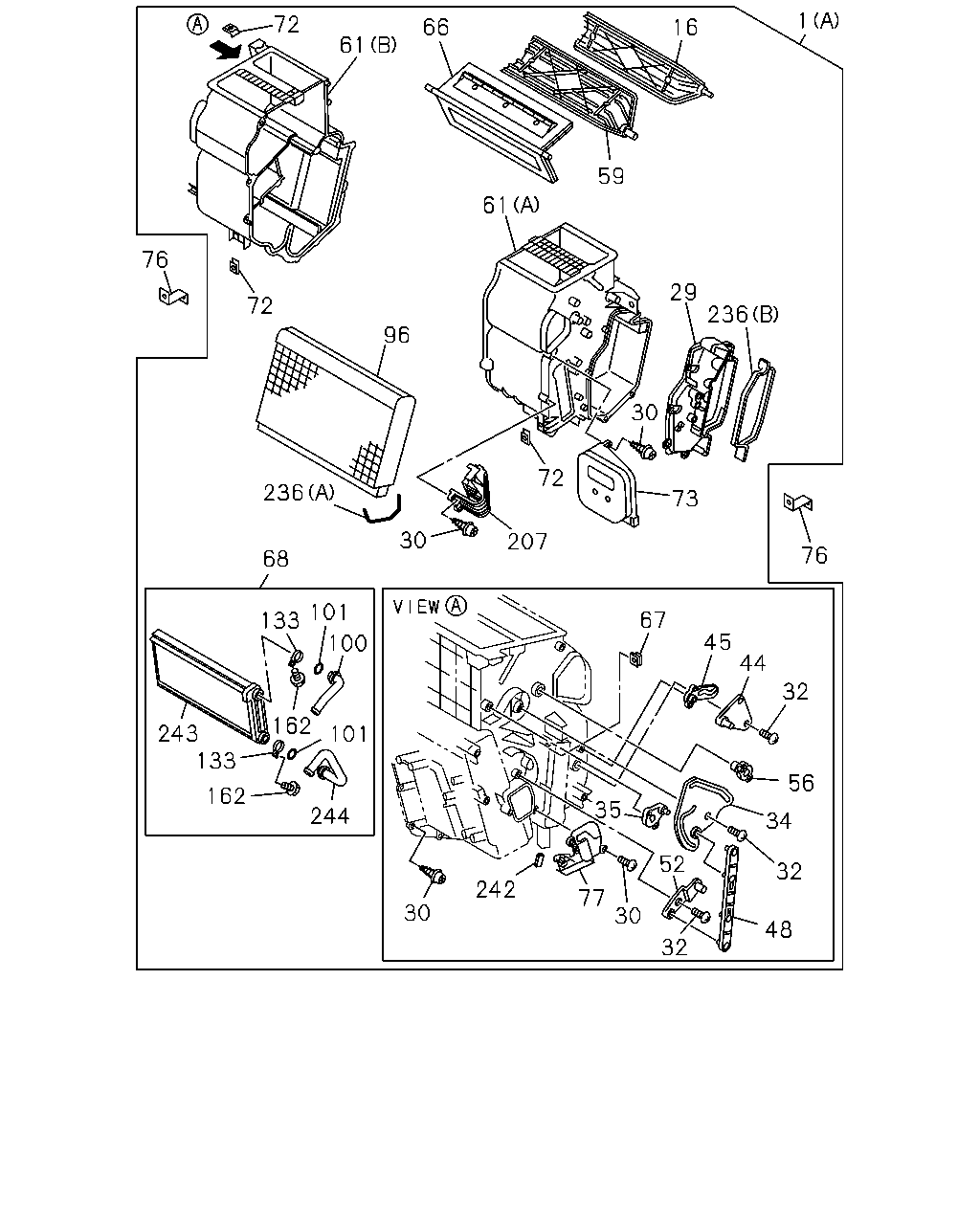

çizim 346018
1 16 59 66 61 72 61 76 96 72 236 72 68 30 207 73 30 29 236 76 101 133 243 133 162 244 162 101 100 67 45 44 32 56 34 32 48 32 242 30 77 30 52 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1304- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1304- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1304- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1304- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1304- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1304- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1304- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1304- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1304- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1304- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1304- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1304- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1304- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1304- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1304- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1304- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1304- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1304- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1304- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1304- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1304- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1304- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1304- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1304- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-380-0 01 1 1304- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1304- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-118-0 01 1 1304- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1304- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1304- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1304- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1304- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-528-0 01 1 1304- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1304- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1304- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1304- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1304- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1304- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1304-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1304- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-510-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
