◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#117796) — 868 parça

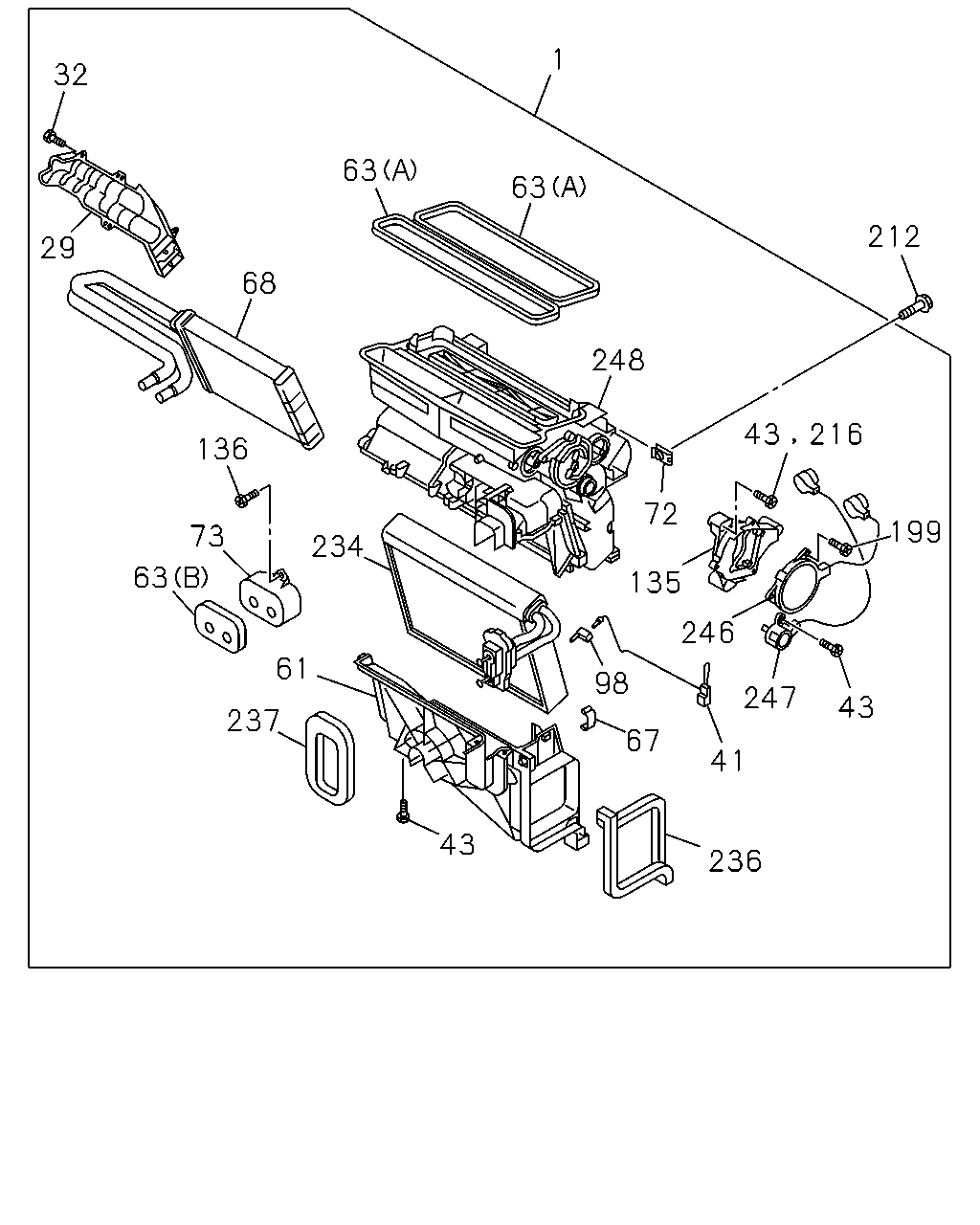

çizim 344676
32 1 63 212 216 199 43 248 72 135 247 43 246 41 236 67 98 61 237 63 234 73 136 68 63 29 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98157-122-0 01 1 1304- ● ● ● ● ● ●
135 08.854 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1304- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98139-376-1 01 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●

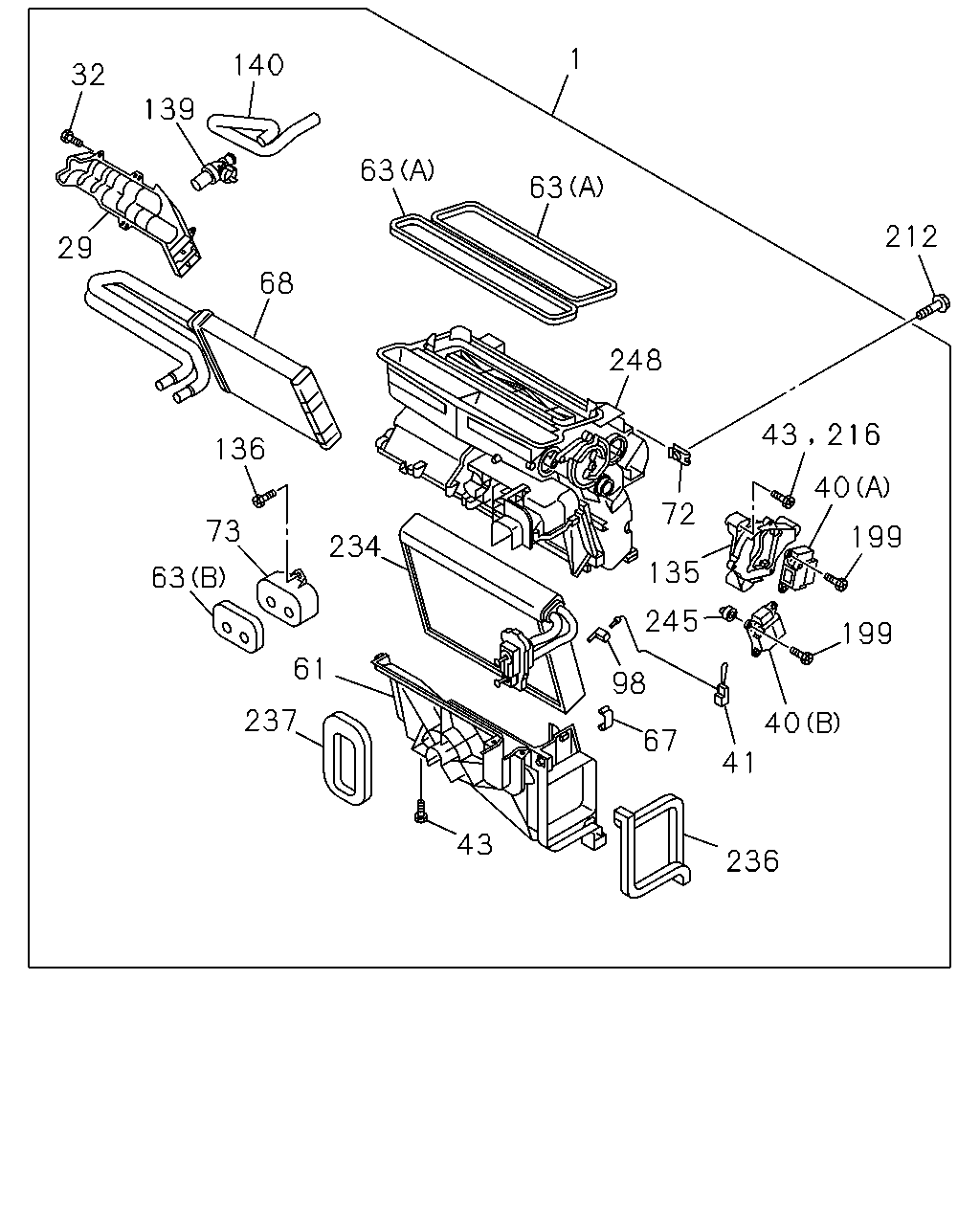

çizim 344692
1 212 216 43 199 40 199 40 41 236 67 98 245 72 135 43 237 234 61 63 136 73 68 63 63 248 140 130 32 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-385-0 01 1 1304- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-386-0 01 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98157-122-0 01 1 1304- ● ● ● ● ● ●
135 08.854 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-393-1 01 1 1304- ●
199 08.854 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1304- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98139-376-1 01 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-390-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●

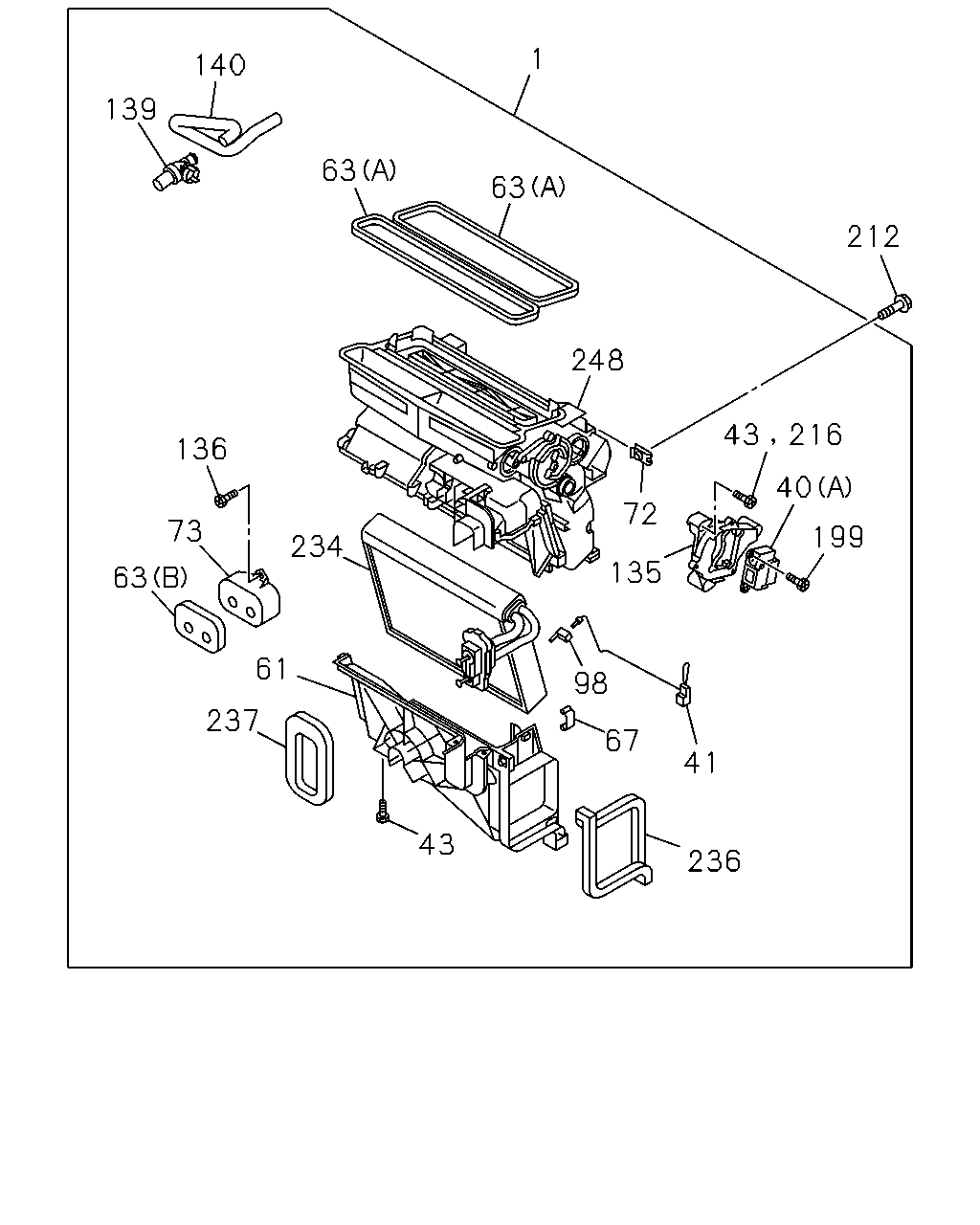

çizim 344719
140 139 136 73 63 237 61 234 43 67 41 236 98 135 248 72 43 216 40 199 212 63 63 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●

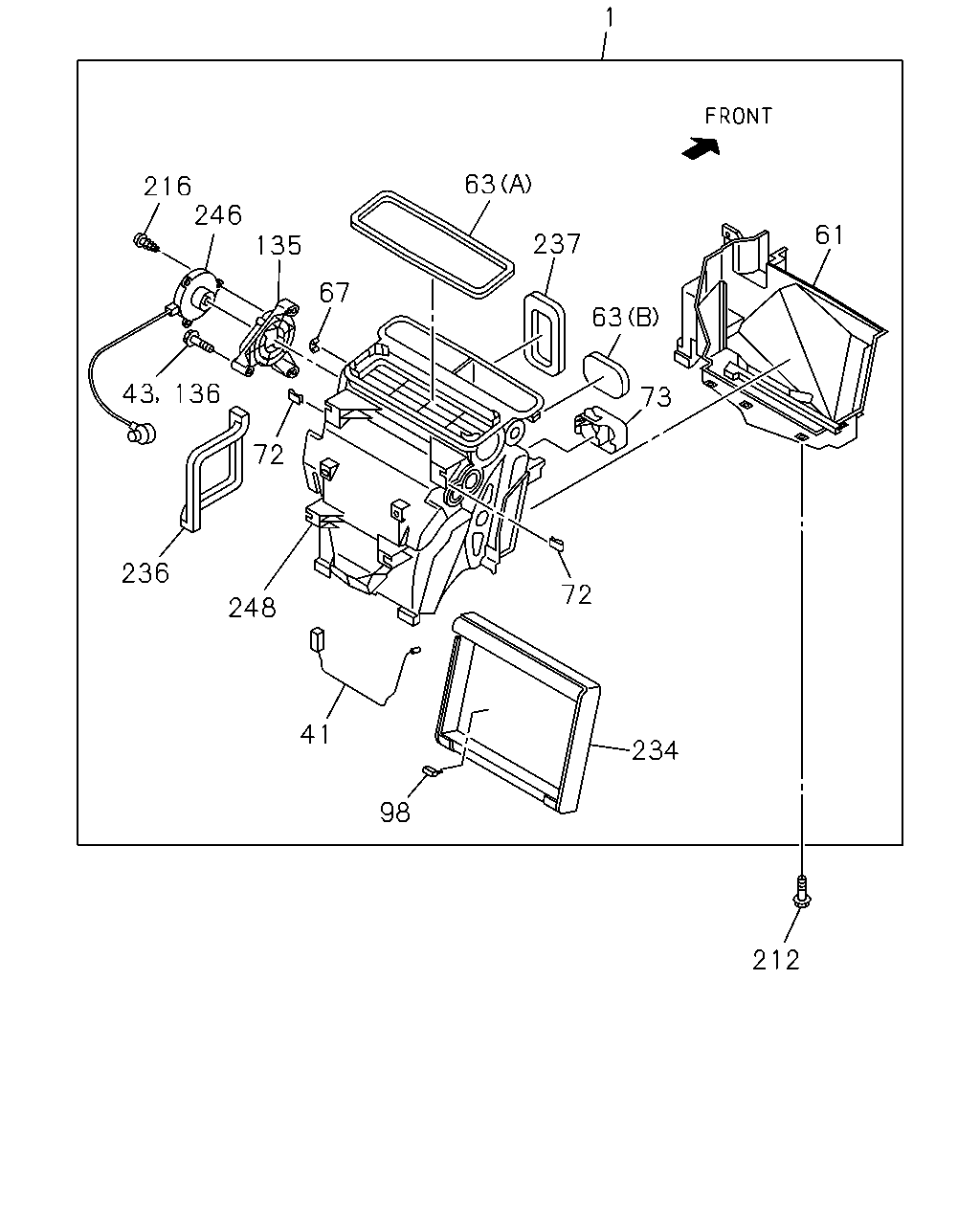

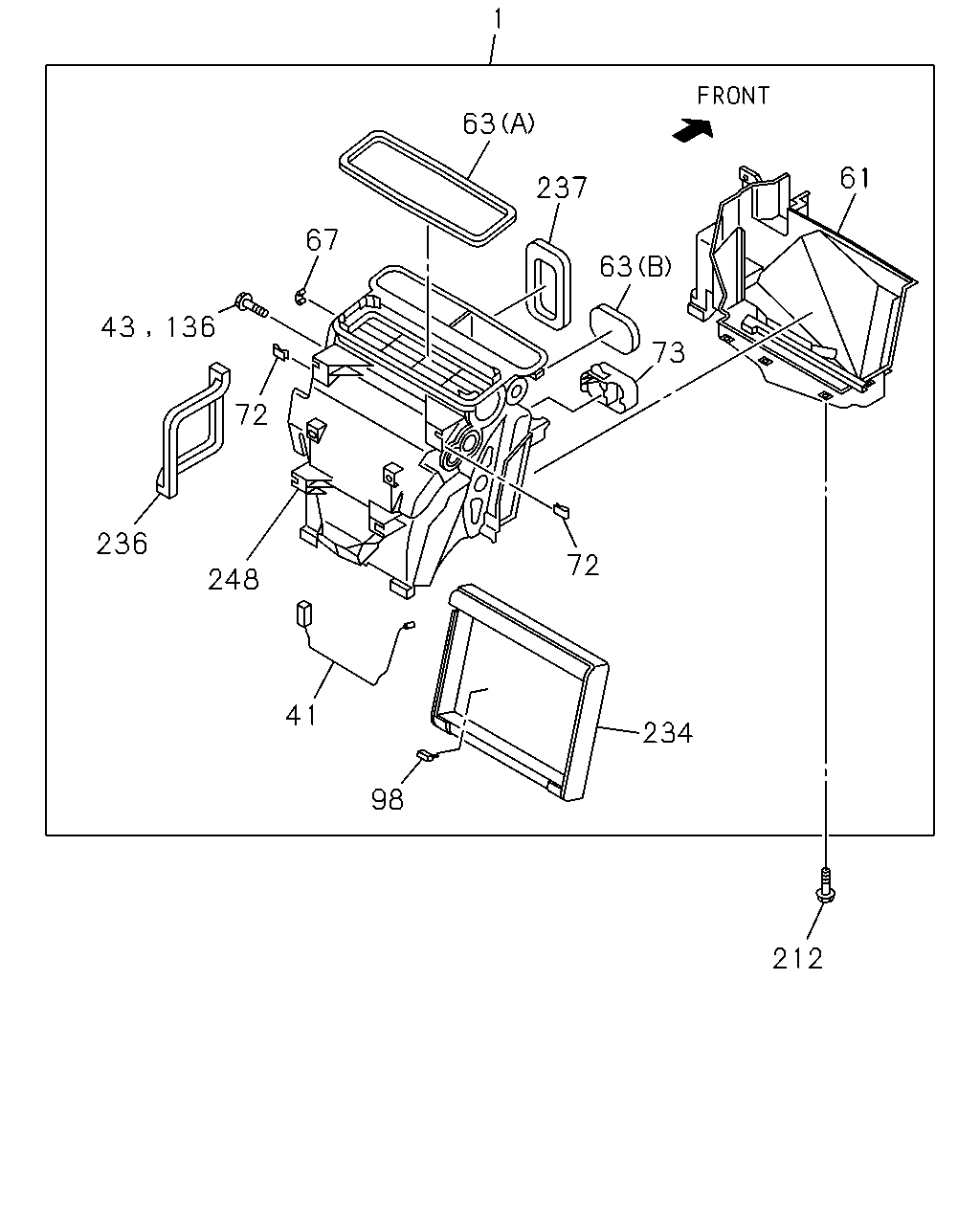

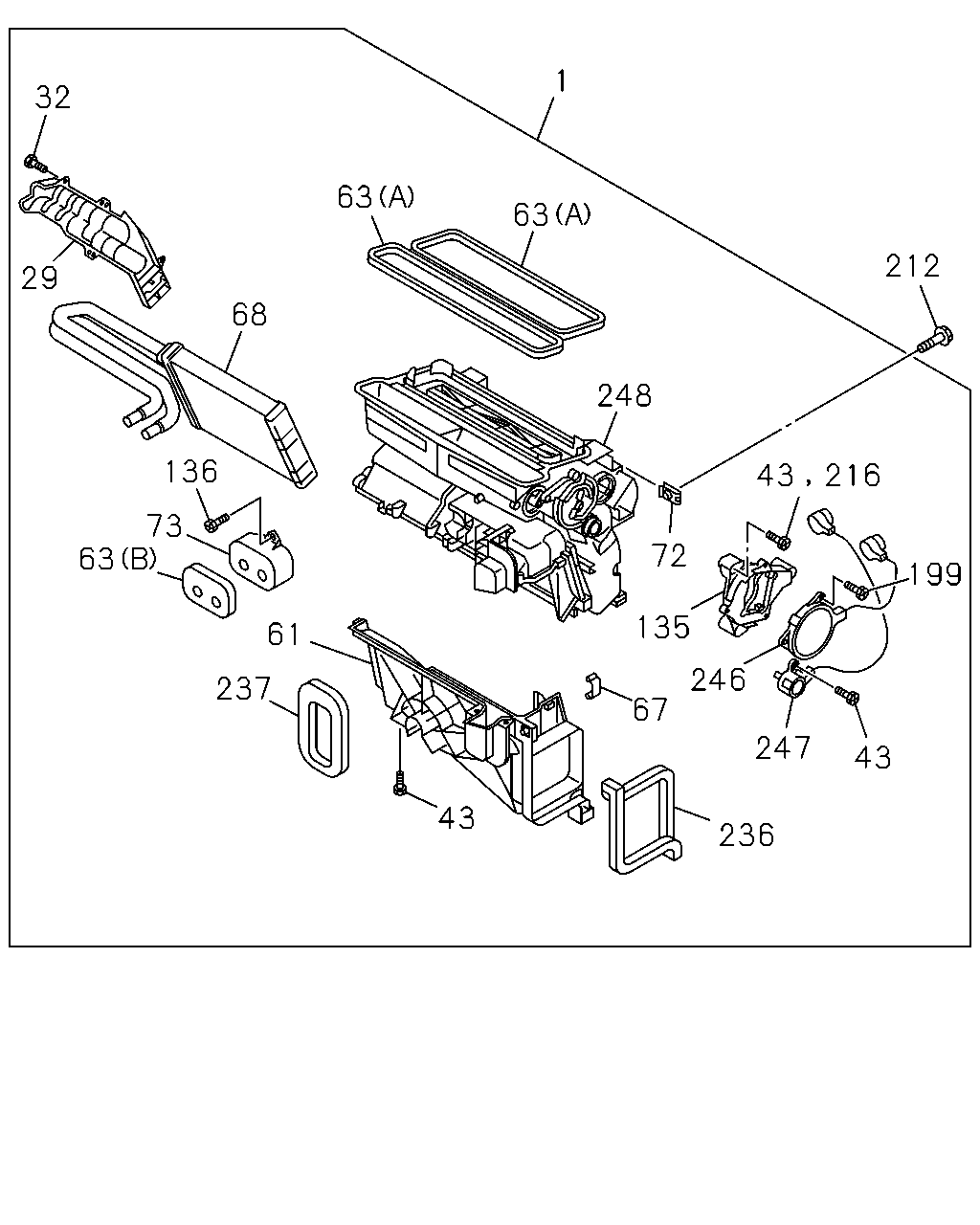

1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-385-0 01 1 1304- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-385-0 01 1 1304- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-386-0 01 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98157-122-0 01 1 1304- ● ● ● ● ● ●
135 08.854 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-392-1 01 1 1304- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-392-1 01 1 1304- ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-393-1 01 1 1304- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-393-1 01 1 1304- ●
199 08.854 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1304- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98139-376-1 01 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●
çizim 344744
236 247 43 246 67 135 72 43 216 199 212 63 1 63 68 136 73 63 61 237 43 29 32 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
135 08.854 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●
çizim 346022
43 236 41 98 234 212 72 73 63 61 63 1 237 67 136 248 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98157-122-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98139-376-1 01 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●
çizim 346024
234 212 72 98 41 248 236 136 43 72 67 237 63 73 61 63 246 135 216 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-035-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-019-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-010-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-026-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-011-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-027-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-009-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-025-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-008-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-008-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-024-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-017-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-033-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-018-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-034-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-020-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-036-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-012-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-028-1 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-382-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1304- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-573-0 01 1 1304- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-573-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98233-572-0 01 1 1304- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 02 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98157-122-0 01 1 1304- ● ● ● ● ● ●
135 08.854 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1304- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61),COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1304- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98139-376-1 01 1 1304- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1304- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-565-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-565-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-566-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-566-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-564-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-564-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98233-567-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
