◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#117794) — 754 parça

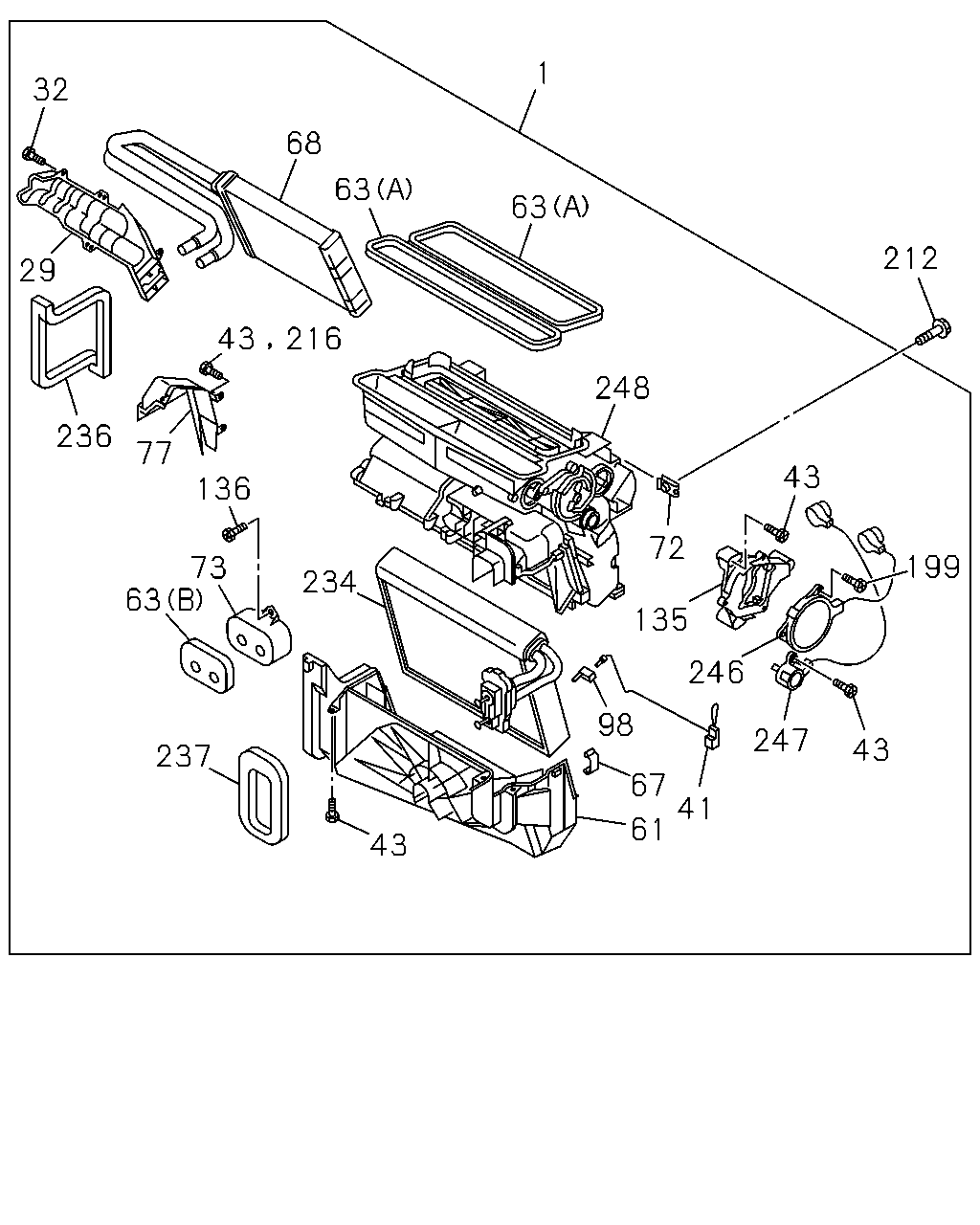

çizim 344591
1 212 43 248 63 63 68 32 29 43 216 72 135 199 247 43 246 98 67 41 61 43 237 234 73 63 136 77 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-577-0 01 1 1304- ●

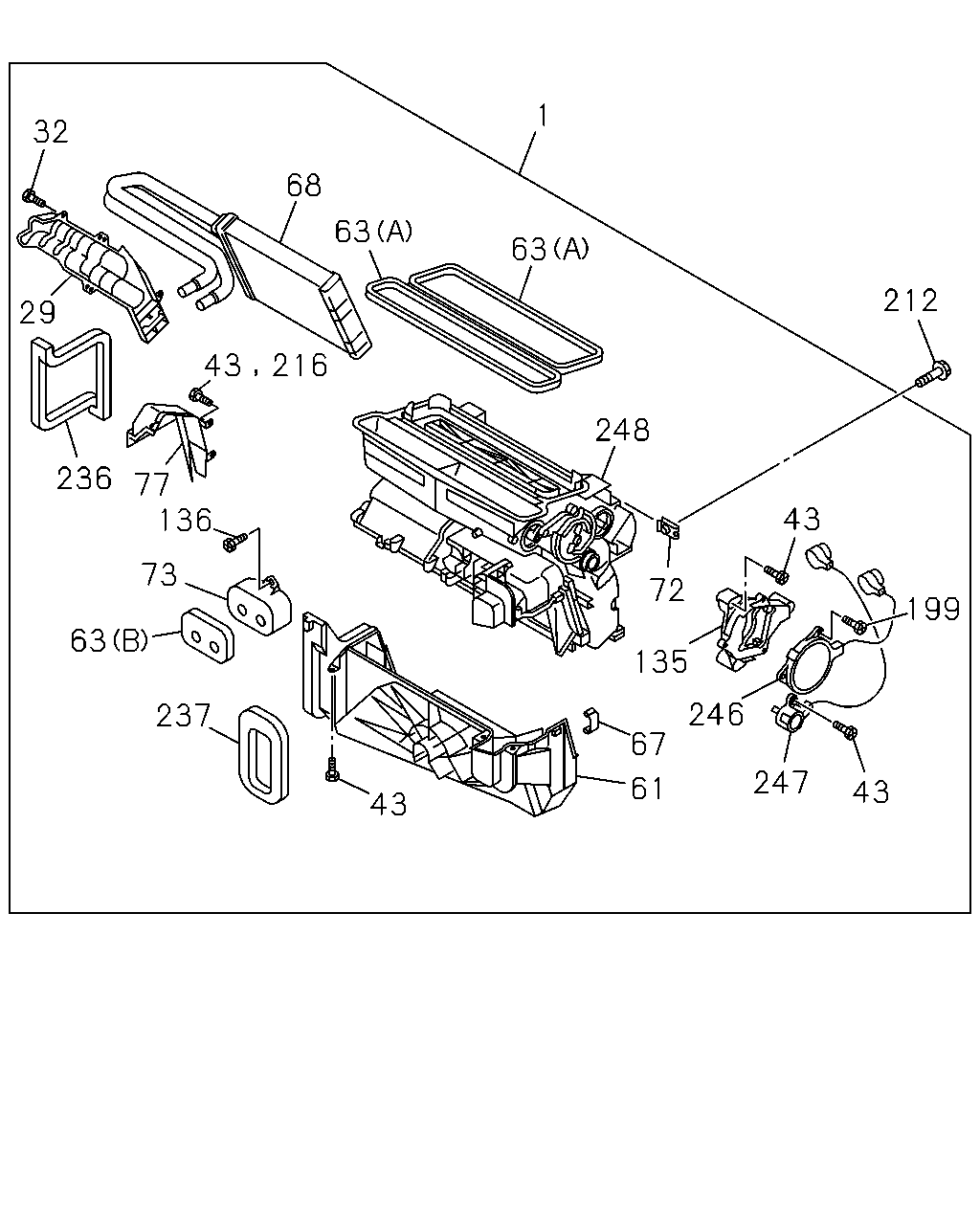

çizim 344661
1 212 43 199 43 247 246 135 72 248 43 237 63 73 136 77 43 216 63 68 32 29 236 67 61 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●

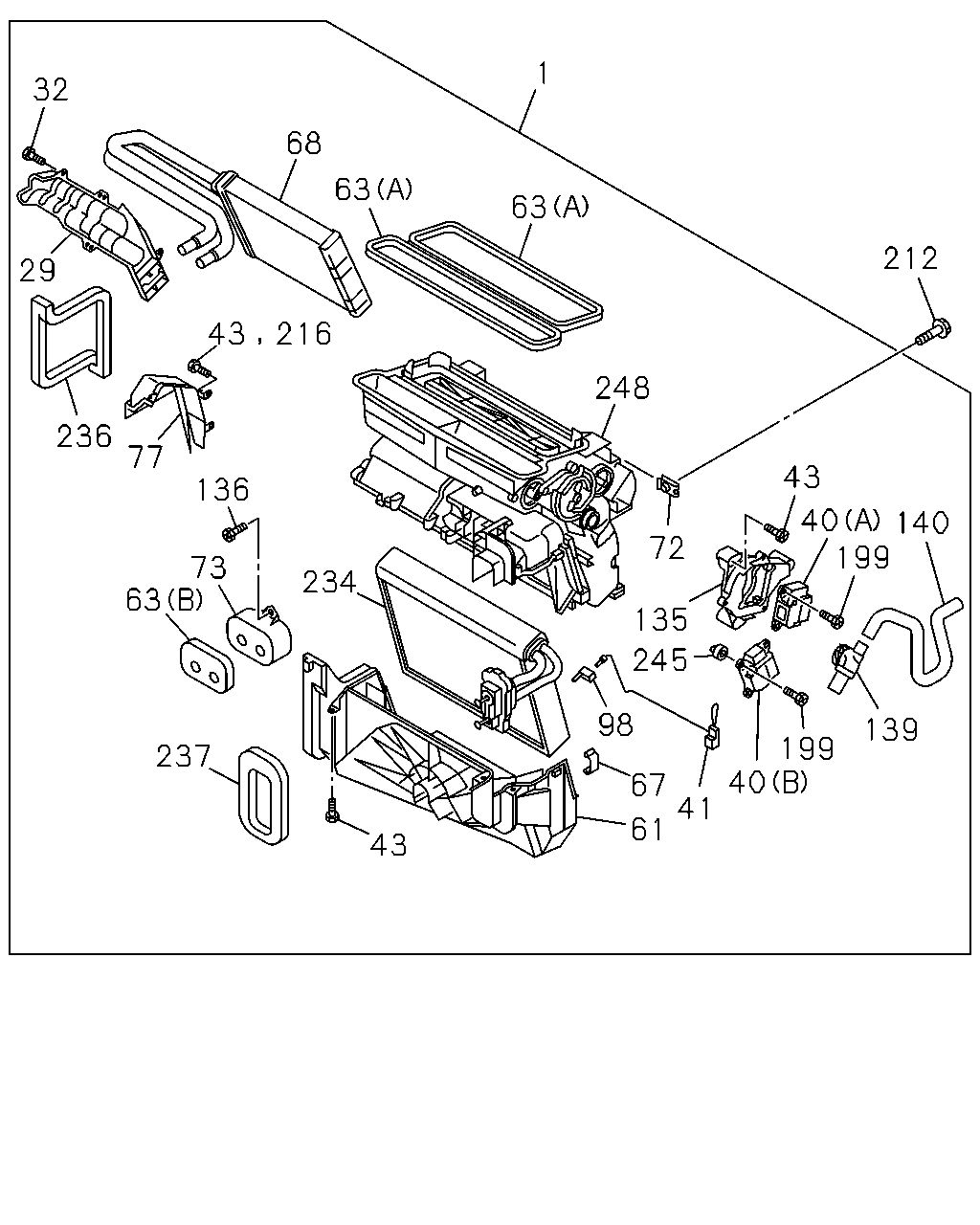

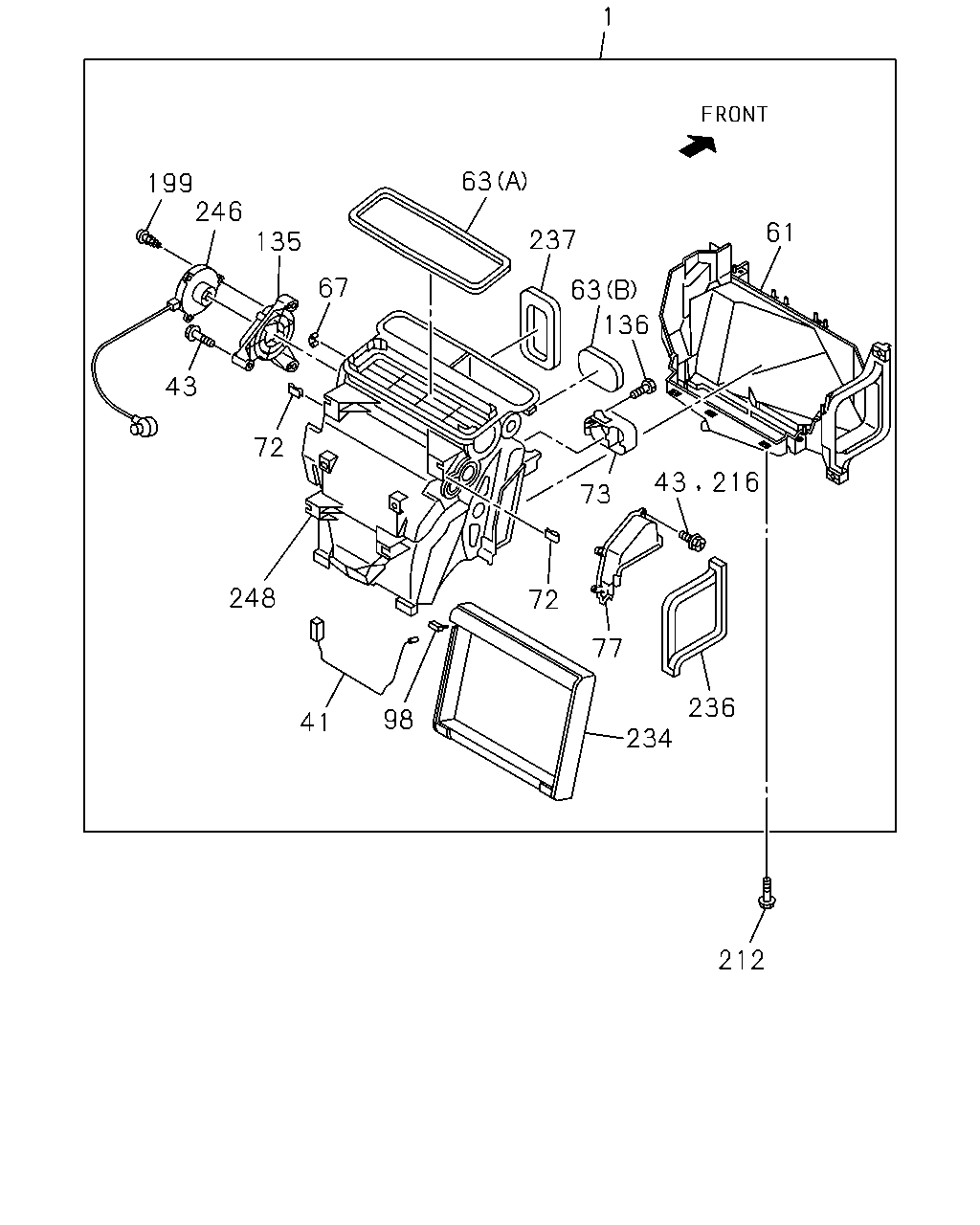

1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-577-0 01 1 1304- ●
çizim 344698
1 32 29 236 43 216 77 63 136 68 234 73 237 43 63 63 248 72 135 245 98 67 61 199 199 43 139 40 40 41 140 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-385-0 01 1 1304- ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-386-0 01 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-392-1 01 1 1304- ● ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98165-408-0 01 1 1304- ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-390-0 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-577-0 01 1 1304- ●
çizim 344720
199 63 237 61 216 43 73 72 234 77 236 212 98 41 248 72 67 135 246 43 63 136 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-382-0 01 1 1304- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 18 1 1304- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 18 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-582-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-581-0 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98157-118-1 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1304- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-123-0 01 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-394-1 03 1 1304- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-394-1 03 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-591-0 01 1 1304- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-591-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-589-0 01 1 1304- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-589-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-122-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1304- ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-377-0 01 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 02 1 1304- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 02 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 04 1 1304- ● ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
212 09.262 BOLT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-376-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-357-1 01 1 1304- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-357-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-360-1 01 1 1304- ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-360-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-577-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
