Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#117792) — 31 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

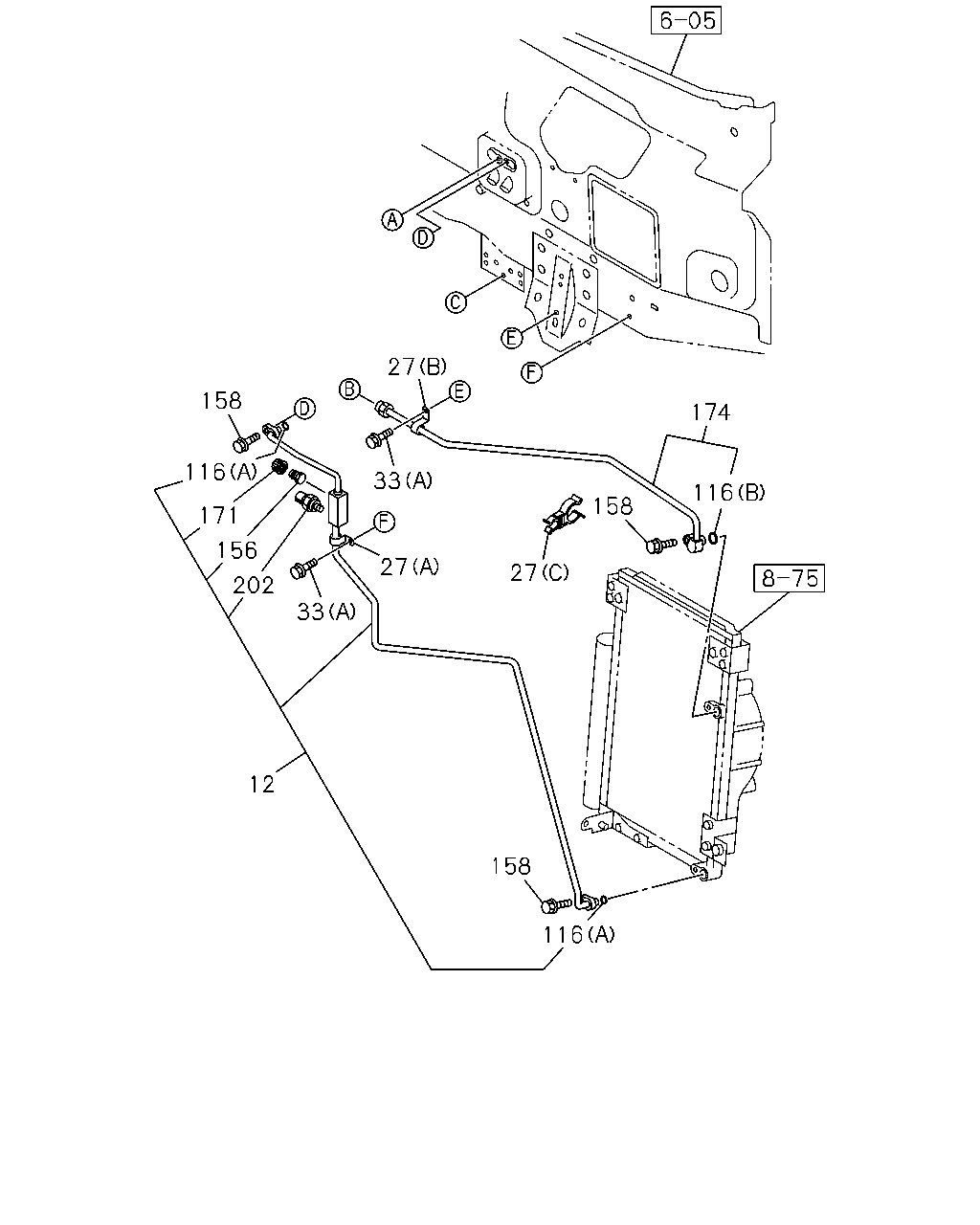

[852A] NO.2 (13 parça)

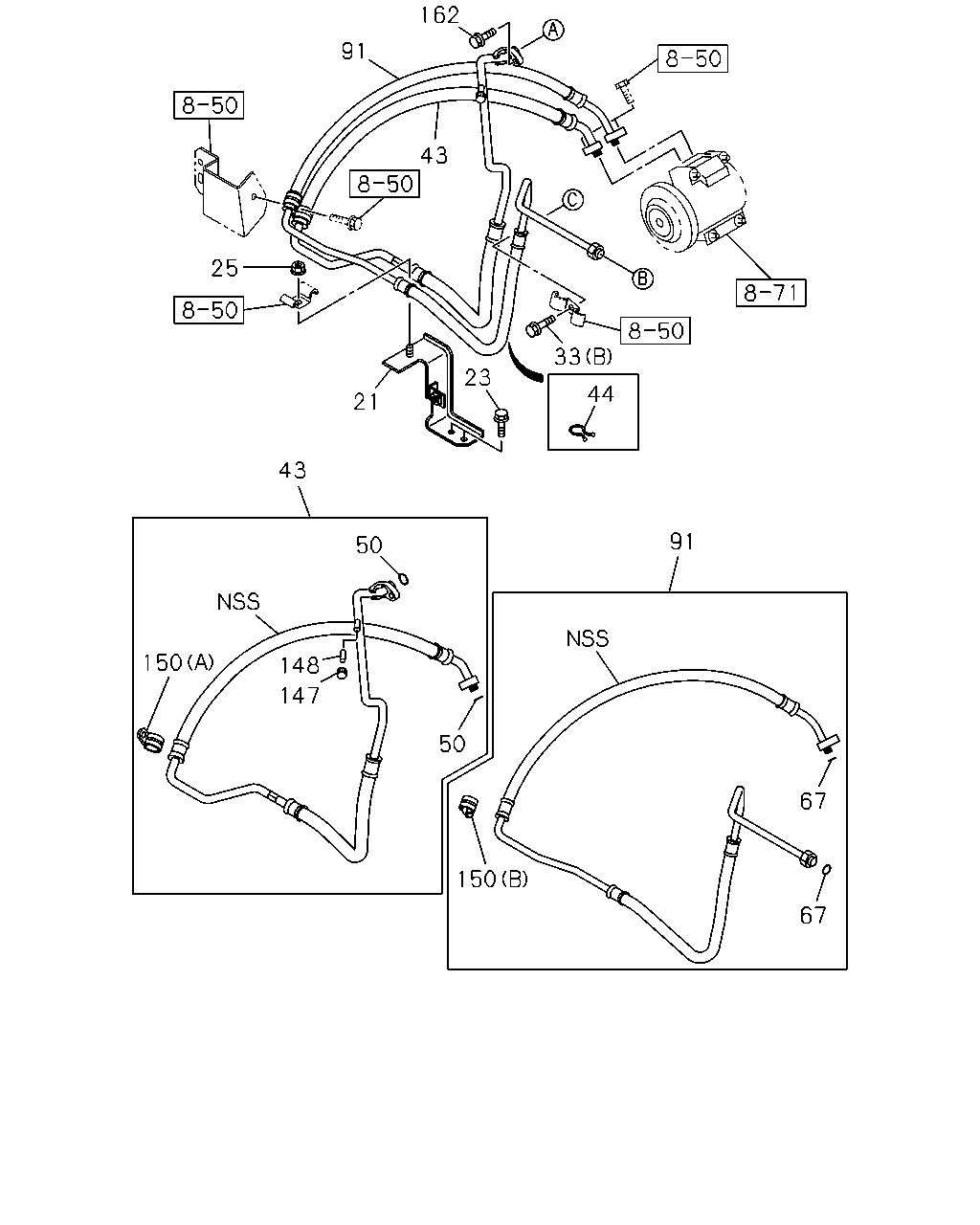

[852A] NO.1 (18 parça)
▶
158
27
33
27
33
202
156
171
116
27
58
116
174
158
116
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
8-98052-610-0
01
1
1302-
●
●
27
CLIP; COOLER PIPE
(A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
●
●
27
CLIP; COOLER PIPE
(B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
●
●
27
CLIP; COOLER PIPE
(C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
●
●
33
BOLT; CLIP
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
1302-
●
●
33
BOLT; CLIP
(B) M8X20 FLANGE THA
0-28650-820-0
01
1
1302-
●
●
116
GASKET; PIPE
(A) ID=7.4 THA
8-97095-906-0
02
1
1302-
●
●
116
GASKET; PIPE
(B) ID=11.7 THA
8-97095-907-0
01
1
1302-
●
●
156
VALVE; PIPE
THA
8-98151-702-0
01
1
1302-
●
●
158
BOLT; PIPE FIX
M6X25 FLANGE
0-28050-625-0
03
1
1302-
●
●
171
CAP; PIPE
CAP MARK H THA
8-97095-911-0
01
1
1302-
●
●
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
8-98041-330-0
01
1
1302-
●
●
202
SWITCH; PRESSURE
1-83564-391-0
01
1
1302-
●
●
91
162
43
33
23
44
91
50
43
21
25
150
148
50
147
150
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
8-98052-610-0
01
1
1302-
●
●
21
BRACKET; COOLER HOSE
8-98114-846-0
01
1
1302-
●
●
23
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1302-
●
●
25
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1302-
●
●
33
BOLT; CLIP
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
1302-
●
●
33
BOLT; CLIP
(B) M8X20 FLANGE THA
0-28650-820-0
01
1
1302-
●
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
8-98052-619-1
01
1
1302-
●
●
44
CLIP; FLEX HOSE
ID=30
8-94315-423-0
01
1
1302-
●
●
50
GASKET; FLEX HOSE,A/C
ID=14.5 THA
8-97095-908-0
02
1
1302-
●
●
67
GASKET; FLEX HOSE
ID=11.7 THA
8-97095-907-0
02
1
1302-
●
●
91
HOSE; FLEX,CMPR
8-98052-620-1
01
1
1302-
●
●
147
CAP; FLEX HOSE
CAP MARK L THA
1-83539-331-0
01
1
1302-
●
●
148
VALVE; FLEX HOSE
THA
8-97095-909-0
01
1
1302-
●
●
150
CLIP; HOSE
(B) THA
1-83574-249-0
01
1
1302-
●
●
150
CLIP; HOSE
(A) THA
1-83574-264-0
01
1
1302-
●
●
162
BOLT; FLEX HOSE
M6X25 FLANGE THA
0-28650-625-0
01
1
1302-1307
●
●
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
01
1
1308-1308
●
●
162
BOLT; FLEX HOSE
M6X25 FLANGE THA
0-28650-625-0
01
1
1309-
●
●
