8-52 — PIPING; AIR CONDITIONING (#117785) — 31 parça

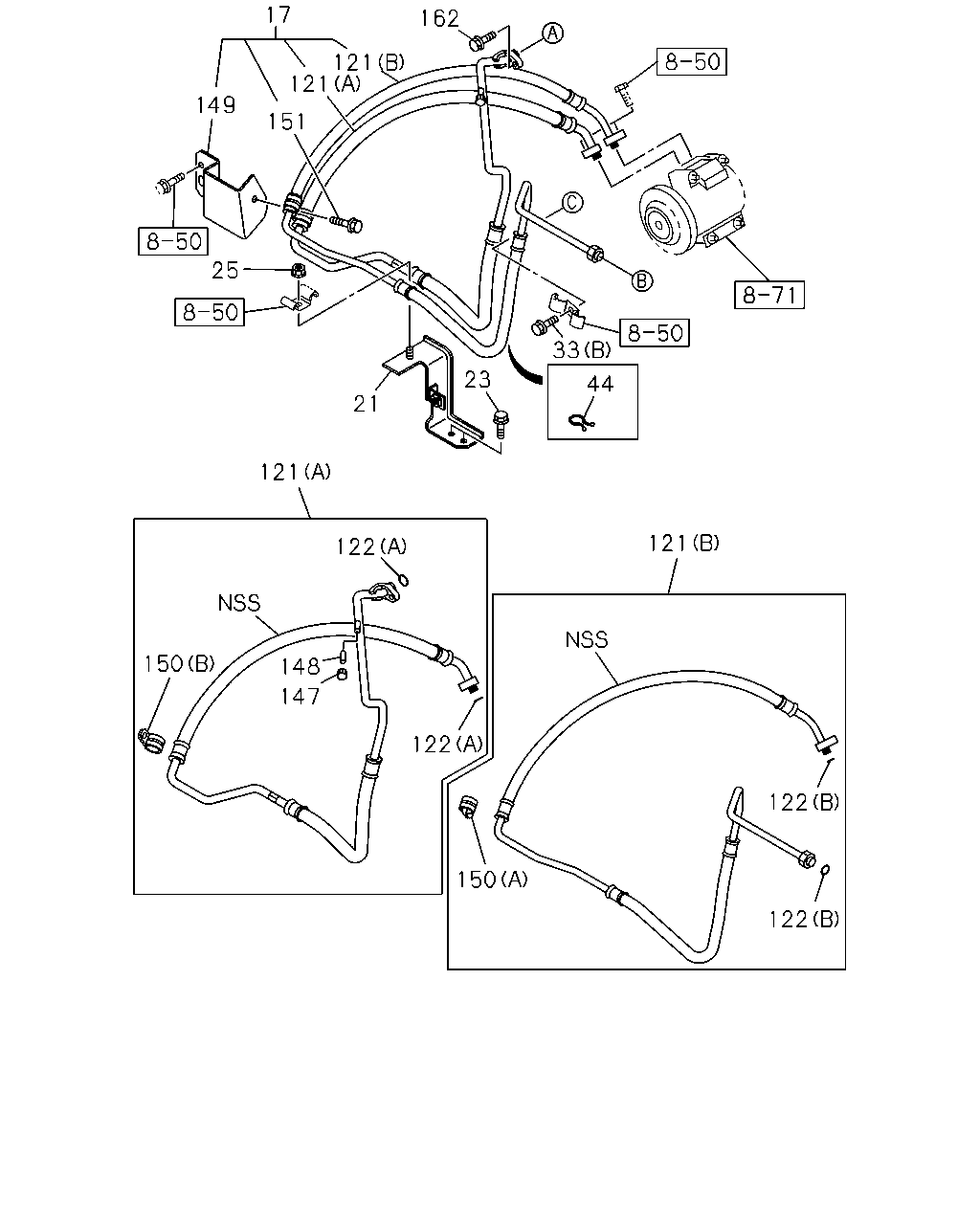

çizim 344413
25 149 151 121 121 17 162 33 44 23 21 121 122 150 148 147 122 121 150 122 122
BalonParca AdiParca NoAdetTipApplied Date
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98111-523-0 01 1 1304-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98114-846-0 01 1 1304-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1304-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1304-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1304-
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=30 		8-94315-423-0 01 1 1304-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98052-619-1 01 1 1304-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98052-620-1 01 1 1304-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7 		8-97095-907-0 02 1 1304-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.5 		8-97095-908-0 02 1 1304-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		1-83539-331-0 01 1 1304-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 1304-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98055-465-0 01 1 1304-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-249-0 01 1 1304-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-264-0 01 1 1304-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		1-83539-326-0 01 1 1304-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 01 1 1304-

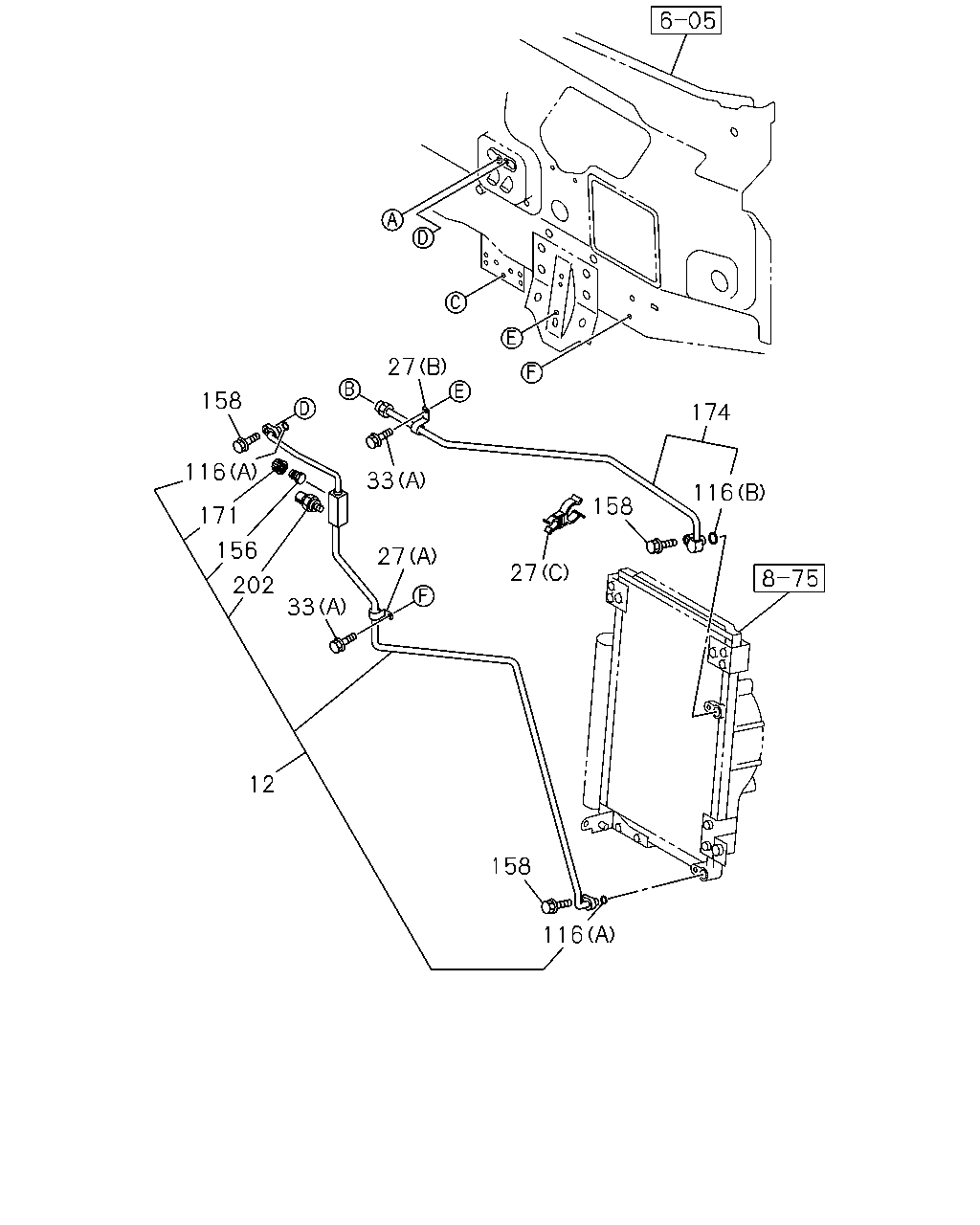

çizim 344806
27 158 116 171 156 202 33 12 158 116 116 174 158 27 27 33
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98052-610-0 01 1 1304-
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20 		0-95207-308-0 01 1 1304-
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20 		0-95207-315-0 01 1 1304-
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 1304-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1304-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1304-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 1304-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7 		8-97095-907-0 01 1 1304-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98151-702-0 01 1 1304-
158 BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 03 1 1304-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 1304-
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-330-0 01 1 1304-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-391-0 01 1 1304-
