10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

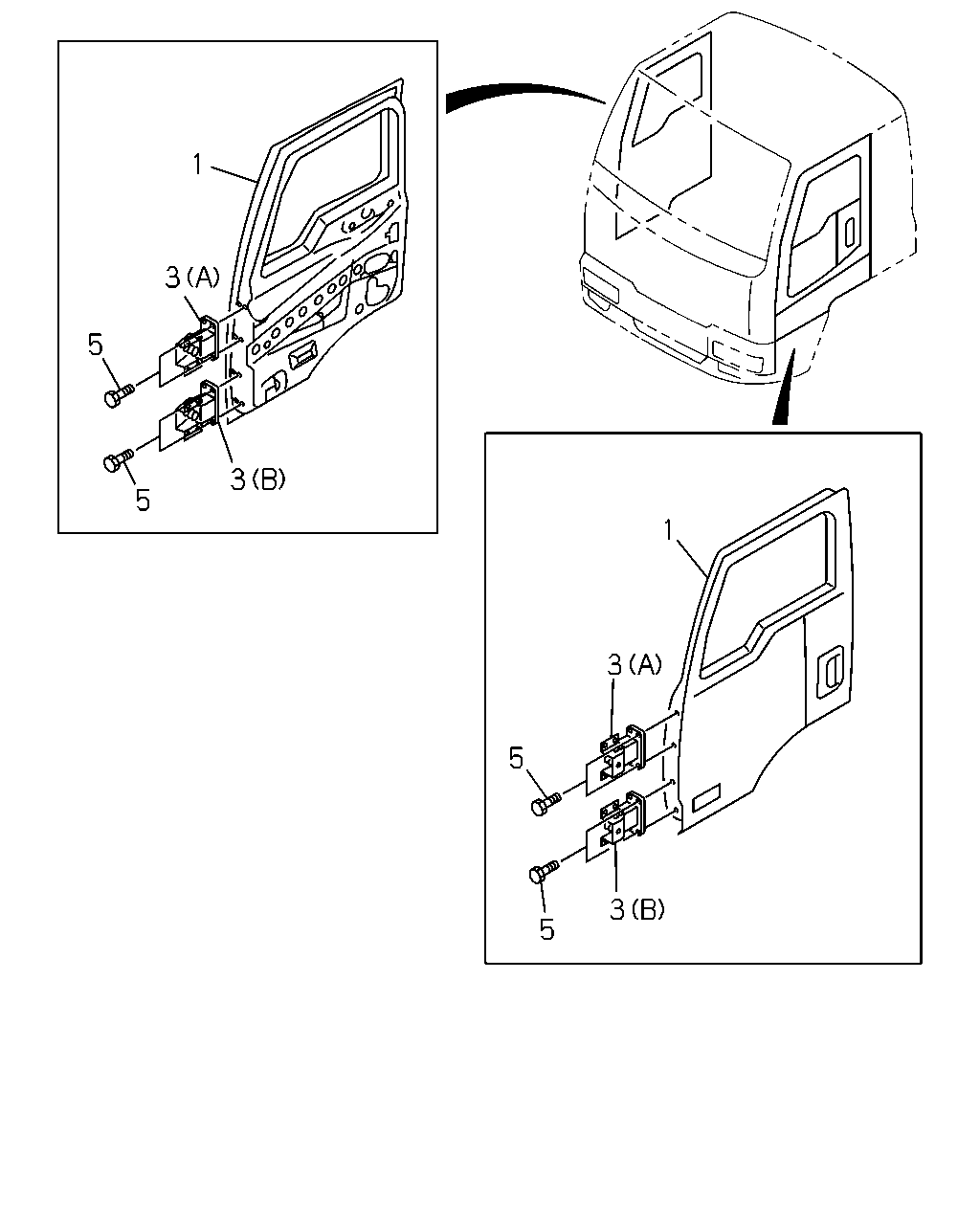

6-30 — FRONT DOOR AND HINGE
(#11778) — 16 parça
1
3
5
3
5
1
3
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER
1-64080-389-2
01
1
0106-
1
DOOR ASM; FRT,WO/TRIM
KENYA EQUIPMENT(PQ2) PRIMER
1-64080-388-2
01
1
0106-
1
DOOR ASM; FRT,WO/TRIM
EXC. KENYA EQUIPMENT(PQ2)
1-64080-390-2
01
1
0106-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-391-2
01
1
0106-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEW WINDOW<YD8>
1-64080-392-2
01
1
0106-
1
DOOR ASM; FRT,WO/TRIM
KENYA EQUIPMENT(PQ2)
1-64080-392-2
01
1
0106-
3
HINGE; DOOR FRT
KENYA EQUIPMENT(PQ2) (B) LOWER
1-64780-090-2
02
1
0106-
3
HINGE; DOOR FRT
KENYA EQUIPMENT(PQ2) (A) UPPER
1-64780-091-2
02
1
0106-
3
HINGE; DOOR FRT
EXC. KENYA EQUIPMENT(PQ2) (A) UPPER
1-64780-088-3
01
1
0106-
3
HINGE; DOOR FRT
EXC. KENYA EQUIPMENT(PQ2) (A) UPPER
1-64780-088-3
01
1
0106-
3
HINGE; DOOR FRT
EXC. KENYA EQUIPMENT(PQ2) (B) LOWER
1-64780-089-3
01
1
0106-
3
HINGE; DOOR FRT
EXC. KENYA EQUIPMENT(PQ2) (B) LOWER
1-64780-089-3
01
1
0106-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0106-
5
BOLT; HINGE
KENYA EQUIPMENT(PQ2) M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0106-
5
BOLT; HINGE
EXC. KENYA EQUIPMENT(PQ2) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0106-
5
BOLT; HINGE
EXC. KENYA EQUIPMENT(PQ2) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0106-
