◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#117773) — 31 parça

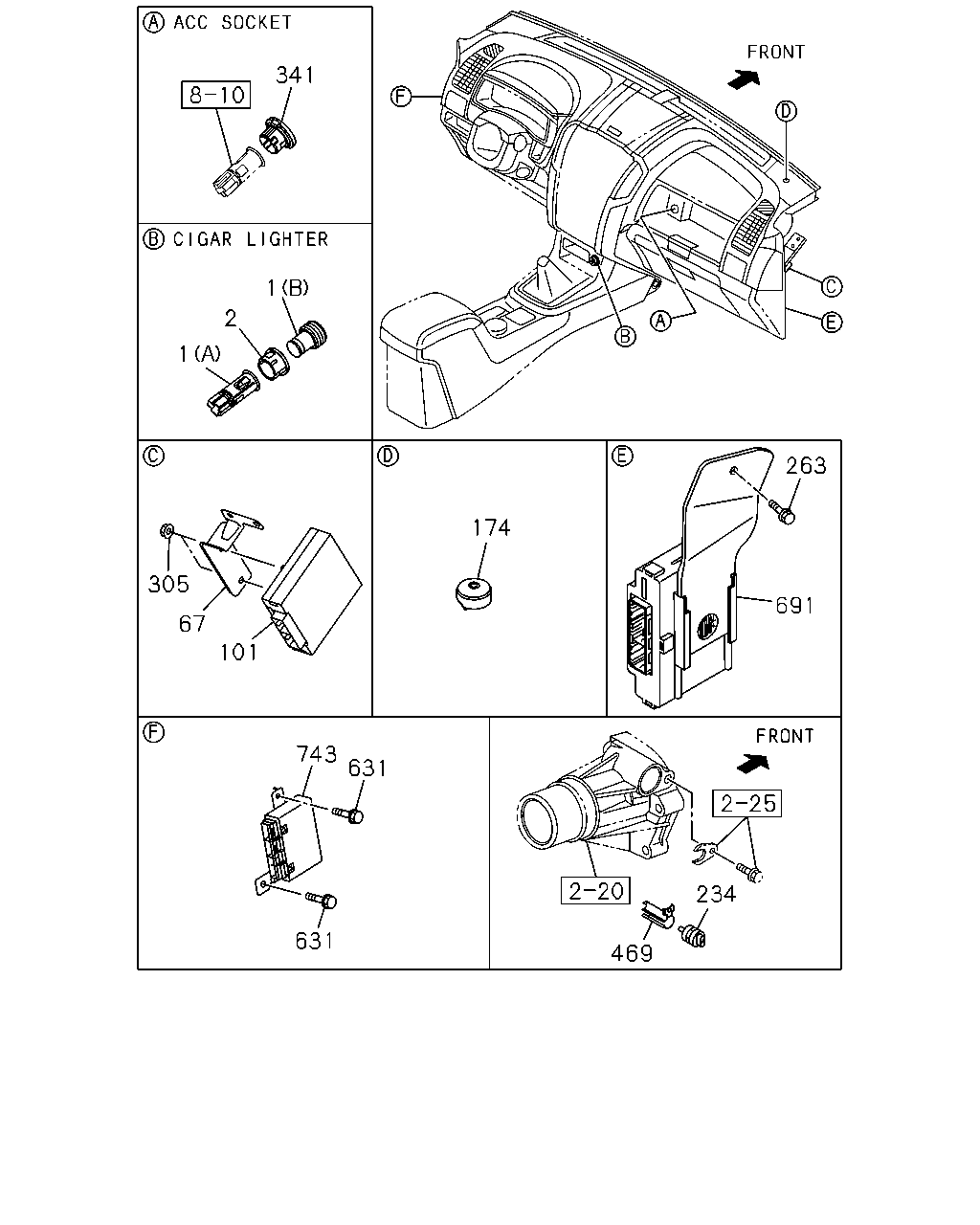

çizim 344513
341 1 2 1 305 67 101 743 631 631 469 234 691 263 174
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1304- ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1304- ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1304- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98117-178-0 01 1 1304- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98132-574-0 01 1 1304- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) 		8-98132-574-0 01 1 1304- ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1304- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1304- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1304- ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1304- ●
234 03.682 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 1304- ●
263 04.115 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H(MWQ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ●
263 04.115 BOLT; CONT UNIT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
341 04.115 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1304- ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1304- ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98119-901-0 01 1 1304- ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98119-901-0 01 1 1304- ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1304- ● ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1304- ● ● ● ●
691 04.115 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98186-110-0 01 1 1304- ●
691 04.115 CONTROLLER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 		8-98186-110-0 01 1 1304- ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98100-916-3 01 1 1304-1304 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98217-418-0 01 1 1305- ● ● ● ●

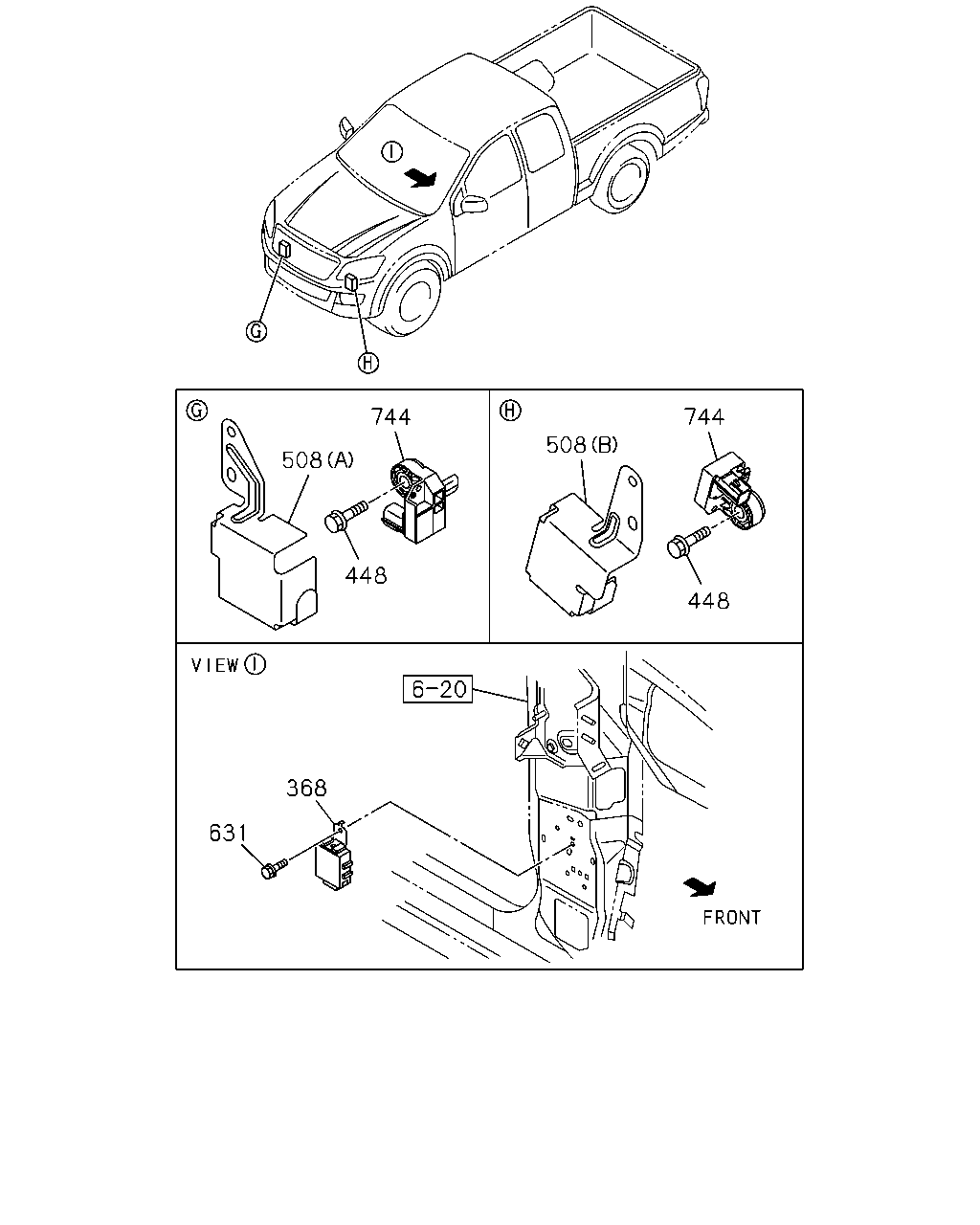

çizim 345931
744 744 508 448 448 508 368 631
BalonParca AdiParca NoAdetTipApplied Date A B C D
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1304- ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1304- ● ● ● ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98165-179-0 01 1 1304- ● ● ● ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98165-180-0 01 1 1304- ● ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1304- ● ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1304- ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) 		8-98059-533-2 02 1 1304- ● ● ● ●
