8-45 — HEATER PIPING
(#117770) — 20 parça
◀

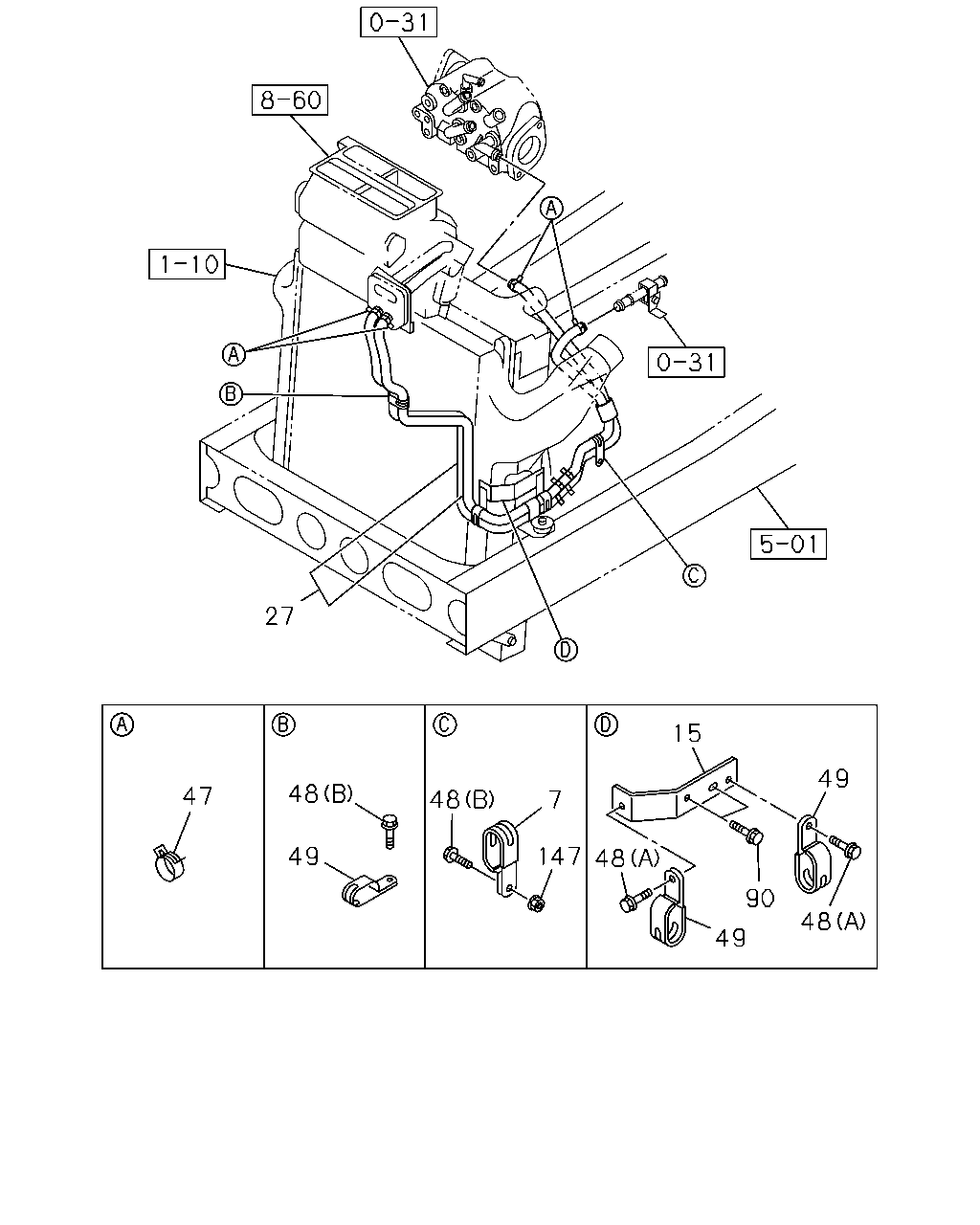

[845A] NO.2 (10 parça)
[845A] NO.1 (10 parça)
▶
27
63
63
56
56
56
56
103
103
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98155-346-0
01
1
1304-1306
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98044-015-4
01
1
1307-
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
04
1
1304-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) INLET
8-98109-177-0
01
1
1304-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) OUTLET
8-98109-179-0
01
1
1304-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) INLET
8-98161-156-0
01
1
1304-1306
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) INLET
8-98109-176-0
01
1
1307-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OUTLET
8-98161-157-0
01
1
1304-1306
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OUTLET
8-98109-178-0
01
1
1307-
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
1304-
27
47
48
49
48
7
147
15
49
48
90
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
01
1
1304-
15
BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98093-606-0
01
1
1304-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98155-346-0
01
1
1304-1306
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98044-015-4
01
1
1307-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1304-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE
0-28050-816-0
02
1
1304-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE
0-28650-820-0
02
1
1304-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
03
1
1304-
90
BOLT; STAY
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE
0-28050-816-0
02
1
1304-
147
NUT; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1304-
