8-40 — HEATER SYSTEM (#117763) — 24 parça

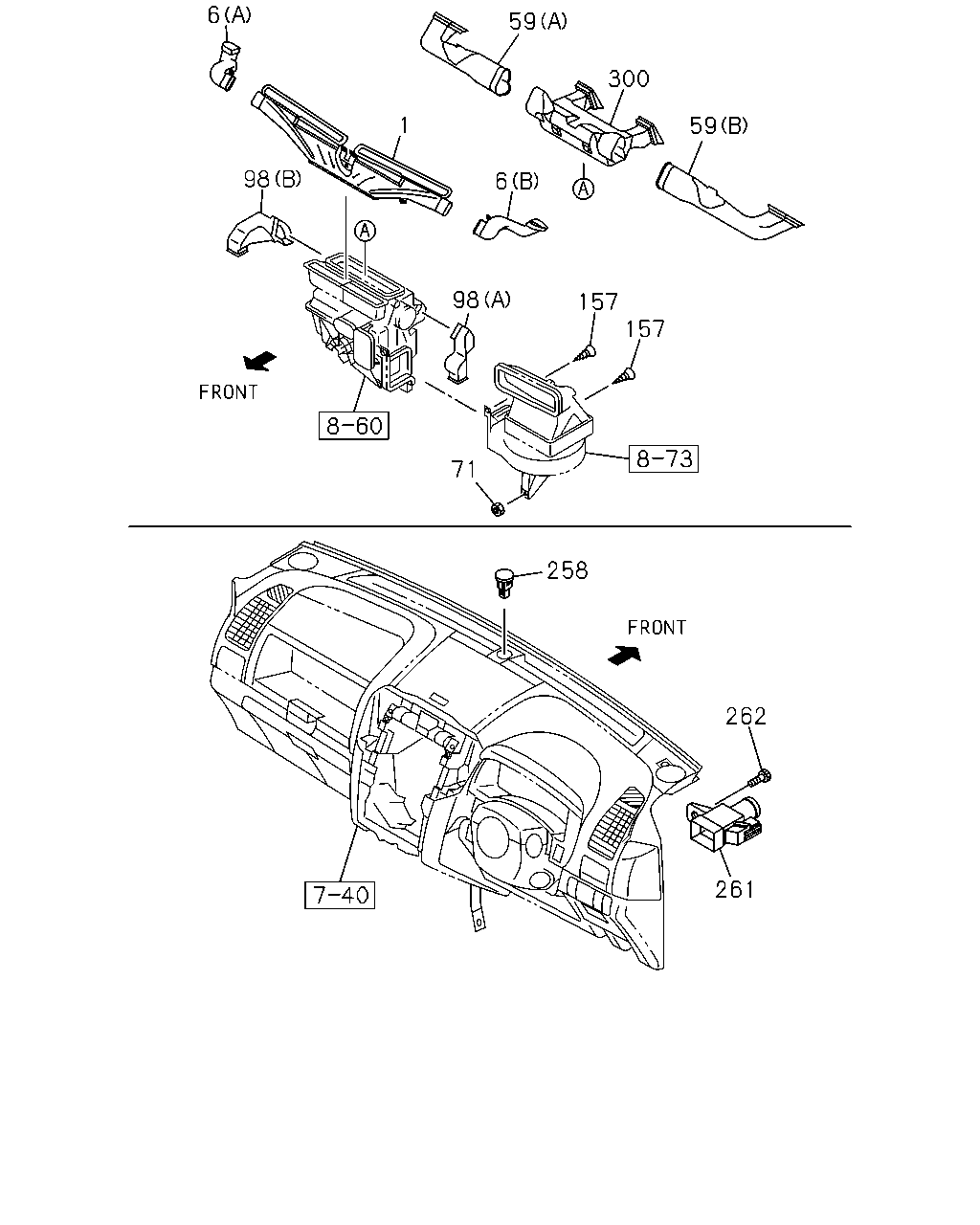

çizim 344388
6 59 300 59 98 1 6 98 157 157 71 258 262 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-98187-101-2 01 1 1304- ● ● ● ●
1 09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98187-101-2 01 1 1304- ● ●
6 09.779 DUCT; SIDE DEFROSTER
(A) 		8-98187-102-0 01 1 1304- ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98187-102-0 01 1 1304- ● ●
6 09.779 DUCT; SIDE DEFROSTER
(B) 		8-98187-103-0 01 1 1304- ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98187-103-0 01 1 1304- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1304- ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98187-099-0 01 1 1304- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1304- ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98187-100-0 01 1 1304- ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1304- ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 M6 FLANGE 		8-94279-514-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-054-0 01 1 1304- ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98233-054-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-055-0 01 1 1304- ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98233-055-0 01 1 1304- ● ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1304- ● ● ● ●
157 09.264 SCREW
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.650 M5X16 		8-98167-220-0 02 1 1304- ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-691-0 01 1 1304- ● ● ● ●
261 08.845 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-694-0 01 1 1304- ● ● ● ●
262 08.845 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1304- ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1304- ● ● ● ●
300 09.264 DUCT; VENT,CENTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98187-098-0 01 1 1304- ● ●

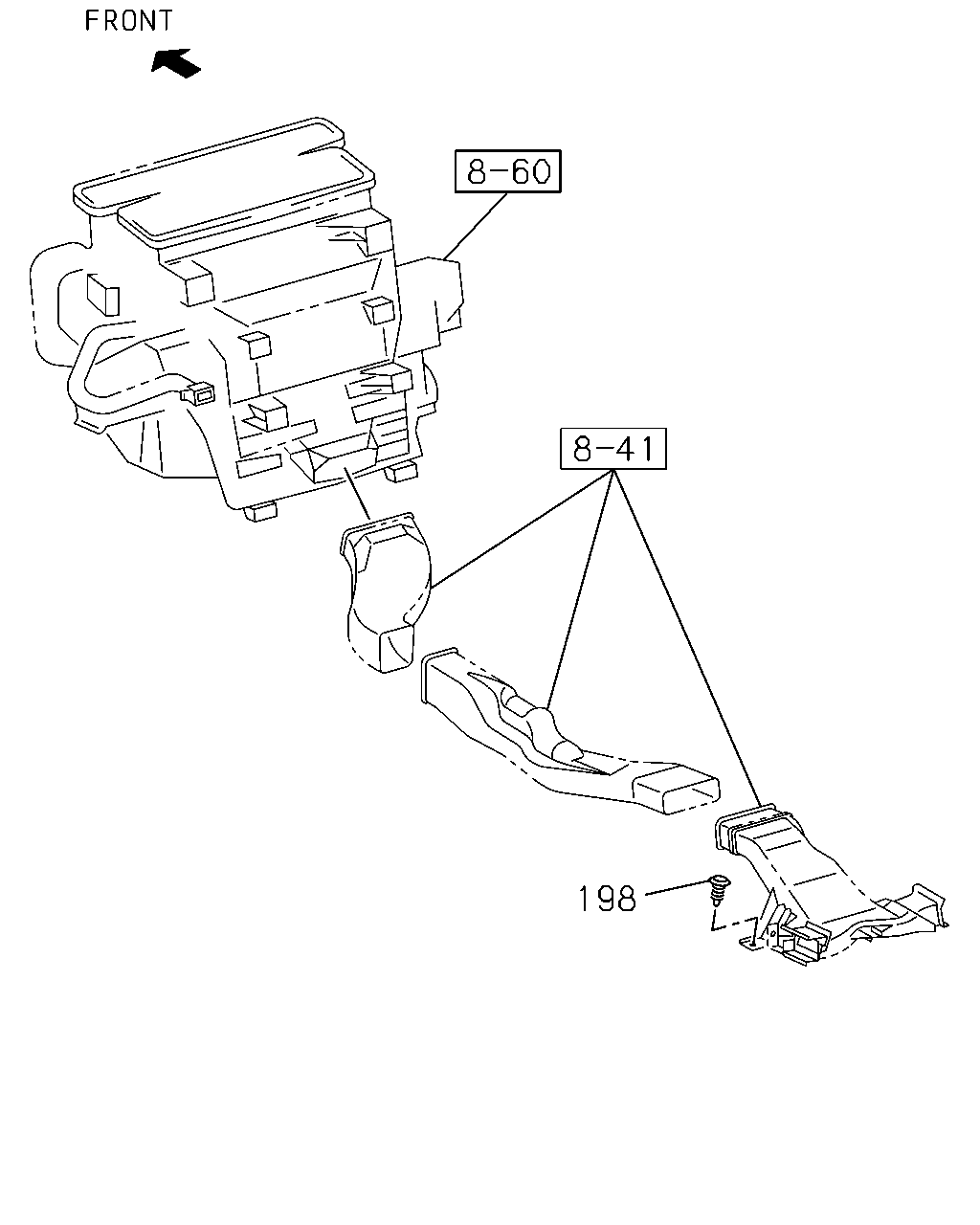

çizim 345927
198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
198 09.787 CLIP; DUCT
REAR HEATER DUCT<S8C> 		8-98147-301-0 02 1 1304- ● ●
