◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#117761) — 17 parça

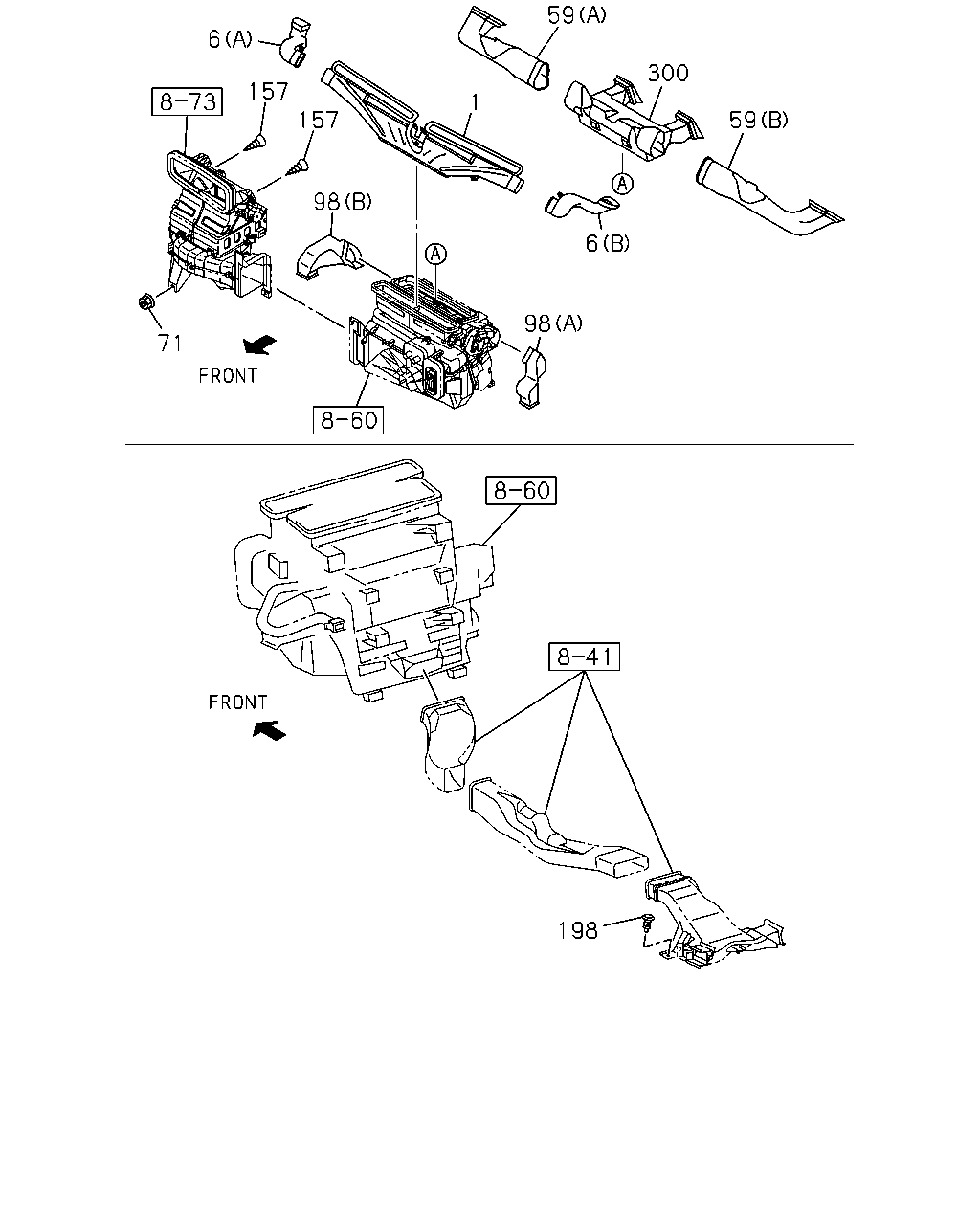

çizim 344365
6 157 59 300 157 59 98 6 71 98 198 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98187-101-2 01 1 1304- ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98187-102-0 01 1 1304- ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98187-103-0 01 1 1304- ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1304- ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1304- ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1304- ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-056-0 01 1 1304- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98233-056-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (B) 		8-98233-056-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98233-056-0 01 1 1304- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-057-0 01 1 1304- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98233-057-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (A) 		8-98233-057-0 01 1 1304- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98233-057-0 01 1 1304- ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1304- ● ● ● ●
198 09.787 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98147-301-0 02 1 1304- ● ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1304- ● ● ● ●
