◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11528 - GXR(RHD)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#117753) — 389 parça

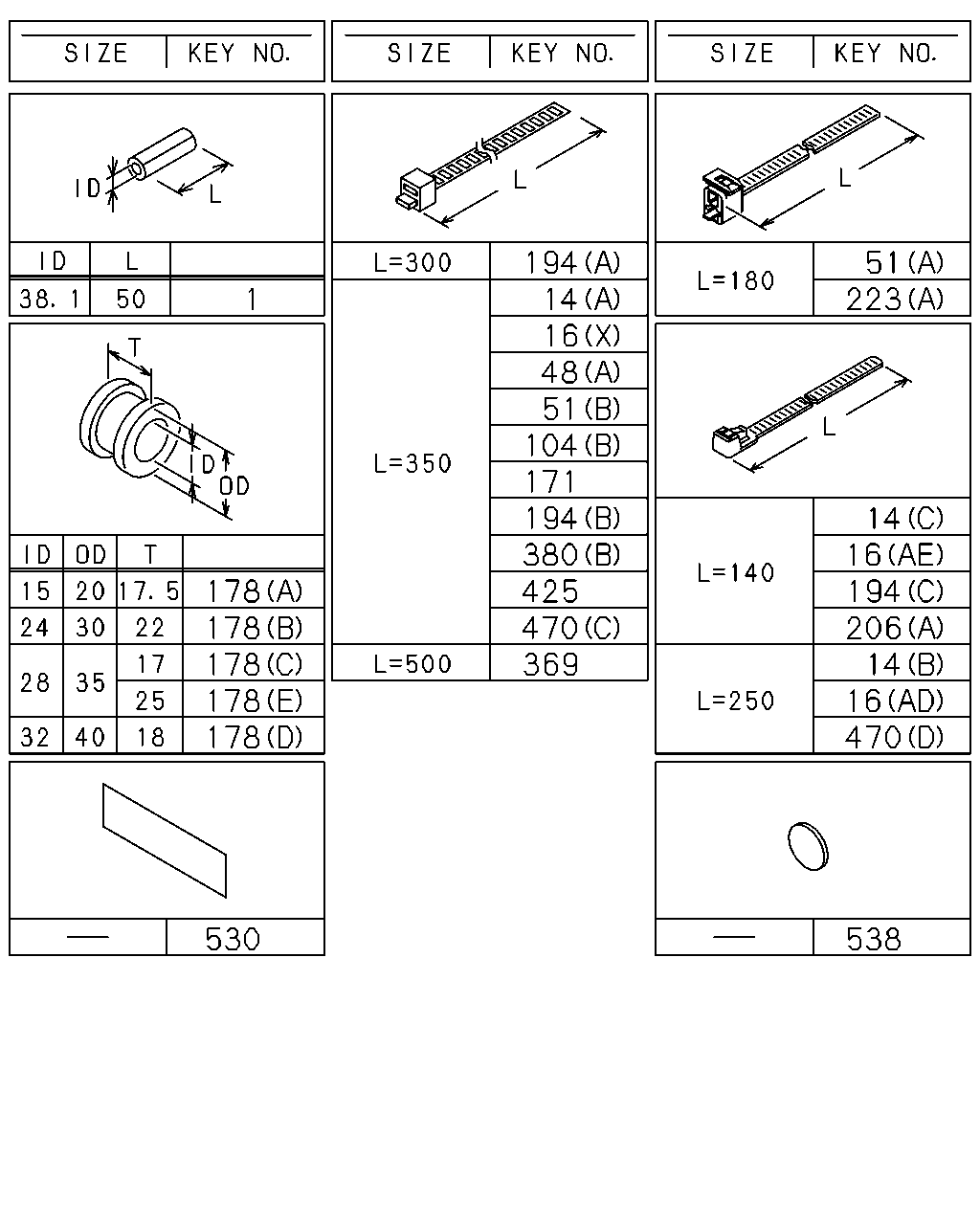

çizim 344304
1 178 178 178 178 178 530 194 14 16 48 51 104 171 194 380 425 470 369 51 223 14 16 194 206 14 16 470 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 1304-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 04 1 1304-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=250 		1-09707-126-0 02 1 1304-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=140 		5-09707-031-1 01 1 1304-
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304-
16 CLIP; HARNESS
(N) ID=11 L=28 		0-95235-055-0 01 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AK) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (O) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AG) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (P) L=175 		1-09707-176-1 01 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1311
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 1312-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1304-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304-
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 1304-
16 CLIP; HARNESS
(D) ID=18 L=40 		1-09701-111-0 01 1 1304-
16 CLIP; HARNESS
(E) ID=15 L=22 H=30 		1-09701-215-1 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=11 L=24 		0-95235-045-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=11 L=60 		0-95235-096-0 02 1 1304-
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 1304-
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304-
16 CLIP; HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304-
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 04 1 1304-1311
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 03 1 1312-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304-
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1304-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1304-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1304-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1304-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1304-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1304-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 02 1 1304-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1304-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 1304-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1304-
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1304-
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=58 		9-09917-135-2 01 1 1304-
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 1304-
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 1304-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 04 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1304-1309
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1304-
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1304-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1304-

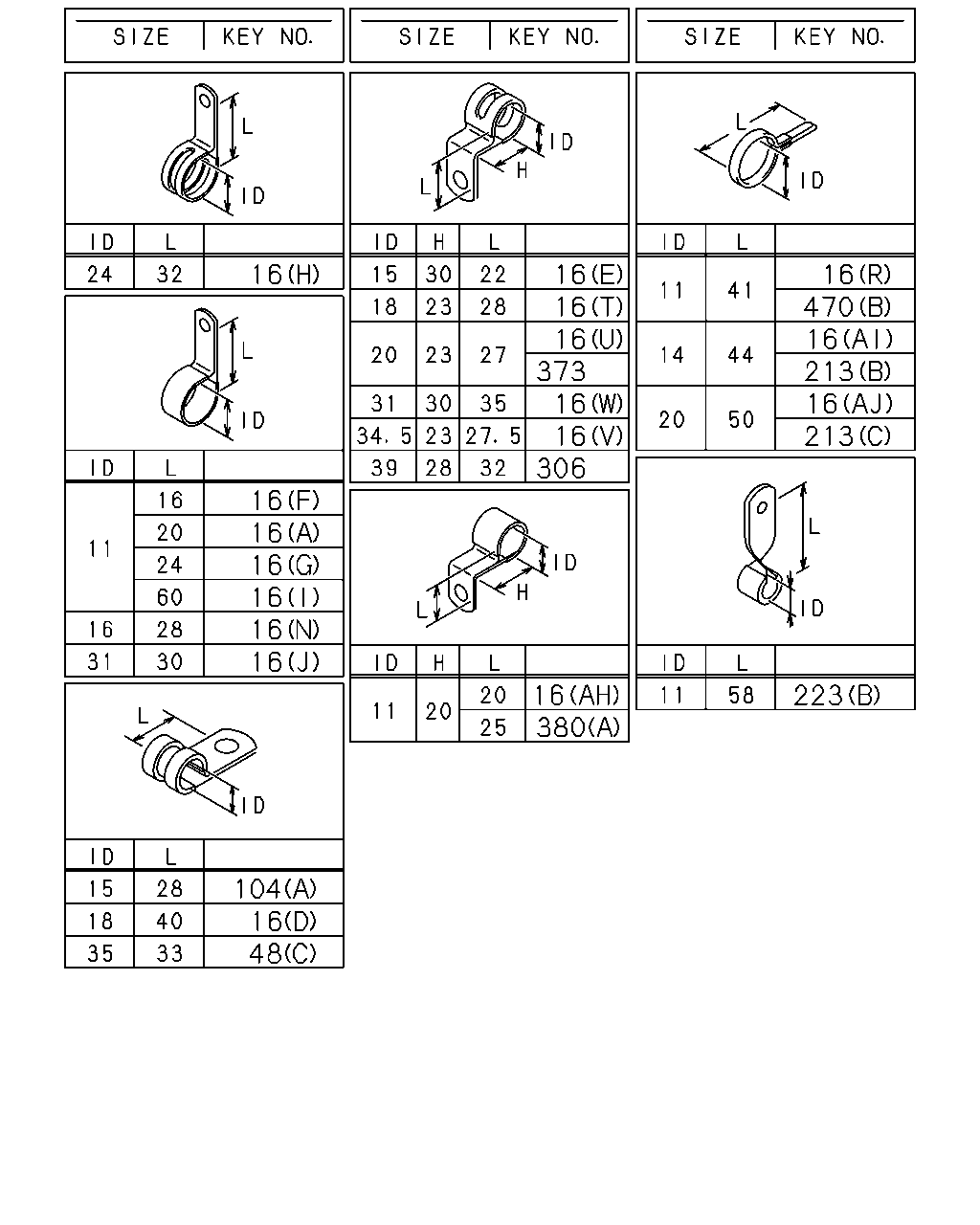

çizim 344317
16 16 16 16 16 16 16 104 16 48 16 16 16 373 16 16 306 16 380 16 470 16 213 16 213 223
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304-
16 CLIP; HARNESS
(N) ID=11 L=28 		0-95235-055-0 01 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AK) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (O) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AG) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (P) L=175 		1-09707-176-1 01 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1311
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 1312-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1304-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304-
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 1304-
16 CLIP; HARNESS
(D) ID=18 L=40 		1-09701-111-0 01 1 1304-
16 CLIP; HARNESS
(E) ID=15 L=22 H=30 		1-09701-215-1 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=11 L=24 		0-95235-045-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=11 L=60 		0-95235-096-0 02 1 1304-
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 1304-
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304-
16 CLIP; HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304-
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 04 1 1304-1311
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 03 1 1312-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304-
213 CLIP; END CROSS HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 1304-1309
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=20 L=50 		9-09917-430-0 04 1 1310-
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=13-18 L=18 		1-09709-291-0 01 1 1304-
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44 		9-09917-427-0 02 1 1304-
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=58 		9-09917-135-2 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1304-
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1304-
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1304-1309
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1304-

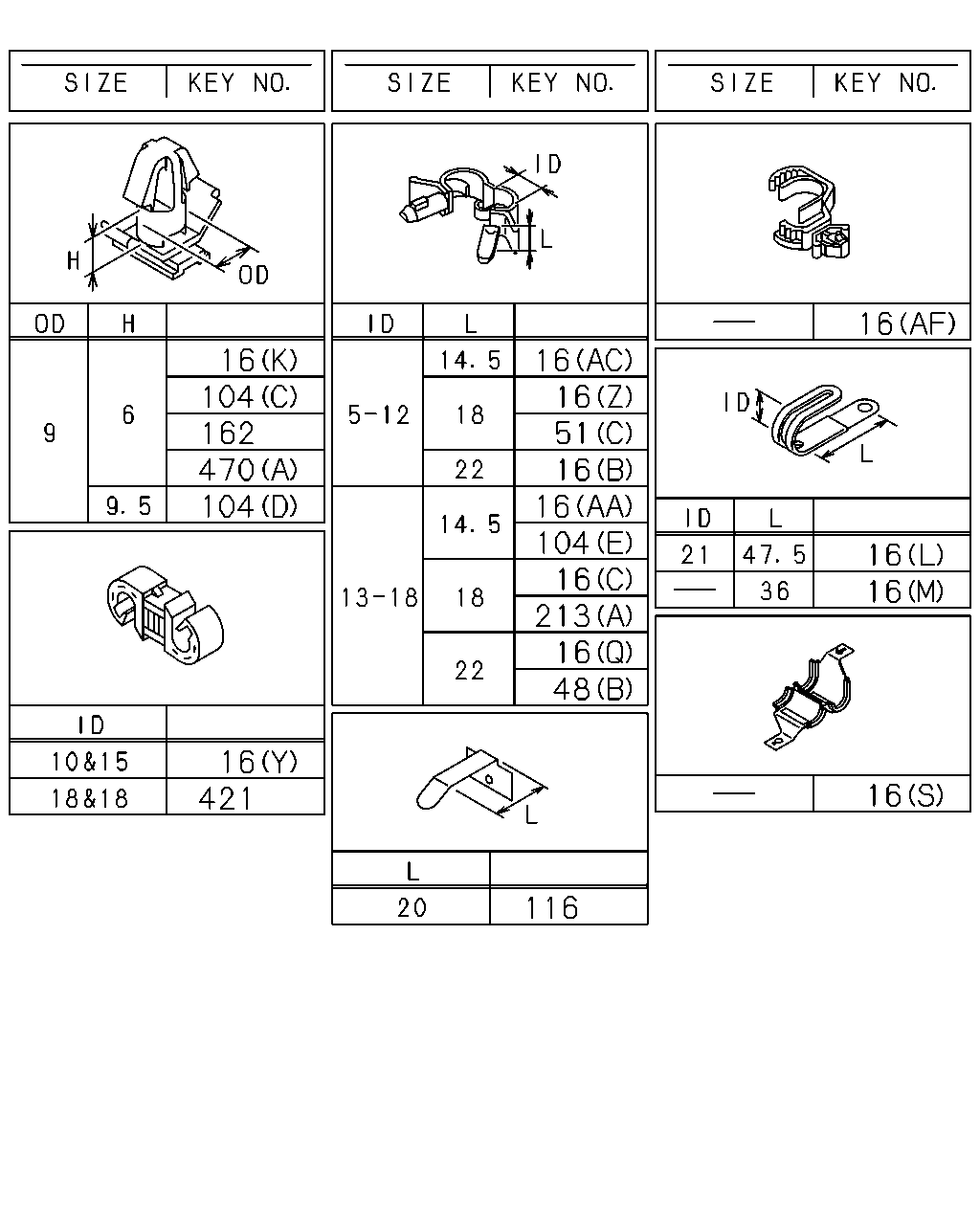

çizim 344332
116 16 16 16 16 48 16 213 16 104 16 16 51 16 16 16 104 162 470 104 16 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304-
16 CLIP; HARNESS
(N) ID=11 L=28 		0-95235-055-0 01 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AK) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (O) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AG) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (P) L=175 		1-09707-176-1 01 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1311
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 1312-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1304-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304-
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 1304-
16 CLIP; HARNESS
(D) ID=18 L=40 		1-09701-111-0 01 1 1304-
16 CLIP; HARNESS
(E) ID=15 L=22 H=30 		1-09701-215-1 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=11 L=24 		0-95235-045-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=11 L=60 		0-95235-096-0 02 1 1304-
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 1304-
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304-
16 CLIP; HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304-
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 04 1 1304-1311
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 03 1 1312-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1304-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1304-
213 CLIP; END CROSS HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 1304-1309
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=20 L=50 		9-09917-430-0 04 1 1310-
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=13-18 L=18 		1-09709-291-0 01 1 1304-
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44 		9-09917-427-0 02 1 1304-
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1304-1309
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1304-

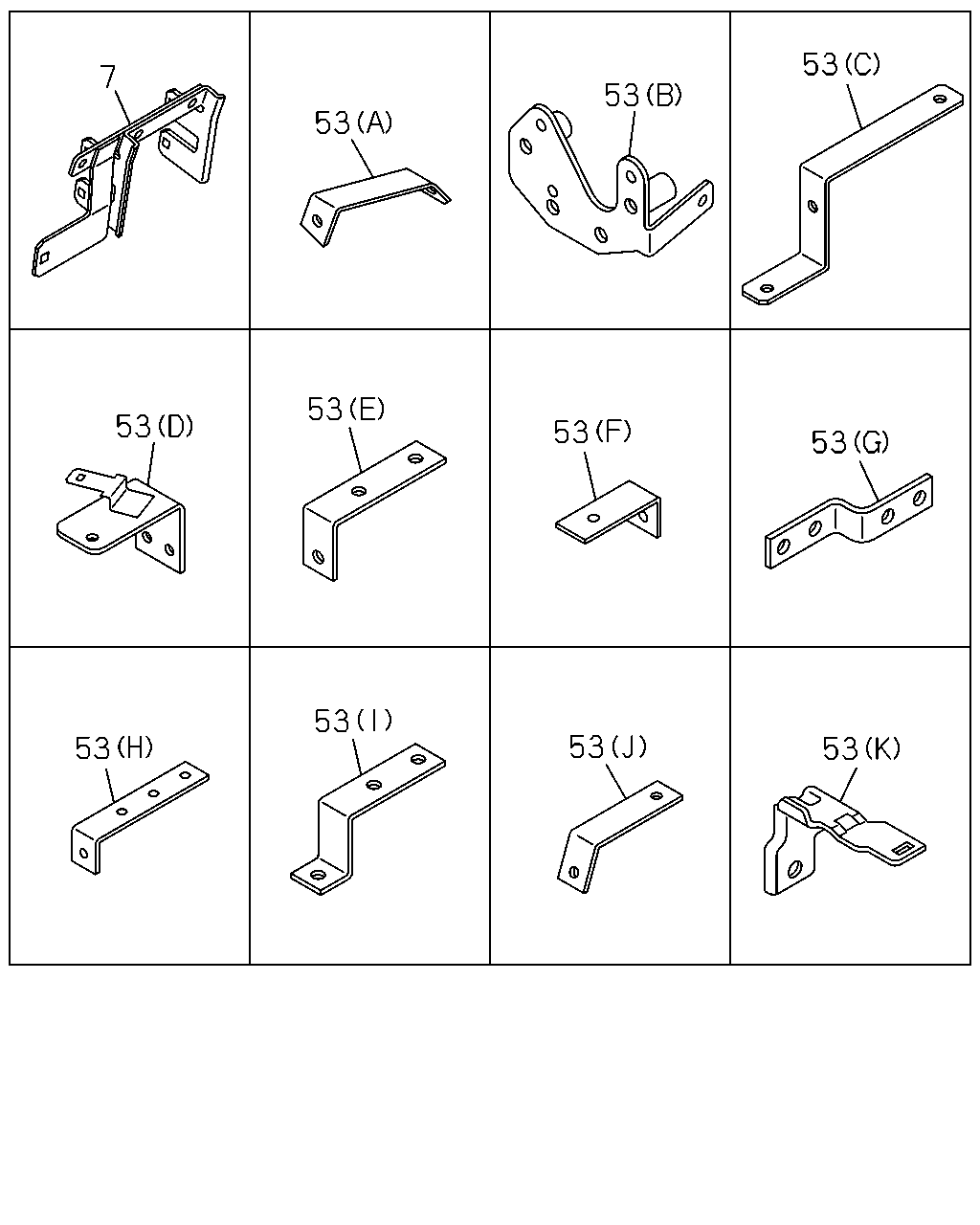

çizim 344488
7 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-97611-413-0 01 1 1304-
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1304-1404
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405-
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 1304-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1304-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1304-
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1304-
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1304-
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 1304-
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
(C) 		8-98078-801-0 01 1 1304-
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1304-
53 BRACKET; HARNESS
(I) 		8-98124-778-0 01 1 1304-
çizim 344496
16 16 206 16 142 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304-
16 CLIP; HARNESS
(N) ID=11 L=28 		0-95235-055-0 01 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AK) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (O) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32>,DOOR WINDOW MANUAL CONT<SKF> (AG) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (P) L=175 		1-09707-176-1 01 1 1304-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1311
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 1312-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1304-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304-
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 1304-
16 CLIP; HARNESS
(D) ID=18 L=40 		1-09701-111-0 01 1 1304-
16 CLIP; HARNESS
(E) ID=15 L=22 H=30 		1-09701-215-1 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=11 L=24 		0-95235-045-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=11 L=60 		0-95235-096-0 02 1 1304-
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 1304-
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312-
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304-
16 CLIP; HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1304-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 02 1 1304-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304-
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304-1309
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 04 1 1304-1311
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 03 1 1312-
142 CLIP; HARNESS,ENG
L=170.3 		8-97209-720-0 01 1 1304-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1304-
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1304-

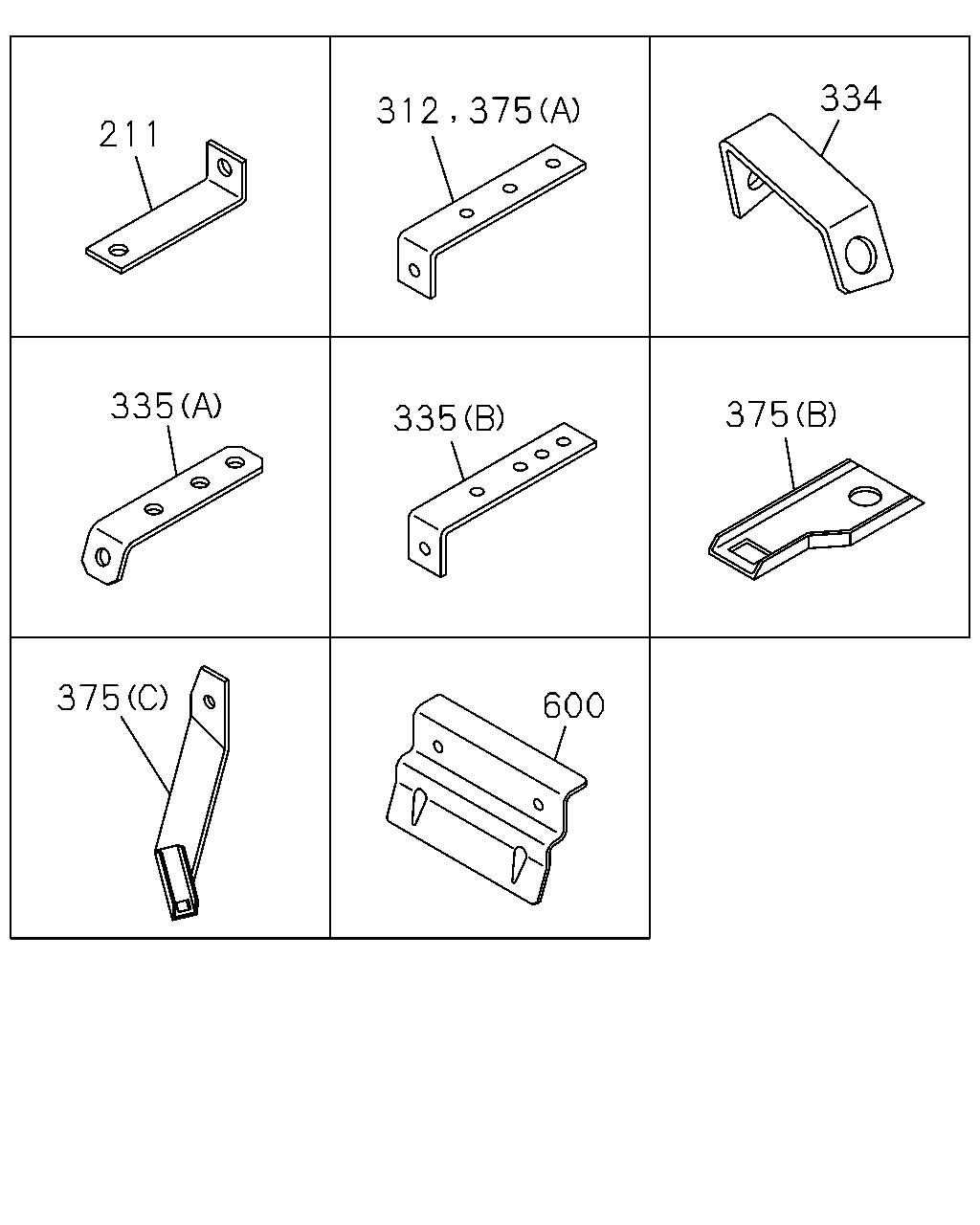

çizim 344509
211 375 312 334 375 335 335 375 600
BalonParca AdiParca NoAdetTipApplied Date
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=95 		1-82699-085-0 02 1 1304-
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 01 1 1304-
334 BRACKET 1-47479-537-0 01 1 1304-
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1304-
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1304-
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1304-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1304-
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1304-
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1304-

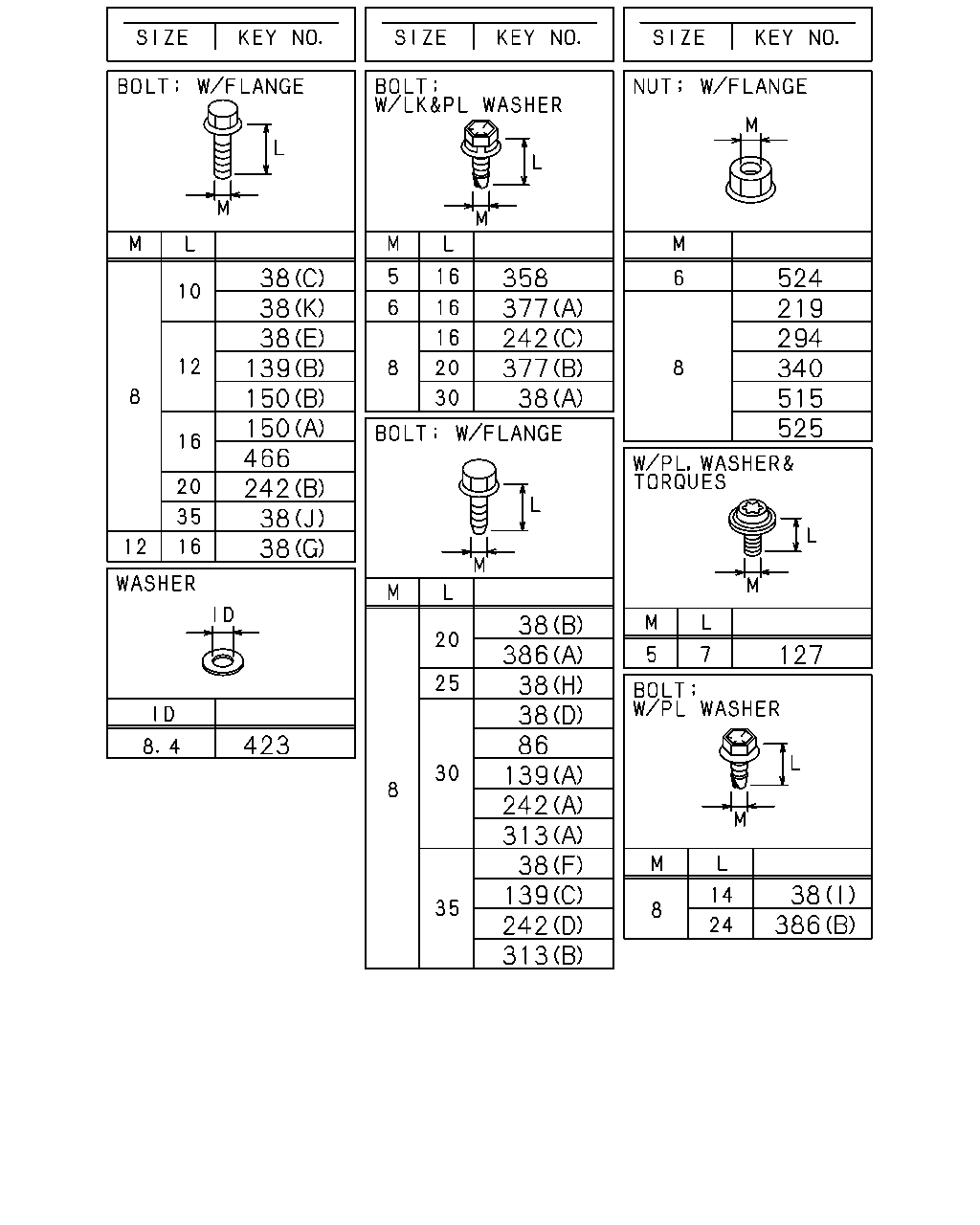

çizim 344801
38 38 38 139 150 150 466 242 38 38 423 358 377 242 377 38 38 386 38 38 86 139 242 313 38 139 242 313 386 38 127 525 515 340 294 219 524
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
GENERATOR 24V90A(K44) (K) M8X10 FLANGE 		0-28050-810-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28050-835-0 01 1 1305-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1304-1309
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1310-
38 BOLT; CLIP,HARNESS
(C) M6X10 FLANGE 		0-28050-610-0 01 1 1304-1311
38 BOLT; CLIP,HARNESS
EXC. GENERATOR 24V90A(K44) (C) M6X10 FLANGE 		0-28050-610-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28050-812-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28050-835-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 08 1 1304-
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 05 1 1304-
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28650-835-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(I) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 1304-
139 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1304-
150 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1304-
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1304-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1304-1309
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1310-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1310-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1304-1309
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1309
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1309
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 1305-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1304-
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
242 BOLT; BRKT,HARNESS
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1304-
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1304-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-1304
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1304-1304
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1305-
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 1304-1304
294 NUT
M8 FLANGE 		0-91180-108-0 09 1 1305-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 07 1 1304-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1304-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1304-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1304-
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1304-
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
386 BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1304-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1304-
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1304-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1304-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1304-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
