9-33 — REAR BODY; GATE AND SIDE GUARD (#117750) — 881 parça

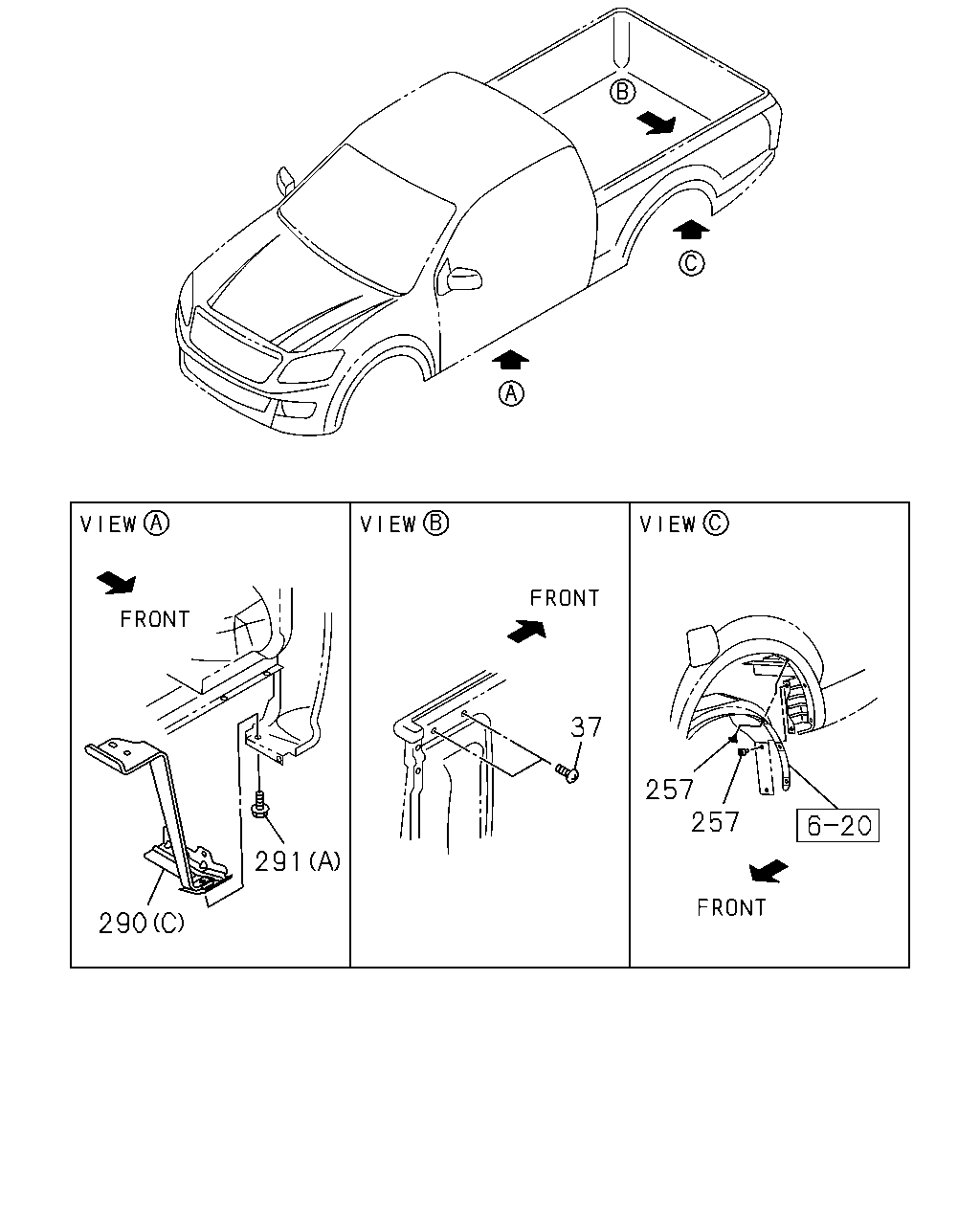

çizim 344577
290 291 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1304-1408 ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1304-1408 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304-1408 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304-1408 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 17.490 		8-98057-864-0 04 1 1304- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1304- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 04 1 1304- ● ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1304- ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ●

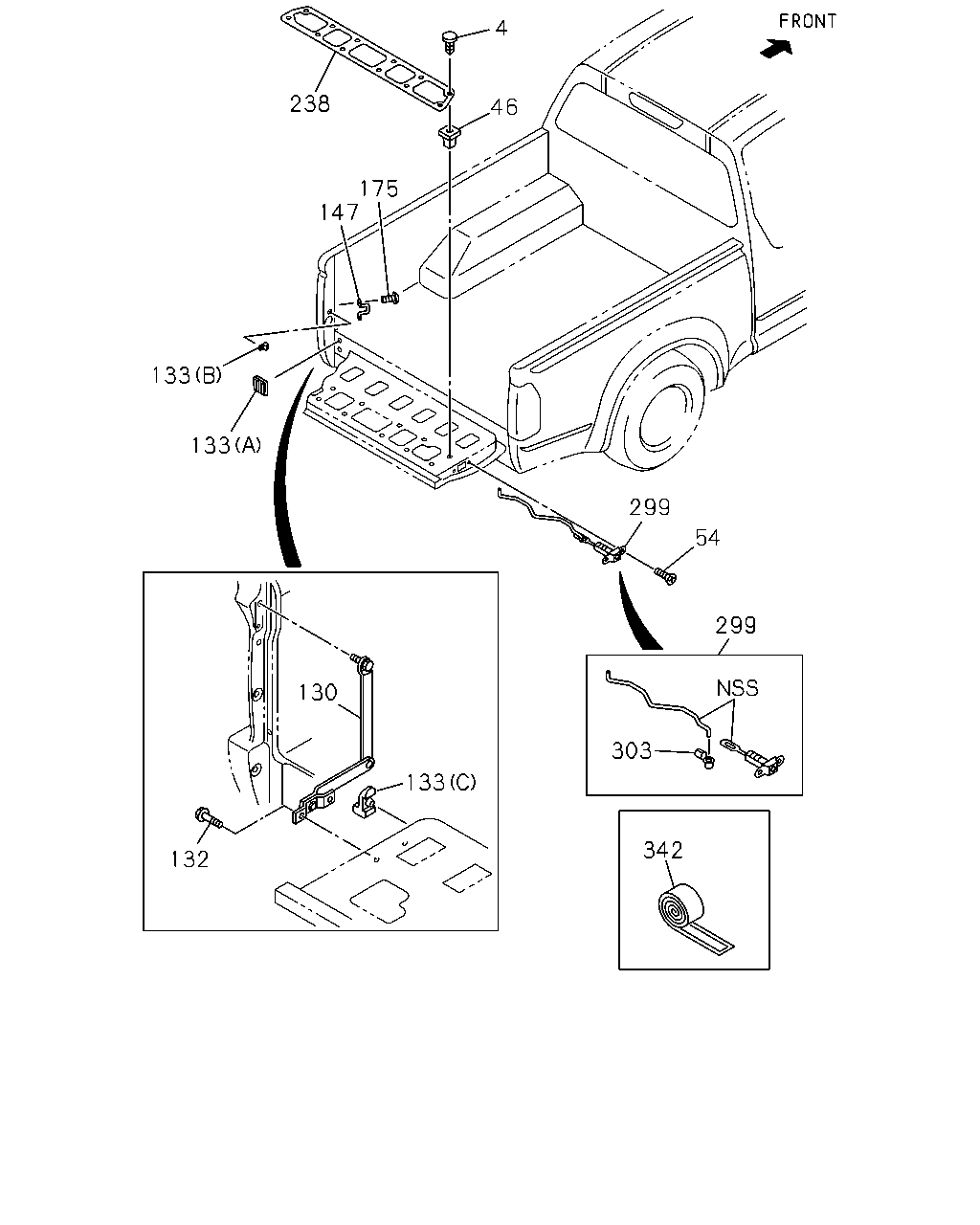

çizim 344797
238 147 175 46 4 133 133 299 54 299 303 342 133 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1304- ● ● ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1304- ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1304- ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1304- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1304- ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1304- ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1304-1505 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-461-1 01 1 1304-1505 ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1506- ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1304-1505 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-462-1 01 1 1304-1505 ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1506- ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304-1505 ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304-1505 ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1506- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1304-1505 ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) 		8-97302-185-2 02 1 1304-1505 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1506- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1304-1505 ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98110-231-2 02 1 1304-1505 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1506- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1304- ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-726-1 01 1 1304- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1304- ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-727-1 01 1 1304- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) (A) 		8-98126-088-1 01 1 1304- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1304- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) (A) 		8-98126-089-1 01 1 1304- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1304- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1304- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1304- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1304- ● ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1304- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1304- ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1304- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1304- ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1304- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1304- ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1304- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1304- ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1304- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98139-776-4 01 1 1304- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1304- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1304- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1304- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1304- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-775-4 01 1 1304- ●

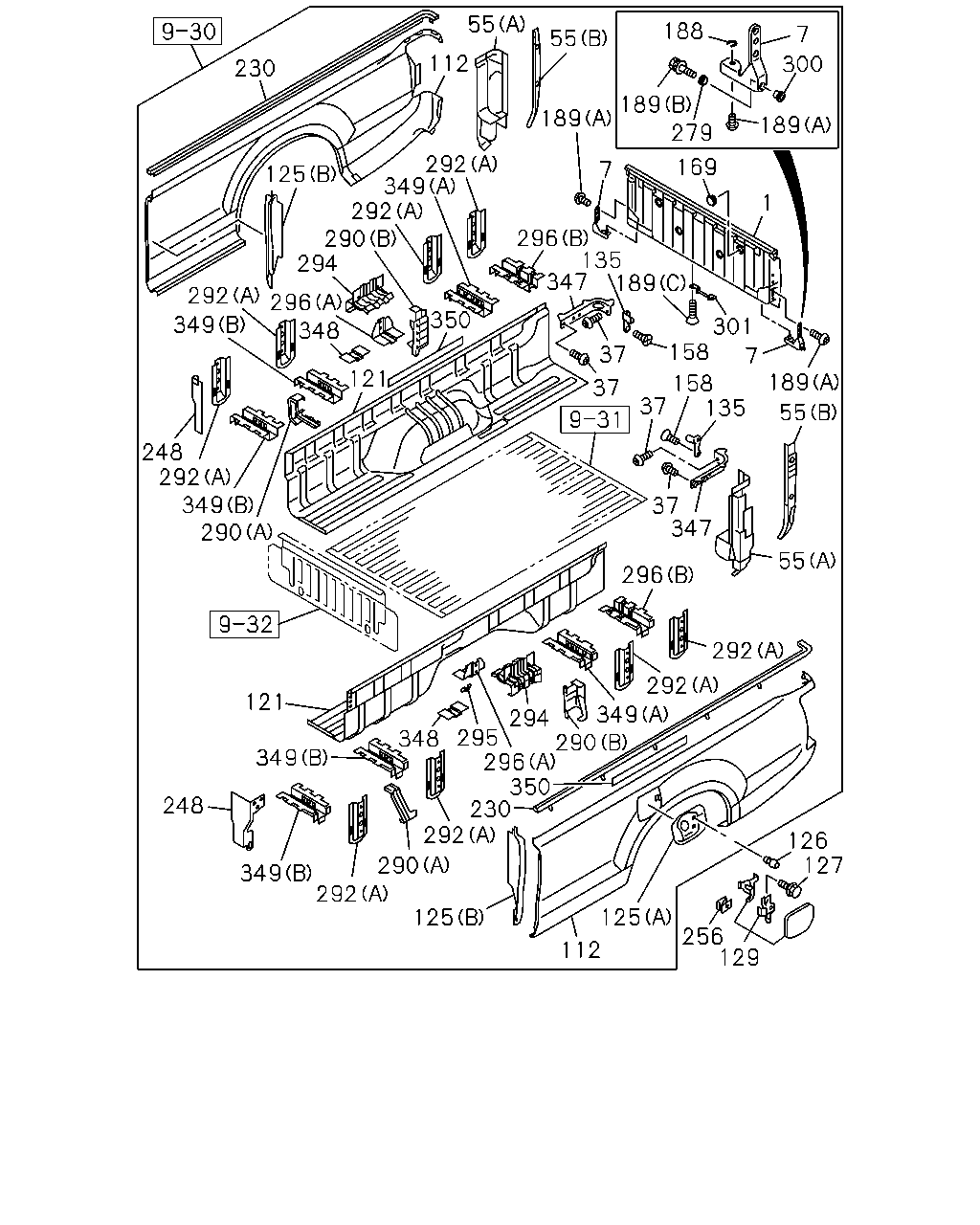

çizim 346001
230 125 292 349 292 290 294 292 349 296 348 248 292 349 290 121 349 248 349 292 125 112 290 348 295 296 350 125 256 129 126 127 292 292 349 296 55 347 37 37 158 189 7 301 158 37 37 189 135 347 296 350 121 230 292 290 294 55 135 112 55 55 189 189 279 189 188 7 300 169 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

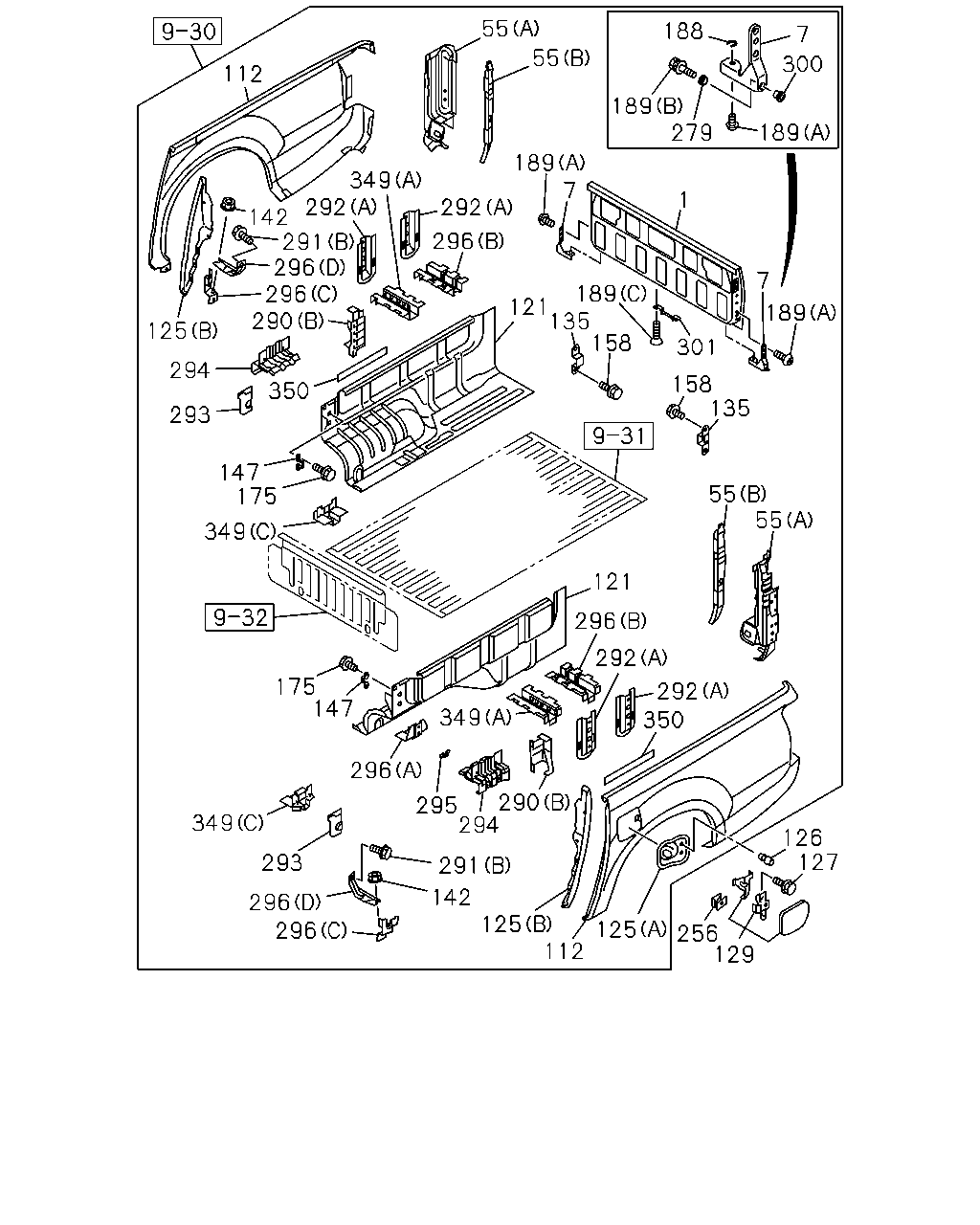

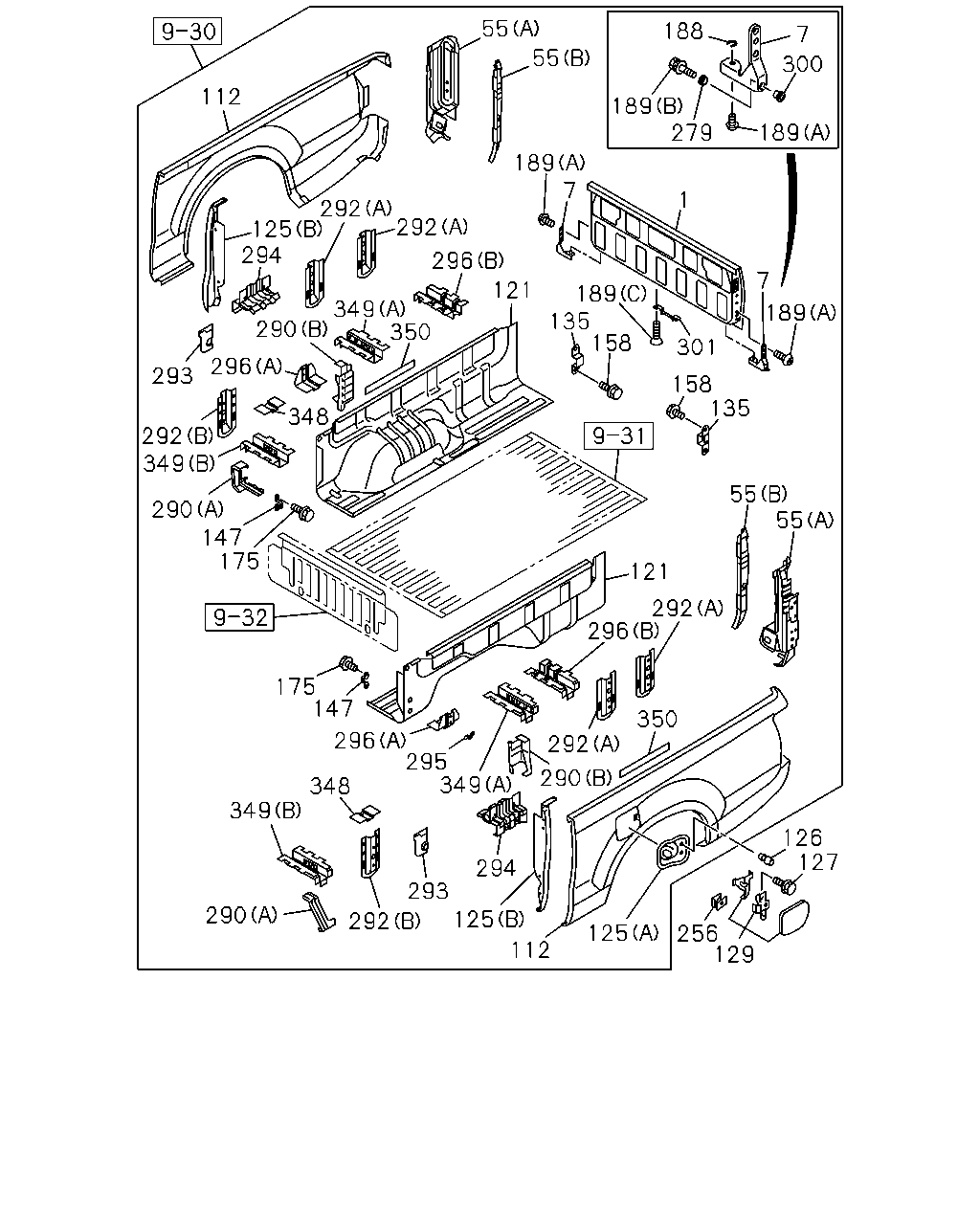

1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1304- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1304- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98198-539-2 01 1 1304- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1304- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-948-0 01 1 1304- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-949-0 01 1 1304- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1304-1408 ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1304-1408 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304-1408 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304-1408 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1304- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1304- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1304- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1304- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1304- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1506- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1506- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1304- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1304- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1304-1408 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 02 1 1304-1408 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 AR 1 1409- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1506- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1304- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1304- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1304- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1304- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1304- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-333-0 01 1 1304- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-336-0 01 1 1304- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98124-590-0 01 1 1304- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98124-591-0 01 1 1304- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1304- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1304-1505 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97357-403-0 02 1 1304-1505 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1506- ● ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1304- ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1304- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1304-1505 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98057-114-0 02 1 1304-1505 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1506- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1304- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1304- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1304- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1304- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1304- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1304- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 02 1 1304- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1304- ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1304- ●
çizim 346005
129 256 125 112 125 127 126 55 55 135 158 189 301 158 135 189 189 279 189 300 189 7 188 55 292 292 125 349 290 296 293 292 348 349 147 290 175 349 290 292 294 350 292 121 296 292 290 349 293 295 296 147 175 121 296 350 112 55 7 348 294 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1304- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1304- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98198-539-2 01 1 1304- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1304- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-948-0 01 1 1304- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-949-0 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1304- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1304- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1304- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1304- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1304- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1304- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1304- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1506- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1506- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1304-1408 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 02 1 1304-1408 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 AR 1 1409- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1506- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1304- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1304- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1304-1505 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97357-403-0 02 1 1304-1505 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1506- ● ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1304- ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1304- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1304-1505 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98057-114-0 02 1 1304-1505 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1506- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1304- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1304- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 02 1 1304- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1304- ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1304- ●
çizim 346006
127 126 129 256 125 112 125 142 296 291 349 293 294 295 296 290 350 292 296 121 292 55 55 135 189 7 301 158 158 135 121 158 189 300 7 188 279 189 55 55 189 1 7 349 147 175 349 175 147 350 293 294 125 290 296 296 291 292 349 292 296 112 296 142
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1304- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1304- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98198-539-2 01 1 1304- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1304- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-948-0 01 1 1304- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1304- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98180-949-0 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1304- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1304- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1304- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1304- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1304- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1304- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1304- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1304- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1304- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1304- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1304- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1304- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1304- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1304-1505 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1304-1505 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1304- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1304- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1304- ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1304- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1304- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1304-1505 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1506- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1506- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1304- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1304- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1304-1408 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 02 1 1304-1408 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97329-277-1 AR 1 1409- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1304-1505 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1506- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1304- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1304- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1304- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1304-1505 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97357-403-0 02 1 1304-1505 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1506- ● ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1304- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1304-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1304-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1304- ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1304-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1304- ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1304- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1304- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1304- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1304- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1304- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1304- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1304- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1304- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1304- ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1304- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1304-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1304-1505 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98057-114-0 02 1 1304-1505 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1506- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1304- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1304- ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 02 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1304- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1304- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1304- ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1304- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1304- ●
çizim 346007
215 53 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98061-099-0 02 1 1304-1505 ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1304-1505 ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1506- ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1506- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 		8-98102-968-3 01 1 1304- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-968-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 		8-98102-969-3 01 1 1304- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-969-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1304- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-967-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20>,OUTER ROPEHOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> DARK RED 		8-97416-522-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK RED 		8-97416-522-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK RED 		8-97416-522-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> LIGHT ORANGE 		8-97416-526-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT ORANGE 		8-97416-526-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT ORANGE 		8-97416-526-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1304- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) KD PAINT LESS SUPPLY<7TV> EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98200-680-1 01 1 1304- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) KD PAINT LESS SUPPLY<7TV> EXC. LOCK END GATE<8CW> 		8-98200-680-1 01 1 1304- ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1304-1505 ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1304-1505 ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1506- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1506- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X14 FLANGE 		8-97247-698-0 01 1 1304- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> M6X14 FLANGE 		8-97247-698-0 01 1 1304- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1304- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1304- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1304- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1304- ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
