Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#11775) — 209 parça

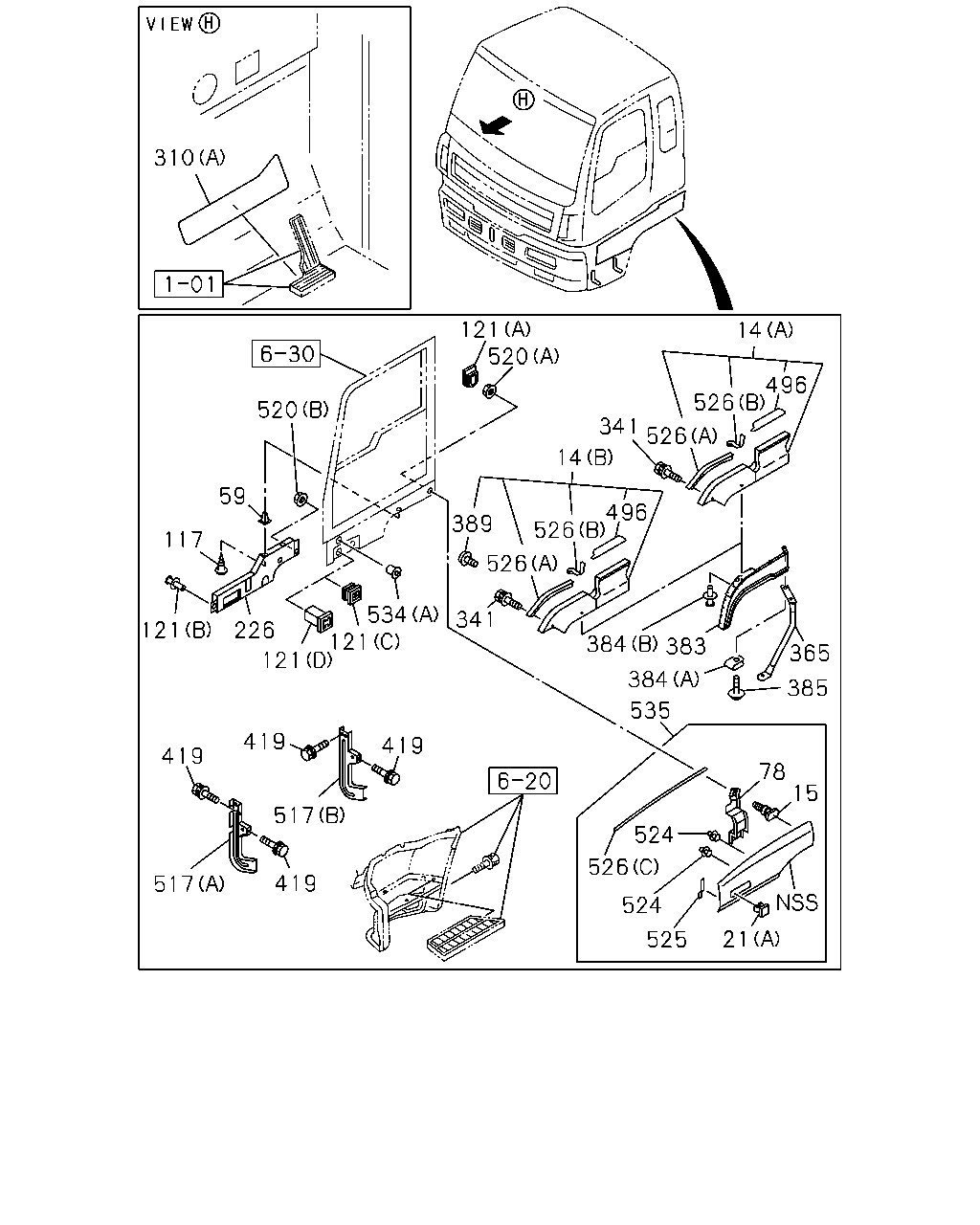

310 121 520 14 496 526 520 341 526 14 59 496 526 389 117 526 534 121 121 341 121 226 384 383 365 384 385 535 419 419 419 78 15 517 524 526 419 517 524 21 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT (A)	1-65472-453-0	01	1	0106-0503
14	FENDER; FRT (A)	1-65472-452-0	01	1	0106-0503
14	FENDER; FRT (B) WHITE	1-65472-875-6	01	1	0504-
14	FENDER; FRT (B) WHITE	1-65472-874-6	01	1	0504-
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8X8 L=7.5 M5	8-94279-078-0	02	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0106-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	0106-
78	BRACKET; FENDER	1-71267-215-0	01	1	0106-
78	BRACKET; FENDER	1-71267-214-0	01	1	0106-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	0106-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	0106-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	0106-
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	0106-0304
121	GROMMET; FENDER (D) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0305-
226	PROTECTOR; FRT	1-71267-269-1	01	1	0106-
226	PROTECTOR; FRT	1-71267-268-1	01	1	0106-
310	SILENCER; FRT PANEL (A)	1-72377-007-1	01	1	0106-
310	SILENCER; FRT PANEL (B)	1-72377-008-1	01	1	0106-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	0106-0503
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	0504-
365	SUPPORT; FENDER	1-71907-418-1	01	1	0106-
365	SUPPORT; FENDER	1-71907-417-1	01	1	0106-
383	GUARD; MUD,FENDER LWR	1-71907-457-2	01	1	0106-
383	GUARD; MUD,FENDER LWR	1-71907-456-2	01	1	0106-
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	09	1	0106-
384	CLIP; FENDER LWR (A) ID=6	1-09987-266-0	04	1	0106-
385	SCREW; FENDER LWR M6X25	1-65481-736-0	04	1	0106-
389	SCREW; STAND,FENDER M6X22	1-65481-386-0	06	1	0504-
419	BOLT; STEP M8X20 W/LK&PL WASHER	8-94279-208-0	10	1	0106-
496	RUBBER; STEP	1-71998-862-2	01	1	0106-
496	RUBBER; STEP	1-71998-861-2	01	1	0106-
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	0106-
517	SUPPORT; STEP PANEL (A)	1-65671-767-1	01	1	0106-0208
517	SUPPORT; STEP PANEL (A)	1-65671-781-0	01	1	0209-
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	0106-
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	0106-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	0106-
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	0106-
525	SEAL; FENDER	1-71268-281-1	02	1	0106-0409
525	SEAL; FENDER	1-71267-342-0	02	1	0410-
526	FINISHER; FENDER (A)	1-71998-900-3	02	1	0106-0211
526	FINISHER; FENDER (A)	1-71907-641-0	02	1	0212-
526	FINISHER; FENDER (B)	1-71907-181-4	01	1	0106-0211
526	FINISHER; FENDER (B)	1-71907-643-0	01	1	0212-
526	FINISHER; FENDER (C)	1-71268-275-1	02	1	0106-
526	FINISHER; FENDER (B)	1-71907-180-4	01	1	0106-0211
526	FINISHER; FENDER (B)	1-71907-642-0	01	1	0212-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0106-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0106-
535	FENDER; BLISTER	1-71267-186-2	01	1	0106-0210
535	FENDER; BLISTER	1-71267-185-2	01	1	0106-0210
535	FENDER; BLISTER WHITE	1-71267-294-1	01	1	0211-
535	FENDER; BLISTER WHITE	1-71267-293-1	01	1	0211-

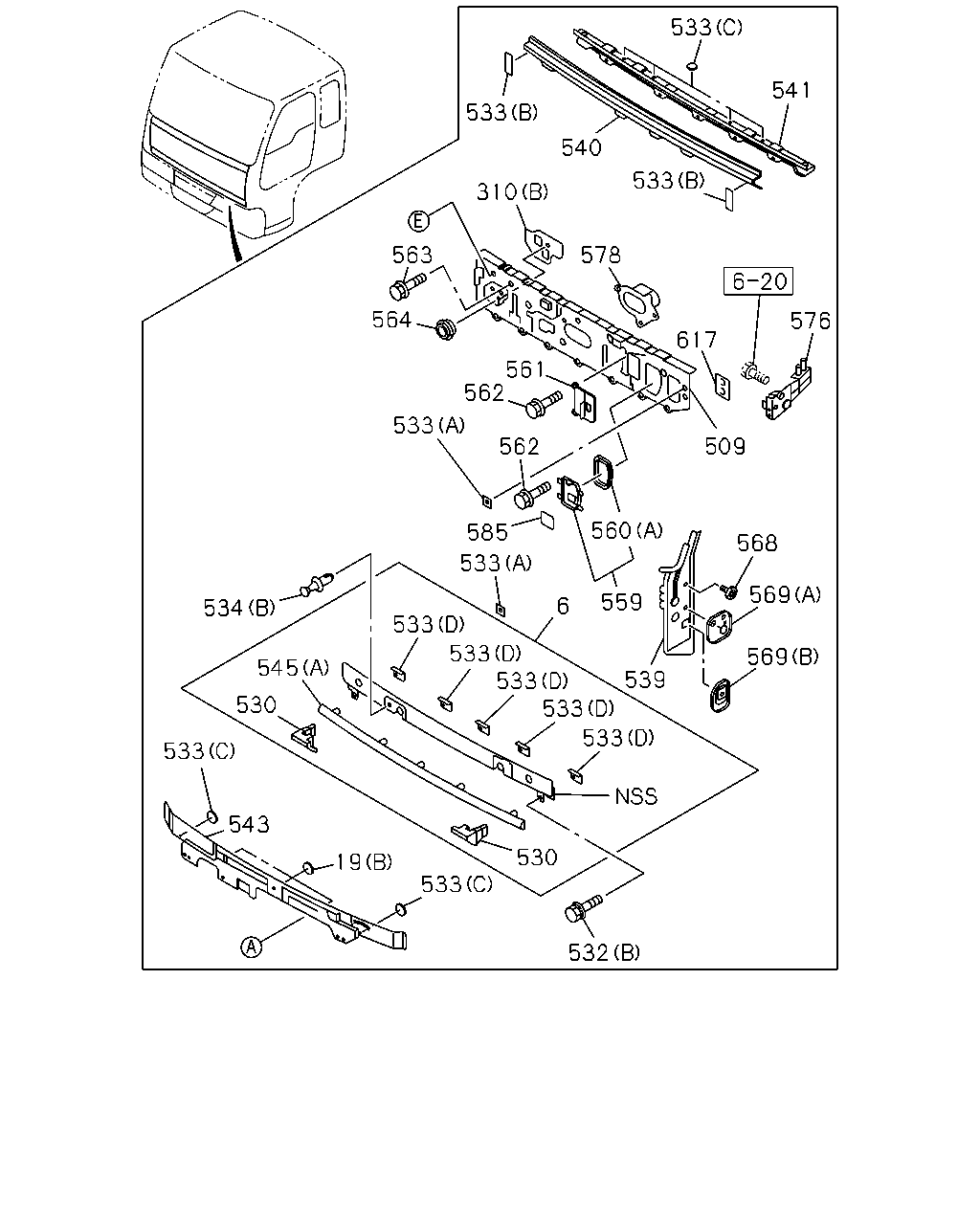

533 541 533 540 533 310 563 578 564 576 617 561 562 533 509 562 560 585 568 533 569 559 6 534 533 533 533 533 569 545 539 530 533 533 543 530 19 533 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65472-549-4	01	1	0106-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0106-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0106-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0106-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0106-
310	SILENCER; FRT PANEL (A)	1-72377-007-1	01	1	0106-
310	SILENCER; FRT PANEL (B)	1-72377-008-1	01	1	0106-
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-492-1	01	1	0106-0604
509	PANEL; DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-478-5	01	1	0106-0604
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	0106-
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	0106-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0106-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0106-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0106-
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	0106-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	0106-
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	0106-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0106-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0106-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0106-
539	CLOSING; PILLAR	1-61480-674-6	01	1	0106-
539	CLOSING; PILLAR	1-61480-673-6	01	1	0106-
540	PANEL; FRONT,OUTER	1-61470-688-2	01	1	0106-
541	PANEL; FRONT,INNER	1-61470-690-0	01	1	0106-
543	CLOSING; FRT MTG RAIL	1-61470-680-4	01	1	0106-0208
543	CLOSING; FRT MTG RAIL	1-61470-716-1	01	1	0209-0505
543	CLOSING; FRT MTG RAIL	1-61470-727-0	01	1	0506-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0106-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0106-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0106-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0106-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0106-
559	COVER; EVAPOLATOR	1-71996-194-1	01	1	0106-
560	SEAL; COVER (A)	1-71998-827-1	01	1	0106-
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0106-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0106-
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0106-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0106-
561	COVER; HEATER CORE	1-71998-829-1	01	1	0106-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	0203-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	0106-0202
563	BOLT; DASH PANEL M8X20	1-79198-002-0	16	1	0203-
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	0106-
568	PATCH; INST REINF	1-61480-675-2	02	1	0106-
569	PATCH; LWR GRIP (A)	1-61480-689-2	01	1	0106-
569	PATCH; LWR GRIP (B)	1-61480-736-2	01	1	0106-
576	FRAME; INST SIDE	1-62280-177-7	01	1	0106-0604
576	FRAME; INST SIDE	1-62280-176-6	01	1	0106-0604
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0106-0604
585	PLATE; EVAPOLATOR HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-71996-084-1	01	1	0106-
617	SEAL; DASH	1-61281-497-0	02	1	0106-0604

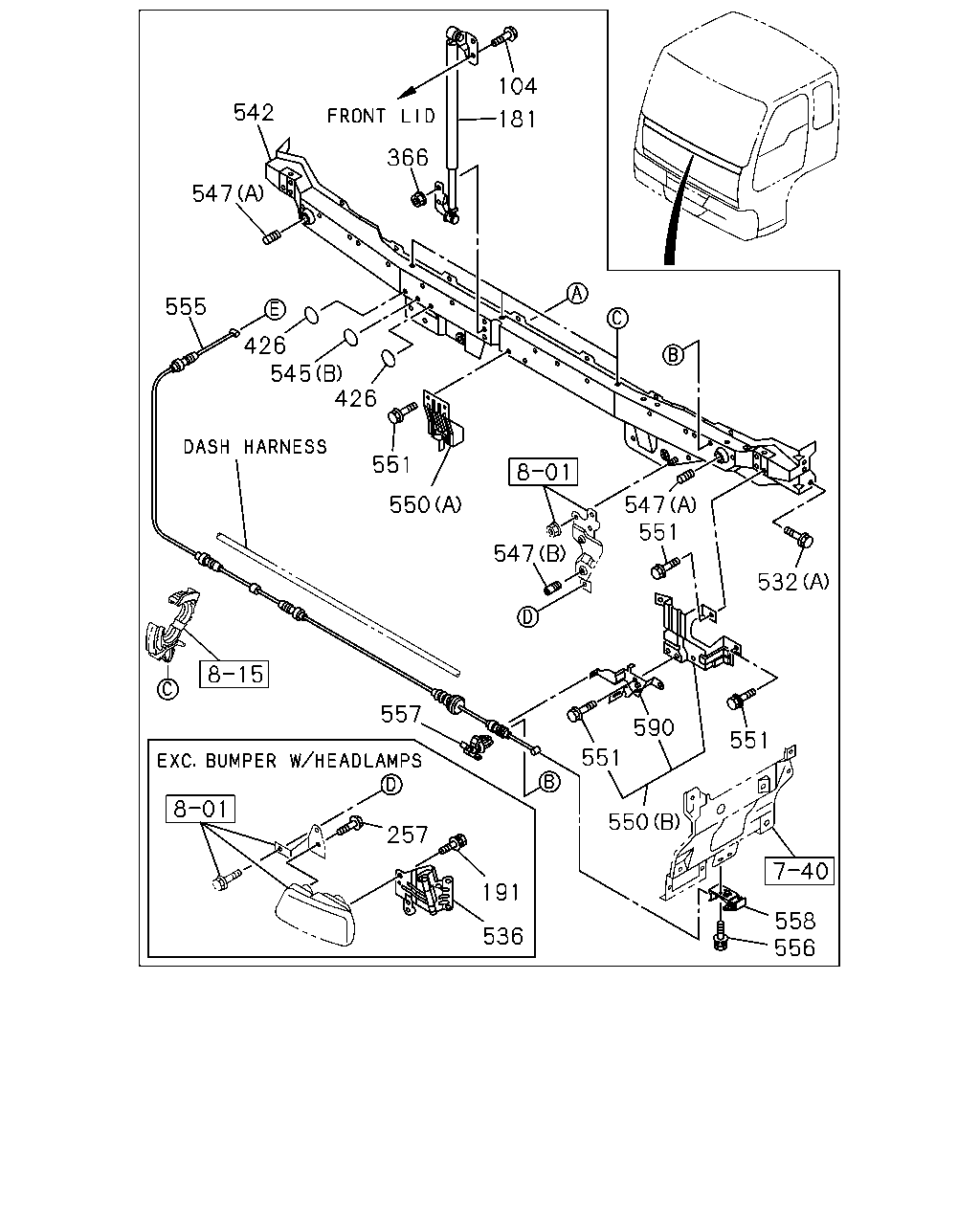

104 181 542 366 547 555 426 545 426 551 547 551 550 547 532 557 590 551 551 550 257 191 558 556 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0106-
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	0106-0412
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-864-0	01	1	0501-
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0106-
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-0308
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0309-
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
426	GASKET OD=25 BLACK	1-76798-019-0	03	1	0106-0111
426	GASKET OD=25 BLACK	1-76798-019-0	02	1	0112-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0106-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0106-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0106-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0106-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	0106-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	0106-
542	RAIL; FRT MOUNTING	1-61470-705-4	01	1	0106-0505
542	RAIL; FRT MOUNTING	1-61470-721-0	01	1	0506-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0106-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0106-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0106-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0106-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0106-
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	0106-
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	0106-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (A)	1-79317-013-0	01	1	0106-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-012-0	01	1	0106-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-011-0	01	1	0106-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-79317-006-1	01	1	0106-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-79317-008-0	01	1	0106-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-79317-007-1	01	1	0106-
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0106-
551	BOLT; LOCK EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
555	CABLE; FRT LID BUMPER W/HEADLAMPS<SLB> L=2512	1-79347-007-3	01	1	0106-
555	CABLE; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> L=2682	1-79347-005-2	01	1	0106-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0106-
557	CLIP; CABLE ID=4.8	8-94128-483-0	01	1	0106-
558	LEVER; FRT LID	1-79338-003-1	01	1	0106-0212
558	LEVER; FRT LID	1-79338-007-0	01	1	0301-
590	LOCK; FRT LID	1-79318-010-1	01	1	0106-
590	LOCK; FRT LID	1-79318-009-3	01	1	0106-

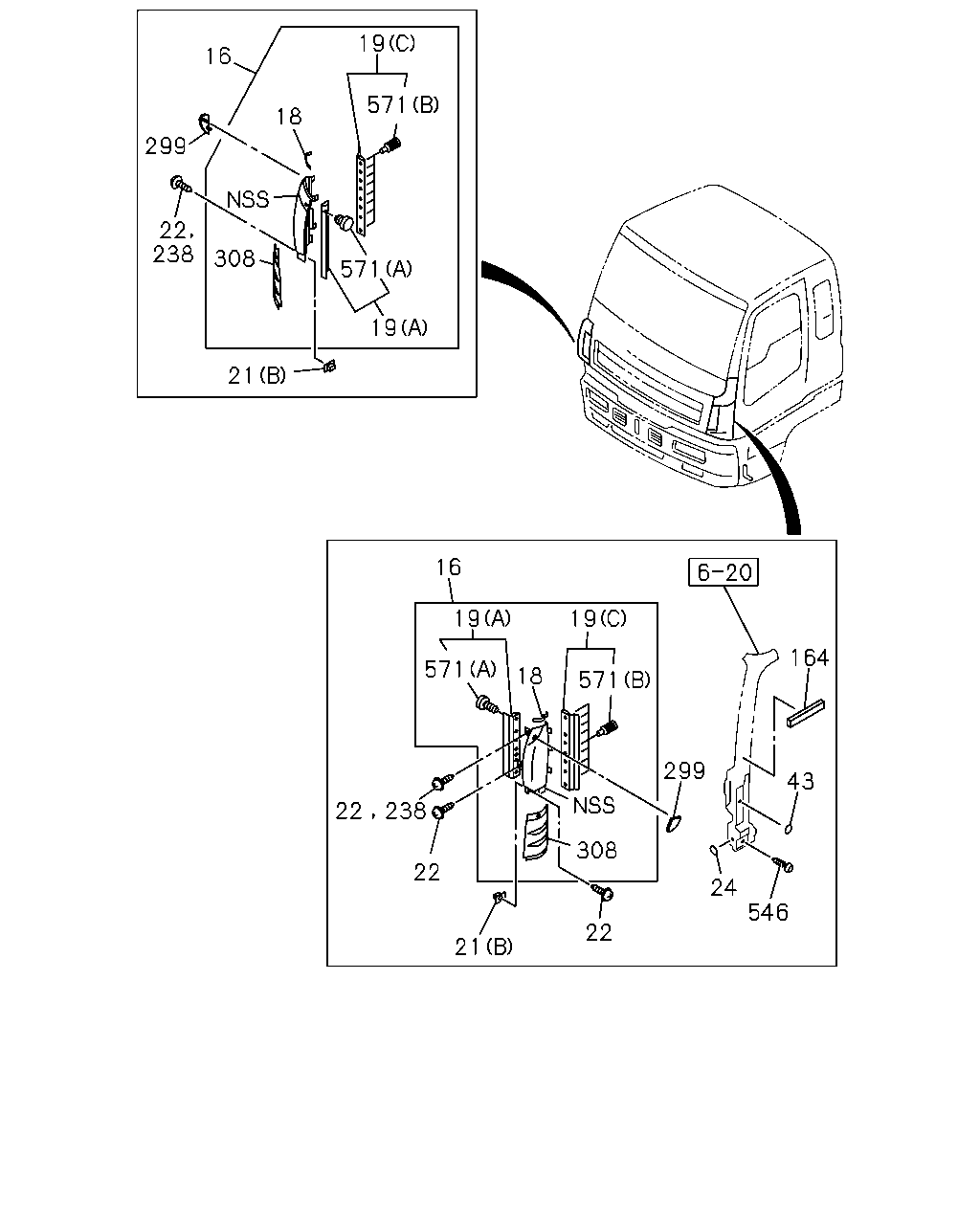

19 16 571 18 299 22 238 308 571 19 21 16 19 19 164 571 18 571 43 299 22 238 308 22 24 546 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-649-2	01	1	0106-
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-648-2	01	1	0106-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	0106-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	0106-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	0106-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	0106-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0106-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0106-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	0106-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0106-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8X8 L=7.5 M5	8-94279-078-0	02	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0106-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0106-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	14	1	0106-
22	SCREW; FRT PANEL SIDE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0106-
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	06	1	0106-
24	SEAL; FRT PANEL LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	10	1	0106-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	0106-
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	0106-
238	SCREW BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING	8-94279-123-0	06	1	0106-
299	COVER; FRT PANEL SIDE EXC. KENYA EQUIPMENT(PQ2)	1-71998-995-1	01	1	0106-
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71998-996-1	01	1	0106-
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-569-1	01	1	0106-
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-568-1	01	1	0106-
546	PLUG; DUMMY HOLE OD=16 L=11	1-76378-155-0	02	1	0106-
571	CLIP; SEAL (B) PINK	1-09987-256-0	08	1	0106-
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	08	1	0106-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	14	1	0106-
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	16	1	0106-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	0106-

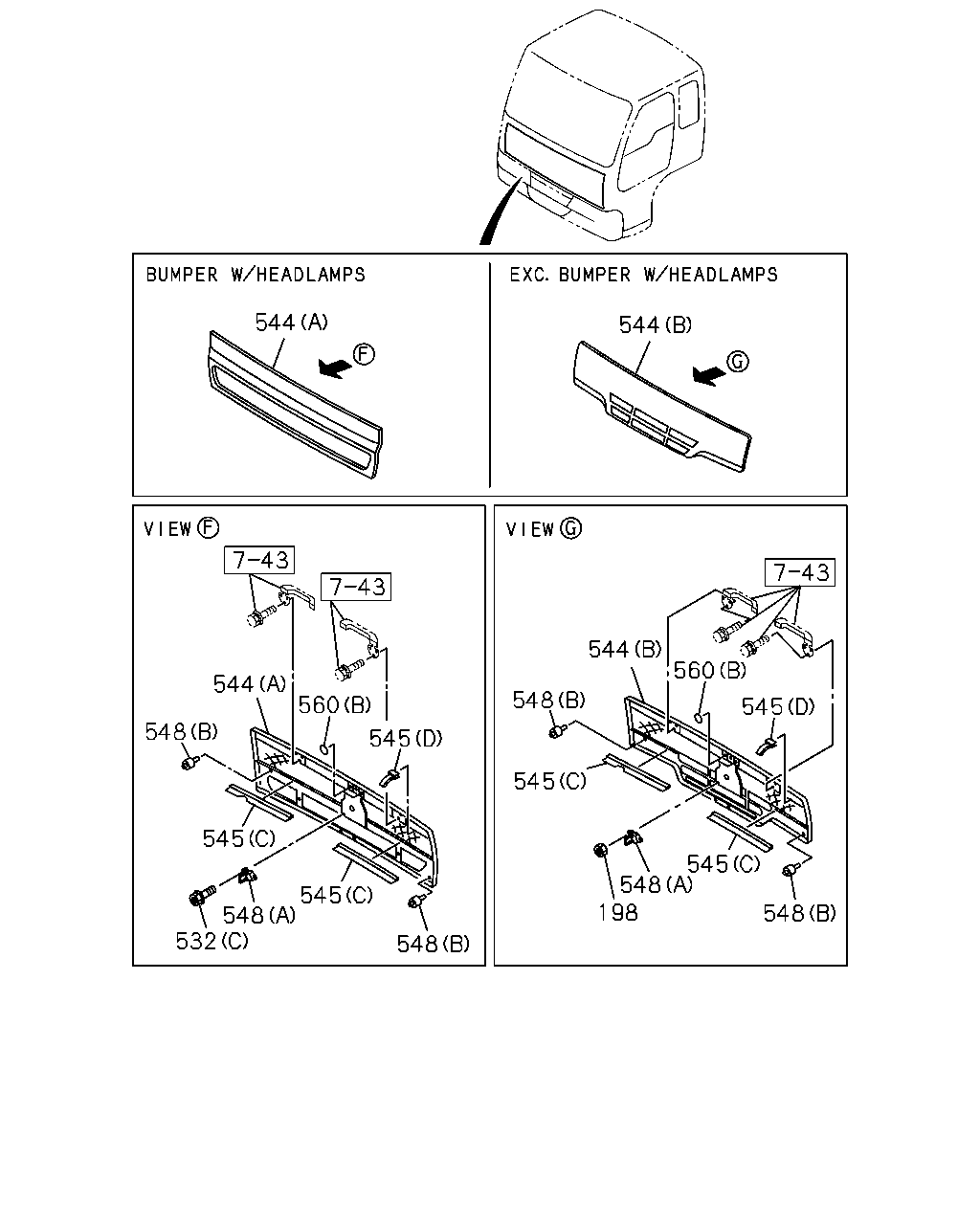

544 544 544 560 544 560 545 548 545 548 545 545 545 548 198 545 548 532 548 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	NUT; PANEL EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	8-94197-199-0	02	1	0106-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0106-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0106-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0106-
544	LID; FRT BUMPER W/HEADLAMPS<SLB> DELUXE CAB(W14) (A) WHITE	1-71107-367-2	01	1	0106-
544	LID; FRT BUMPER W/HEADLAMPS<SLB> EXC. DELUXE CAB(W14) (A)	1-71107-403-0	01	1	0106-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>,DELUXE CAB(W14) (B)	1-71107-293-0	01	1	0106-
544	LID; FRT DELUXE CAB(W14) EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71107-217-2	01	1	0106-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0106-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0106-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0106-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0106-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0106-
548	STRIKER; FRT LIDT PANEL (A)	1-79317-003-0	01	1	0106-
548	STRIKER; FRT LIDT PANEL (B)	1-79318-008-0	02	1	0106-
560	SEAL; COVER (A)	1-71998-827-1	01	1	0106-
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0106-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0106-
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0106-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
