◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#117722) — 12 parça

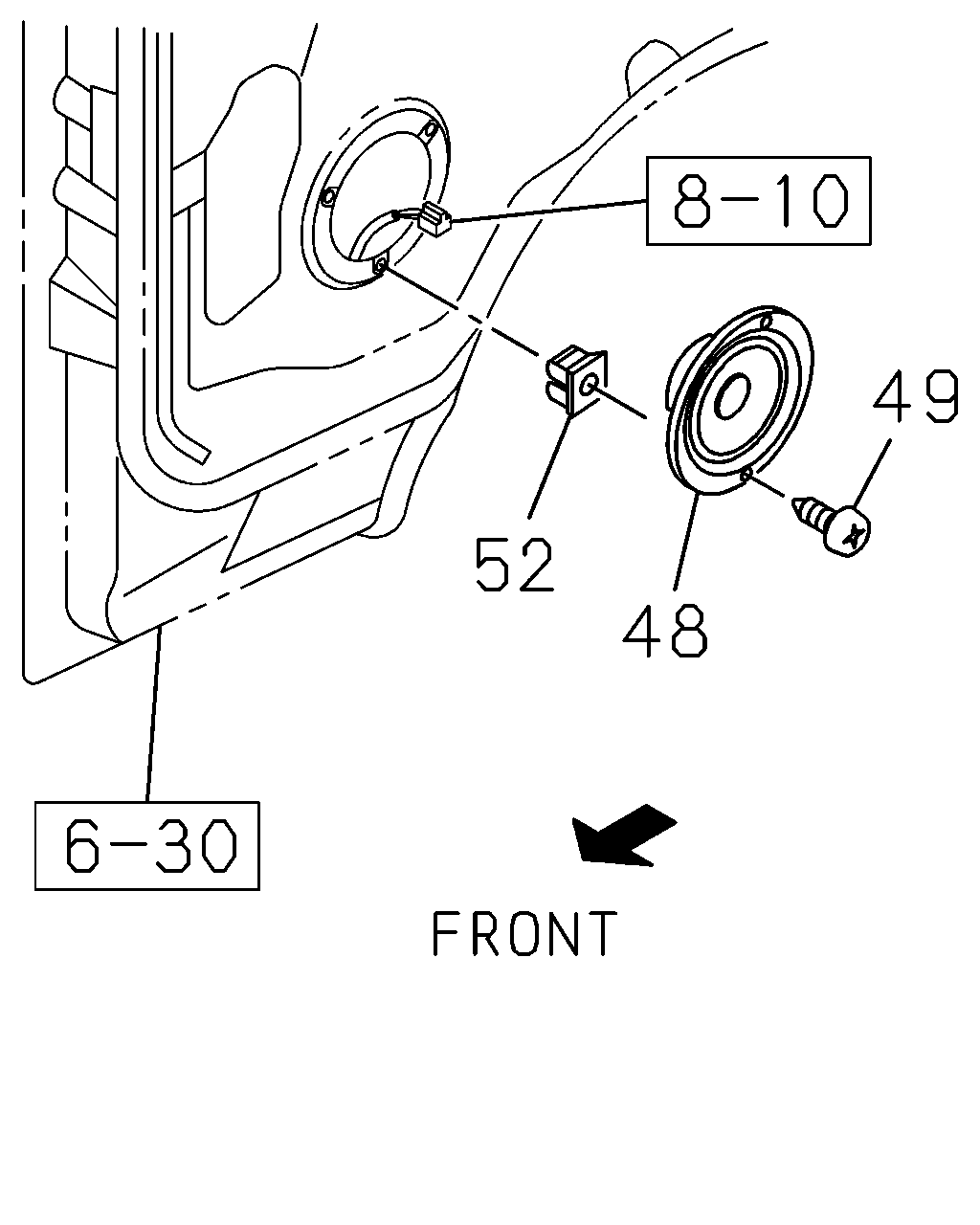

çizim 344733
49 48 52
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-97317-001-1 02 1 1302- ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1302- ● ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302- ● ●

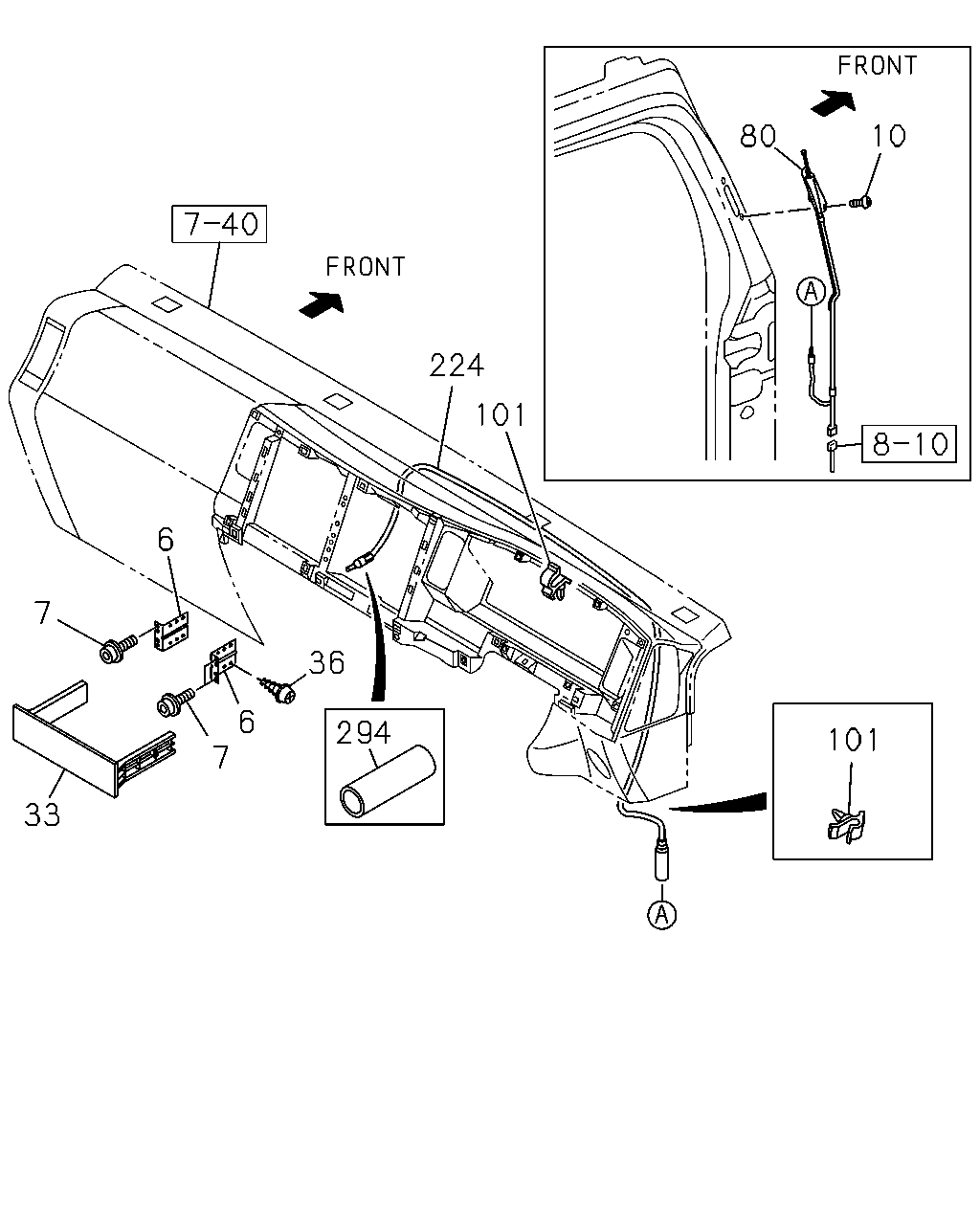

çizim 344810
101 10 80 101 224 36 6 7 294 33 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1302- ● ●
7 SCREW; RADIO
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1302- ● ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1302- ● ●
33 COVER; RADIO
BLACK 		8-97407-896-1 01 1 1302- ● ●
36 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ● ●
80 ANTENNA 8-98139-014-0 01 1 1302- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1302- ● ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1302- ● ●
294 CAP; ANTENNA CABLE 8-98095-617-1 01 1 1302- ● ●
