Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
5 - Frame, Cab Mounting
▶

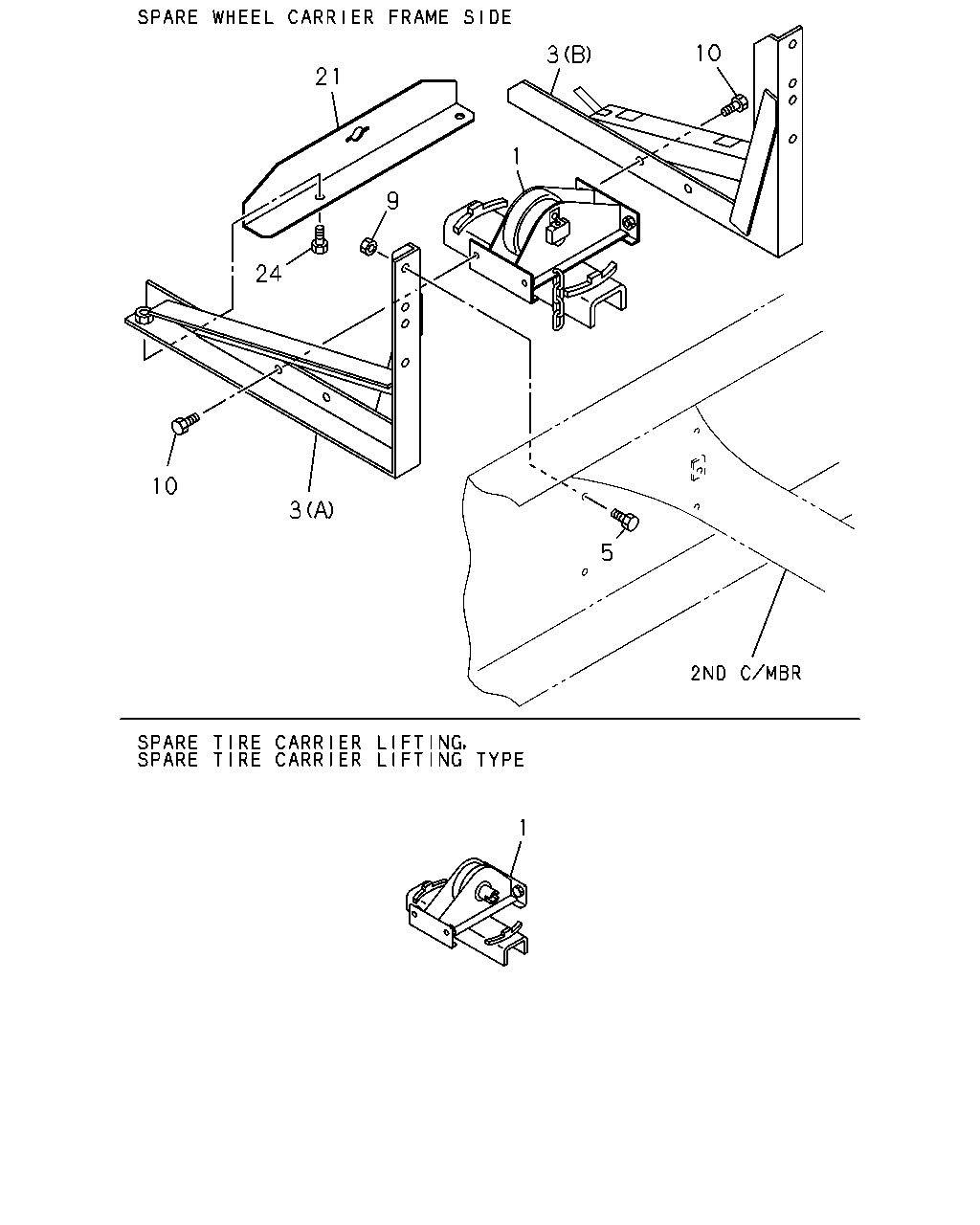

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#11772) — 13 parça
10
3
21
1
9
24
10
3
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>
1-53630-210-1
02
1
0106-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-1
01
1
0106-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-389-0
01
1
0106-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-393-0
01
1
0106-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28681-240-0
06
1
0106-0512
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28651-240-0
06
1
0601-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE
0-91150-212-0
04
1
0106-0602
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE
0-91180-212-0
04
1
0603-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
04
1
0106-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
0601-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-128-1
01
1
0106-
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE
0-28681-225-0
02
1
0106-0512
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE
0-28651-225-0
02
1
0601-
