◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#117707) — 107 parça

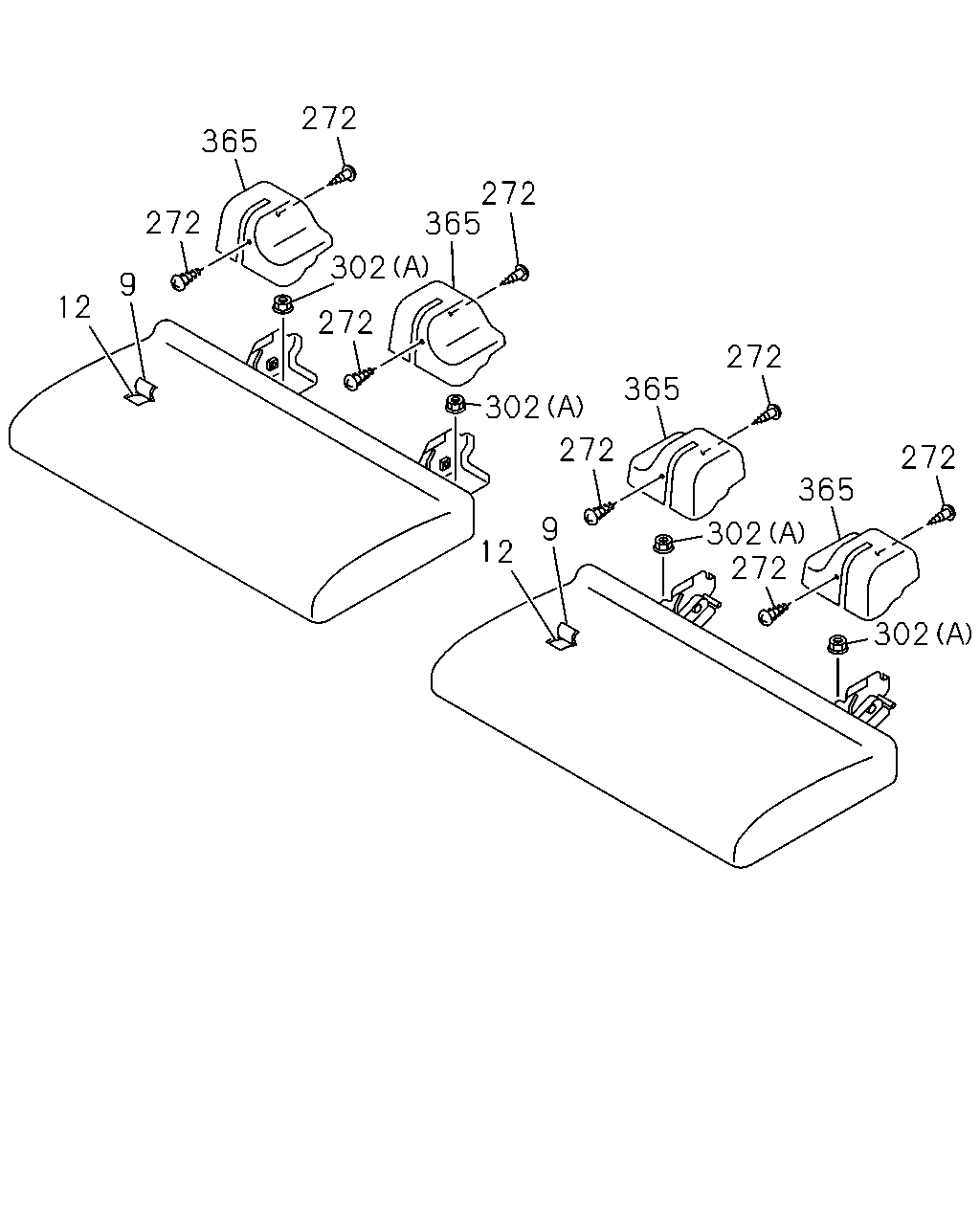

çizim 344034
9 12 272 365 272 302 272 365 272 302 9 12 272 365 272 365 302 272 272 302
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-325-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-326-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-407-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-408-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-394-0 01 1 1304-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-304-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-395-0 01 1 1304-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-306-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-552-0 01 1 1304-1501 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-117-0 01 1 1502-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97460-200-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-554-0 01 1 1304-1501 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-127-0 01 1 1502-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97460-201-0 01 1 1508- ● ●
12 16.717 PAD & FRAME ASM; RR CUSHION
JUMP SEAT<AJ2> 		8-98194-128-1 01 1 1304- ● ●
12 16.717 PAD & FRAME ASM; RR CUSHION
JUMP SEAT<AJ2> 		8-98194-129-1 01 1 1304- ● ●
272 16.720 SCREW; COVER
JUMP SEAT<AJ2> 		8-98194-130-0 08 1 1304- ● ●
302 16.715 NUT; RR SEAT
JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE 		0-91180-212-0 04 1 1304- ● ●
302 16.715 NUT; RR SEAT
(B) M6 FLANGE 		8-98225-096-0 02 1 1304- ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1304- ● ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> INNER BLACK 		8-97423-321-3 01 1 1304- ● ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> INNER BLACK 		8-97423-322-3 01 1 1304- ● ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> OUTER BLACK 		8-97423-323-3 01 1 1304- ● ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> OUTER BLACK 		8-97423-324-3 01 1 1304- ● ●

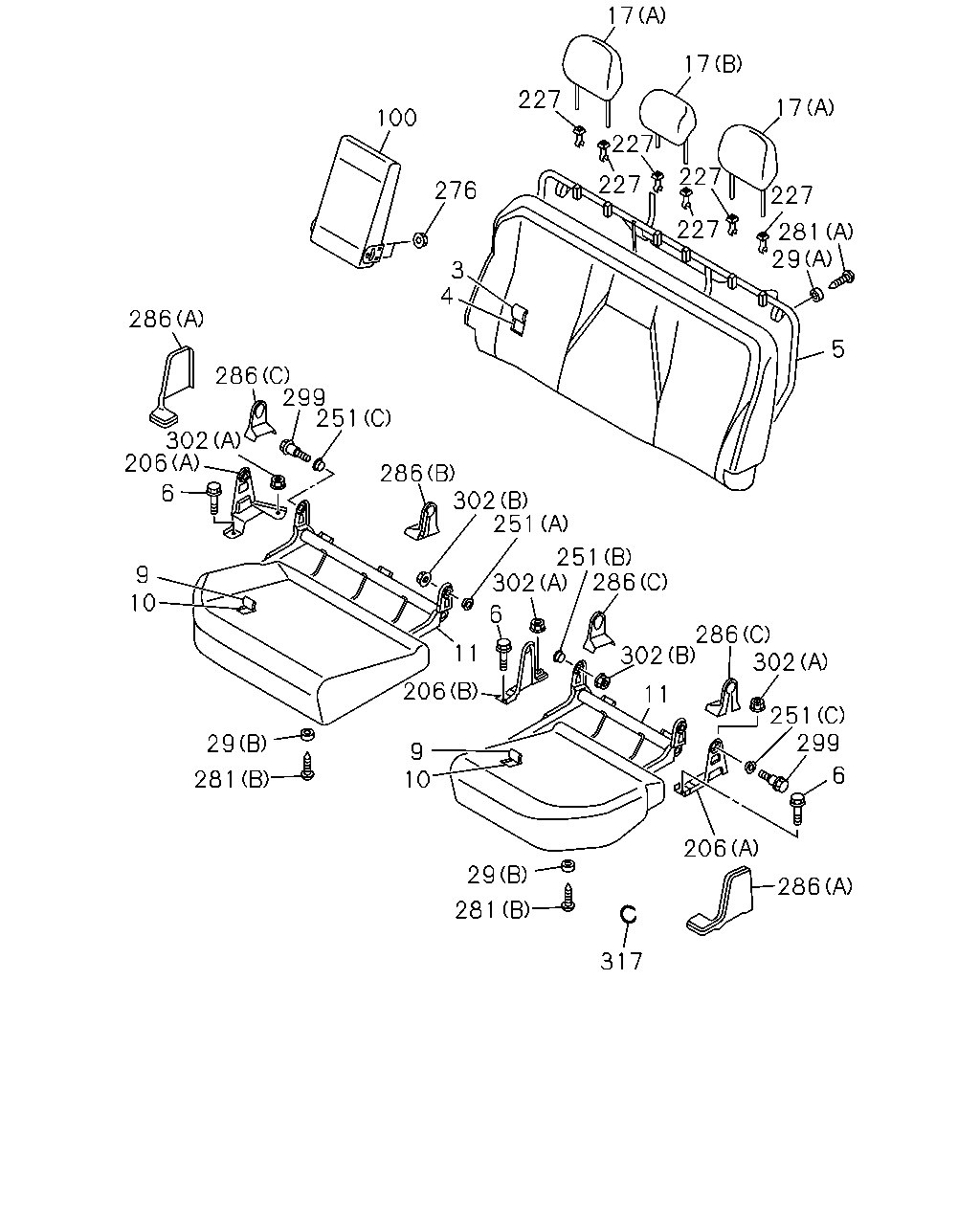

çizim 345080
286 286 286 299 302 10 9 29 281 317 281 29 10 9 6 206 251 251 302 286 286 302 251 299 6 206 302 6 11 206 251 302 11 5 4 3 276 100 227 17 17 227 17 227 227 227 281 29 227 286
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-550-0 01 1 1304-1501 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-100-0 01 1 1502-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97460-342-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-410-0 01 1 1304- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-393-0 01 1 1304-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-302-0 01 1 1508- ● ●
4 16.720 PAD; RR,SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98200-491-0 01 1 1304-1507 ● ●
4 16.720 PAD; RR,SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98300-434-0 01 1 1508- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK> 		8-98196-181-0 01 1 1304- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-183-0 01 1 1304-1507 ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-432-0 01 1 1508- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97427-752-0 01 1 1309- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97427-756-0 01 1 1304-1308 ● ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97427-756-0 01 1 1309- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97427-756-0 01 1 1309- ● ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 03 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-325-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-326-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-407-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-408-0 01 1 1304- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-394-0 01 1 1304-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-304-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-395-0 01 1 1304-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-306-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-552-0 01 1 1304-1501 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-117-0 01 1 1502-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97460-200-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-554-0 01 1 1304-1501 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-127-0 01 1 1502-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97460-201-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98200-496-0 01 1 1304-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98300-438-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98200-500-0 01 1 1304-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 		8-98300-442-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 		8-98200-494-1 01 1 1304- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 		8-98200-498-1 01 1 1304- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-199-0 01 1 1304-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-436-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-213-0 01 1 1304-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-440-0 01 1 1508- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97427-778-0 01 1 1304-1308 ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
BLACK 		8-97427-778-1 01 1 1309- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97427-781-0 01 1 1304-1308 ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
BLACK 		8-97427-781-1 01 1 1309- ● ●
17 16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) BLACK 		8-97425-370-0 01 1 1304-1501 ● ●
17 16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) BLACK 		8-97465-080-0 01 1 1502- ● ●
17 16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A) BLACK 		8-97426-546-0 02 1 1304-1501 ● ●
17 16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A) BLACK 		8-97465-076-0 02 1 1502- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97424-713-0 02 1 1304- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97424-714-0 01 1 1304- ● ●
29 16.686 RUBBER; RR SEAT
(A) 		8-98224-609-0 02 1 1304- ● ●
29 16.686 RUBBER; RR SEAT
(B) 		8-98224-621-0 05 1 1304- ● ●
100 15.039 REST; ARM,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97425-376-0 01 1 1304-1501 ● ●
100 15.039 REST; ARM,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK 		8-97465-106-0 01 1 1502- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97424-694-0 01 1 1304- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-625-0 01 1 1304- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(B) 		8-98224-695-0 01 1 1304- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-697-0 01 1 1304- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
16.716 LOCK BLACK 		8-97424-499-0 03 1 1304- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
16.716 FREE BLACK 		8-97424-500-0 03 1 1304- ● ●
251 16.682 BUSHING; HINGE PIN
(A) 		8-98224-622-0 01 1 1304- ● ●
251 16.682 BUSHING; HINGE PIN
(B) 		8-98224-623-0 01 1 1304- ● ●
251 16.682 BUSHING; HINGE PIN
(C) 		8-98224-624-0 02 1 1304- ● ●
276 16.720 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98225-097-0 04 1 1304-1304 ● ●
276 16.720 NUT; ARM REST
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> M6 FLANGE 		8-98224-604-0 04 1 1304-1304 ● ●
276 16.720 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM> M6 FLANGE 		8-98224-604-0 04 1 1304- ● ●
276 16.720 NUT; ARM REST
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> M6 FLANGE 		8-98224-604-0 04 1 1304- ● ●
281 16.715 SCREW
(A) M4X14 		8-98224-611-0 02 1 1304- ● ●
281 16.715 SCREW
(B) M5X18 		8-98233-169-0 05 1 1304- ● ●
286 16.716 COVER; HINGE
(B) BLACK 		8-97424-699-1 01 1 1304- ● ●
286 16.716 COVER; HINGE
(C) BLACK 		8-97424-700-0 03 1 1304- ● ●
286 16.716 COVER; HINGE
(A) BLACK 		8-97416-997-2 01 1 1304- ● ●
286 16.716 COVER; HINGE
(A) BLACK 		8-97416-999-2 01 1 1304- ● ●
299 16.716 BOLT; LEG
M8X26 		8-98224-698-0 02 1 1304- ● ●
302 16.715 NUT; RR SEAT
JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE 		0-91180-212-0 04 1 1304- ● ●
302 16.715 NUT; RR SEAT
(B) M6 FLANGE 		8-98225-096-0 02 1 1304- ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1304- ● ●
317 16.717 RING; BACK,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 43 1 1304-1507 ● ●
317 16.717 RING; BACK,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 51 1 1508- ● ●
317 16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 38 1 1304-1507 ● ●
317 16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 48 1 1508- ● ●
317 16.717 RING; BACK,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 16.724 		8-98220-068-0 35 1 1304-1507 ● ●
317 16.717 RING; BACK,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 16.724 		8-98220-068-0 27 1 1508- ● ●
