7-60 — SEAT BELT (#117705) — 43 parça

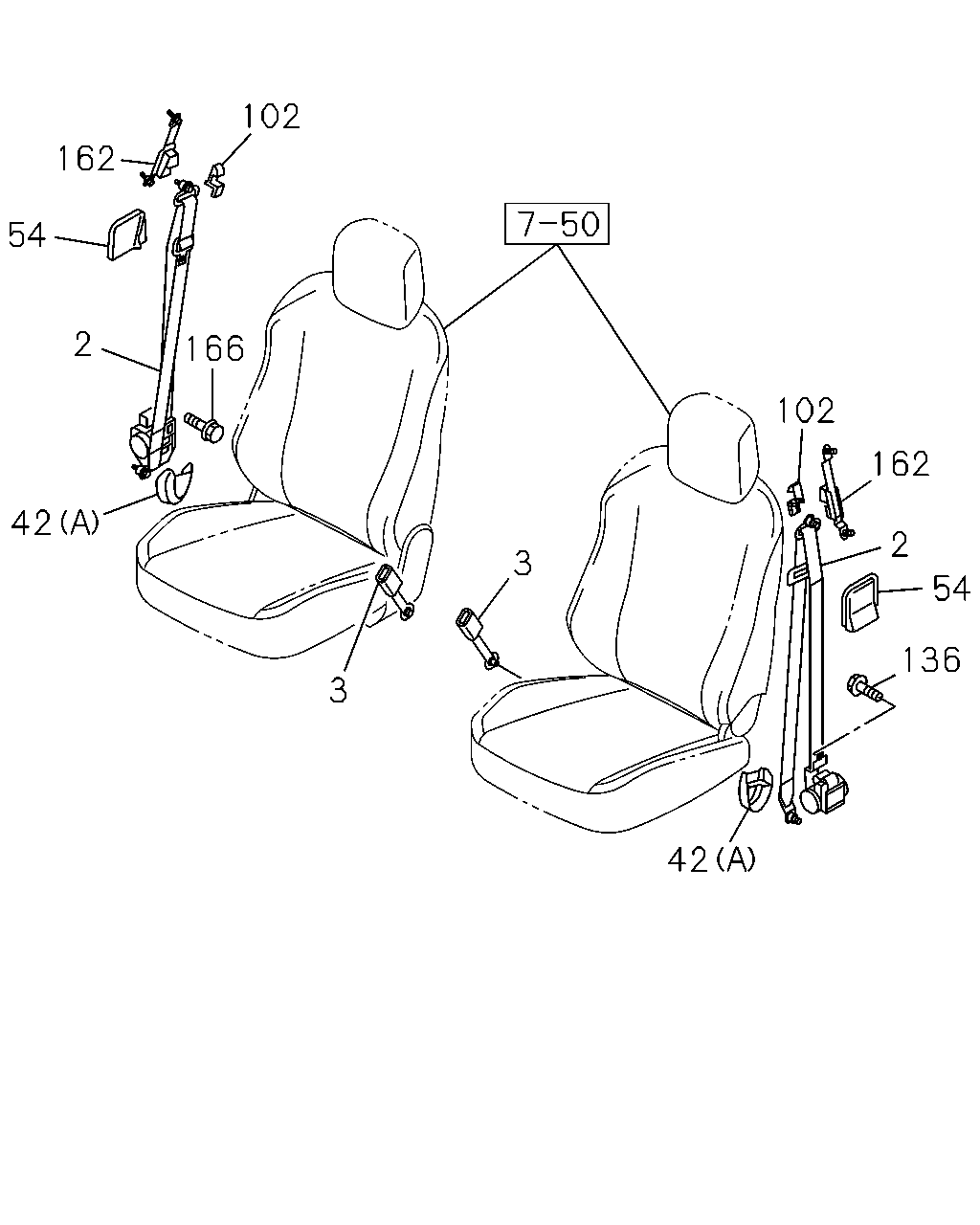

çizim 344104
102 162 54 2 166 42 3 3 102 2 162 54 136 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
BLACK 		8-97423-667-0 01 1 1304- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BLACK 		8-97423-662-0 01 1 1304- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-837-3 01 1 1304-1307 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-837-3 01 1 1308-1311 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91), HEATER FRT SEAT<KA1> BLACK 		8-97416-837-3 01 1 1308-1311 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97426-632-0 01 1 1312- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91), HEATER FRT SEAT<KA1> BLACK 		8-97426-632-0 01 1 1312- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-839-0 01 1 1304-1307 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-839-0 01 1 1308-1312 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91), HEATER FRT SEAT<KA1> BLACK 		8-97416-839-0 01 1 1308-1312 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-839-0 01 1 1401-1403 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97416-839-0 01 1 1401-1403 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-839-0 01 1 1404- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97416-839-0 01 1 1404- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97419-435-1 01 1 1304-1307 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97419-435-1 01 1 1304-1307 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97419-435-1 01 1 1308-1309 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97419-435-1 01 1 1308-1309 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97419-435-1 01 1 1310-1311 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97419-435-1 01 1 1310-1311 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-630-0 01 1 1312- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97426-630-0 01 1 1312- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97423-147-1 01 1 1304-1311 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97423-147-1 01 1 1304-1311 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-631-0 01 1 1312- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK 		8-97426-631-0 01 1 1312- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1304- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1304- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-758-1 01 1 1304- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-760-1 01 1 1304- ● ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1304- ● ● ● ● ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1304- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ● ● ●

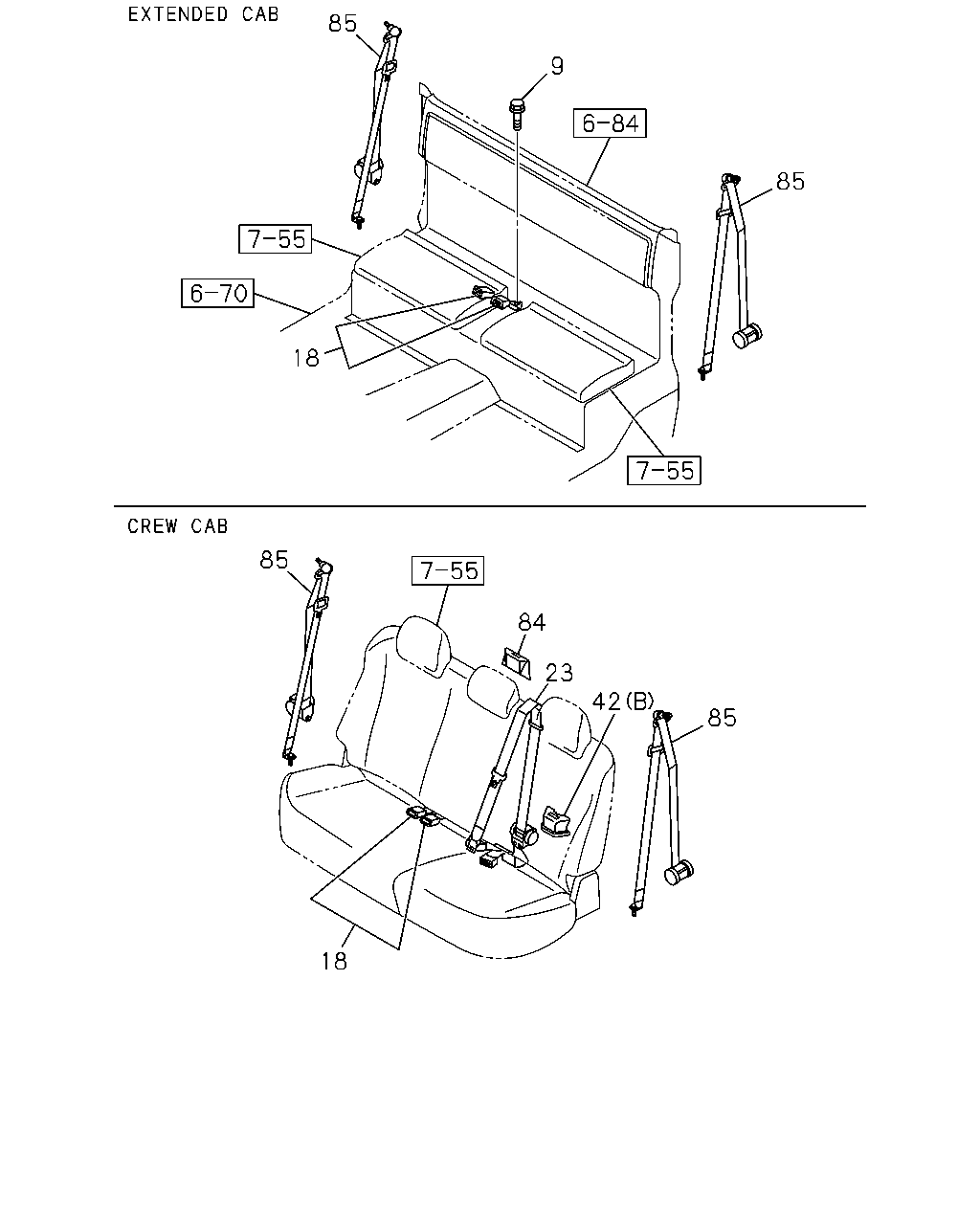

çizim 344178
9 85 18 85 85 84 23 42 85 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.714 BOLT; SEAT BELT ANCHOR
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 01 1 1304- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> BLACK 		8-97417-403-3 01 1 1304- ● ●
18 16.714 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1304- ● ●
23 16.714 BELT; SEAT,CENTER
BLACK 		8-97417-405-3 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1304- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1304- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> BLACK 		8-97423-669-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97423-669-0 02 1 1304- ● ●
