◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11527 - FVR(MALAYSIA) 280PS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#117699) — 146 parça

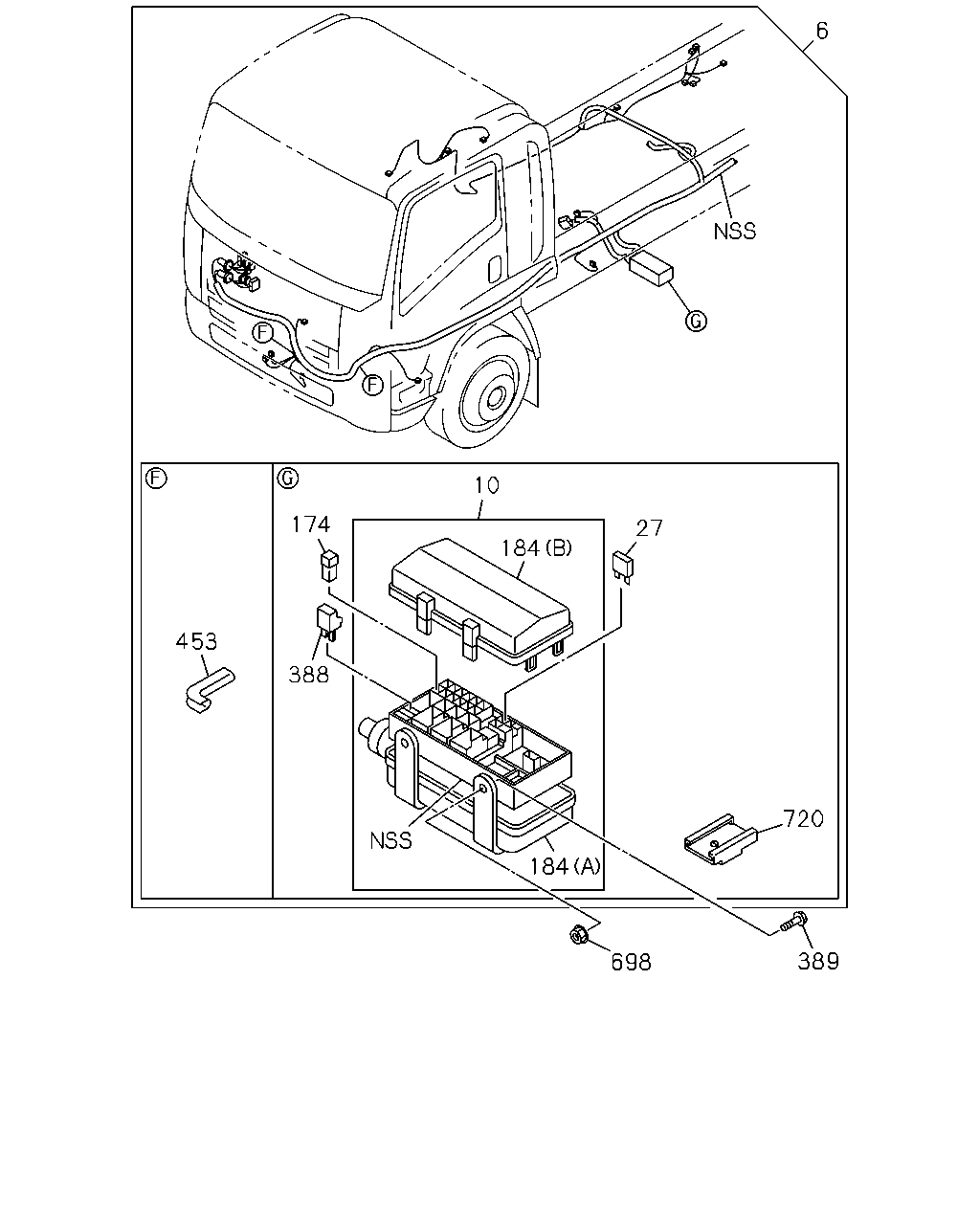

çizim 344259
6 10 174 184 27 453 388 184 720 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1304-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1304-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1304-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1304-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1304-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1304-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1304-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1304-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1304-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1304-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1304-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1304-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1304-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1304-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1304-

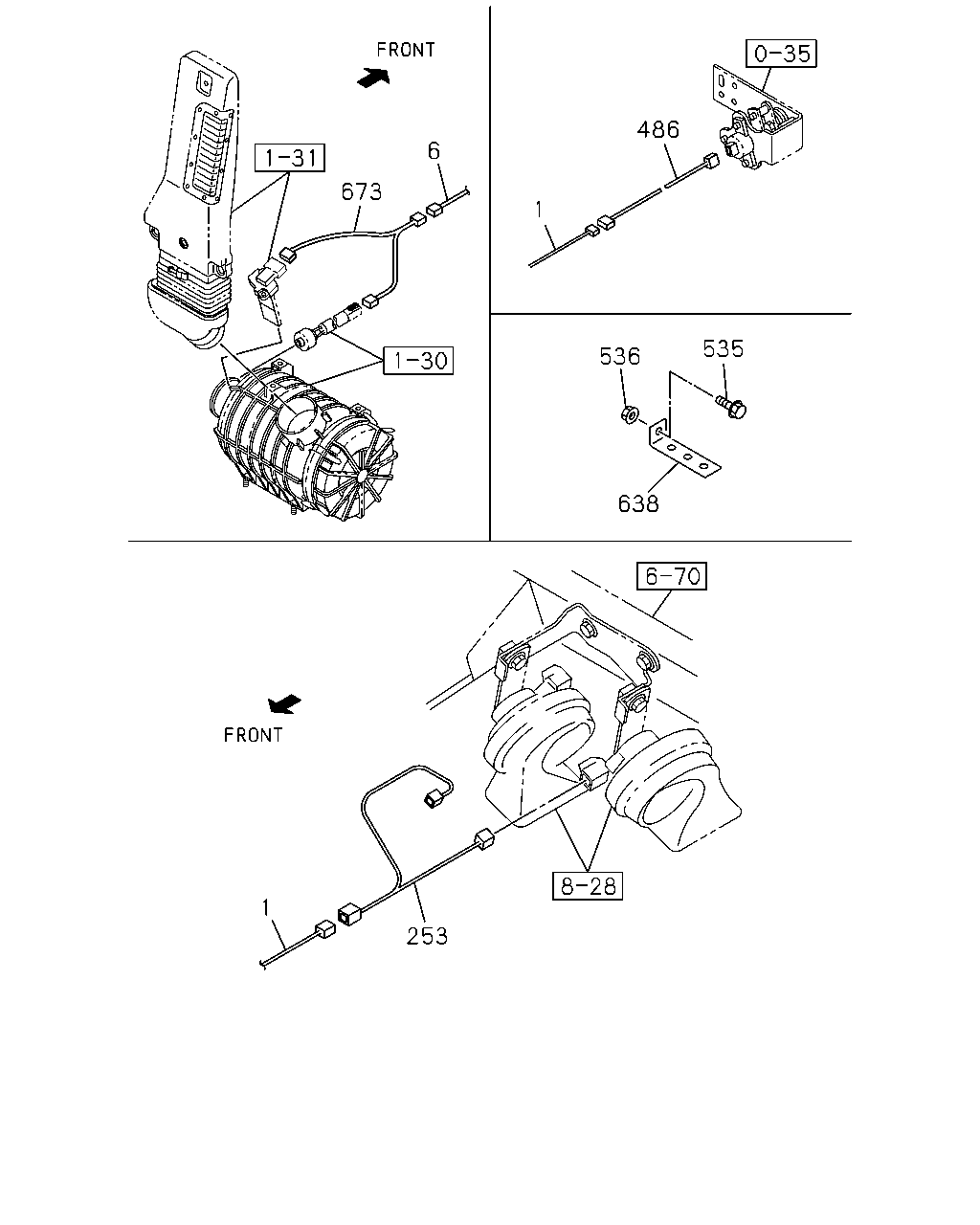

çizim 344261
673 6 486 536 535 638 253 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-228-0 01 1 1304-
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-227-0 01 1 1304-
1 HARNESS; CAB
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98212-250-0 01 1 1304-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-243-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1304-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1304-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8X35 FLANGE 		0-28650-835-0 01 1 1304-
536 NUT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1304-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-82698-167-0 01 1 1304-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1304-

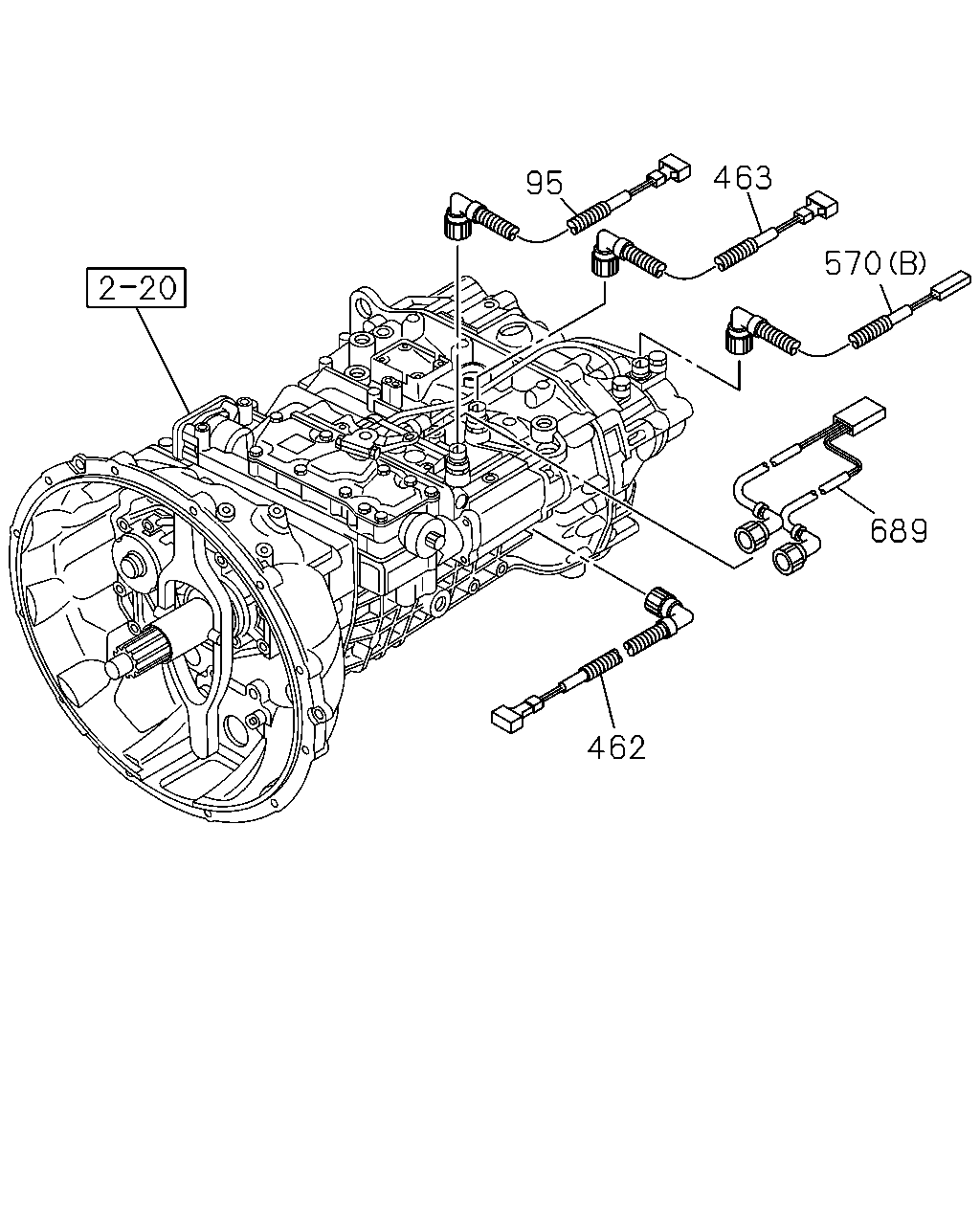

çizim 344264
462 689 570 463 95
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-854-0 01 1 1304-
95 HARNESS; NEUTRAL SW
EXC. ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-855-0 01 1 1304-
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1304-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1304-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1304-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1304-
689 HARNESS; PRESSURE & ECU SWITCH
ASSISTOR SHIFT CONTROL<WX8> 		8-98148-603-0 01 1 1304-

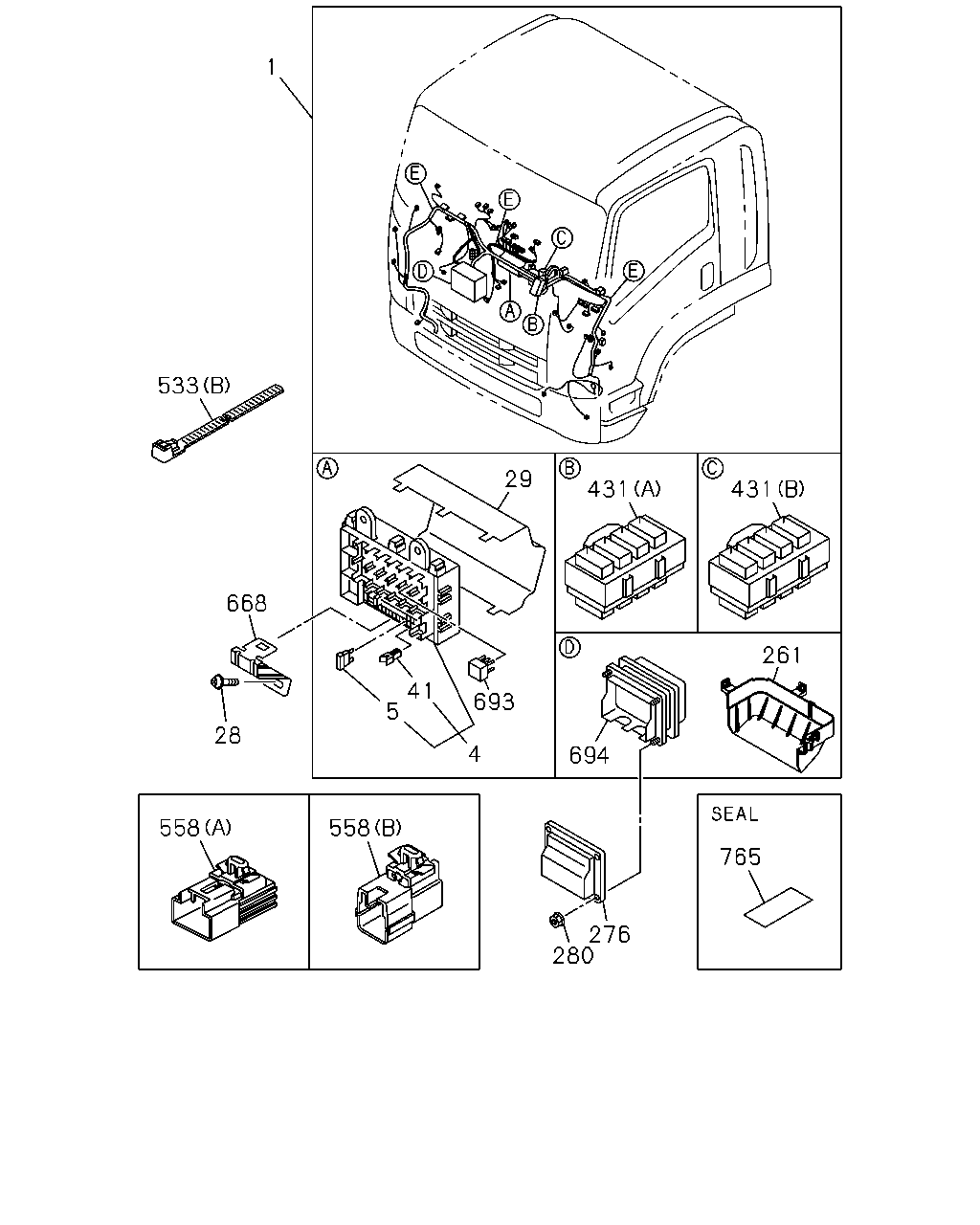

çizim 344281
1 668 28 558 558 280 765 694 276 693 4 41 5 29 261 431 431 533
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-228-0 01 1 1304-
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-227-0 01 1 1304-
1 HARNESS; CAB
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98212-250-0 01 1 1304-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-243-0 01 1 1304-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1304-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1304-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1304-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1304-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1304-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1304-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1304-
41 PULLER; FUSE 8-98054-260-0 01 1 1304-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1304-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1304-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1304-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1304-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1304-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (B) L=100 		5-09707-036-1 01 1 1304-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1304-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1304-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1304-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1304-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1304-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

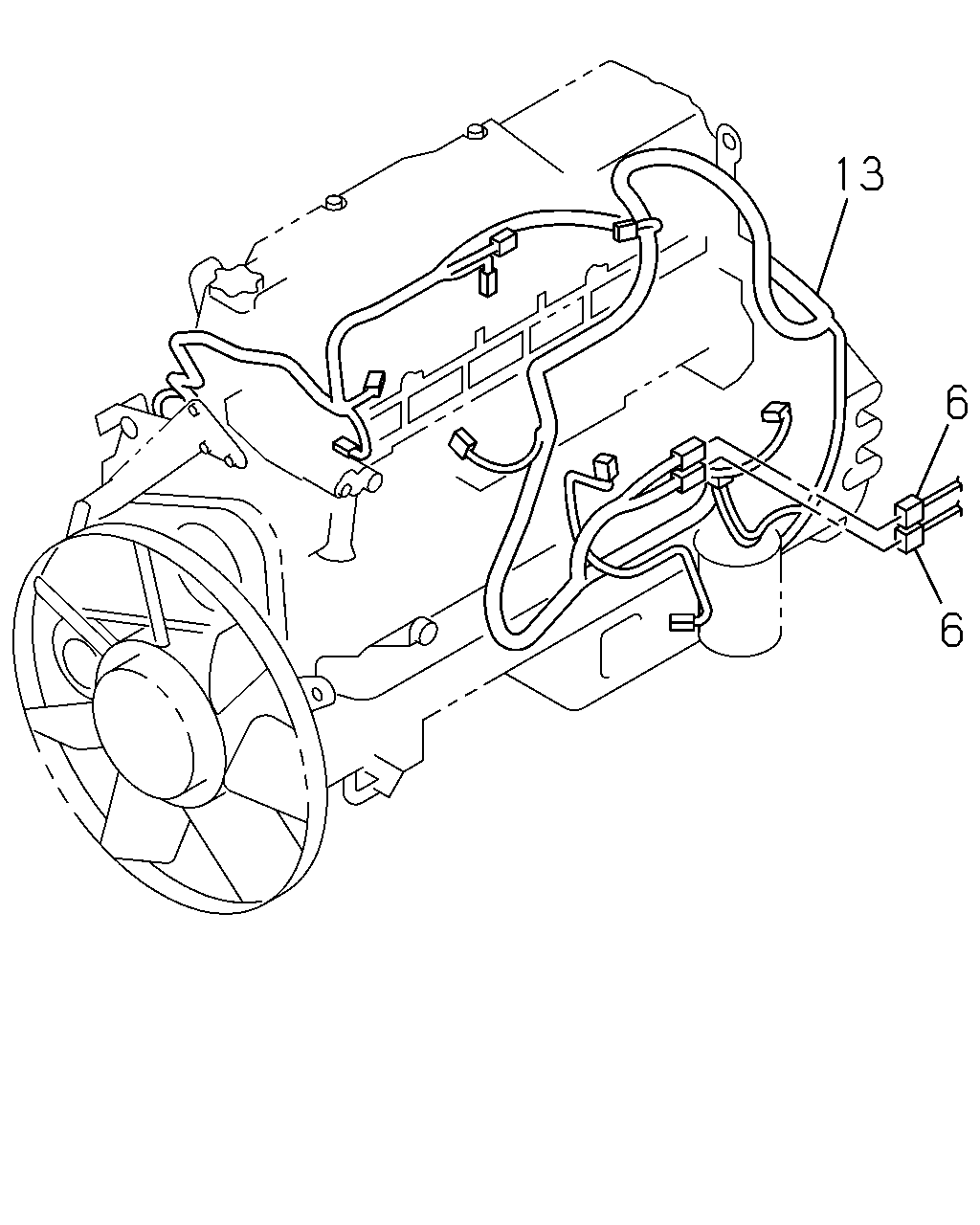

çizim 344310
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1304-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1304-

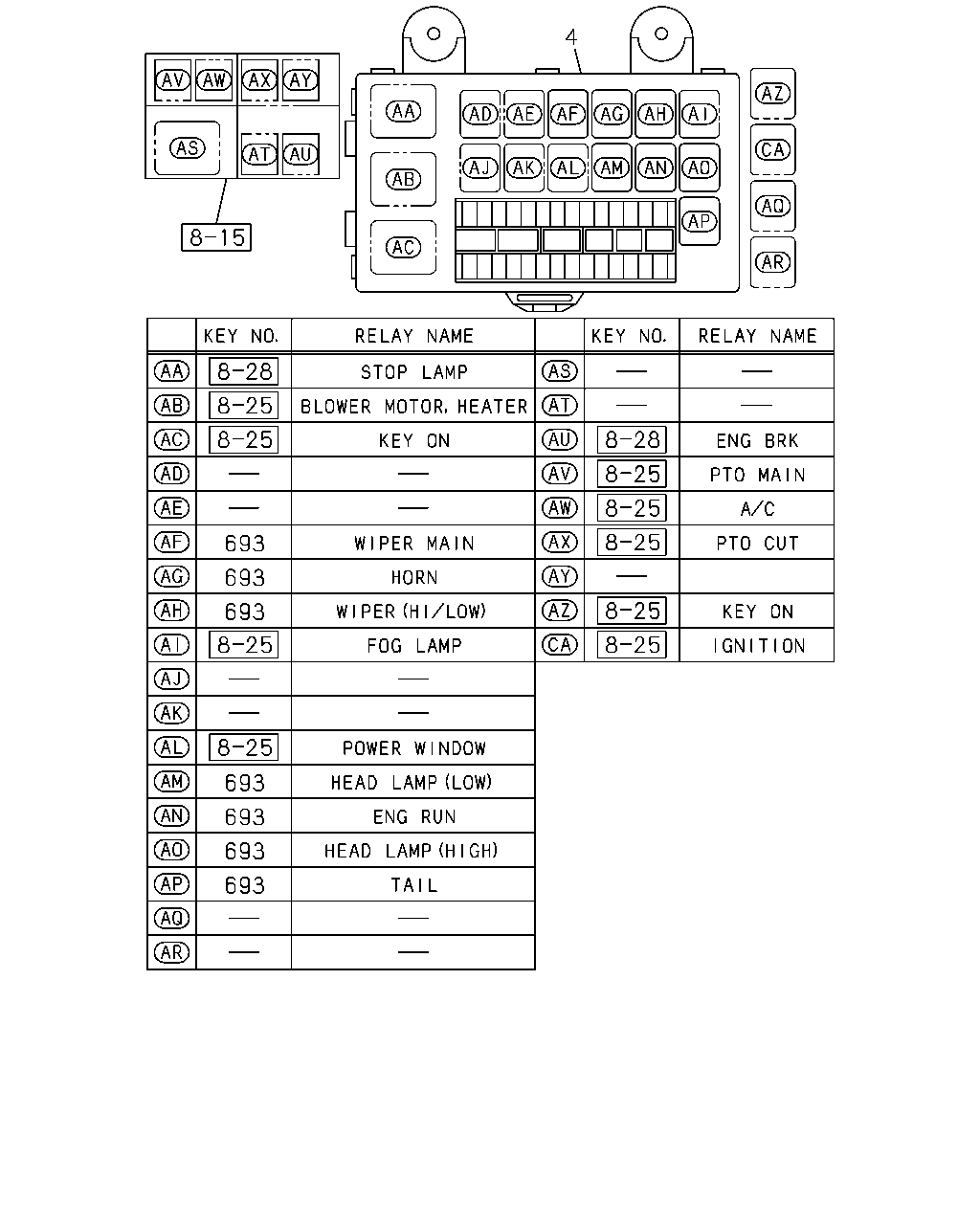

çizim 344324
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1304-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1304-

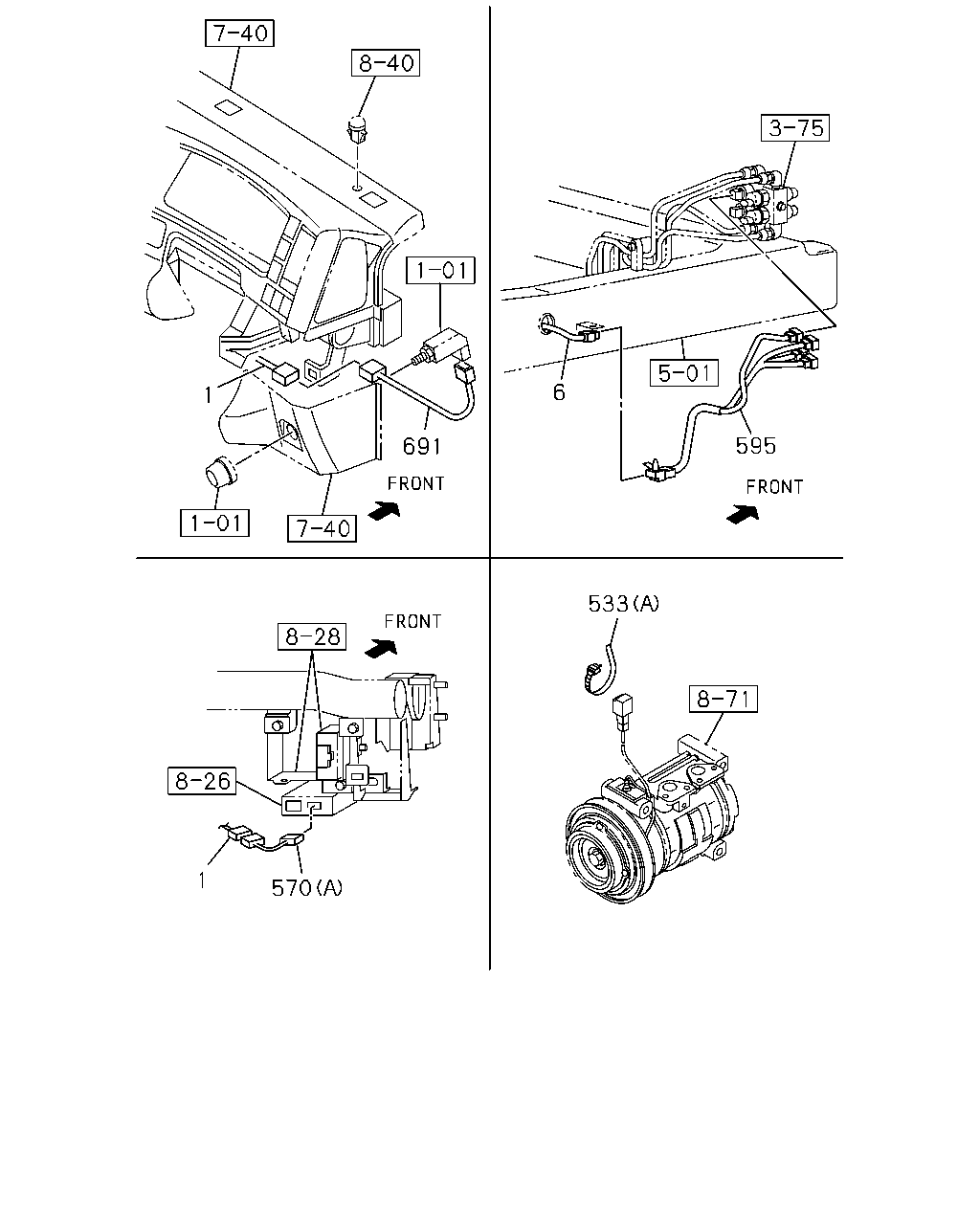

çizim 344343
6 595 1 691 1 570 533
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-228-0 01 1 1304-
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-227-0 01 1 1304-
1 HARNESS; CAB
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98212-250-0 01 1 1304-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-243-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (B) L=100 		5-09707-036-1 01 1 1304-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1304-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1304-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1304-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1304-
çizim 345089
2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-228-0 01 1 1304-
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-227-0 01 1 1304-
1 HARNESS; CAB
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98212-250-0 01 1 1304-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-243-0 01 1 1304-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1304-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1304-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1304-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1304-

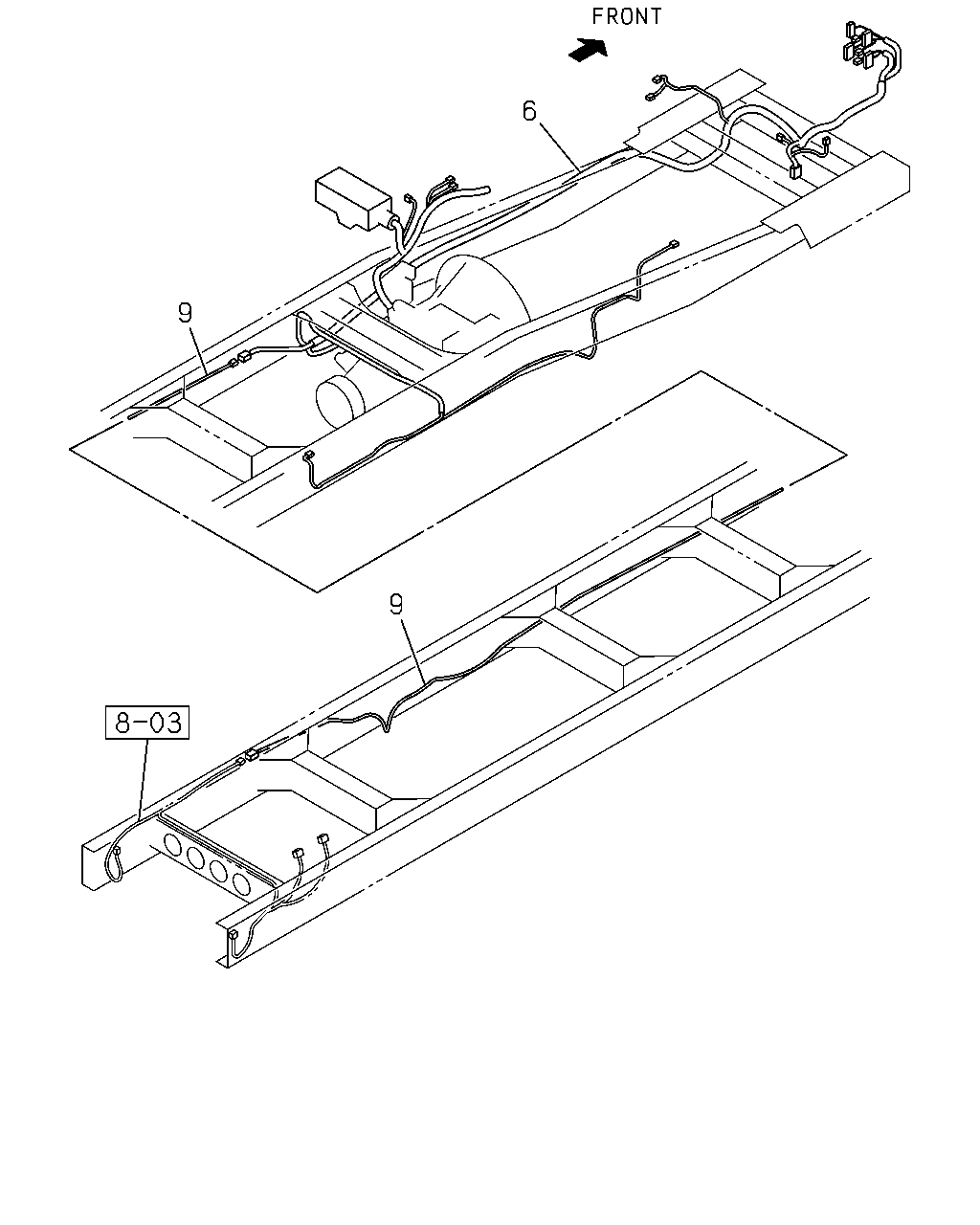

çizim 345874
9 9 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> 		8-98168-645-0 01 1 1304-
9 HARNESS; FRAME,RR
EXC. ANTI LOCK BRAKE<JE5> 		8-98168-646-0 01 1 1304-

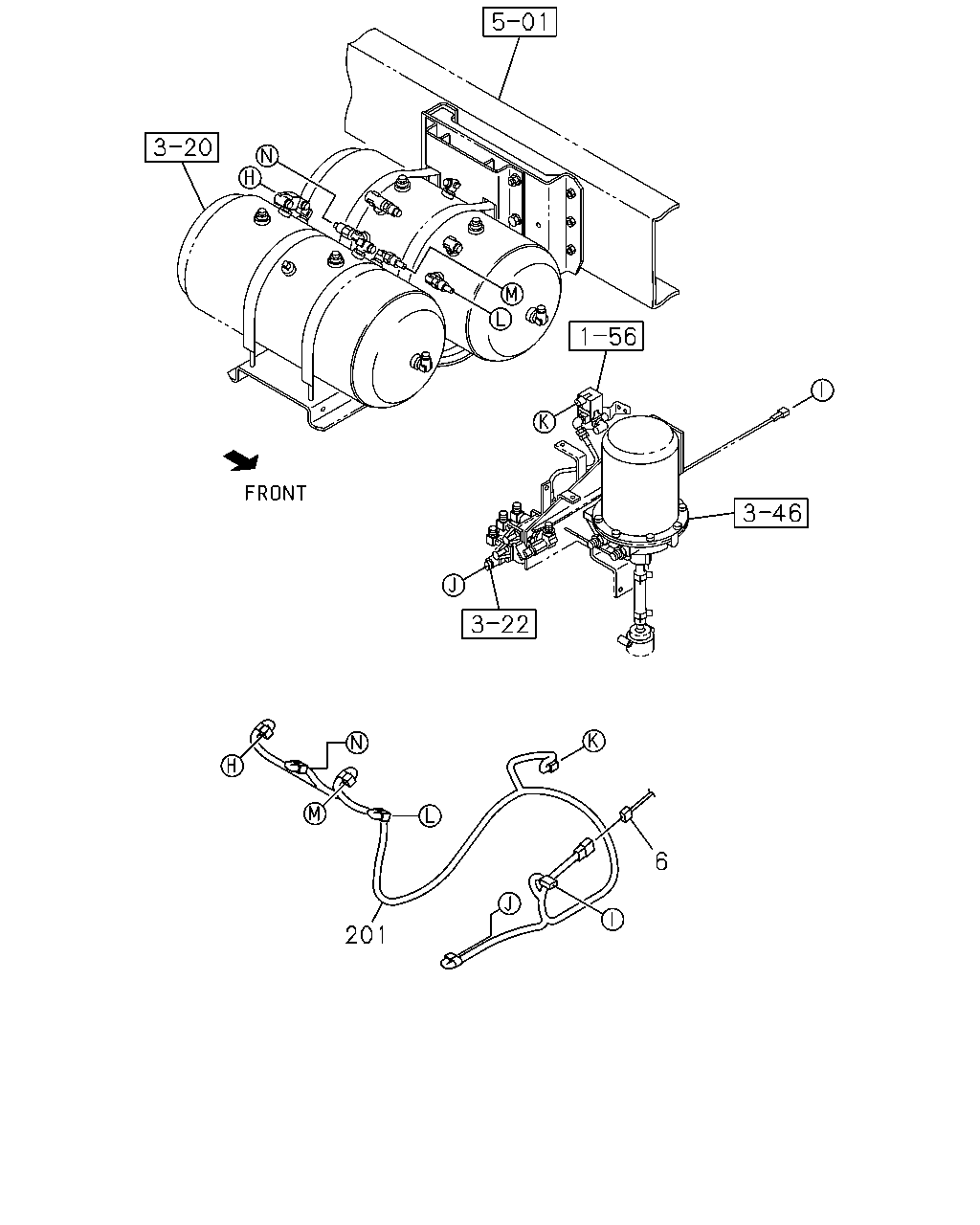

çizim 345887
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-258-0 01 1 1304-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-260-0 01 1 1304-
6 HARNESS; FRAME
EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98230-261-0 01 1 1304-
6 HARNESS; FRAME
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98230-259-0 01 1 1304-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1304-1511
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1512-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1512-

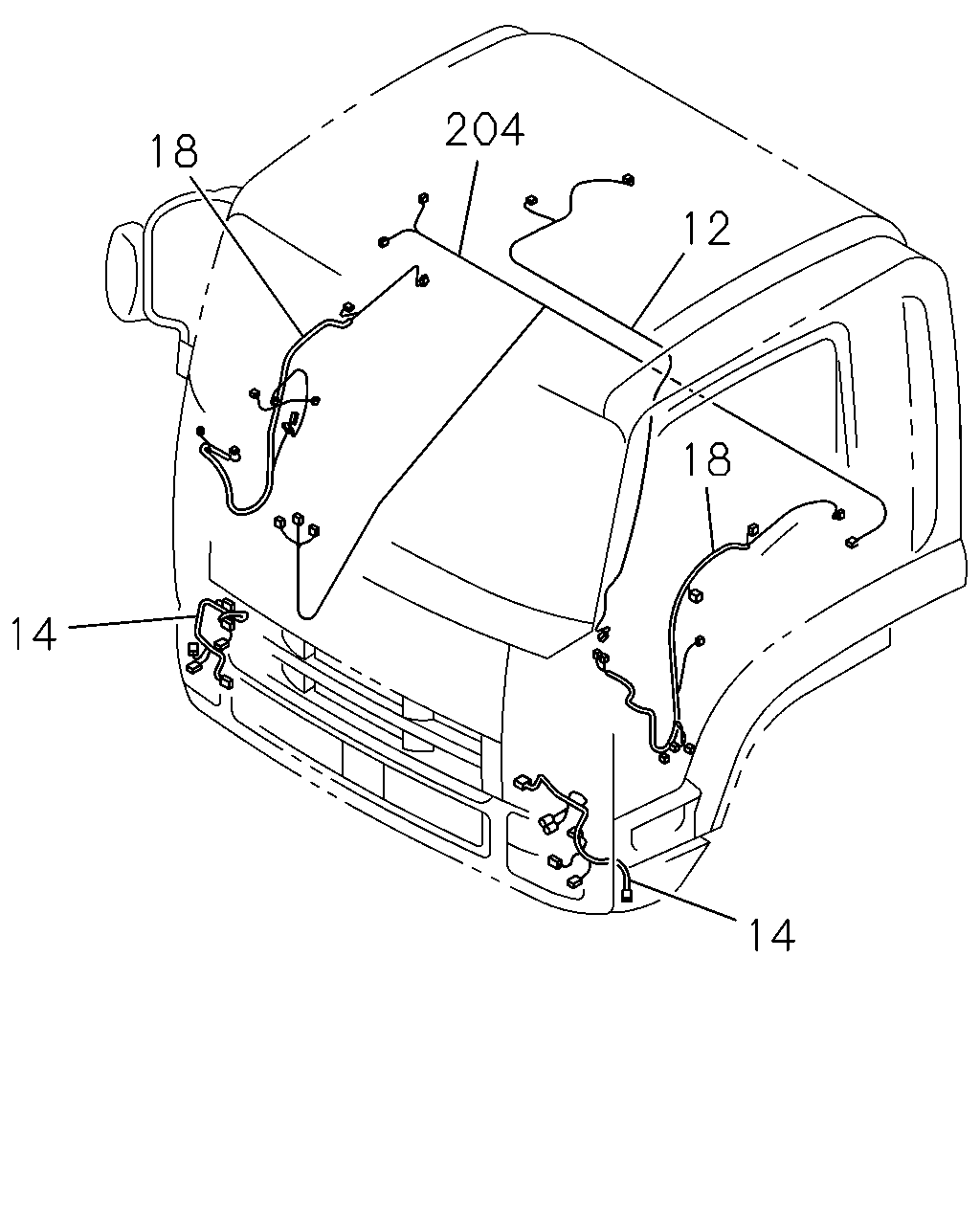

çizim 345891
18 14 204 18 12 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98048-931-2 01 1 1304-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC> 		8-98079-072-1 01 1 1304-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC> 		8-98085-333-0 01 1 1304-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1304-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1304-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-440-1 01 1 1304-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-439-1 01 1 1304-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1304-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1304-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-274-0 01 1 1304-

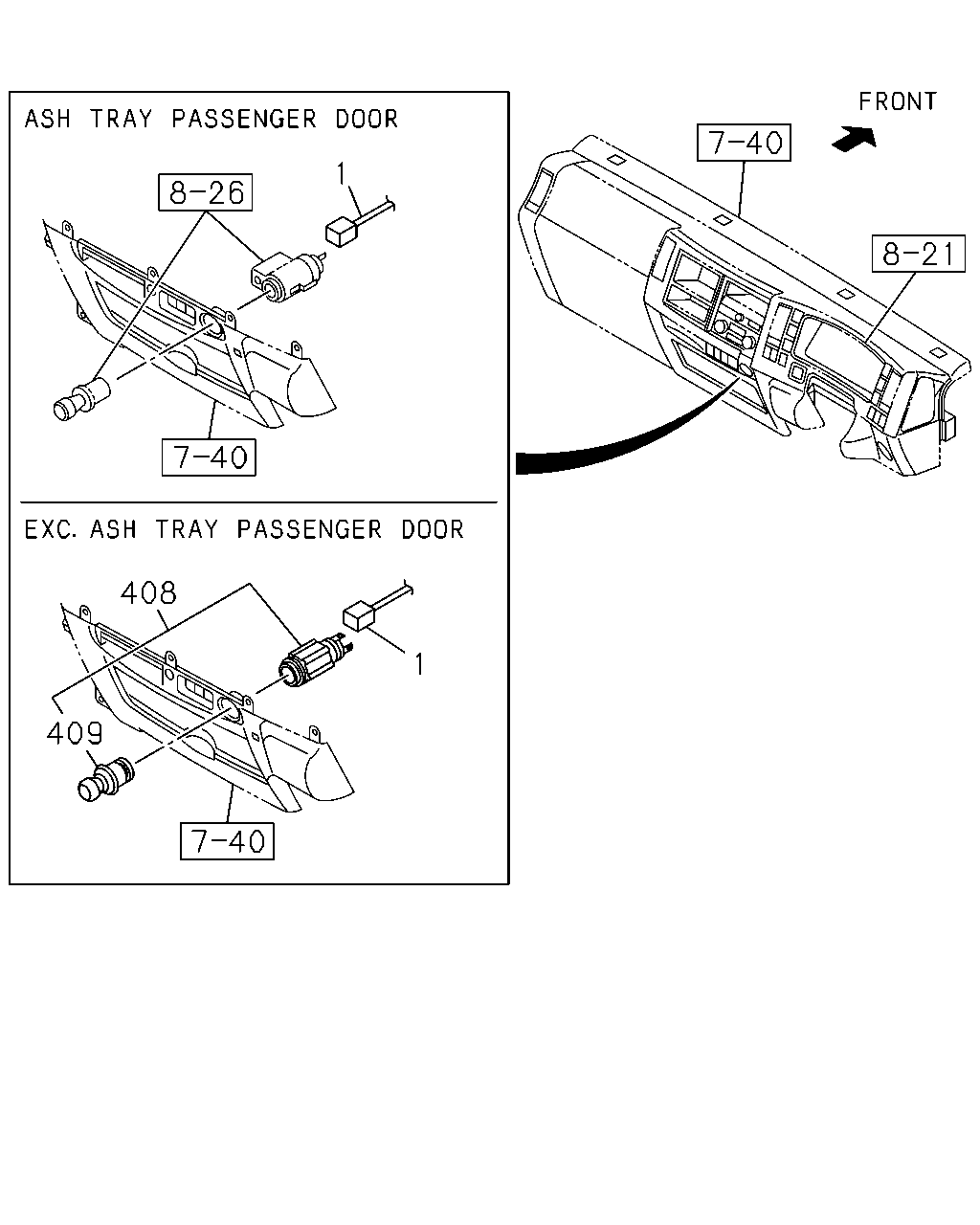

çizim 345892
1 408 409 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> ASSISTOR SHIFT CONTROL<WX8> 		8-98230-228-0 01 1 1304-
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98230-227-0 01 1 1304-
1 HARNESS; CAB
ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> 		8-98212-250-0 01 1 1304-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE<JE5>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98212-246-0 01 1 1304-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE<JE5>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98212-243-0 01 1 1304-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1304-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
