Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#117687) — 292 parça

366 736 739 741 738 743 742 744 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-124-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98270-123-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-				●
736	02.694 RELAY; STARTER CUT 02.485 12V YAZAKI	8-97309-292-0	01	1	1304-	●	●	●	●
737	02.694 RELAY; DIMMER 02.485 12V YAZAKI	8-97309-292-0	01	1	1304-	●	●	●	●
738	02.694 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
739	02.694 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
741	02.694 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
742	02.694 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
743	02.694 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
744	02.694 RELAY; RR FOG LAMP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
745	02.694 RELAY; HEATER 03.670 (A) 12V YAZAKI	8-98146-834-0	01	1	1304-	●	●	●	●
745	02.694 RELAY; HEATER 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI	8-97309-292-0	01	1	1304-	●	●
746	02.694 RELAY; ECM,MAIN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 03.670 12V YAZAKI	8-98146-834-0	01	1	1304-	●	●	●	●
747	02.694 RELAY; GLOW 02.100 12V YAZAKI	8-98146-837-0	01	1	1304-	●	●	●	●
748	02.694 RELAY; STARTER 02.100 12V YAZAKI	8-98146-837-0	01	1	1304-	●	●	●	●

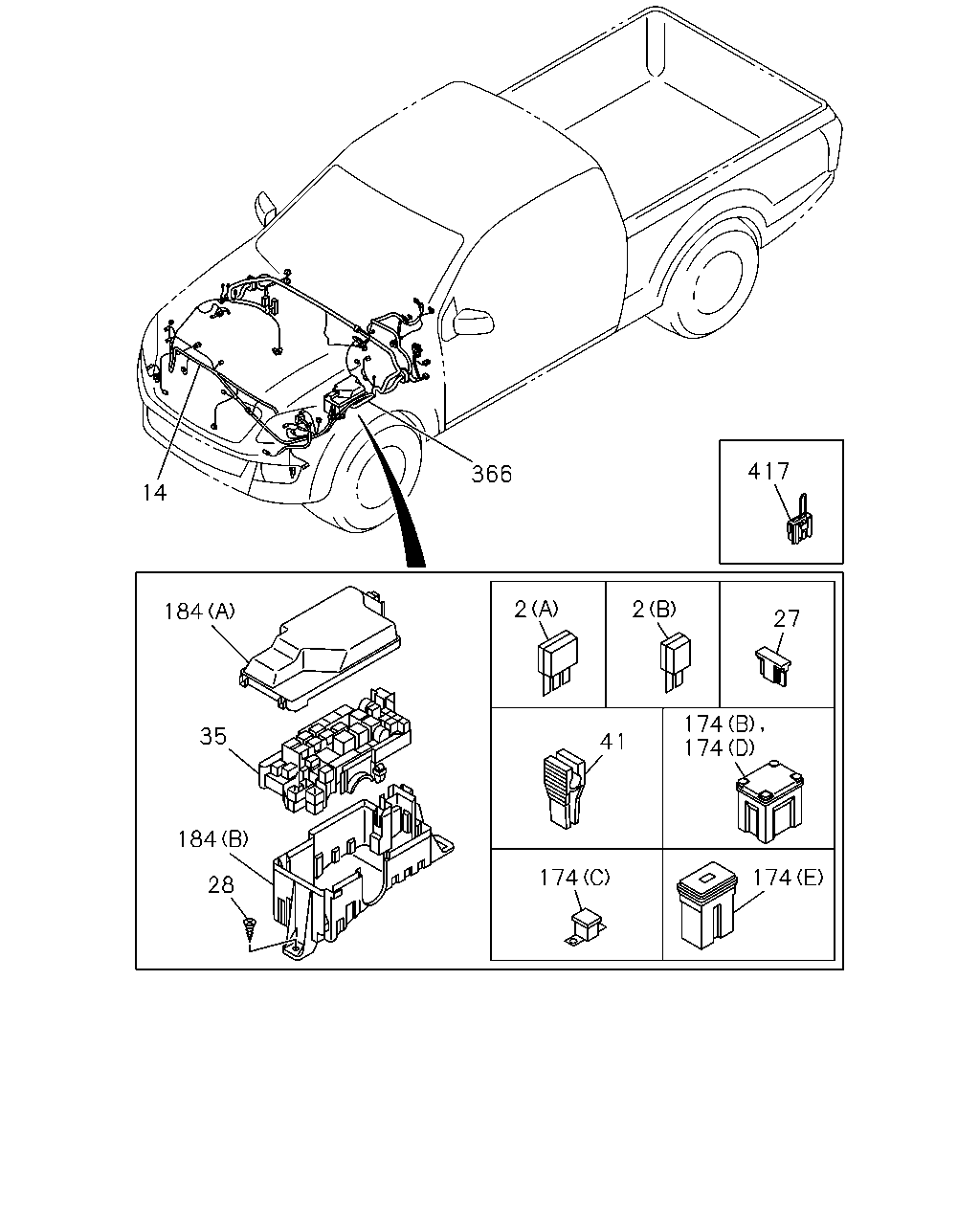

366 417 14 184 35 184 28 174 174 174 41 2 2 27 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	1304-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-349-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-341-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98159-348-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>,HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-340-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>	8-98159-347-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-339-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-346-1	01	1	1304-	●	●	●	●
14	02.727 HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEA M<8LH>	8-98159-338-1	01	1	1304-	●	●	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1304-	●	●	●	●
27	08.965 FUSE UNIT 02.485 15A BLUE	8-98054-258-0	AR	1	1304-	●	●	●	●
27	08.965 FUSE UNIT 02.485 20A YELLOW	8-98054-259-0	AR	1	1304-	●	●	●	●
28	02.483 SCREW; FUSE BOX	8-97249-192-0	02	1	1304-	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98113-097-0	01	1	1304-	●	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 40A GREEN	8-98079-192-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 50A RED	8-98079-193-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-97219-407-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (E) 60A YELLOW	8-98197-288-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (C) 80A BLACK	8-94388-305-1	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1304-	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1304-	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1304-	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-124-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98270-123-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-				●
417	02.530 CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65)	8-97362-918-0	01	1	1304-	●	●	●	●

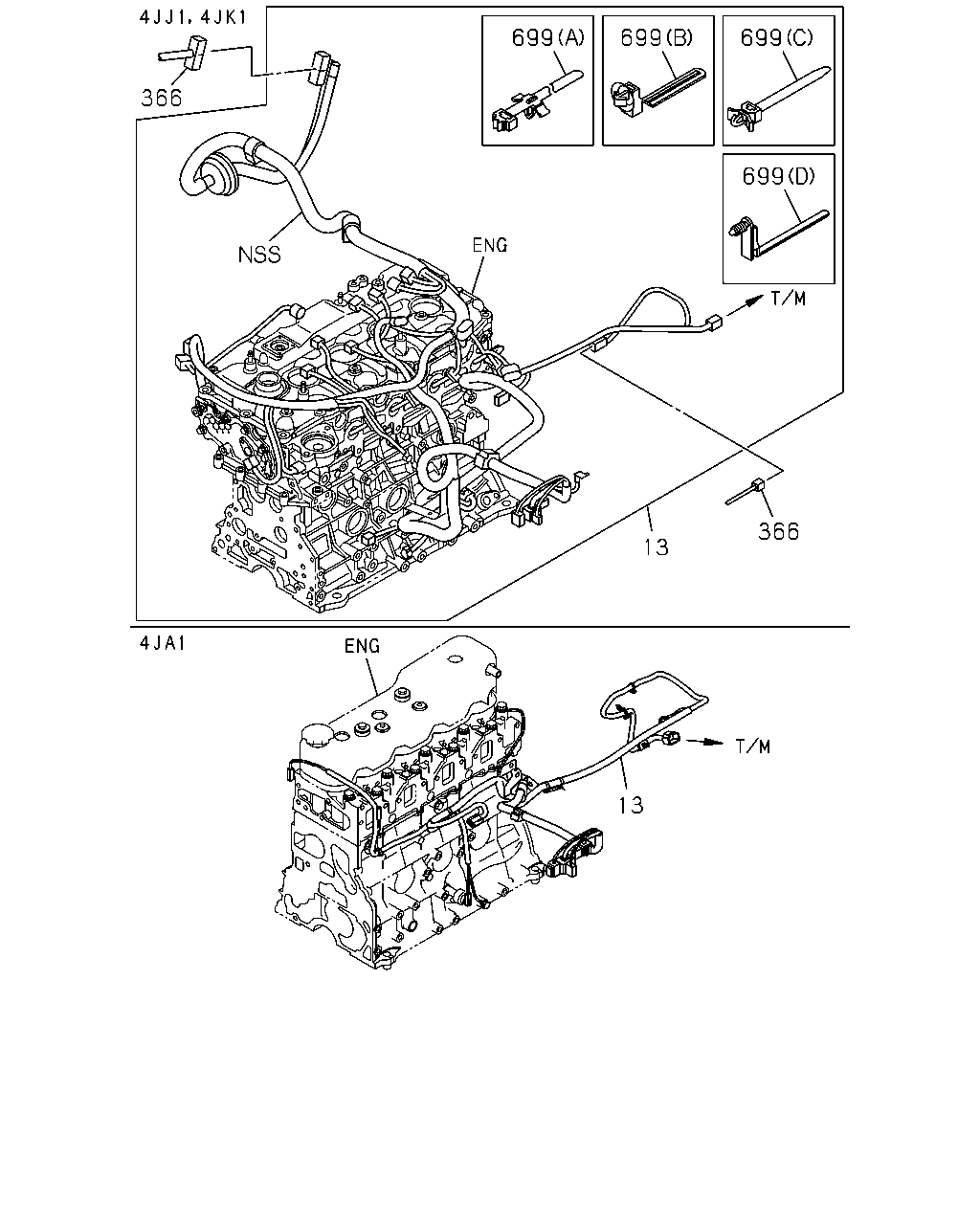

366 699 699 699 699 366 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98224-628-2	01	1	1304-	●	●
13	02.525 HARNESS; ENG 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98190-105-4	01	1	1304-	●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98224-639-2	01	1	1304-		●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98224-629-2	01	1	1304-1401			●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98260-533-0	01	1	1402-			●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98224-638-2	01	1	1304-1401				●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98260-542-0	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-065-5	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-136-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-516-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-133-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98163-064-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-135-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-515-6	01	1	1304-1401		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-132-2	01	1	1402-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-496-5	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-124-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1304-1309	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98160-495-7	01	1	1310-1401	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5)	8-98270-123-2	01	1	1402-	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-510-5	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-129-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-507-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-127-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-509-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98270-128-2	01	1	1402-				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-506-6	01	1	1304-1401				●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98270-126-2	01	1	1402-				●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (D)	8-98182-511-0	02	1	1304-1401	●	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (D)	8-98182-511-0	02	1	1402-	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) L=135	8-94473-399-0	01	1	1304-1401	●	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) L=135	8-94473-399-0	01	1	1402-	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=155	8-97173-307-0	02	1	1304-1401	●	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=155	8-97173-307-0	02	1	1402-	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=140	8-97378-707-0	01	1	1304-1401	●	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=140	8-97378-707-0	01	1	1402-	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) L=146.2	8-98052-677-0	01	1	1304-1401	●	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) L=146.2	8-98052-677-0	01	1	1402-	●	●

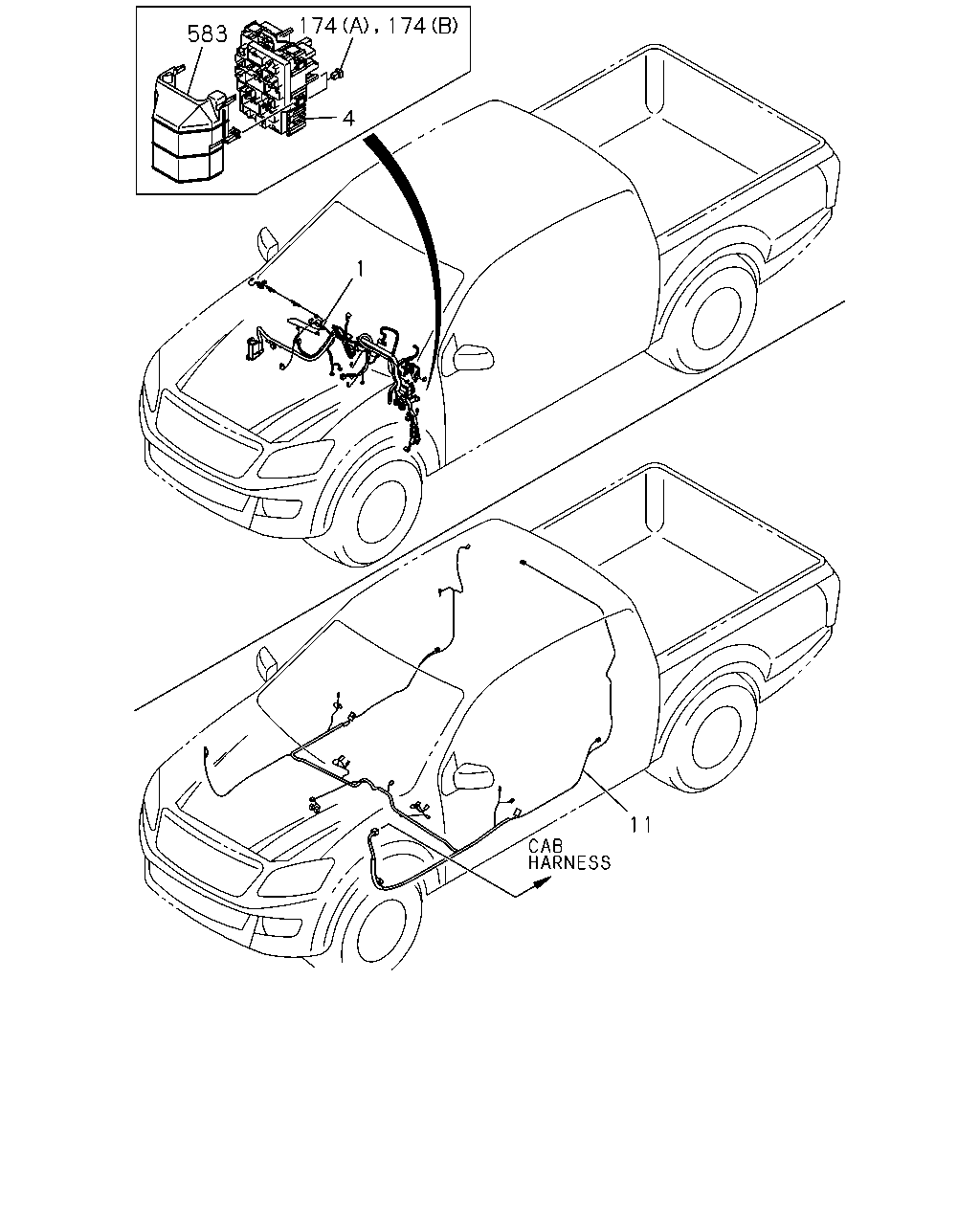

583 174 174 4 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98251-144-1	01	1	1401-	●	●	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-479-7	01	1	1304-	●	●	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY>	8-98160-480-6	01	1	1304-	●	●	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-473-7	01	1	1304-	●	●	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98160-474-7	01	1	1304-	●	●	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-478-7	01	1	1304-	●	●	●	●
1	02.480 HARNESS; CAB 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-476-1	01	1	1304-	●	●
1	02.480 HARNESS; CAB 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY>	8-98160-477-1	01	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-752-0	01	1	1304-	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5)	8-98160-561-2	01	1	1304-	●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-560-0	01	1	1304-	●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1>	8-98160-606-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-598-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-599-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-600-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>	8-98160-623-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-624-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-616-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-617-5	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1>	8-98160-648-5	01	1	1304-1306		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6>	8-98160-648-5	01	1	1307-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6>	8-98160-648-5	01	1	1307-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6>	8-98160-648-5	01	1	1310-1312		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6>	8-98160-648-5	01	1	1310-1312				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6>	8-98160-648-5	01	1	1401-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1>	8-98160-648-5	01	1	1401-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>	8-98160-633-5	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1>	8-98160-633-5	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>	8-98160-633-5	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49>	8-98160-649-5	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>	8-98160-649-5	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49>	8-98160-649-5	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-634-5	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-634-5	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-634-5	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1>	8-98160-601-3	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-602-2	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-603-3	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-604-2	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>	8-98160-618-3	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-619-2	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-620-3	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>	8-98160-621-2	01	1	1304-		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1>	8-98160-650-3	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6>	8-98160-650-3	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1>	8-98160-650-3	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>	8-98160-635-3	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1>	8-98160-635-3	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>	8-98160-635-3	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49>	8-98160-646-3	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>	8-98160-646-3	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49>	8-98160-646-3	01	1	1310-				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-636-3	01	1	1304-1309		●		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-636-3	01	1	1310-		●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>	8-98160-636-3	01	1	1310-				●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 40A GREEN	8-98079-192-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 50A RED	8-98079-193-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-97219-407-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (E) 60A YELLOW	8-98197-288-0	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (C) 80A BLACK	8-94388-305-1	AR	1	1304-	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1304-	●	●	●	●
583	02.559 COVER; HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98179-407-0	01	1	1304-	●	●
583	02.559 COVER; HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98179-407-0	01	1	1304-			●	●

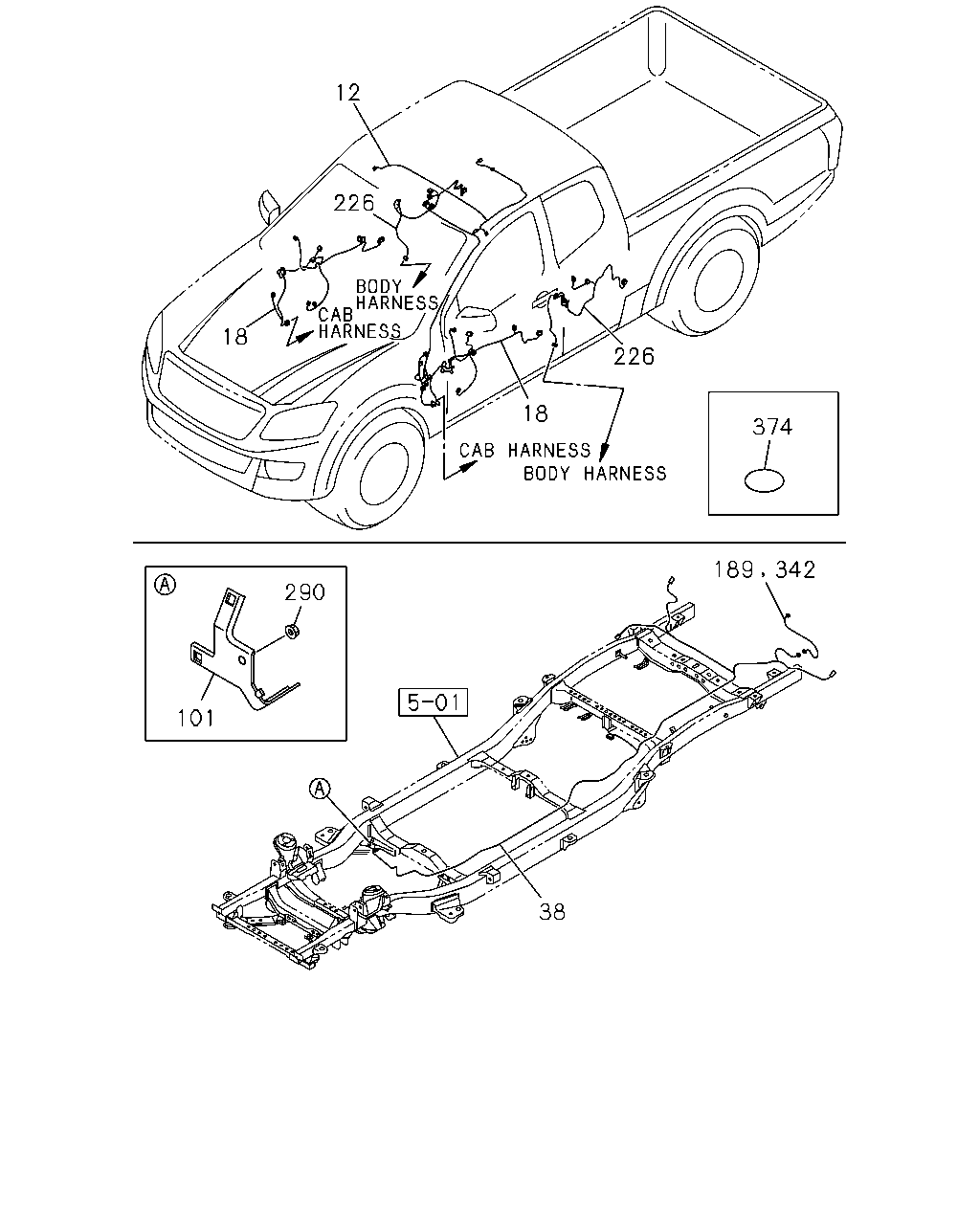

12 374 226 18 290 101 189 342 18 226 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	02.480 HARNESS; ROOF HIGH MOUNT STOP LAMP<TS6>	8-98159-332-0	01	1	1304-	●		●
12	02.480 HARNESS; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-98159-331-0	01	1	1304-	●		●
12	02.480 HARNESS; ROOF MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>	8-98159-476-2	01	1	1304-		●		●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>	8-98159-478-2	01	1	1304-		●		●
12	02.480 HARNESS; ROOF EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>	8-98159-475-2	01	1	1304-		●		●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-359-1	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98225-361-1	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-494-3	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-516-2	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98159-496-3	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-518-2	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98159-498-2	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98159-524-2	01	1	1304-	●	●	●	●
18	02.480 HARNESS; DOOR DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4>	8-98159-500-2	01	1	1304-	●	●	●	●
38	02.480 HARNESS; CHAS REAR BODY FLAT BED(E39)	8-98198-446-1	01	1	1304-	●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-318-2	01	1	1304-	●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-318-2	01	1	1304-		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-317-2	01	1	1304-	●
38	02.480 HARNESS; CHAS REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-317-2	01	1	1304-	●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-98159-317-2	01	1	1304-		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-317-2	01	1	1304-		●
38	02.480 HARNESS; CHAS REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-317-2	01	1	1304-		●
38	02.480 HARNESS; CHAS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-317-2	01	1	1304-			●	●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-323-2	01	1	1304-	●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-323-2	01	1	1304-		●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-322-2	01	1	1304-	●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-322-2	01	1	1304-	●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1304-		●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1304-		●
38	02.480 HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1304-		●
38	02.480 HARNESS; CHAS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH)	8-98159-322-2	01	1	1304-			●	●
101	02.483 BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1304-	●	●	●	●
189	02.480 HARNESS; EXT REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1304-	●
189	02.480 HARNESS; EXT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1304-		●
189	02.480 HARNESS; EXT REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98140-863-0	01	1	1304-		●
189	02.480 HARNESS; EXT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1304-			●	●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-533-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-534-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98159-527-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98159-528-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-535-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-536-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-525-3	01	1	1304-		●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-526-3	01	1	1304-		●		●
290	02.483 NUT; BRKT BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-			●	●
342	02.480 HARNESS; EXT,LICENSE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98137-579-2	01	1	1304-	●	●	●	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK	8-97302-191-0	02	1	1304-		●		●

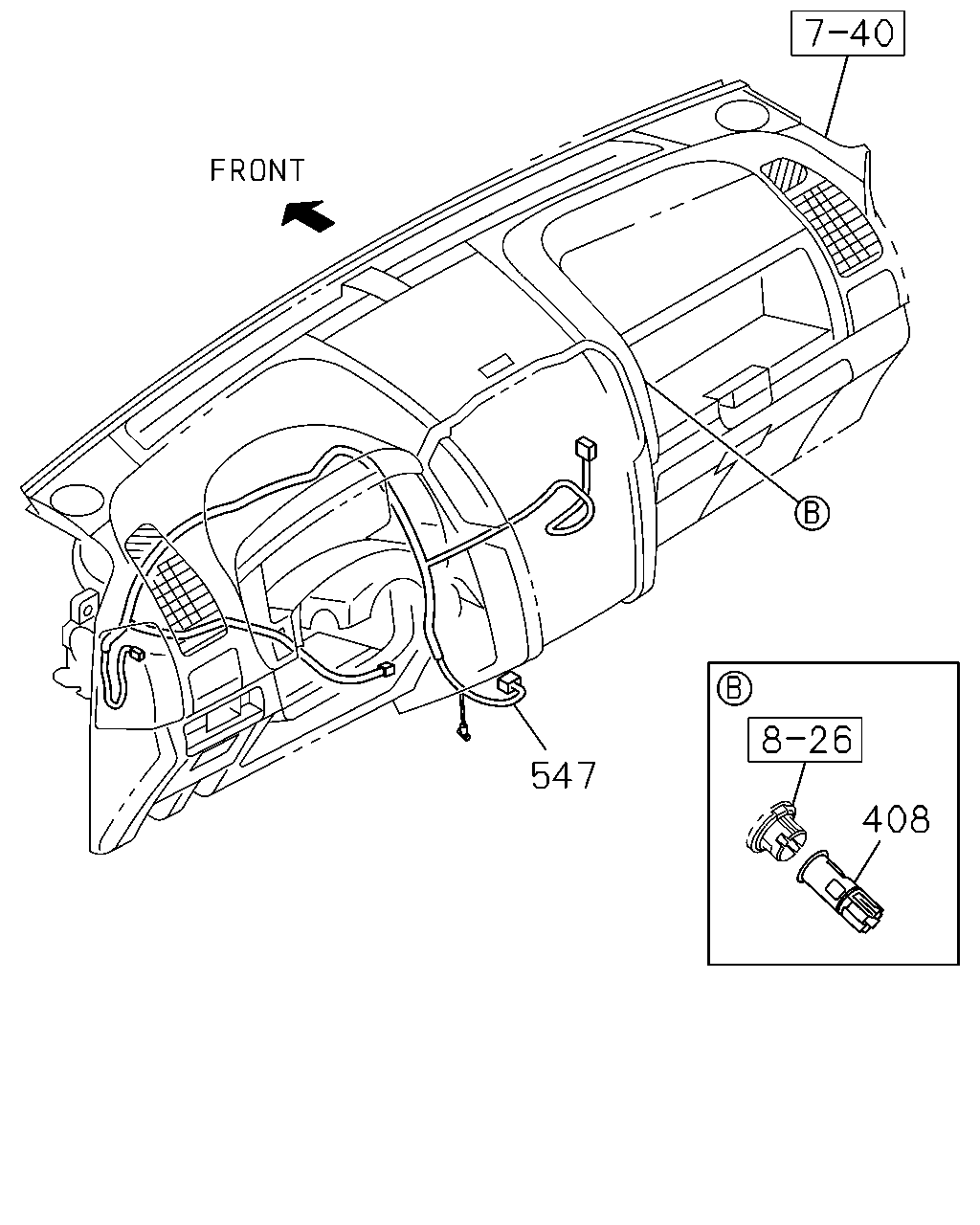

547 408

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	408	02.575 SOCKET ASM; ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5>	8-98123-115-0	01	1	1304-	●	●	●	●
	547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98159-337-2	01	1	1304-	●	●	●	●

734 745 750 749 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-752-0	01	1	1304-	●	●	●	●
734	02.694 RELAY; ACC SOCKET 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
745	02.694 RELAY; HEATER 03.670 (A) 12V YAZAKI	8-98146-834-0	01	1	1304-	●	●	●	●
745	02.694 RELAY; HEATER 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI	8-97309-292-0	01	1	1304-	●	●
749	02.694 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●
750	02.694 RELAY; RR DEFOGGER 09.778 12V YAZAKI	8-97309-293-0	01	1	1304-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
