Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#117680) — 44 parça

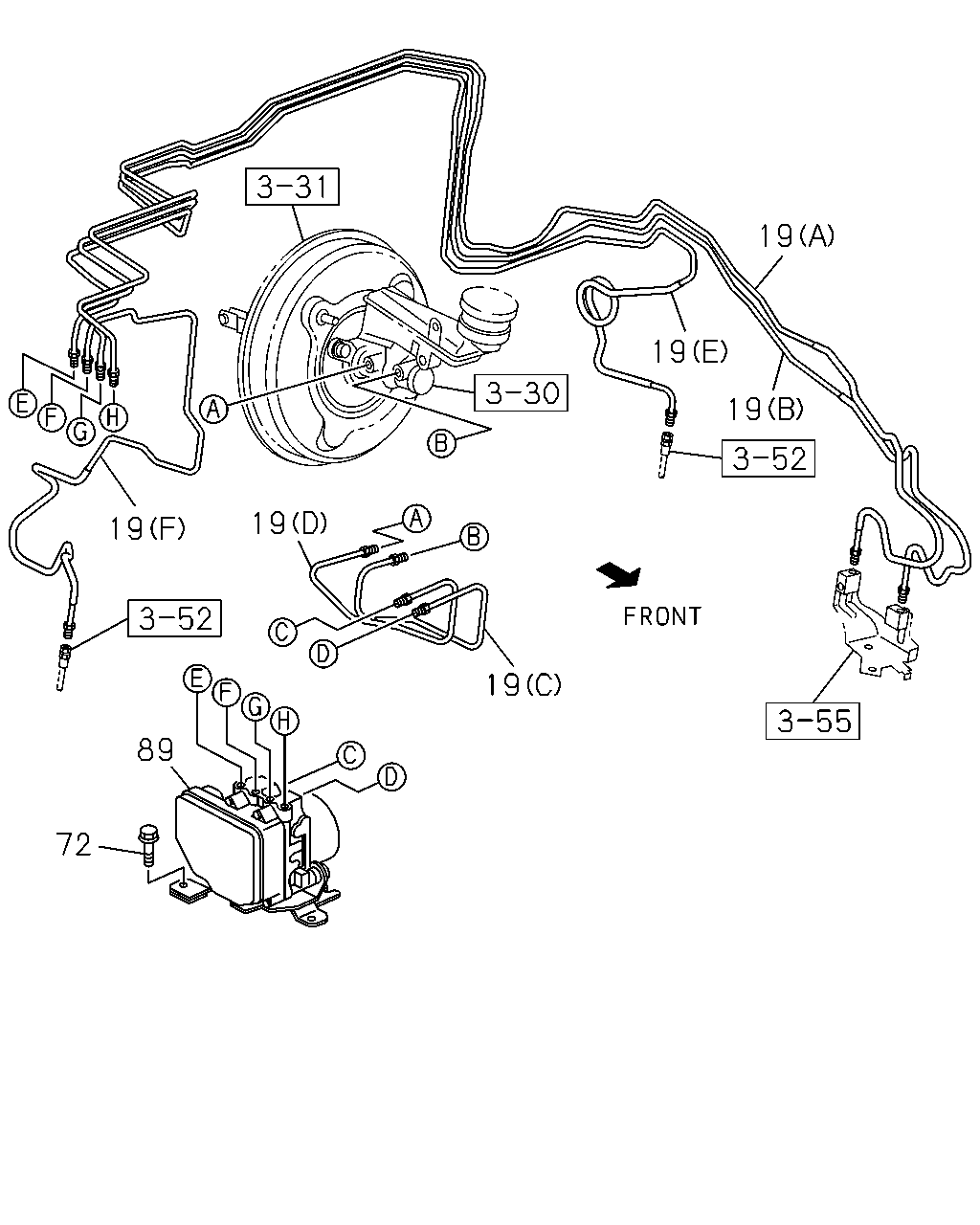

19 19 19 19 19 89 72 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-730-0	01	1	1304-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-736-2	01	1	1304-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (F)	8-98155-582-1	01	1	1304-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (F)	8-98155-582-1	01	1	1304-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (E)	8-98159-938-1	01	1	1304-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-938-1	01	1	1304-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98155-584-1	01	1	1304-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (F)	8-98155-584-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-942-1	01	1	1304-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-942-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98099-738-0	01	1	1304-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98099-739-0	01	1	1304-	●	●	●	●	●	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1304-	●	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98232-478-0	01	1	1304-	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98232-479-0	01	1	1304-				●	●	●

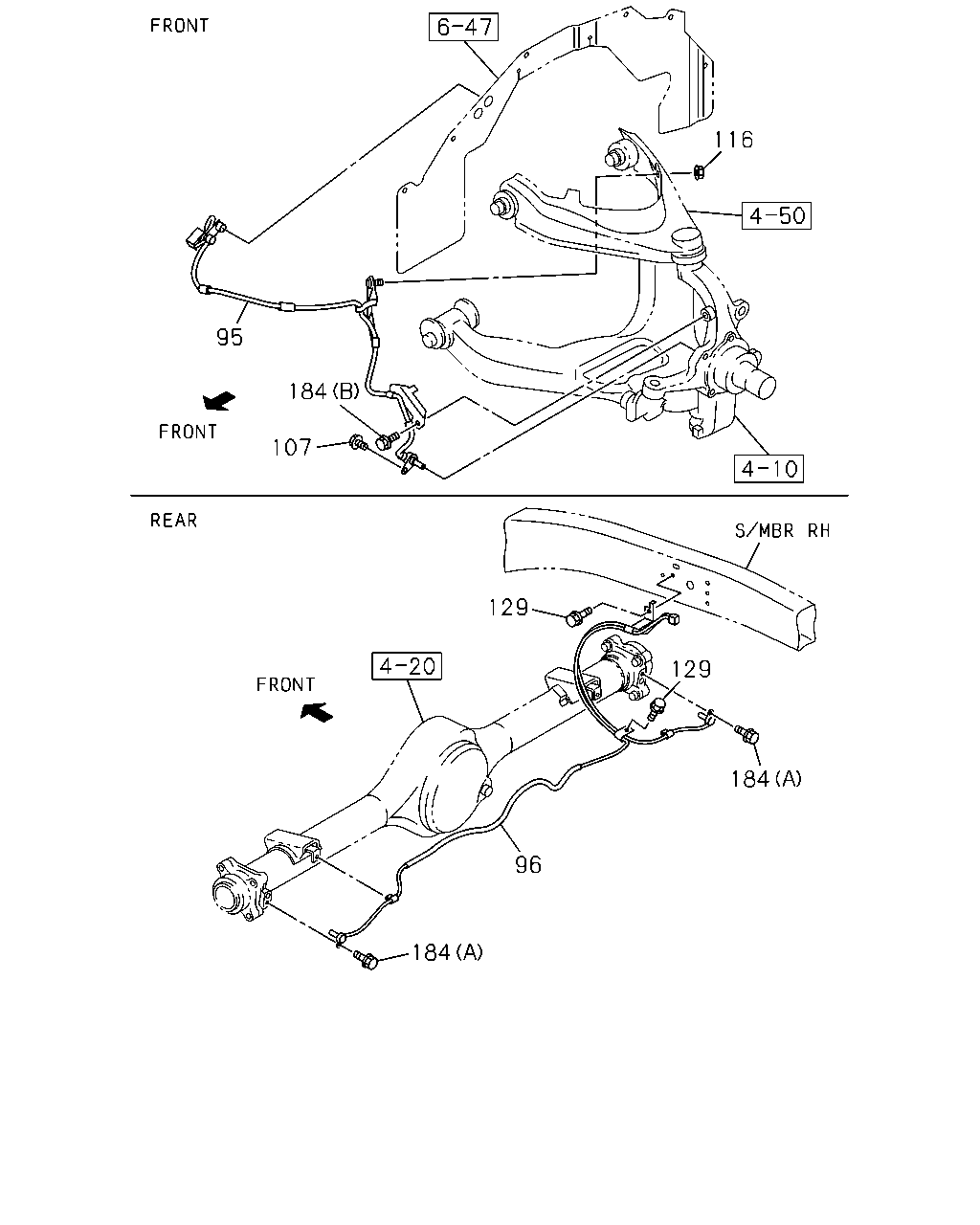

116 95 184 107 129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-119-1	01	1	1304-1509	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1304-1509				●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-432-0	01	1	1510-	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-				●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-120-1	01	1	1304-1509	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1304-1509				●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-433-0	01	1	1510-	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-				●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-117-1	01	1	1304-1509	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-117-1	01	1	1304-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-430-0	01	1	1510-	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-430-0	01	1	1510-		●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-118-1	01	1	1304-1509	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-118-1	01	1	1304-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-431-0	01	1	1510-	●		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-431-0	01	1	1510-		●
96	04.710 SENSOR; SPD,RR WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-122-1	01	1	1304-	●		●
96	04.710 SENSOR; SPD,RR WHEEL	8-98052-122-1	01	1	1304-				●	●	●
96	04.710 SENSOR; SPD,RR WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-121-1	01	1	1304-	●		●
96	04.710 SENSOR; SPD,RR WHEEL	8-98052-121-1	01	1	1304-		●
107	04.710 BOLT; WHEEL SPD SENSOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1304-1509	●	●	●	●	●	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●	●	●	●	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●	●	●
184	04.681 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1304-1509	●	●	●	●	●	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●	●	●

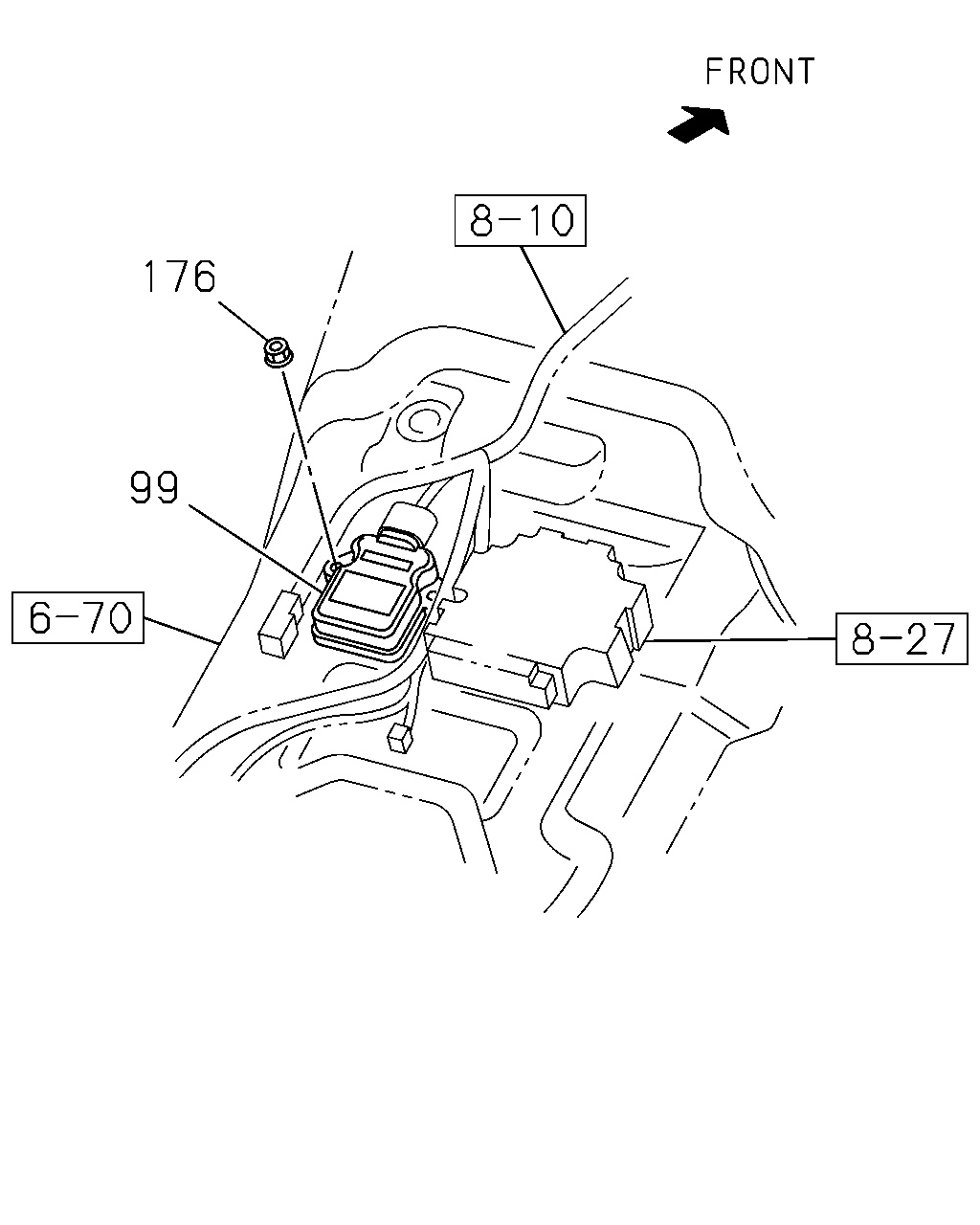

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	99	04.710 SENSOR; DECELERATION	8-98052-116-1	01	1	1304-	●	●	●	●	●	●
	176	04.730 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●	●	●
