5-15 — CAB MOUNTING; CAB SIDE (#11768) — 155 parça

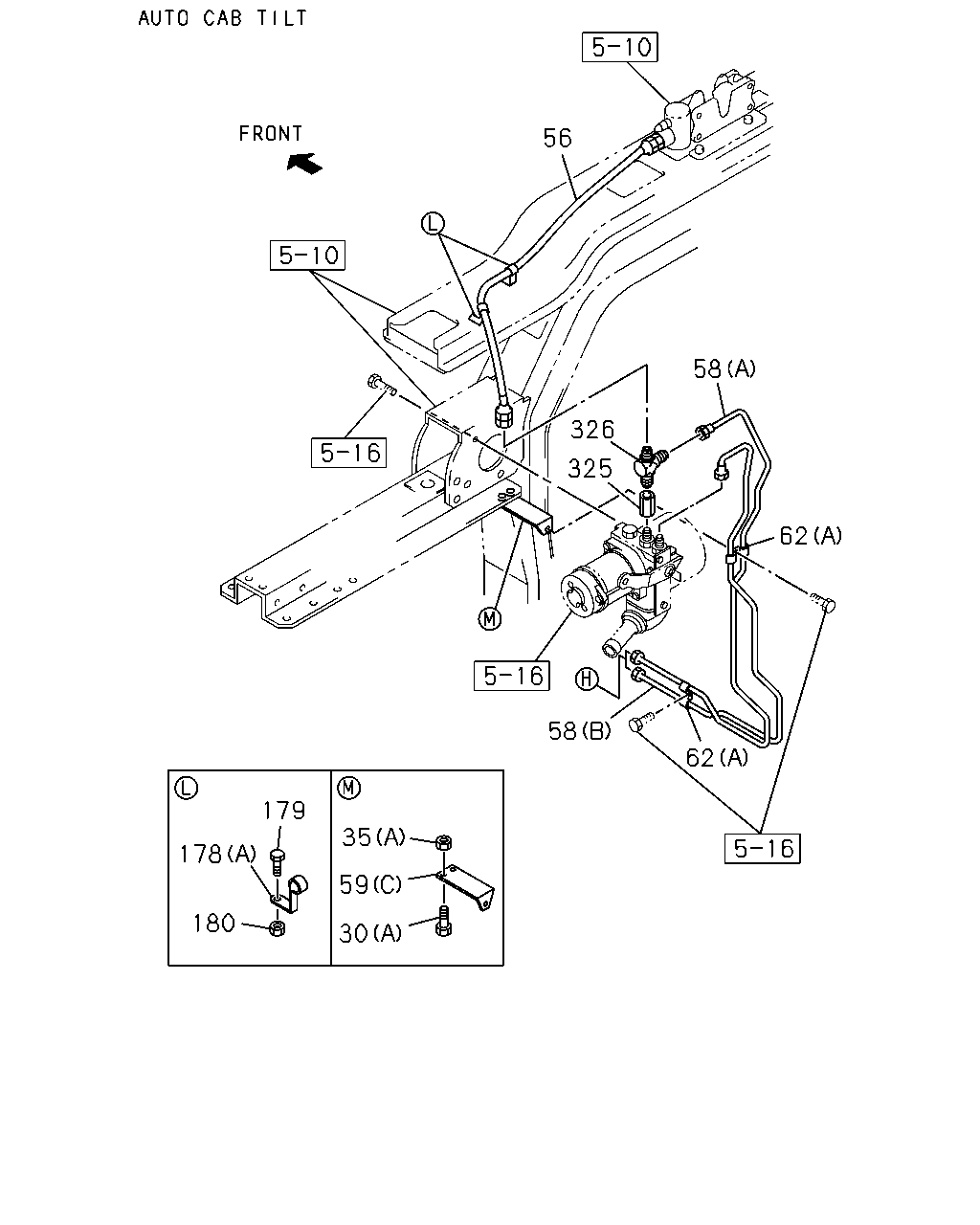

56 58 326 325 62 58 62 179 35 178 59 180 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	03	1	0106-0512
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28681-020-0	02	1	0106-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28651-020-0	02	1	0601-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0106-0602
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0106-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (A)	1-49163-338-0	01	1	0106-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B)	1-49163-344-0	01	1	0106-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (A)	1-49163-288-0	01	1	0106-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (B)	1-49163-289-0	01	1	0106-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0106-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0106-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0106-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (D)	1-53458-915-0	02	1	0106-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0106-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (D) L=140	5-09707-031-0	03	1	0106-
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	01	1	0106-0106
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	02	1	0106-
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-
180	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0602
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
325	ADAPTER; PUMP AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-
326	UNION; PUMP AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0106-

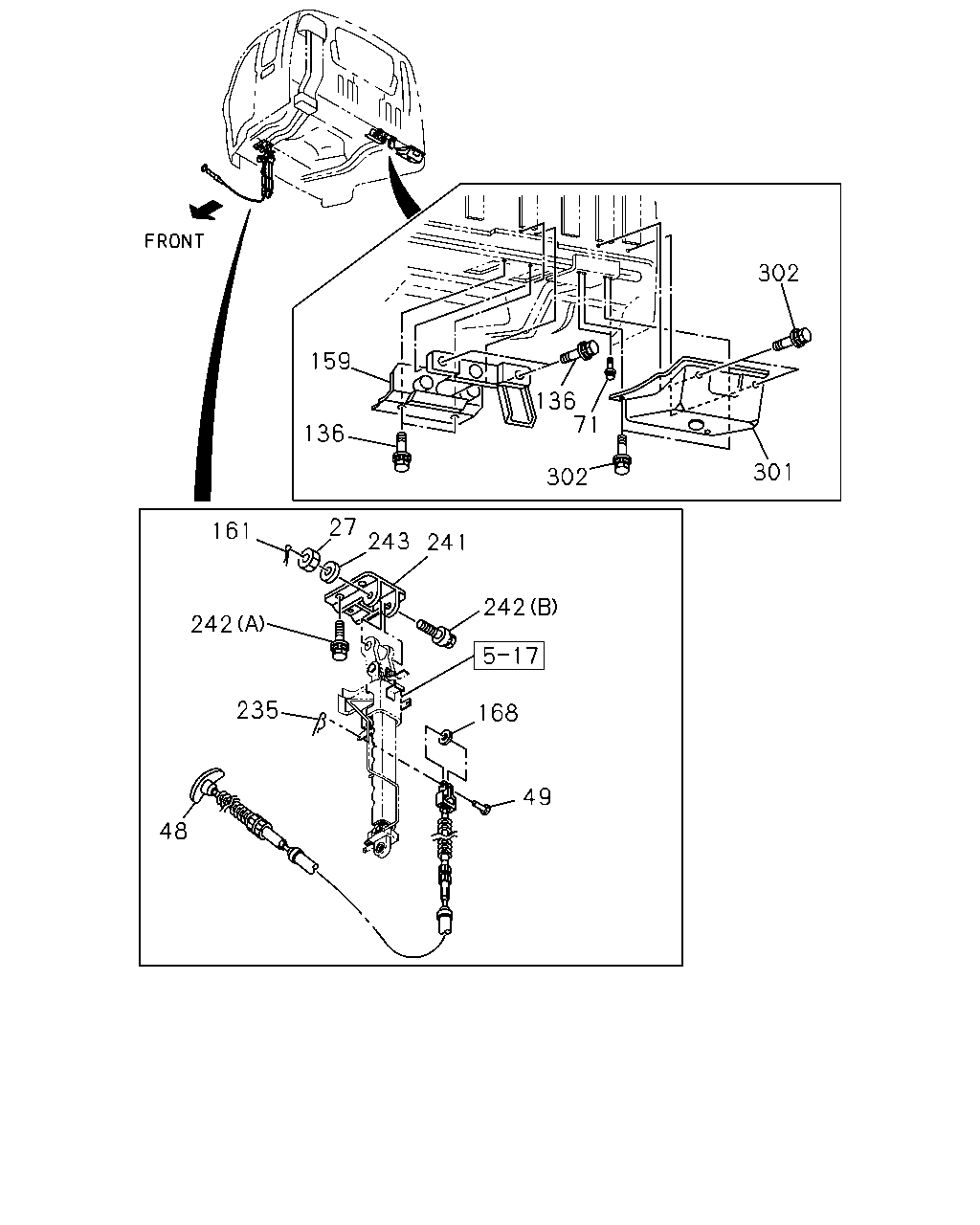

136 71 302 159 136 301 302 27 243 161 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0106-0604
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0605-
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0106-
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0106-0606
49	PIN; JAW FIX OD=6 L=17	0-82253-617-0	01	1	0607-
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	0106-0204
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0205-
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0106-
159	PIN	1-79717-627-1	01	1	0106-
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0106-0606
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	0607-
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0106-
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0106-
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	0106-
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	0106-
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0106-
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0106-0603
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0604-
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0106-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	0106-0204
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0205-

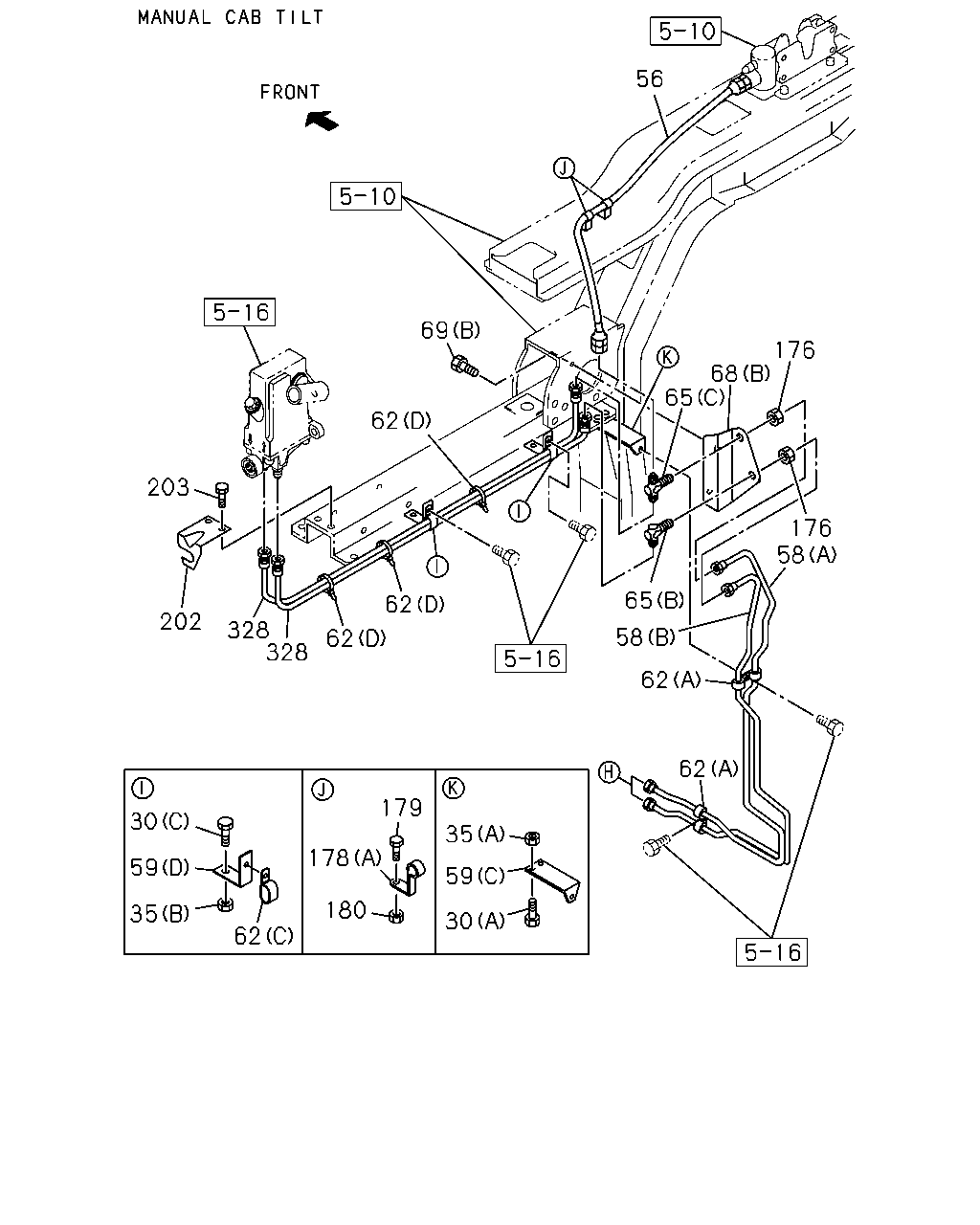

56 69 176 68 65 62 203 176 58 65 62 62 202 328 328 58 62 62 179 30 35 59 30 178 59 180 35 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	03	1	0106-0512
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28681-020-0	02	1	0106-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28651-020-0	02	1	0601-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0106-0602
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0106-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (A)	1-49163-338-0	01	1	0106-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B)	1-49163-344-0	01	1	0106-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (A)	1-49163-288-0	01	1	0106-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (B)	1-49163-289-0	01	1	0106-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0106-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0106-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0106-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (D)	1-53458-915-0	02	1	0106-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0106-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (D) L=140	5-09707-031-0	03	1	0106-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0106-0607
65	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	02	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0106-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	0-92125-206-0	01	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0106-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	0-92138-606-0	01	1	0608-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (B)	1-53458-935-0	01	1	0106-
68	BRACKET; UNION (A)	1-47478-383-0	01	1	0106-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
176	NUT; UNION M12	9-09840-280-0	02	1	0106-
176	NUT; UNION MANUAL CAB TILT<SHK> M12	9-09840-280-0	02	1	0106-
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	01	1	0106-0106
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	02	1	0106-
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-
180	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0602
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
202	BRACKET; CABLE END MANUAL CAB TILT<SHK>	1-53458-911-0	01	1	0106-
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28650-820-0	02	1	0601-
328	HOSE; OIL MANUAL CAB TILT<SHK>	1-09365-112-0	02	1	0106-

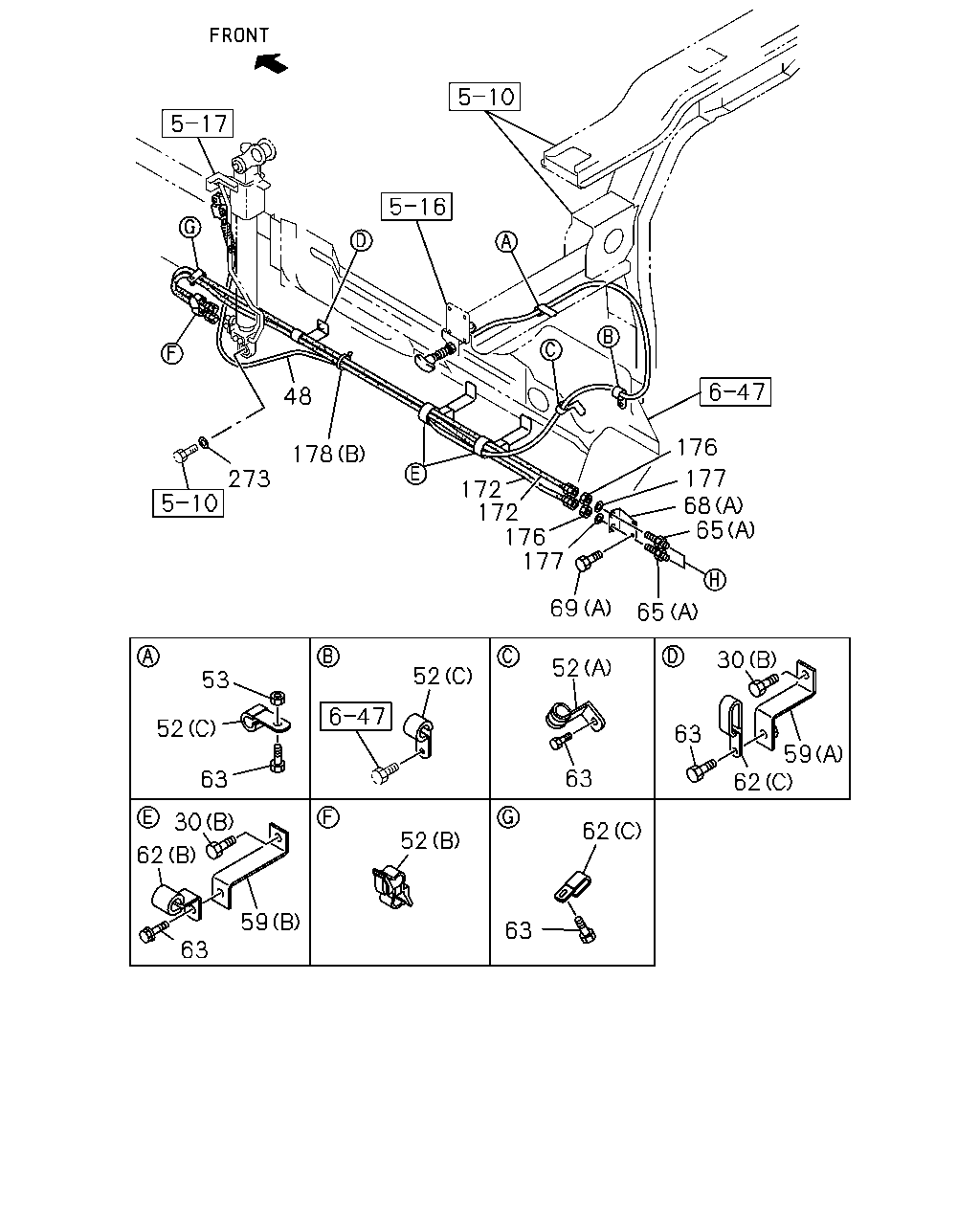

48 176 177 68 65 178 273 172 172 176 177 65 69 30 52 52 53 63 59 62 52 63 63 30 62 62 52 59 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	03	1	0106-0512
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28681-020-0	02	1	0106-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (C) M10X20 FLANGE	0-28651-020-0	02	1	0601-
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0106-
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0106-
52	CLIP; CONT CABLE (C) ID=7 L=50	9-09524-685-0	01	1	0106-0606
52	CLIP; CONT CABLE (C) ID=7 L=50	0-95234-685-0	01	1	0607-
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
53	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0106-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0106-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0106-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (D)	1-53458-915-0	02	1	0106-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0106-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0106-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (D) L=140	5-09707-031-0	03	1	0106-
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	0106-0512
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0601-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0106-0607
65	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	02	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0106-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	0-92125-206-0	01	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0106-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	0-92138-606-0	01	1	0608-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (B)	1-53458-935-0	01	1	0106-
68	BRACKET; UNION (A)	1-47478-383-0	01	1	0106-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0106-
176	NUT; UNION M12	9-09840-280-0	02	1	0106-
176	NUT; UNION MANUAL CAB TILT<SHK> M12	9-09840-280-0	02	1	0106-
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0106-0603
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	01	1	0106-0106
178	CLIP; FLEX HOSE (B) L=140	5-09707-031-1	02	1	0106-
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0106-0605
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0606-
