0-25 — INLET MANIFOLD
(#117673) — 30 parça
◀

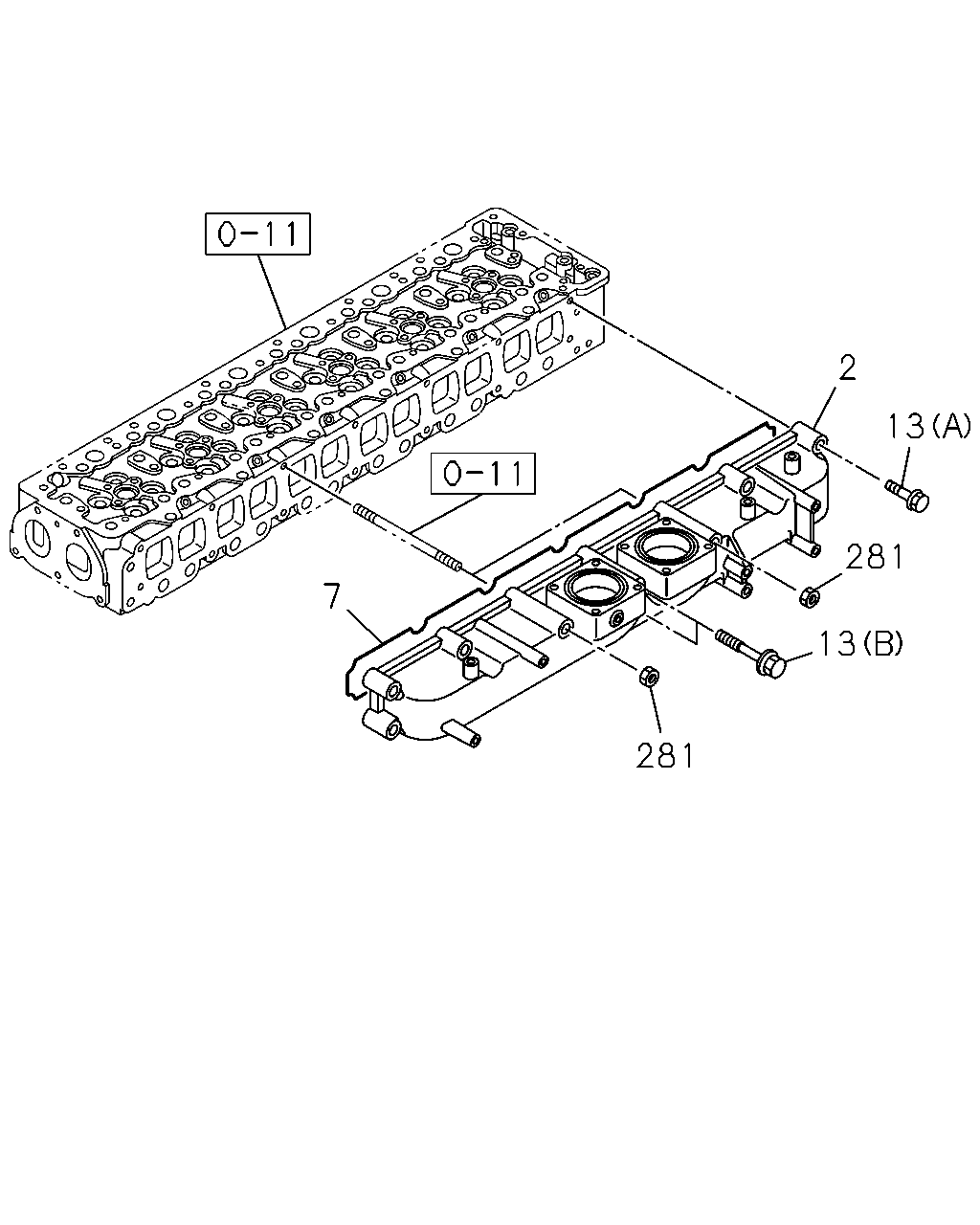

[025A] INLET COVER (5 parça)

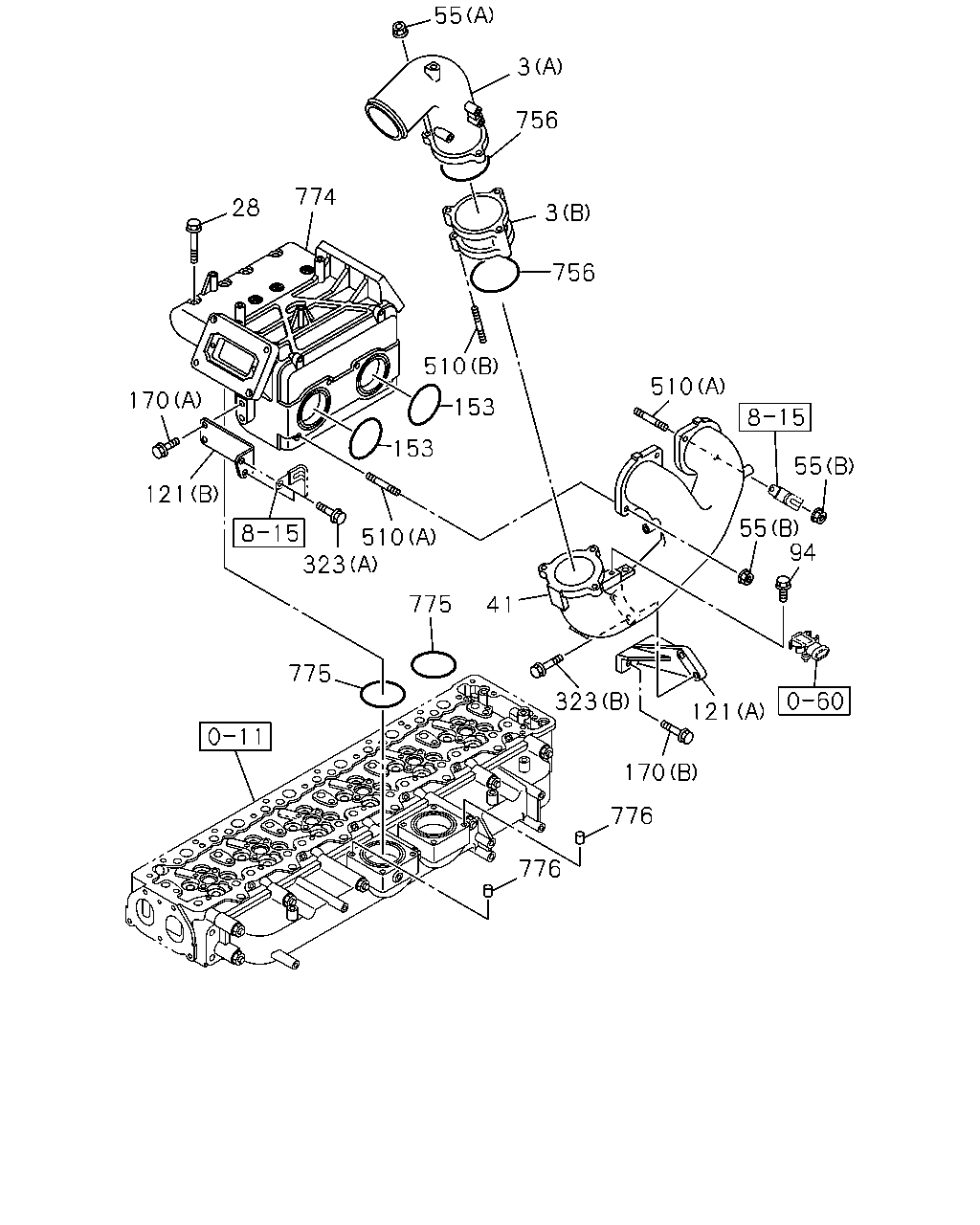

[025A] INLET DUCT (20 parça)

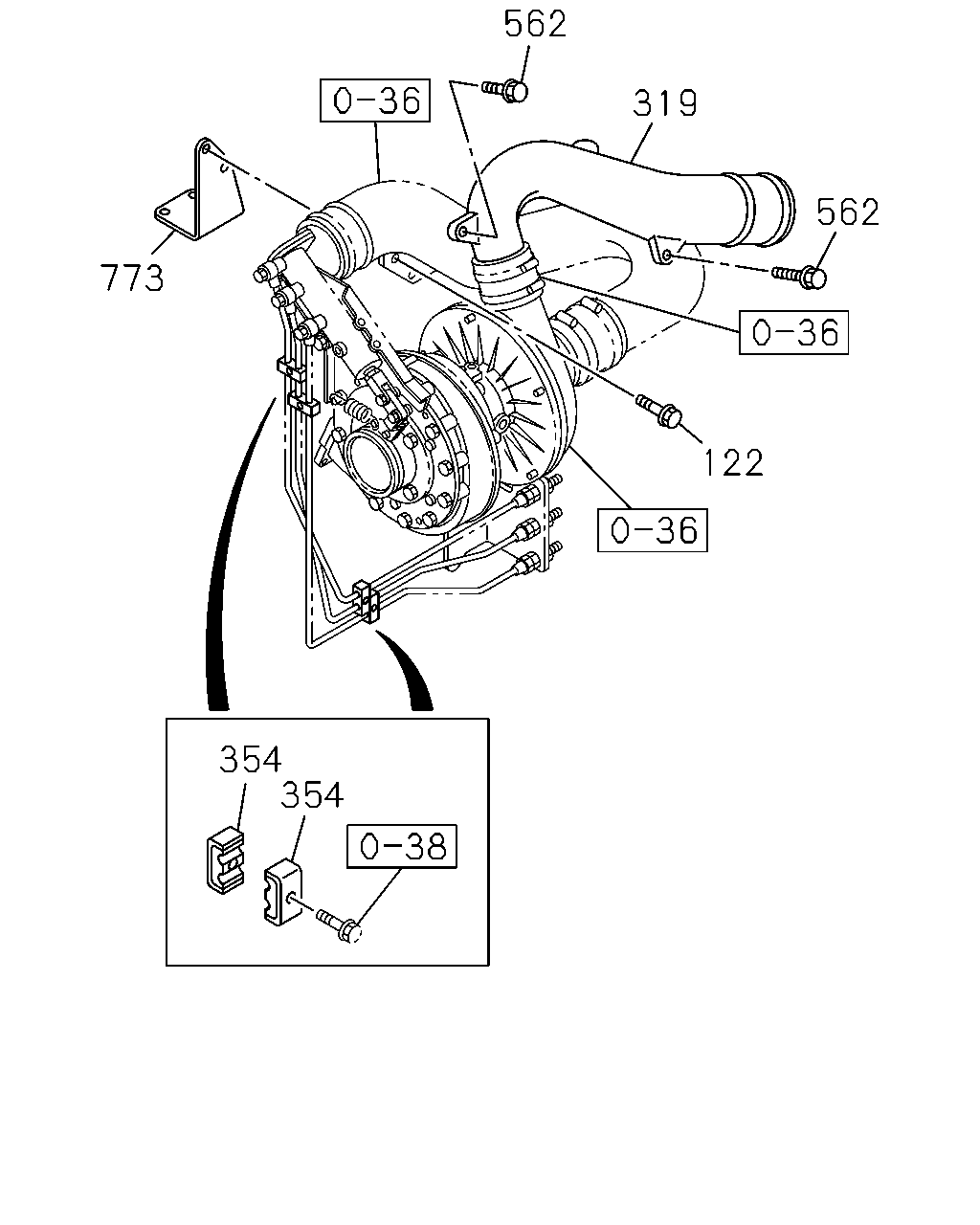

[025A] TURBOCHARGER SIDE (5 parça)
▶
2
13
281
13
281
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-97605-496-0
01
1
1304-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97603-676-0
01
1
1304-
13
BOLT; INL MANIF
(A) M10X110 FLANGE
0-28156-011-0
02
1
1304-
13
BOLT; INL MANIF
(B) M10X55 FLANGE
8-97365-449-0
10
1
1304-
281
NUT; INL COVER
M10 FLANGE
0-91180-110-0
02
1
1304-
55
94
55
510
756
3
756
3
55
510
153
41
323
121
170
776
776
775
775
323
510
121
153
170
28
774
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
DUCT; INT
(A)
8-97603-791-0
01
1
1304-
3
DUCT; INT
(B)
8-97606-246-0
01
1
1304-
28
BOLT; CHAMBER
M10X90 FLANGE
0-28151-090-0
08
1
1304-
41
DUCT; INT COVER
8-97611-164-4
01
1
1304-
55
NUT; INL PIPE
(A) M8 FLANGE
0-91180-108-0
03
1
1304-
55
NUT; INL PIPE
(B) M10 FLANGE
0-91180-110-0
04
1
1304-
94
BOLT
M4X10 W/PL WASHER
8-97316-615-0
02
1
1304-
121
BRACKET
(A)
8-97603-875-0
01
1
1304-
121
BRACKET
(B)
8-97604-862-0
01
1
1304-
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=94.6
1-09623-593-0
02
1
1304-
170
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1304-
170
BOLT; BRKT
(B) M10X30 FLANGE
0-28151-030-0
02
1
1304-
323
BOLT; DUCT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1304-
323
BOLT; DUCT
(B) M10X60 FLANGE
0-28151-060-0
02
1
1304-
510
STUD; INL DUCT
(A) M10X25 L=40
0-44011-025-0
04
1
1304-
510
STUD; INL DUCT
(B) M8X85 L=100
9-09830-177-0
03
1
1304-
756
GASKET; INTAKE,THROTTLE
ID=94.6
1-09623-593-0
02
1
1304-
774
CHAMBER; MIXING,EGR
8-97603-673-2
01
1
1304-
775
GASKET; MIXING CHAMBER
ID=84.6
1-09623-431-0
02
1
1304-
776
DOWEL; MIXING CHAMBER
OD=14 L=10
9-11319-065-3
02
1
1304-
562
319
562
122
773
354
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
122
BOLT; BRKT
M10X20 FLANGE
0-28761-020-0
02
1
1304-
319
DUCT; INL,TURBOCHARGER
8-97604-520-4
01
1
1304-
354
CLIP; AIR PIPE
1-09701-240-0
08
1
1304-
562
BOLT; INL DUCT
M10X35 FLANGE
0-28751-035-0
02
1
1304-
773
BRACKET; INL DUCT
8-97605-934-1
01
1
1304-
