Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#117672) — 57 parça
◀

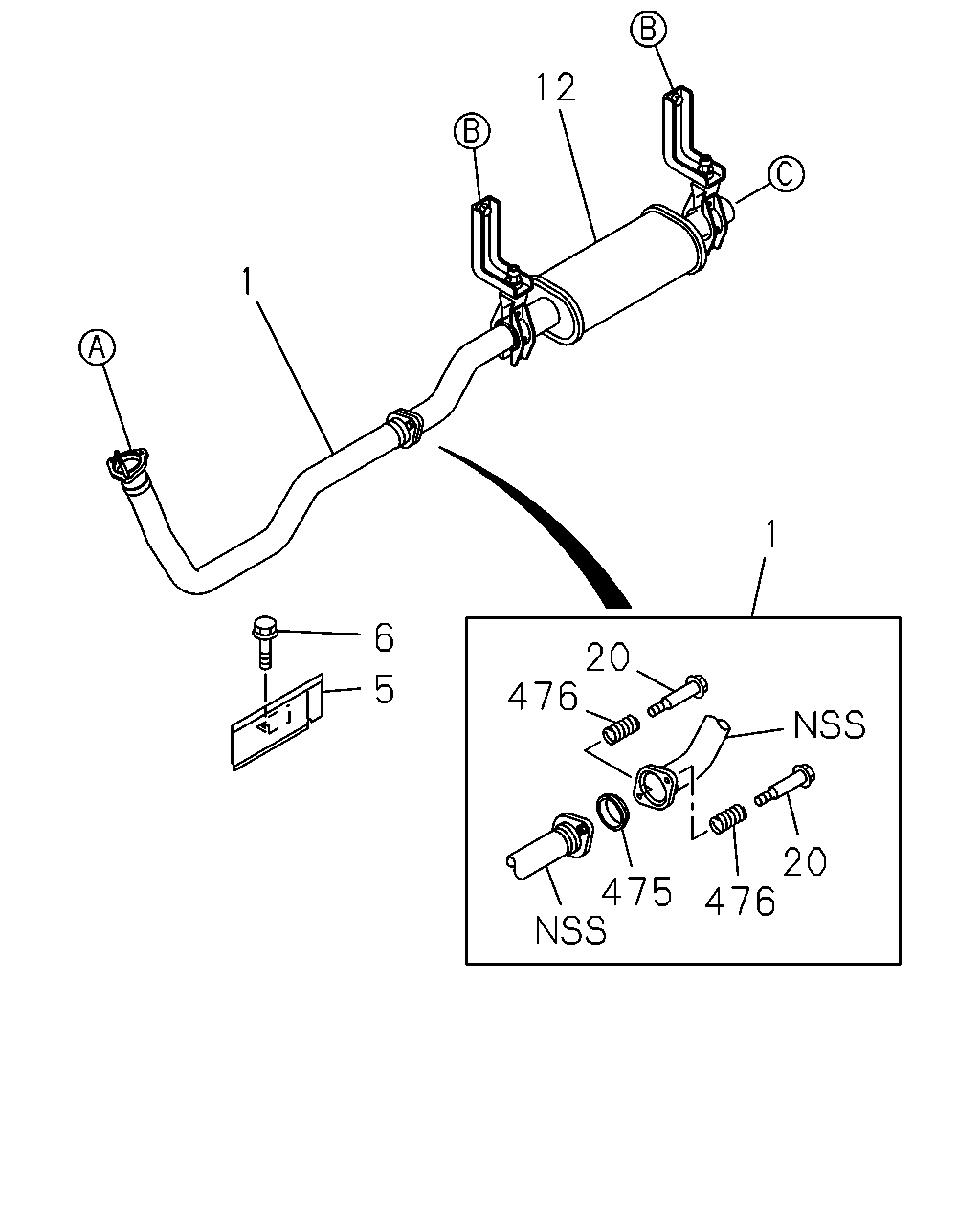

[150A] FRONT NO.1 (8 parça)
[150A] FRONT NO.2 (27 parça)
[150A] REAR (22 parça)
▶
1
20
476
475
476
20
6
5
1
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98212-603-0
01
1
1304-
5
PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5>
8-98073-436-0
01
1
1304-1406
5
PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5>
8-98255-001-0
01
1
1407-
6
BOLT; HEAT PROTECTOR
ANTI LOCK BRAKE<JE5> M8X25 FLANGE
0-28650-825-0
02
1
1304-
12
SILENCER ASM; EXH
8-98212-605-0
01
1
1304-
20
BOLT; FLANGE,EXH PIPE
M10X49.8
8-97039-586-0
02
1
1304-
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112
1-22119-294-1
01
1
1304-
476
SPRING; VIBNON,EXH PIPE
8-94141-851-0
02
1
1304-
34
36
17
1
36
34
118
107
81
60
81
121
75
75
56
94
22
63
22
105
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98212-603-0
01
1
1304-
17
BOLT; EXH PIPE
M12X120
1-09000-293-0
01
1
1304-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
1304-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
1304-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1304-
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
1304-
56
BRACKET; CLAMP,EXH PIPE
(B)
1-22131-528-1
01
1
1304-
56
BRACKET; CLAMP,EXH PIPE
(A) L=40 B=50 H=74
1-22139-045-0
02
1
1304-
60
BRACKET; FRAME TO BRKT
(A)
8-98183-955-0
02
1
1304-
60
BRACKET; FRAME TO BRKT
(B)
8-98212-611-0
01
1
1304-
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
02
1
1304-
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
02
1
1304-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
1304-
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
04
1
1304-
75
RUBBER; SUPPORT,BRKT
(B) OD=40
1-22159-193-0
02
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
01
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1304-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
02
1
1304-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1304-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
1304-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1304-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
1304-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1304-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1304-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1304-
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
1304-
81
94
22
22
126
105
70
107
60
81
75
56
62
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
1304-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
1304-
56
BRACKET; CLAMP,EXH PIPE
(B)
1-22131-528-1
01
1
1304-
56
BRACKET; CLAMP,EXH PIPE
(A) L=40 B=50 H=74
1-22139-045-0
02
1
1304-
60
BRACKET; FRAME TO BRKT
(A)
8-98183-955-0
02
1
1304-
60
BRACKET; FRAME TO BRKT
(B)
8-98212-611-0
01
1
1304-
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
1304-
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
02
1
1304-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
1304-
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
04
1
1304-
75
RUBBER; SUPPORT,BRKT
(B) OD=40
1-22159-193-0
02
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
01
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1304-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1304-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
02
1
1304-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1304-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
1304-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1304-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
1304-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1304-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1304-
126
PIPE; EXH,RR
8-98069-920-0
01
1
1304-
