Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#11767) — 325 parça

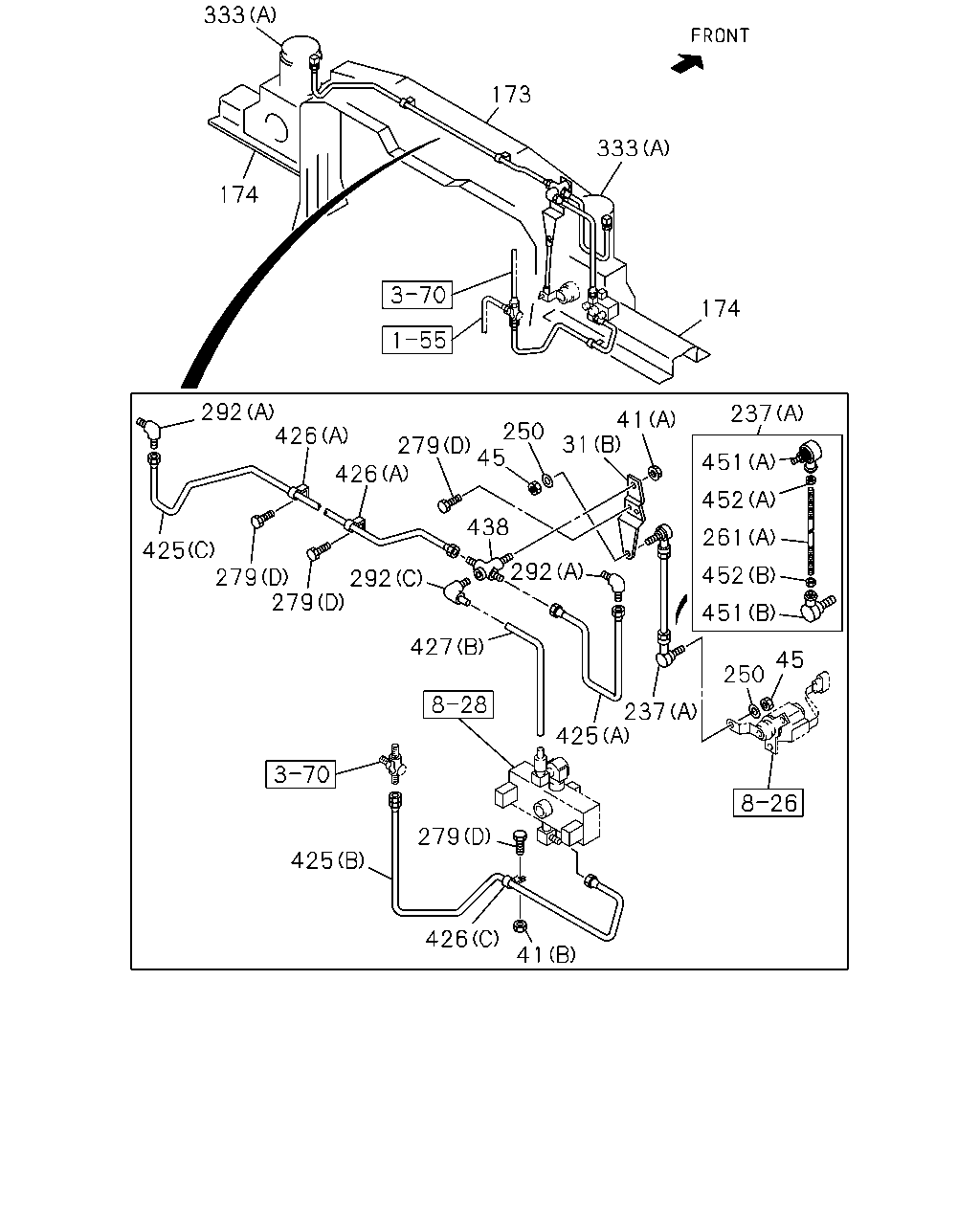

333 173 333 174 174 292 426 237 41 31 250 279 45 451 426 452 438 261 425 279 292 279 292 452 451 427 45 250 237 425 279 425 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0106-0602
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-599-2	01	1	0106-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0106-0406
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B)	1-49122-659-0	01	1	0106-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	9-09524-665-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

202 202 203 204 69 72 205 70 65 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0106-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0106-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-

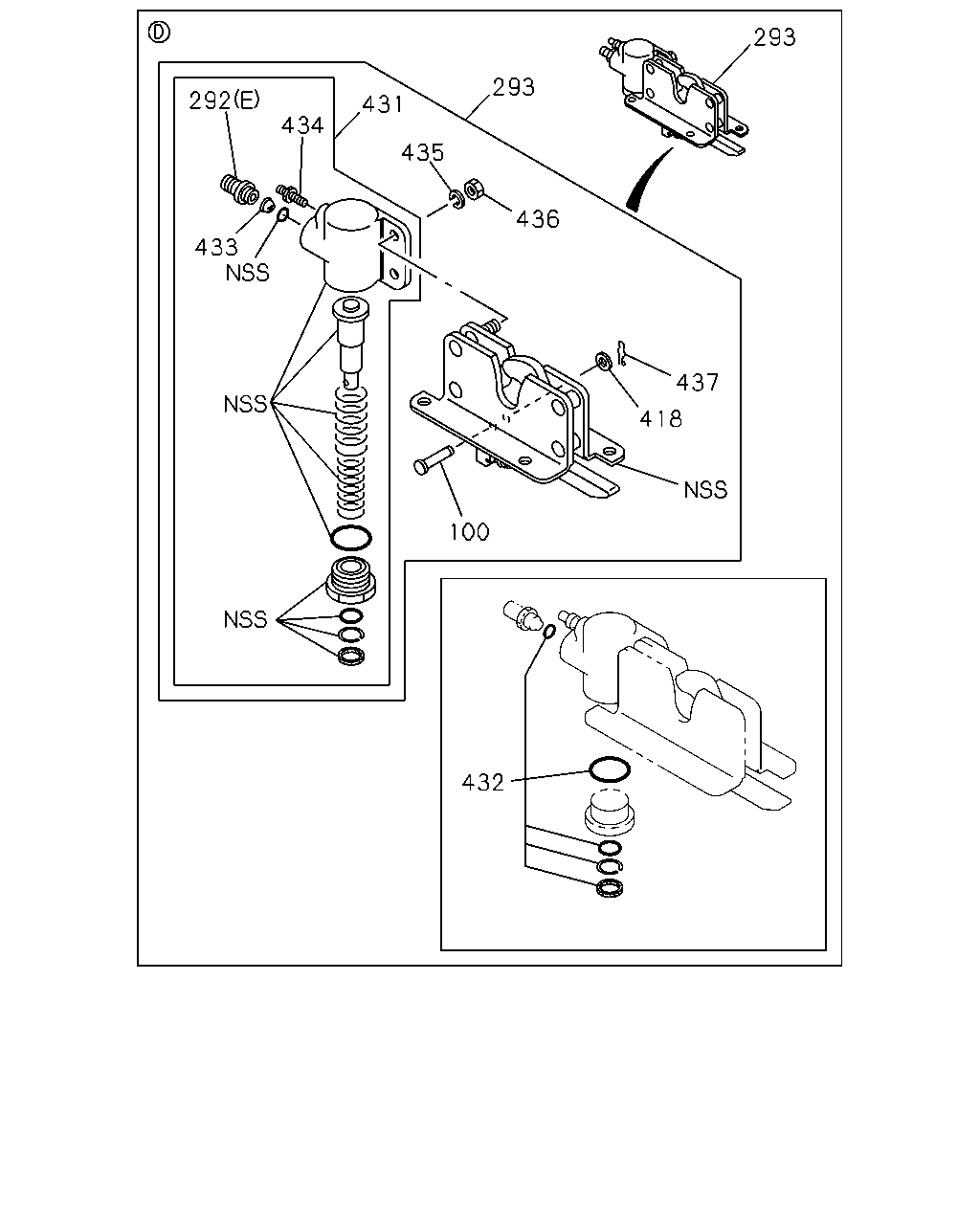

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0106-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0106-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0106-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0106-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0106-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0106-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0106-
436	NUT; AIR CYL	1-53458-528-0	02	1	0106-
437	PIN; SNAP	1-53458-526-0	01	1	0106-

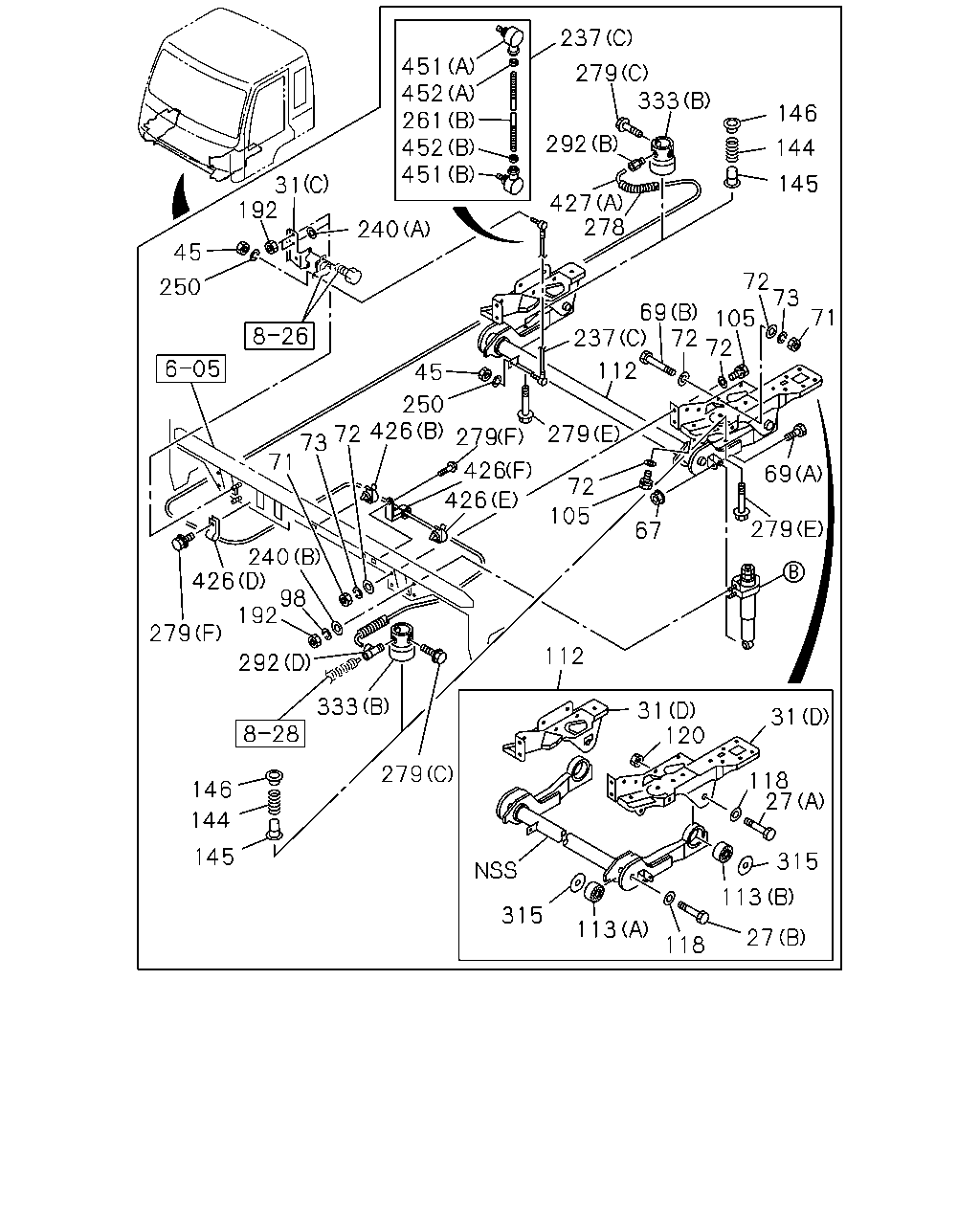

237 451 452 261 452 451 279 333 146 292 144 31 192 145 427 278 240 45 72 73 250 69 72 71 105 112 45 250 72 426 73 71 279 279 426 69 72 426 105 279 67 240 426 98 192 279 292 112 333 31 120 31 279 118 27 146 144 145 315 113 315 113 27 118 237 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0106-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0106-
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0106-0602
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0106-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0106-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0106-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-568-4	01	1	0106-0106
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-1	01	1	0107-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	0106-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A),(B)	1-53458-714-0	04	1	0112-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0106-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0106-0512
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0106-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0106-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0106-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0106-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0106-
278	COVER DELUXE CAB(W14) FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0106-
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0106-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	9-09524-665-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

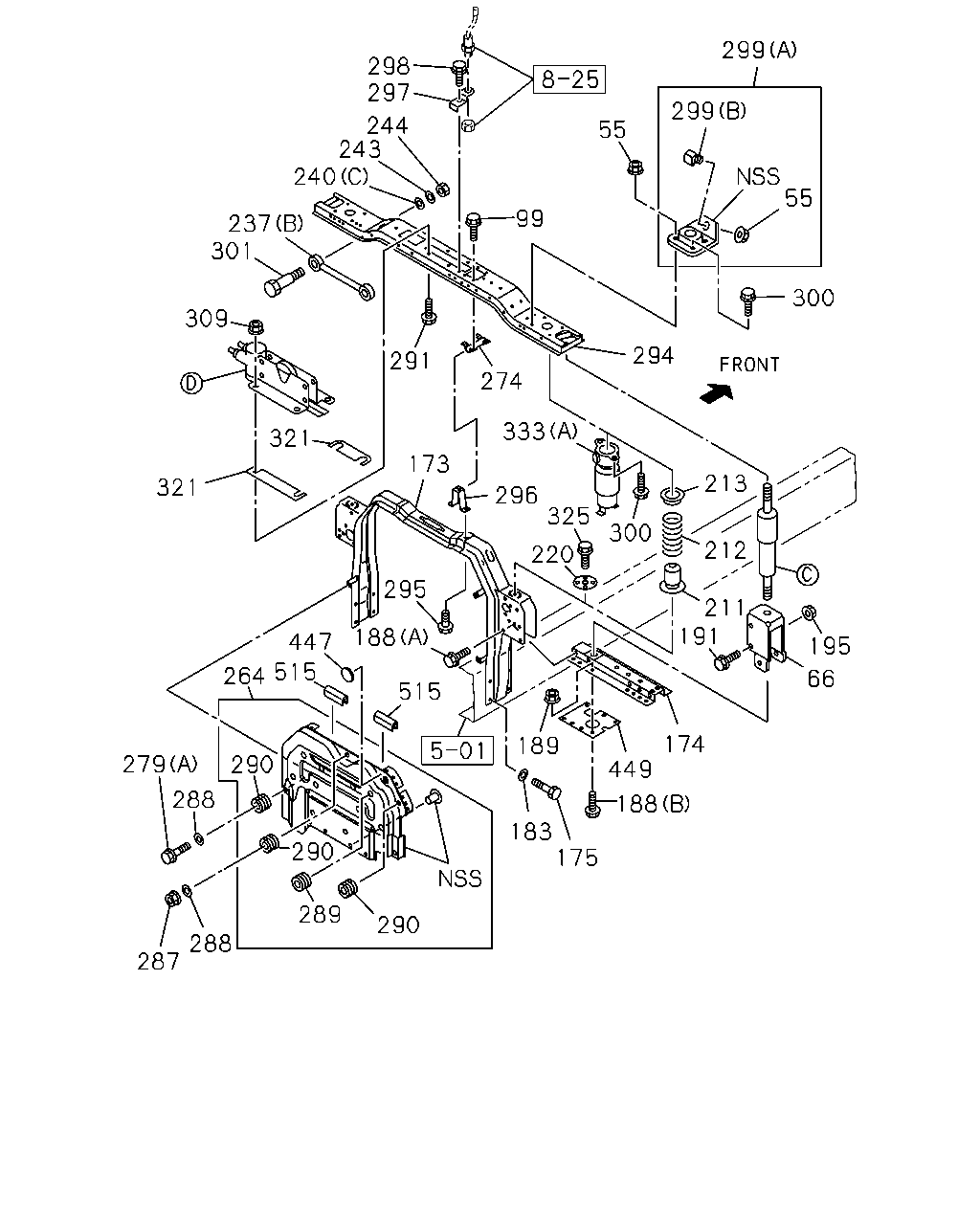

299 298 297 299 244 243 240 55 55 99 237 301 300 309 294 291 274 333 321 173 213 321 296 325 300 212 220 295 211 191 188 447 195 264 515 66 515 449 174 189 279 290 288 188 290 183 175 289 290 288 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0106-0602
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-
66	BRACKET; S/ABS	1-53458-755-1	01	1	0106-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0106-
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0106-0512
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-599-2	01	1	0106-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0106-0406
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0106-0512
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0106-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28681-020-0	04	1	0106-0512
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	0106-0512
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-
189	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	04	1	0106-0602
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	0603-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0106-0512
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0601-
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0106-0602
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0603-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0106-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0106-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0106-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0106-0603
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0604-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0106-0512
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-1	01	1	0106-
274	PIN	1-53458-996-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0106-0602
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	01	1	0603-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	0106-0605
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	0-91614-808-0	04	1	0606-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	0106-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	0106-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0106-0512
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0106-0512
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-
296	STOPPER; UPR	1-53458-973-0	01	1	0106-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0106-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0106-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0106-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28050-816-0	04	1	0601-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0106-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0106-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0106-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0106-0602
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0106-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0601-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0106-
447	SEAL ANTI NOISE EQUIPMENT<SV9> OD=45 BLACK	1-76798-017-0	02	1	0401-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0106-0106
449	BRACKET; OUTRIGGER	1-53456-279-0	02	1	0107-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=300	1-76710-006-0	01	1	0106-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	01	1	0106-

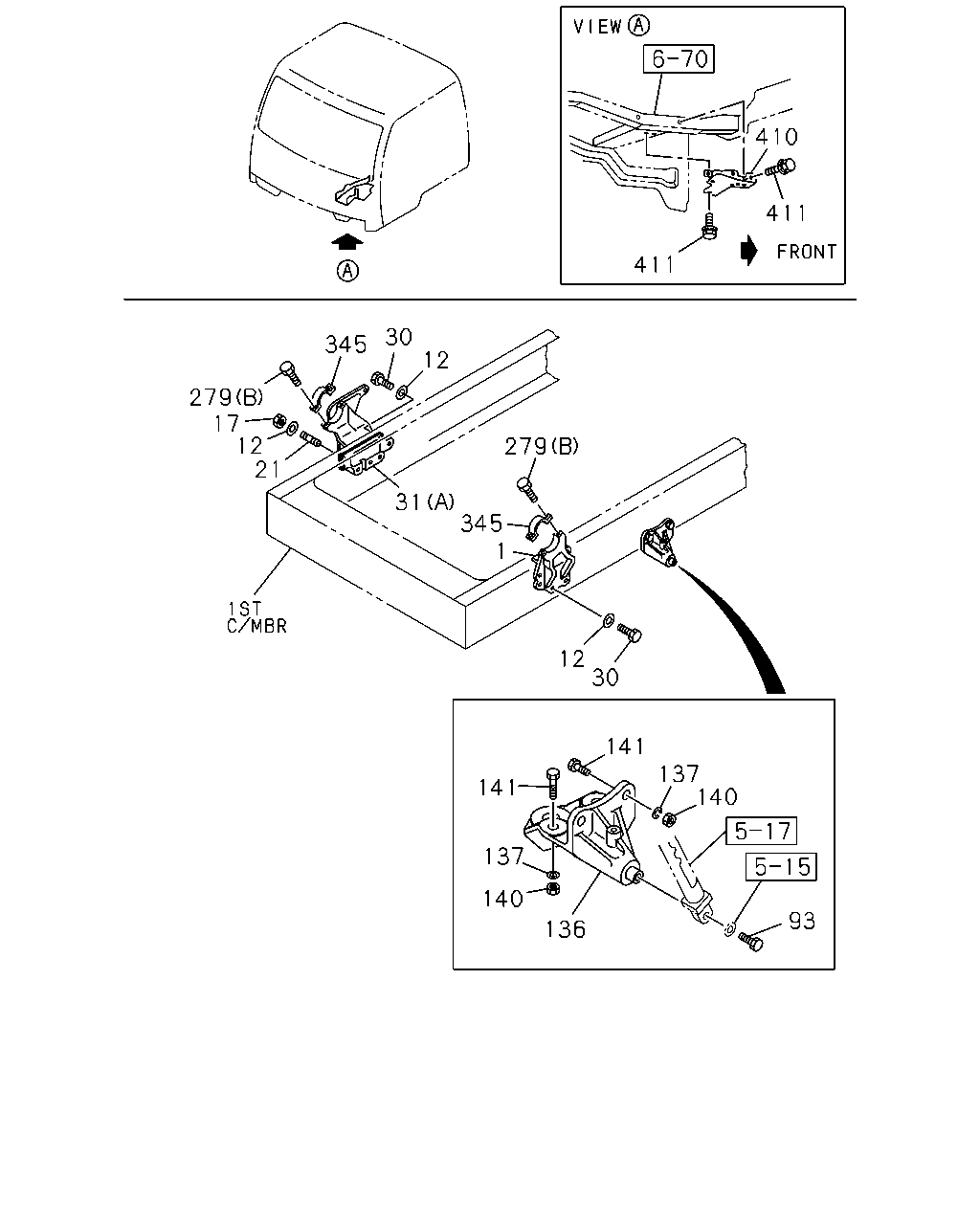

410 411 411 30 345 12 279 17 12 21 279 31 345 1 12 30 141 137 140 141 137 140 93 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-246-1	01	1	0106-
12	WASHER; LK,BRKT ID=16.2	1-09503-223-0	11	1	0106-
17	NUT; BRKT,CAB TILT M16	9-99110-516-0	01	1	0106-0512
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0601-
21	STUD; BRKT,CAB TILT M16X50 L=74	1-09300-117-0	01	1	0106-
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	10	1	0106-0410
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	05	1	0411-
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	05	1	0411-
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0106-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0106-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	AR	1	0106-
140	NUT; BRKT M14	9-99110-514-0	AR	1	0106-0512
140	NUT; BRKT M14	0-91110-514-0	AR	1	0601-
141	BOLT; BRKT M14X50	9-92061-450-0	AR	1	0106-0512
141	BOLT; BRKT M14X50	0-20951-450-0	AR	1	0601-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
345	CAP; CAB	1-53458-336-3	02	1	0106-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0106-
411	BOLT; REINFORCEMENT M8X20 W/LK&PL WASHER	8-94279-208-0	04	1	0106-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0106-

202 202 203 204 205 294 204 203 201 173 203 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-1	01	1	0106-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0106-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-599-2	01	1	0106-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0106-0406
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0106-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
