Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

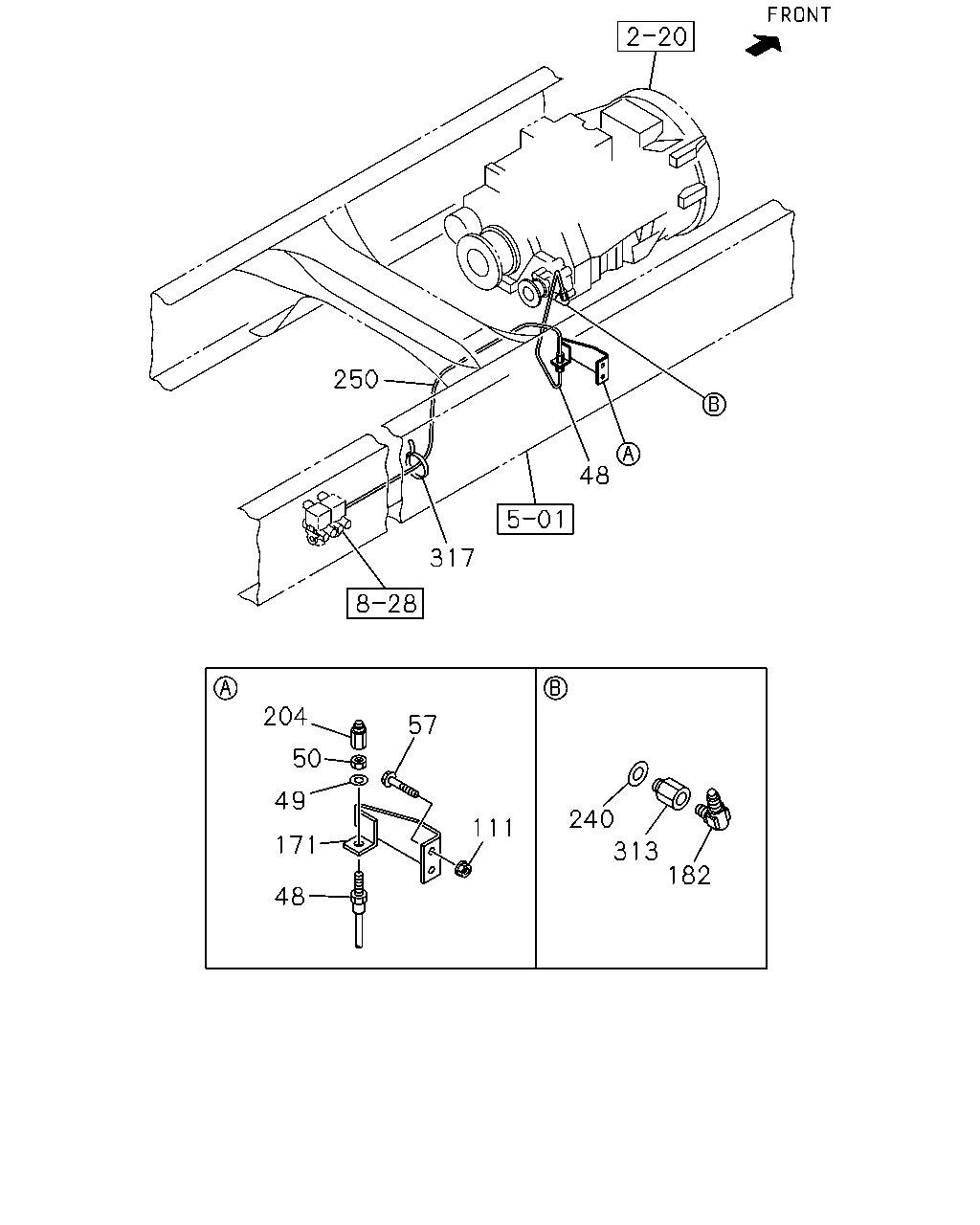

2-85 — POWER TAKE OFF CONTROL
(#117669) — 14 parça
48
250
317
204
50
57
111
49
171
48
240
313
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=400
1-09363-606-0
01
1
1304-
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
0-91510-512-0
01
1
1304-
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1304-
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X35 FLANGE
0-28650-835-0
02
1
1304-
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
02
1
1304-
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM)
8-98086-261-0
01
1
1304-
182
CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1304-
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1304-1312
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6
1-87411-002-0
01
1
1304-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1304-
313
ADAPTER
PTO ZF TRANS RR(BDM) PT1/4
1-09654-396-0
01
1
1304-
317
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350
1-09707-183-0
01
1
1304-
